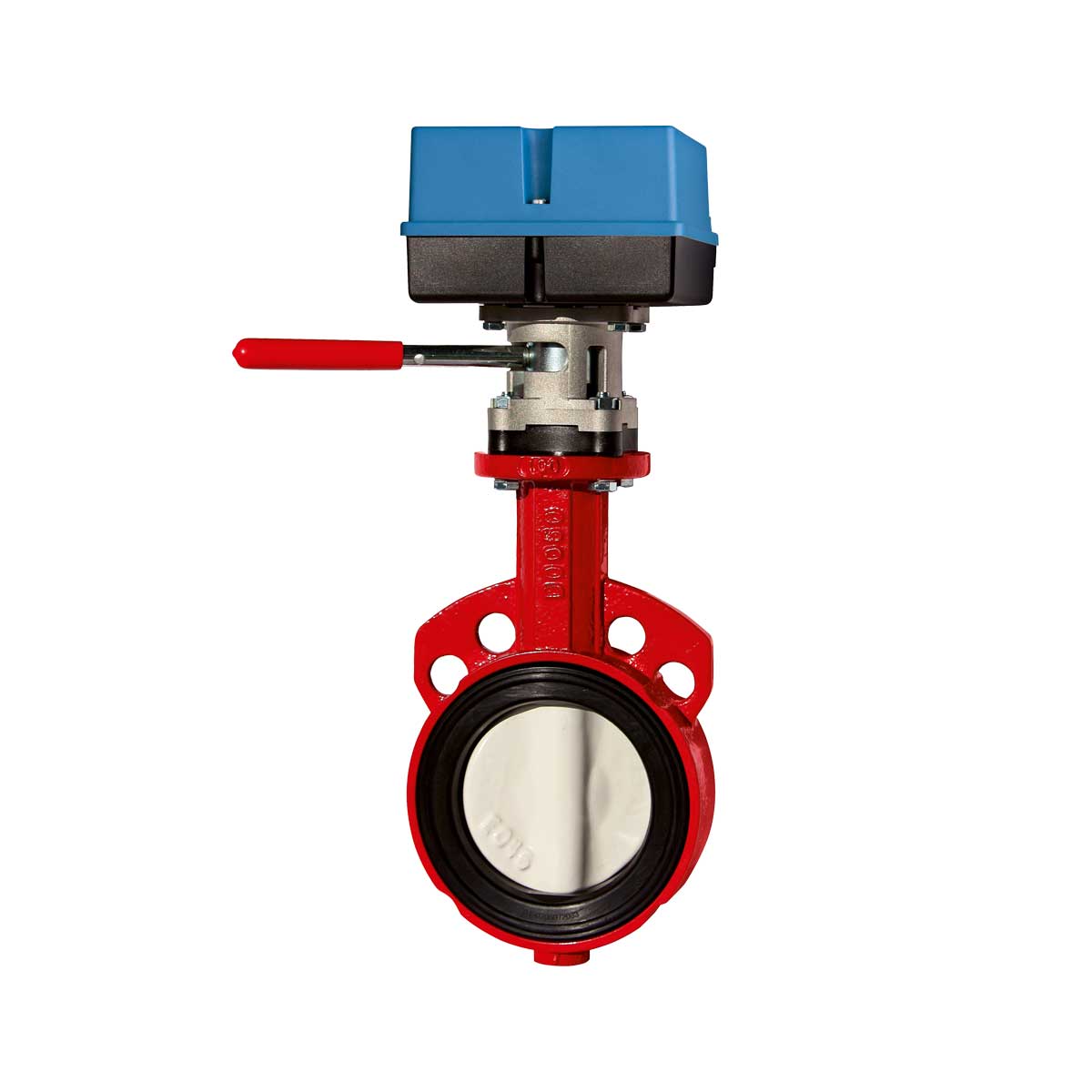

VHB2F
Motorized butterfly valves
Product features
DN25 – DN200
Kvs: 52 – 2852 m³/h
Medium: water -10 – 110 °C
Uv: AC 24 Volt or AC 230 Volt
Y: On/Off
Valve body: cast iron GGG-40 EN-JS1030
IP54
Types
Butterfly valves
| Type | DN [mm] | Kvs [m³/h] | PFA [bar] |
|---|---|---|---|
| VHB2F025 | 25 | 52 | 16 |
| VHB2F032 | 32 | 72 | 16 |
| VHB2F040 | 40 | 126 | 16 |
| VHB2F050 | 50 | 124 | 16 |
| VHB2F065 | 65 | 243 | 16 |
| VHB2F080 | 80 | 397 | 16 |
| VHB2F100 | 100 | 723 | 16 |
| VHB2F125 | 125 | 1083 | 16 |
| VHB2F150 | 150 | 1591 | 16 |
| VHB2F200 | 200 | 2852 | 16 |
PFA: Maximum permissible medium pressure
Actuators (motorsets)
| Type | Uv | Running time [s] | Torque [Nm] | Power [VA] |
|---|---|---|---|---|
| M130.4S | AC 24 V | 130 | 35 | 6,5 |
| M140.4S | AC 24 V | 10 | 50 | 55 |
| M180.4S | AC 24 V | 130 | 80 | 26 |
| M130.2S | AC 230 V | 130 | 35 | 6,5 |
| M140.2S | AC 230 V | 10 | 50 | 55 |
| M180.2S | AC 230 V | 130 | 80 | 26 |
S2: With 2 integrated auxiliary switches (SPDT)
Specifications

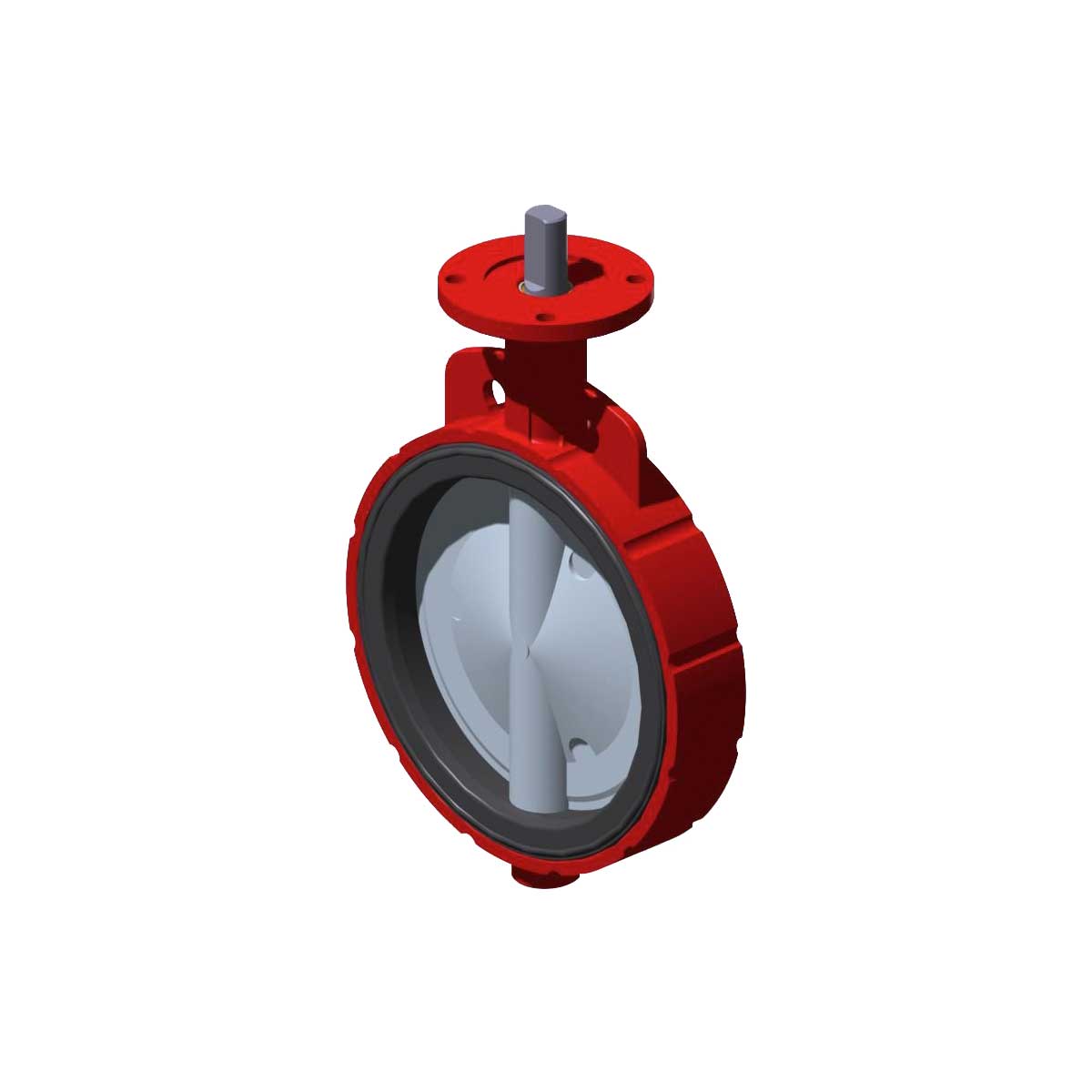

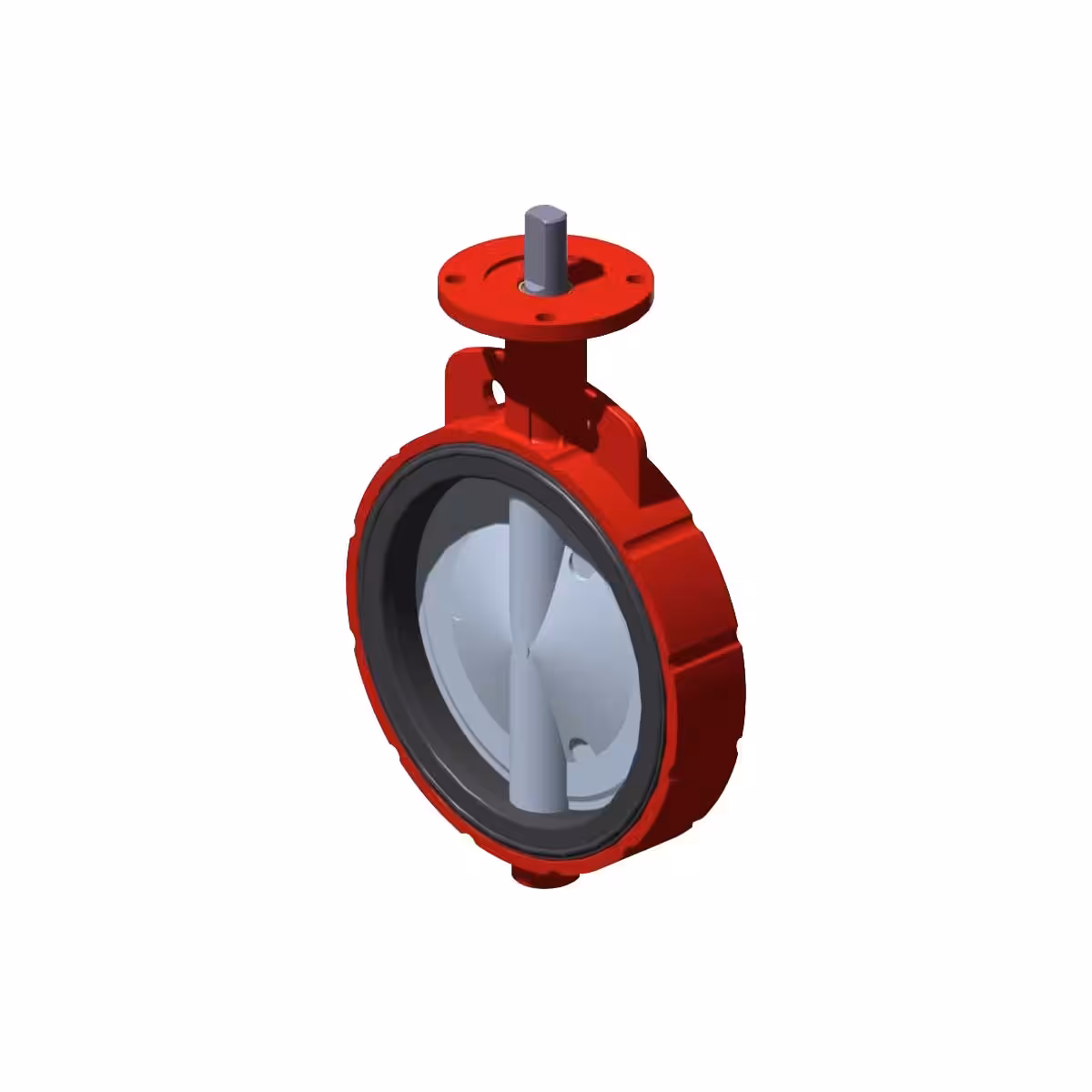

Butterfly valves
DN25 – DN200
Kvs: 52 – 2852 m³/h
Medium: water -10 – 110 °C
Centering lugs
Valve body: cast iron GGG-40 EN-JS1030
Butterfly: Nylon 11 coating ( > DN50 )
Flanged connection PN6/10/16 with centering lug
Liner: EPDM
Actuators
Uv: AC 24 Volt or AC 230 Volt
Y: On/Off
Rotation angle: 90°
Running time: 10 s or 130 s
Manual override
Overload protected
IP54
