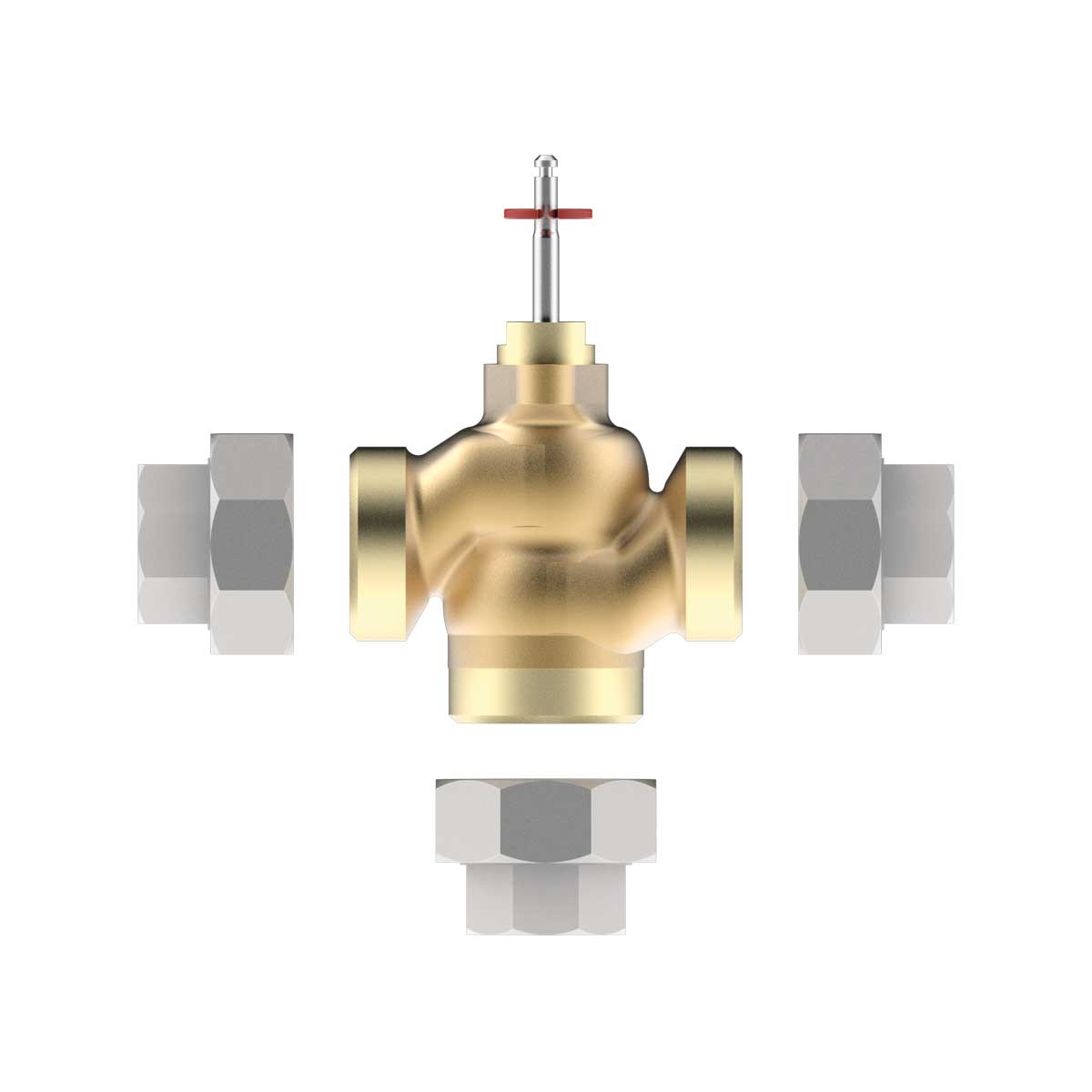

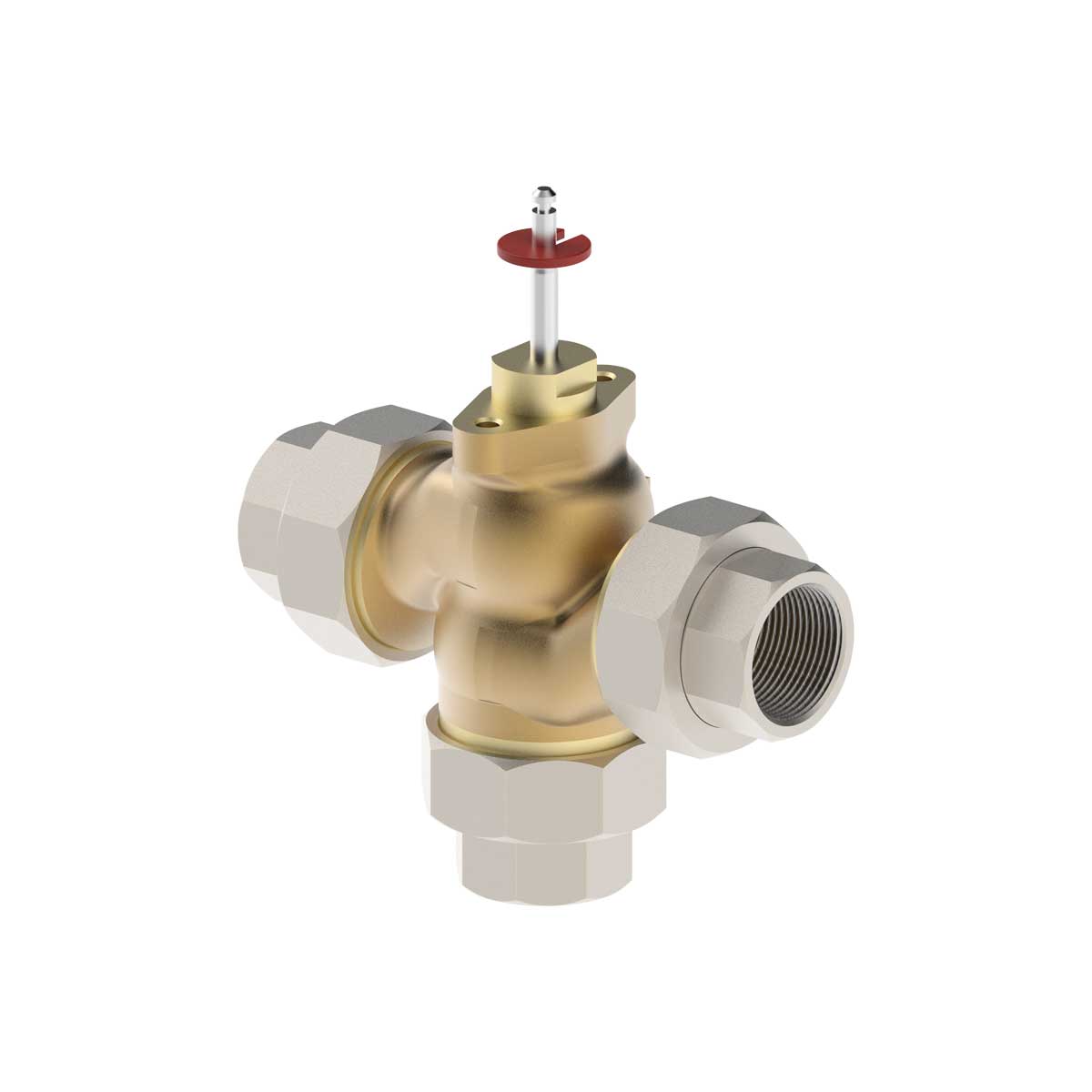

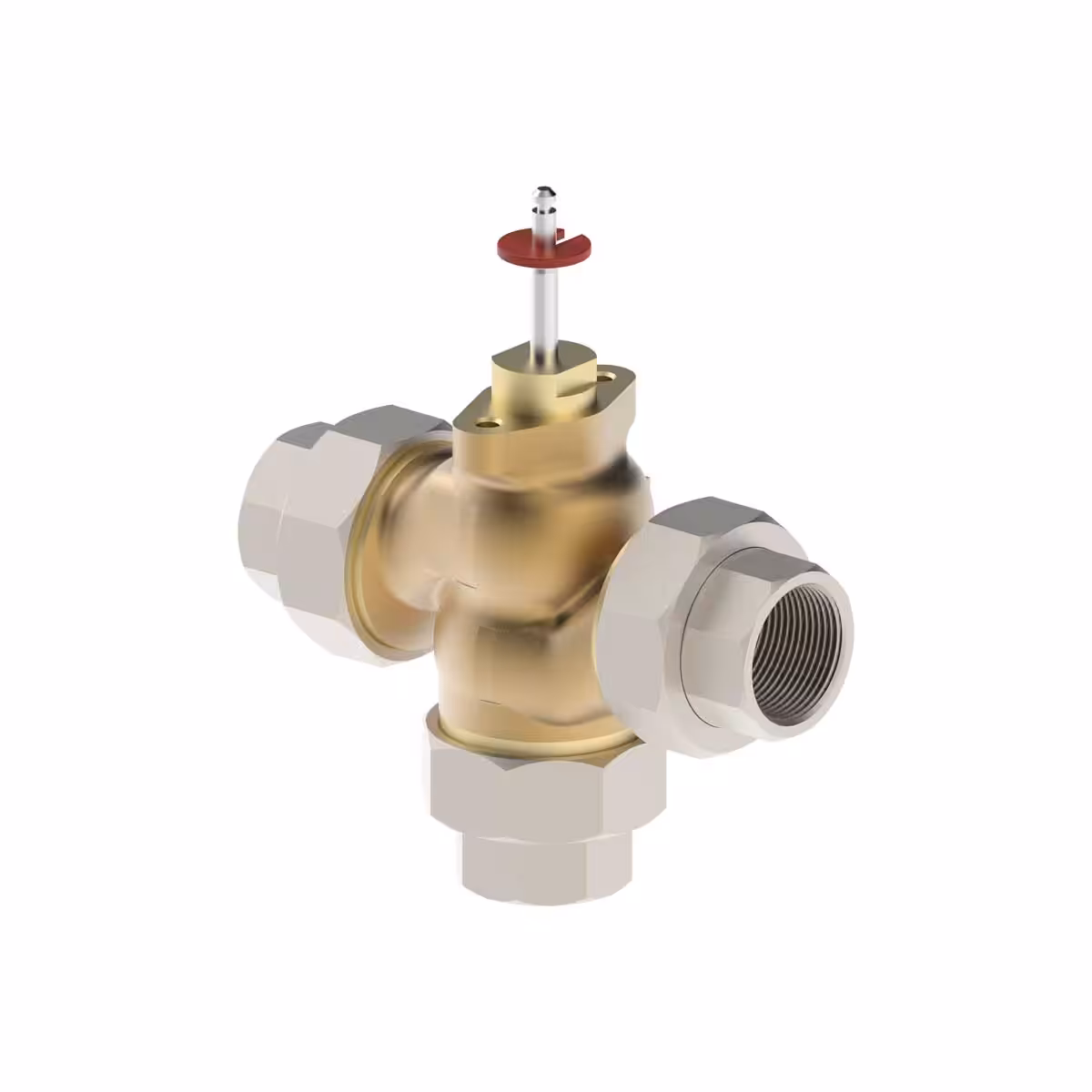

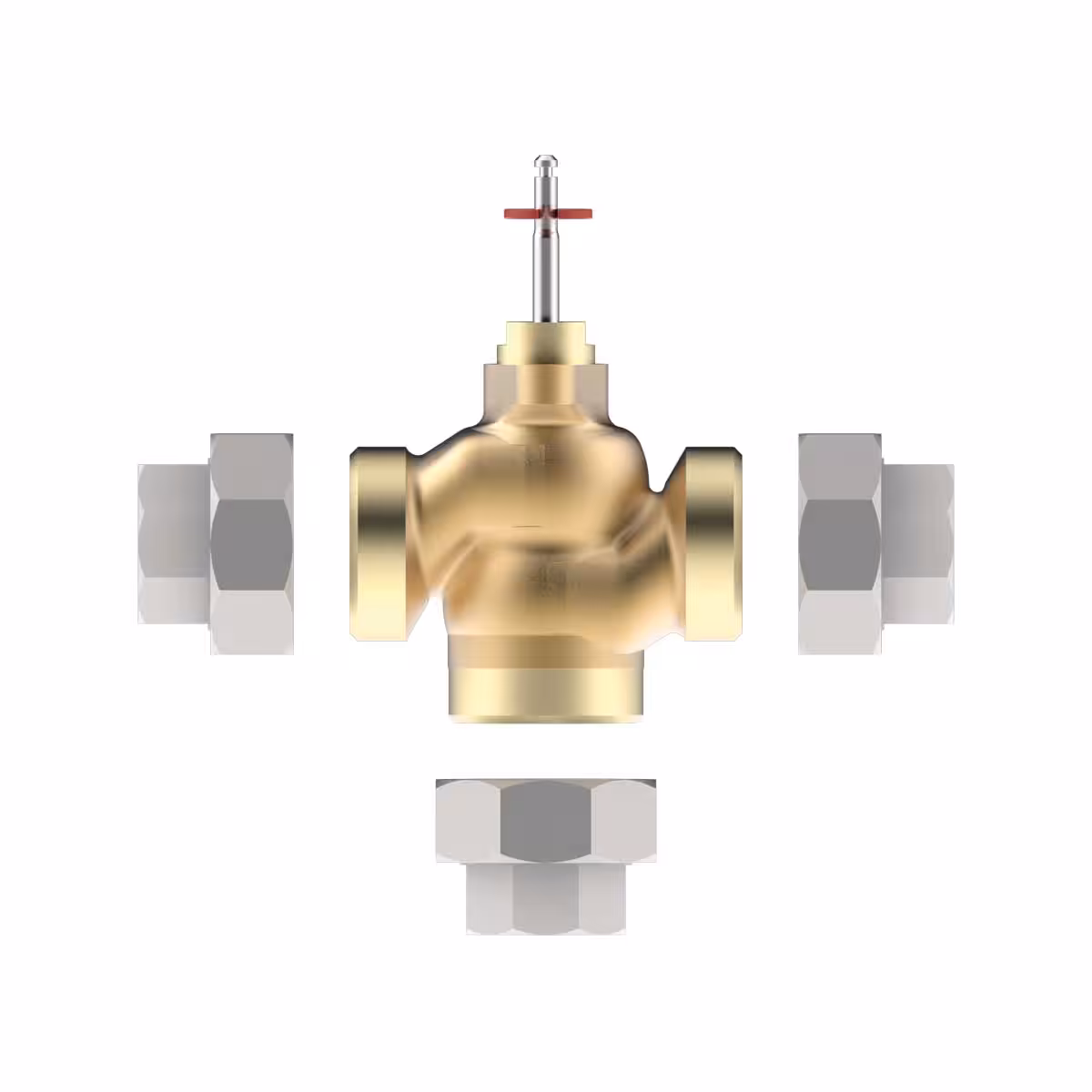

RH3D

3-port control valves PN16

Product features

DN15 – DN50
Kvs: 0,63 – 40 m³/h
Medium: water 0 – 150 °C 1)
A > AB: equal percentage
Bronze Rg-5 (CC491K)
Threaded connection ISO 228-1, with tail pieces ISO 7-1 (Rp)
Tight sealing EN1349, VI G1

Types

Type DN [mm] Rp [inch] Kvs [m³/h] Max. stroke [mm]
RH3D015A 15 ½″ 4 12
RH3D015B 15 ½″ 2,5 12
RH3D015C 15 ½″ 1,6 12
RH3D015D 15 ½″ 1,25 12
RH3D015E 15 ½″ 0,63 12
RH3D020A 20 ¾″ 6,3 12
RH3D020B 20 ¾″ 5 12
RH3D025A 25 1″ 10 14
RH3D025B 25 1″ 8 14
RH3D032A 32 1¼″ 16 14
RH3D032B 32 1¼″ 12,5 14
RH3D040A 40 1½″ 25 14
RH3D040B 40 1½″ 20 14
RH3D050A 50 2″ 40 14
RH3D050B 50 2″ 31,5 14



1)With stem heater for medium temperatures down to -15 °C

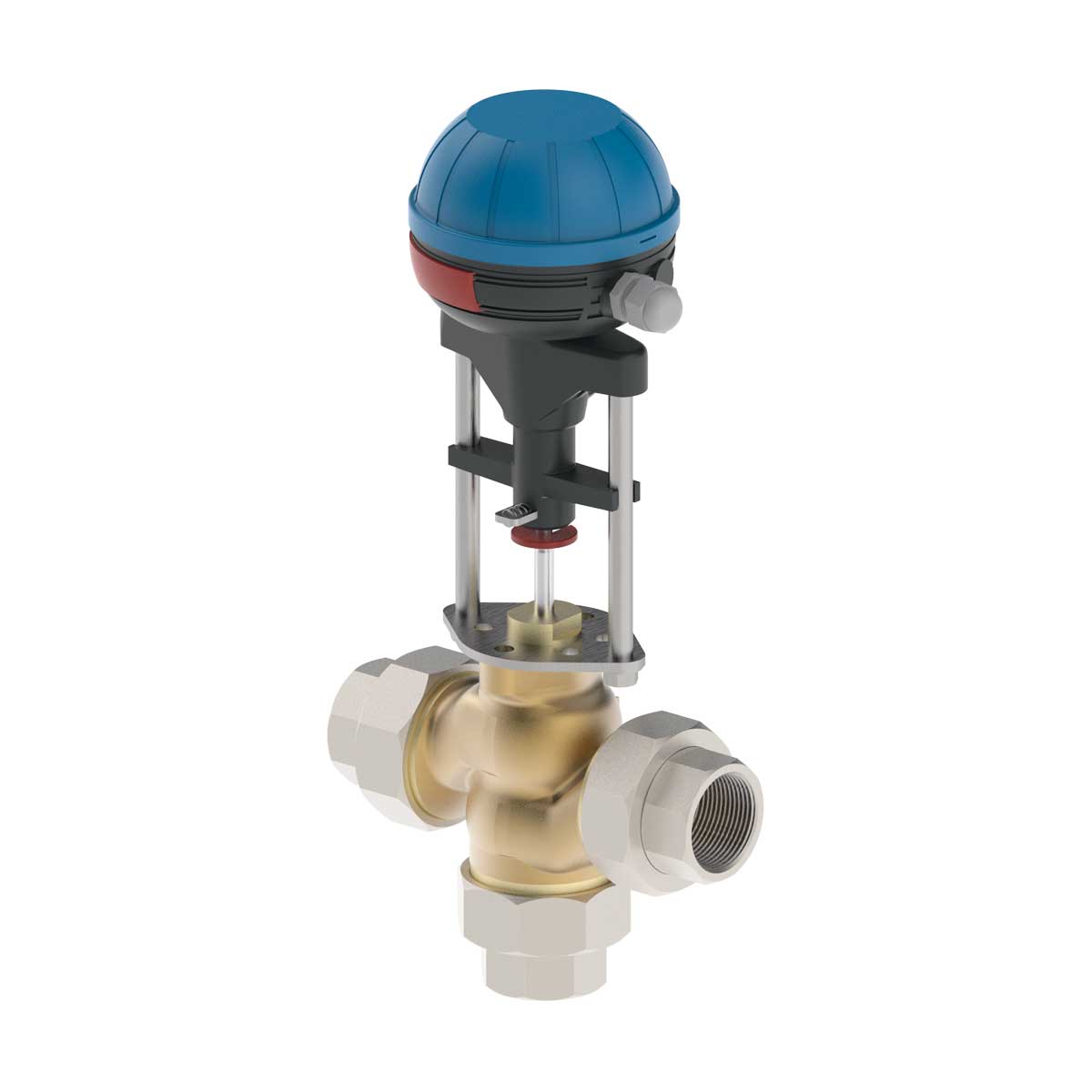

Compatible products

55_

600 N
14 mm or 20 mm

100_

1000 N
20 mm

160_

1600 N
14 mm, 20 mm, 30 mm
