RAN4

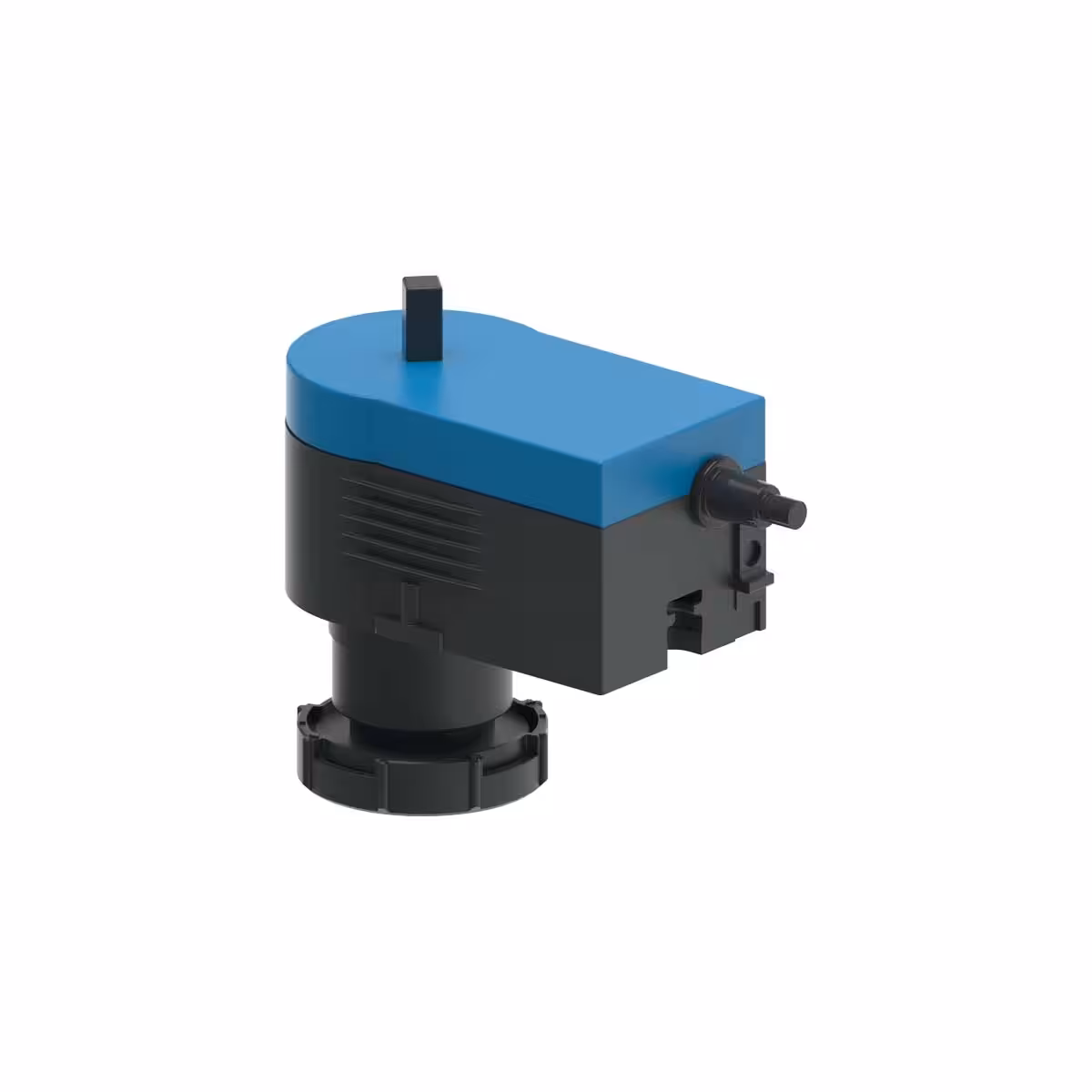

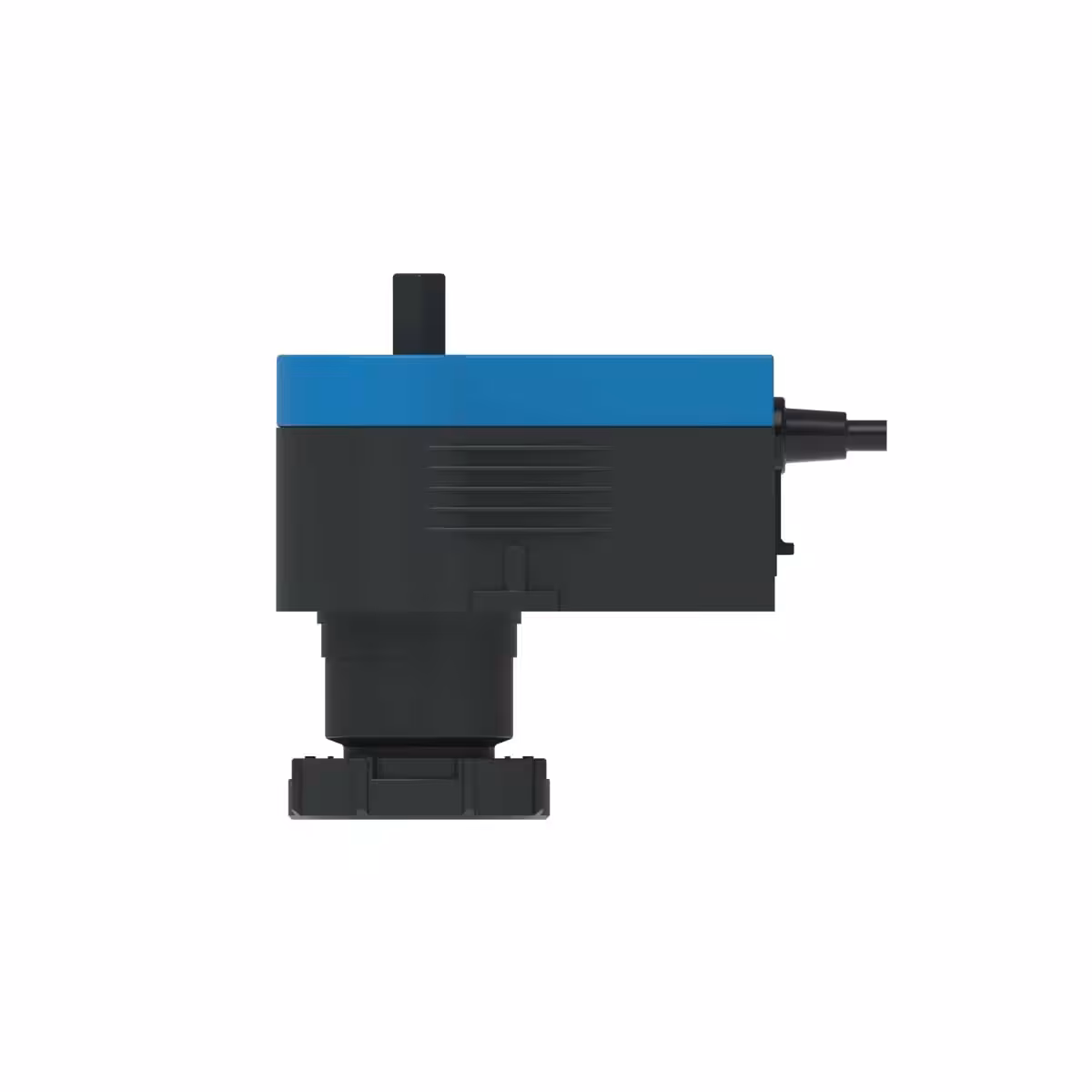

Actuator for control ball valves RBV_T

Product features

Uv: AC 24 Volt
Y: 2-point and 3-point
Torque: 8 Nm
Rotating angle: 90°
Running time: 120 s (fixed)
Overload protected
With manual override
IP54

Types

Type Uv Y Torque [Nm] Power [VA]
RAN4 AC 24 V 2-point / 3-point 8 1,7

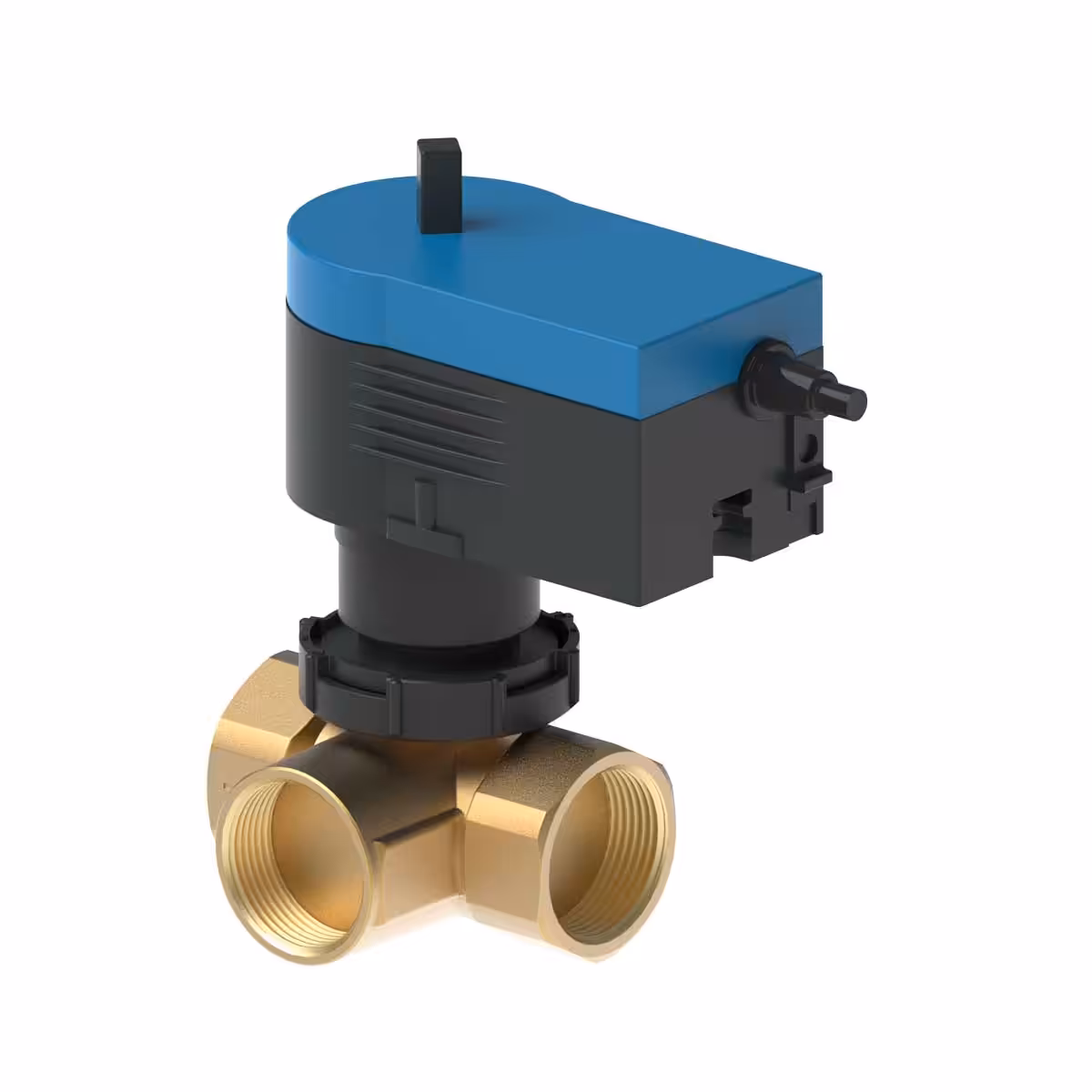

The control ball valve RBV_T and actuator are supplied separately and are not pre-assembled.

Compatible products

RBV2T

1 - 63 m³/h
5 - 100 °C

RBV3T

1,6 - 40 m³/h
5 - 100 °C
