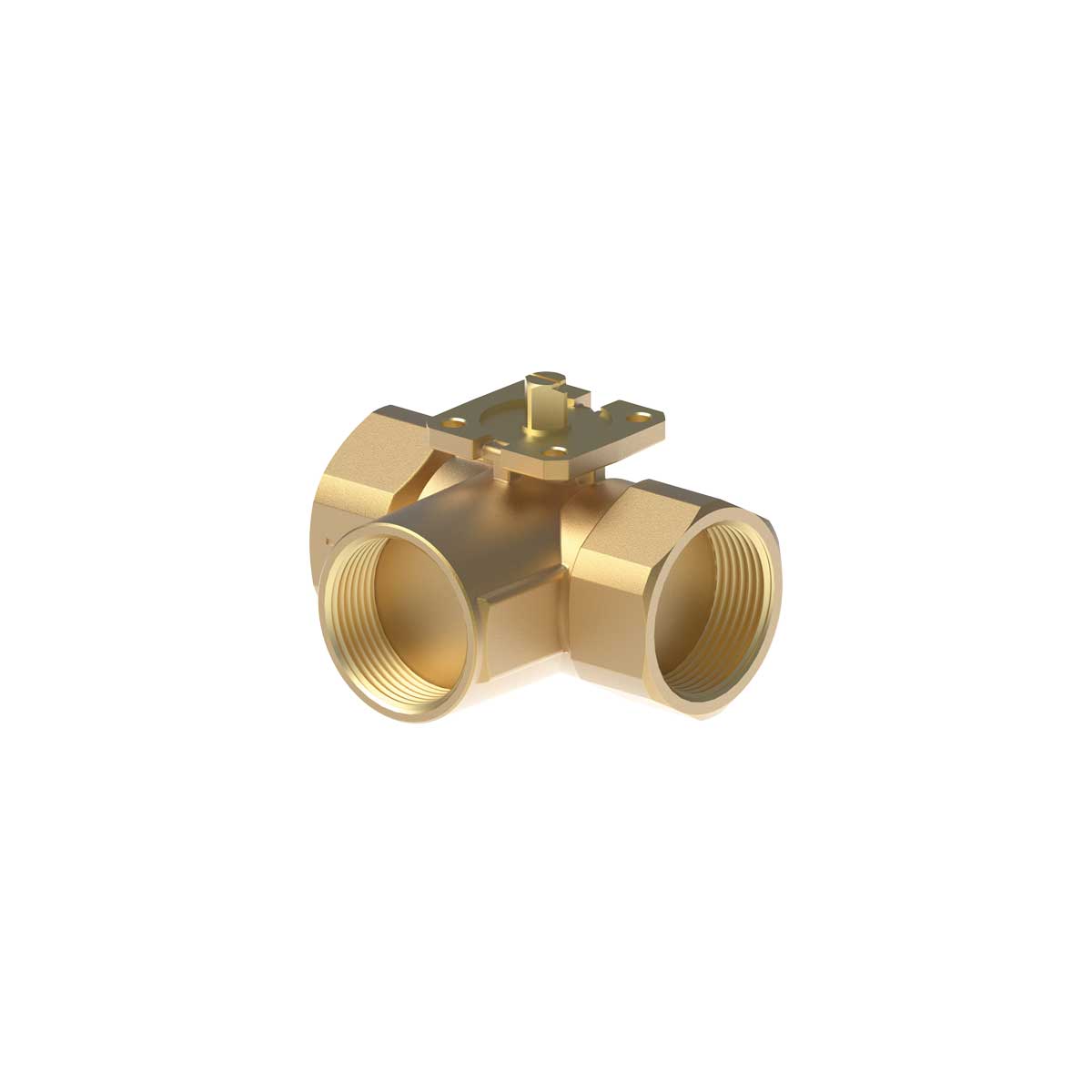

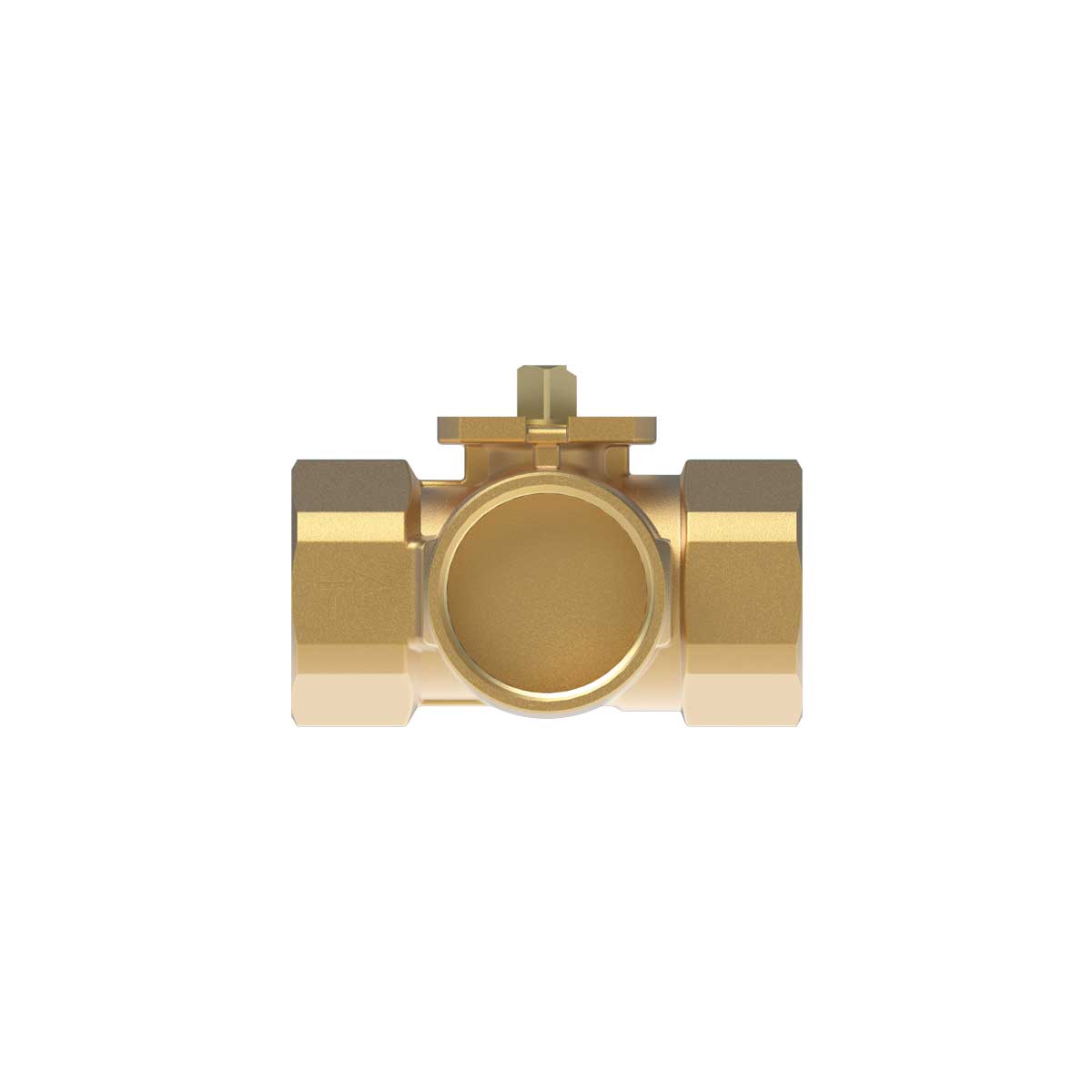

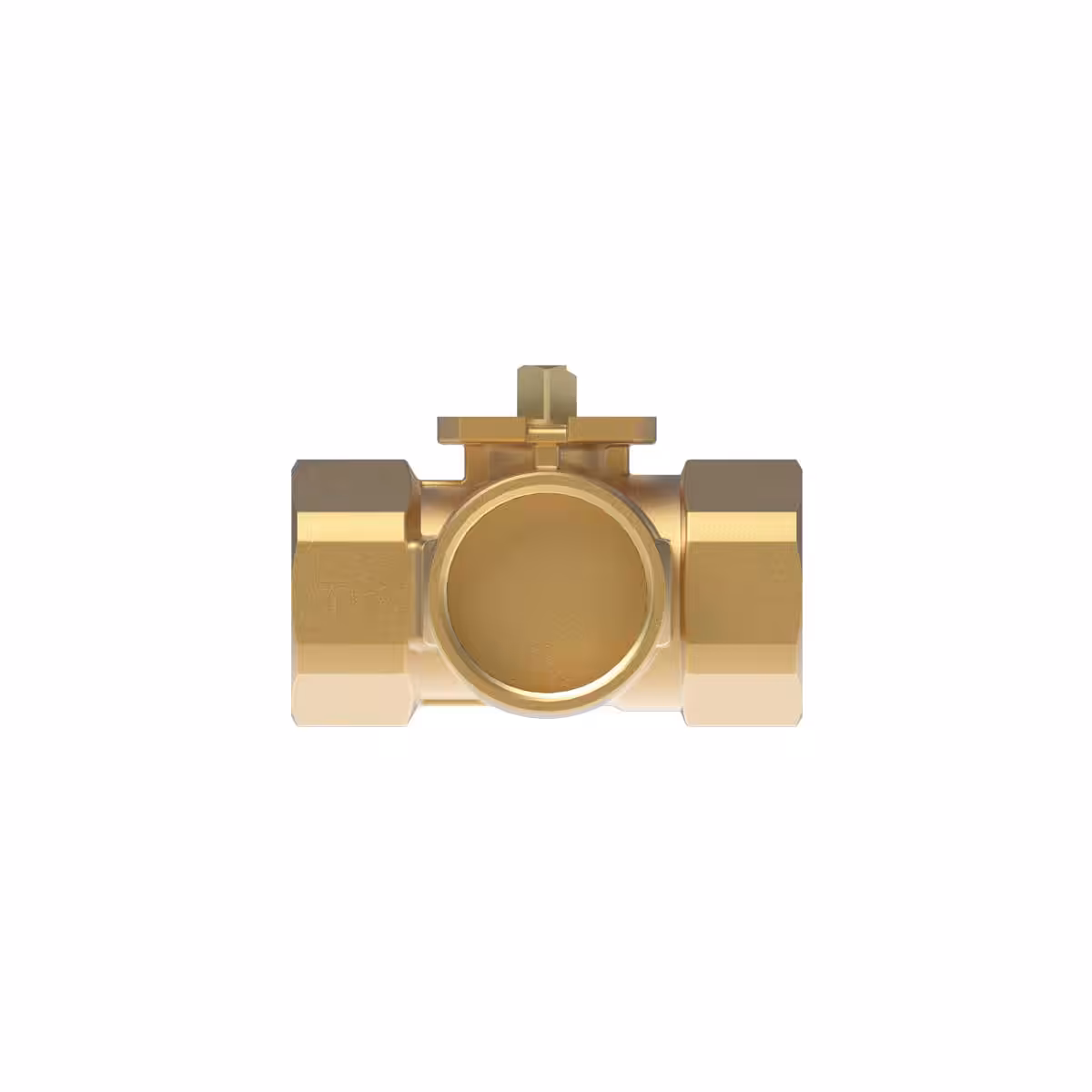

RBV3T

3-port control ball valves PN40

Product features

DN15 – DN50
Kvs: 1,6 – 40 m³/h
Medium: water 5 – 100 °C 1
A > AB: equal percentage
Brass (CW602N)
Female (inside) thread ISO 7-1 (Rp)
Valve leakage: 0,001% of the Kvs value

Types

Type DN [mm] Rp [inch] Kvs [m³/h] Rotation angle
RBV3T015A 15 ½″ 6,3 90°
RBV3T015B 15 ½″ 4 90°
RBV3T015C 15 ½″ 2,5 90°
RBV3T015D 15 ½″ 1,6 90°
RBV3T020A 20 ¾″ 6,3 90°
RBV3T020B 20 ¾″ 4 90°
RBV3T025A 25 1″ 10 90°
RBV3T032A 32 1¼″ 16 90°
RBV3T040A 40 1½″ 25 90°
RBV3T050A 50 2″ 40 90°



1)Can also be used with medium temperatures -10 – 130 °C by using specific accessories

Compatible products

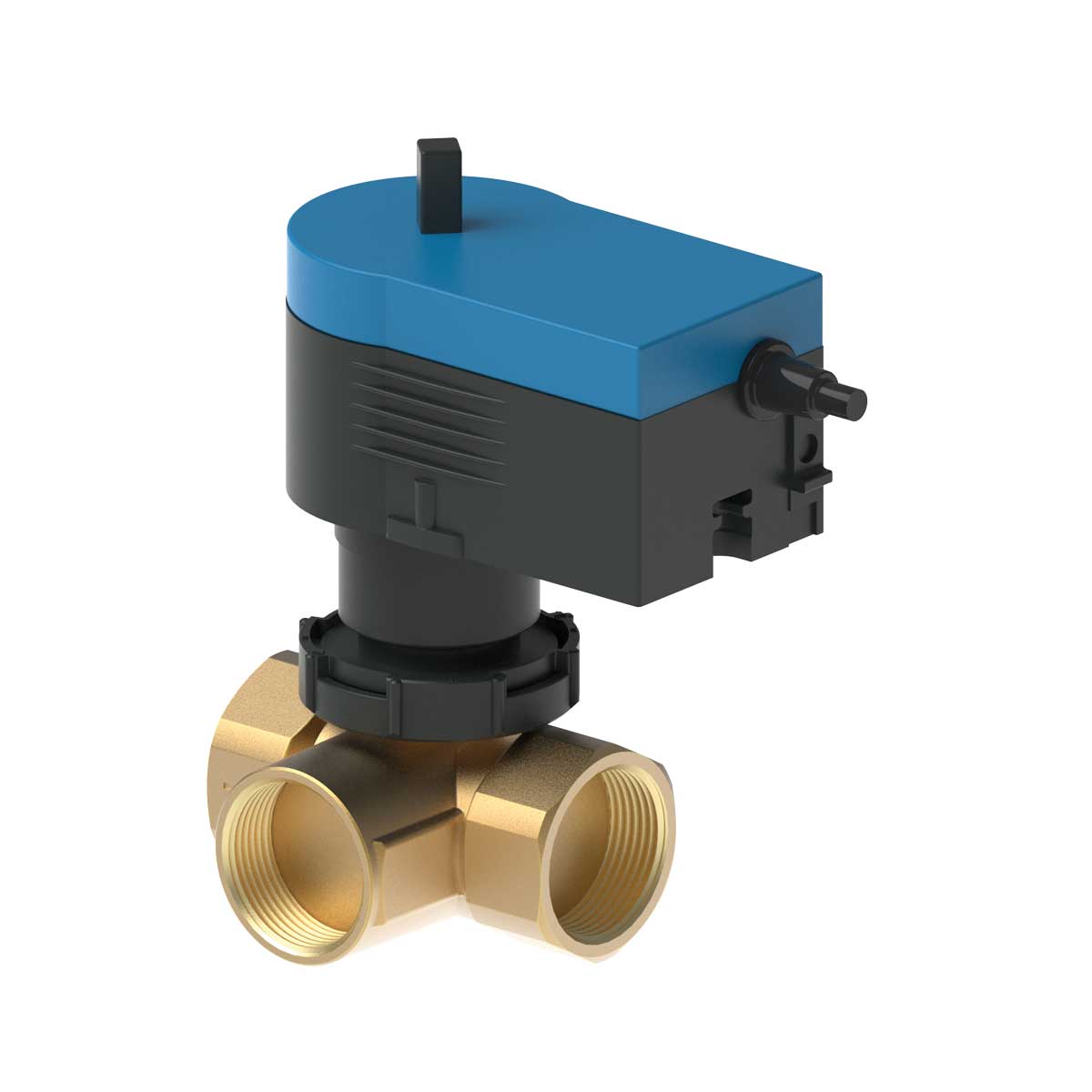

RAN2

8 Nm
AC 230 Volt

RAN4

8 Nm
AC 24 Volt

RAN4SR

8 Nm
AC 24 Volt, DC 24 Volt

LAN4SR

4 Nm
AC 24 Volt
