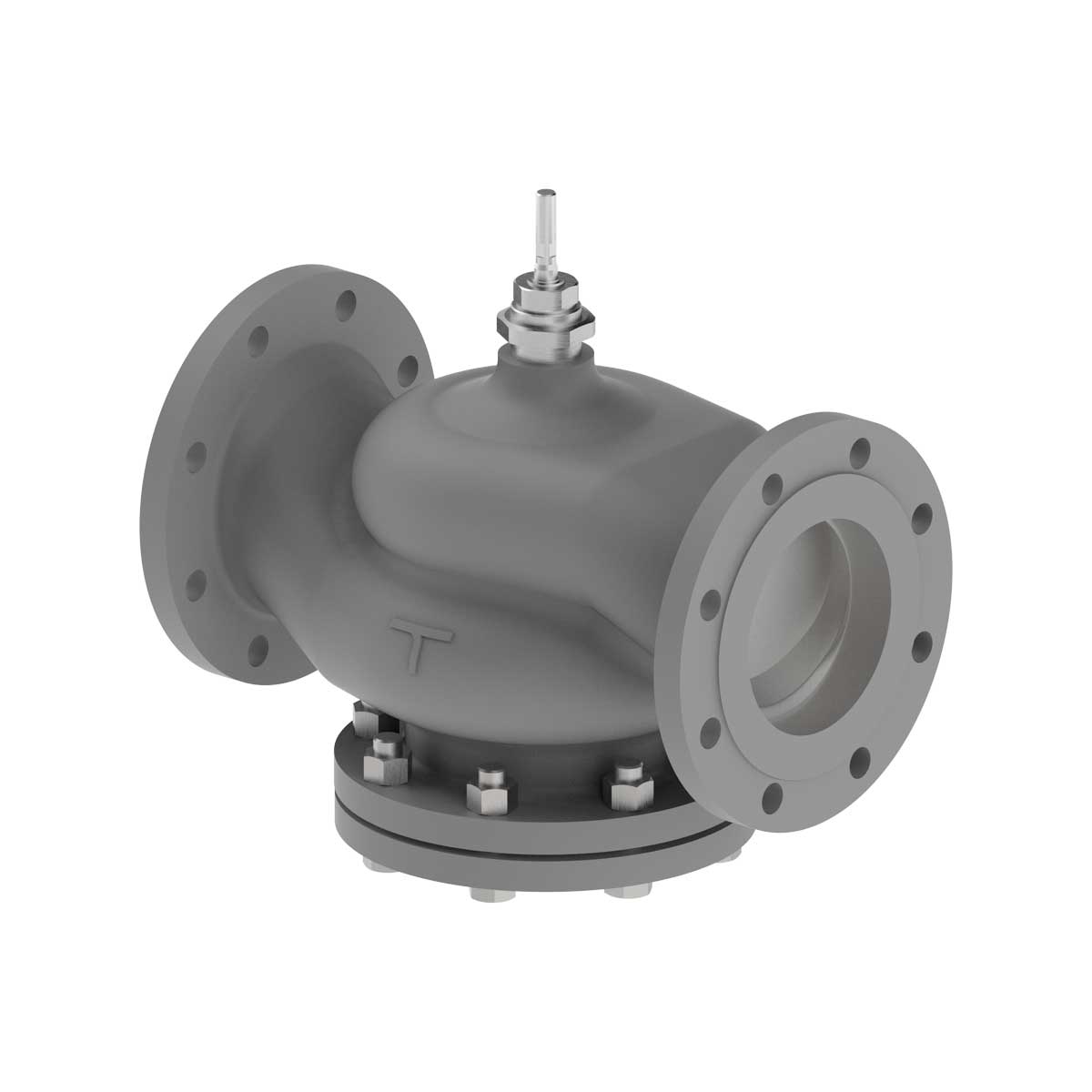

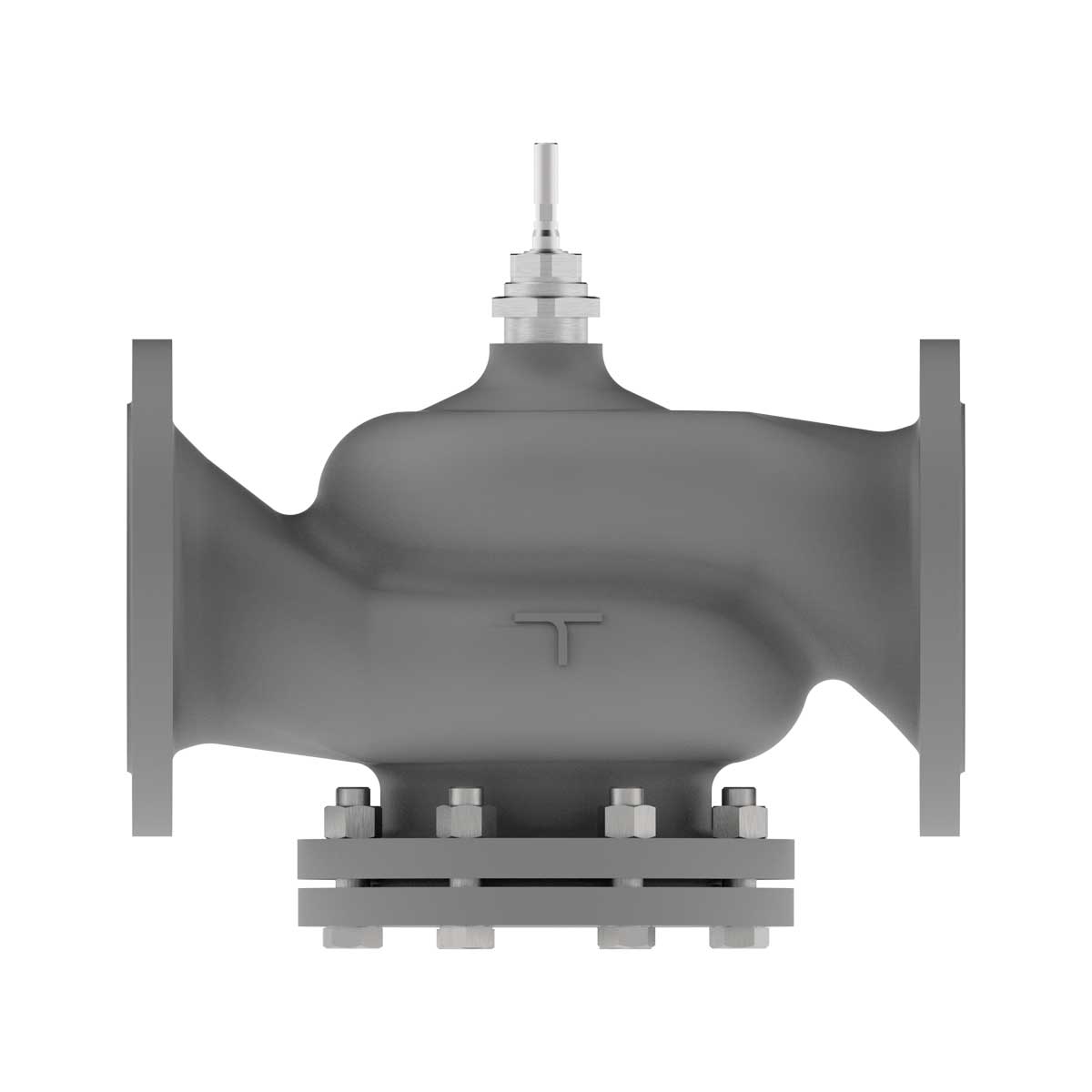

RH2F

2-port control valves PN16

Product features

DN15 – DN200
Kvs: 31,5 – 500 m³/h
Medium: water 0 – 150 °C 1)
A > AB: equiprocentual
Cast iron GG-25 (EN-JL1040)
Flanged connection EN1092-2 type 21
Tight sealing EN1349, VI G1s

Types

Type DN 1) [mm] Kvs [m³/h] Max. stroke [mm]
RH2F050A 50 40 14
RH2F050B 50 31,5 14

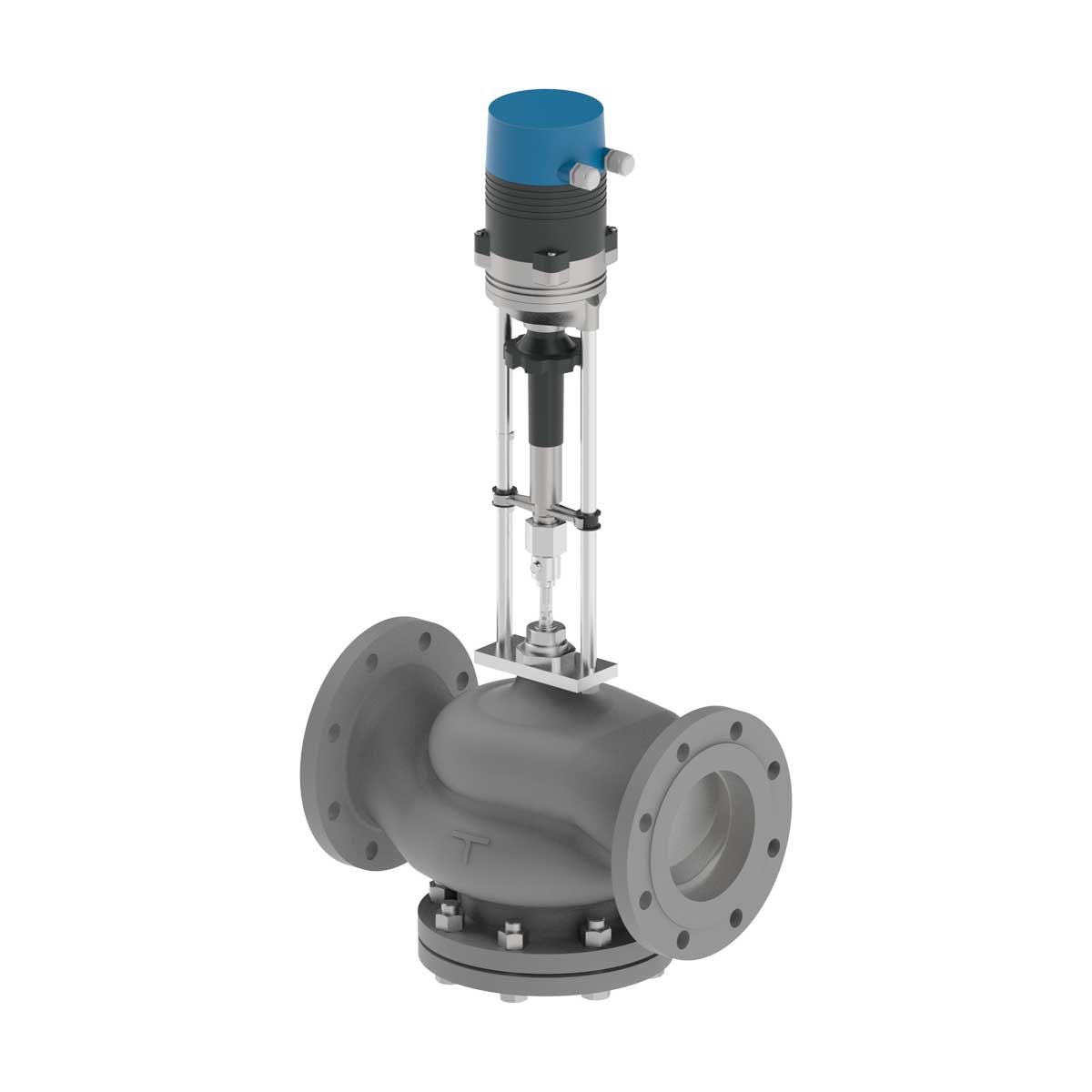

RH2F065A.xx 65 63 20 or 30 2)
RH2F065B.xx 65 50 20 or 30 2)
RH2F080A 80 100 30
RH2F080B 80 80 30
RH2F100A 100 160 30
RH2F100B 100 125 30
RH2F125A 125 250 50
RH2F150A 150 315 50
RH2F200A 200 500 60



1)With stem heater for medium temperatures down to -10 °C
2)Max. stroke (xx) to specify when ordering

Compatible products

55_

600 N
14 mm or 20 mm

100_

1000 N
20 mm

160_

1600 N
14 mm, 20 mm, 30 mm

220_

2200 N
30 mm

400_

4000 N
30 mm, 50 mm

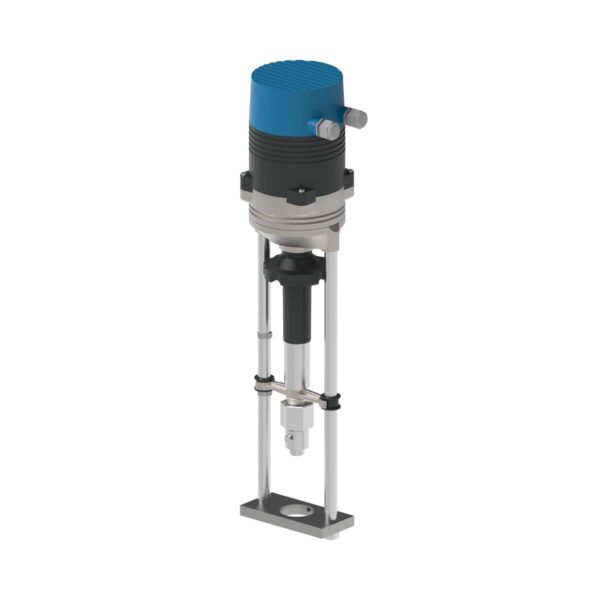

500_

5000 N
30 mm, 50 mm, 60 mm
