220_

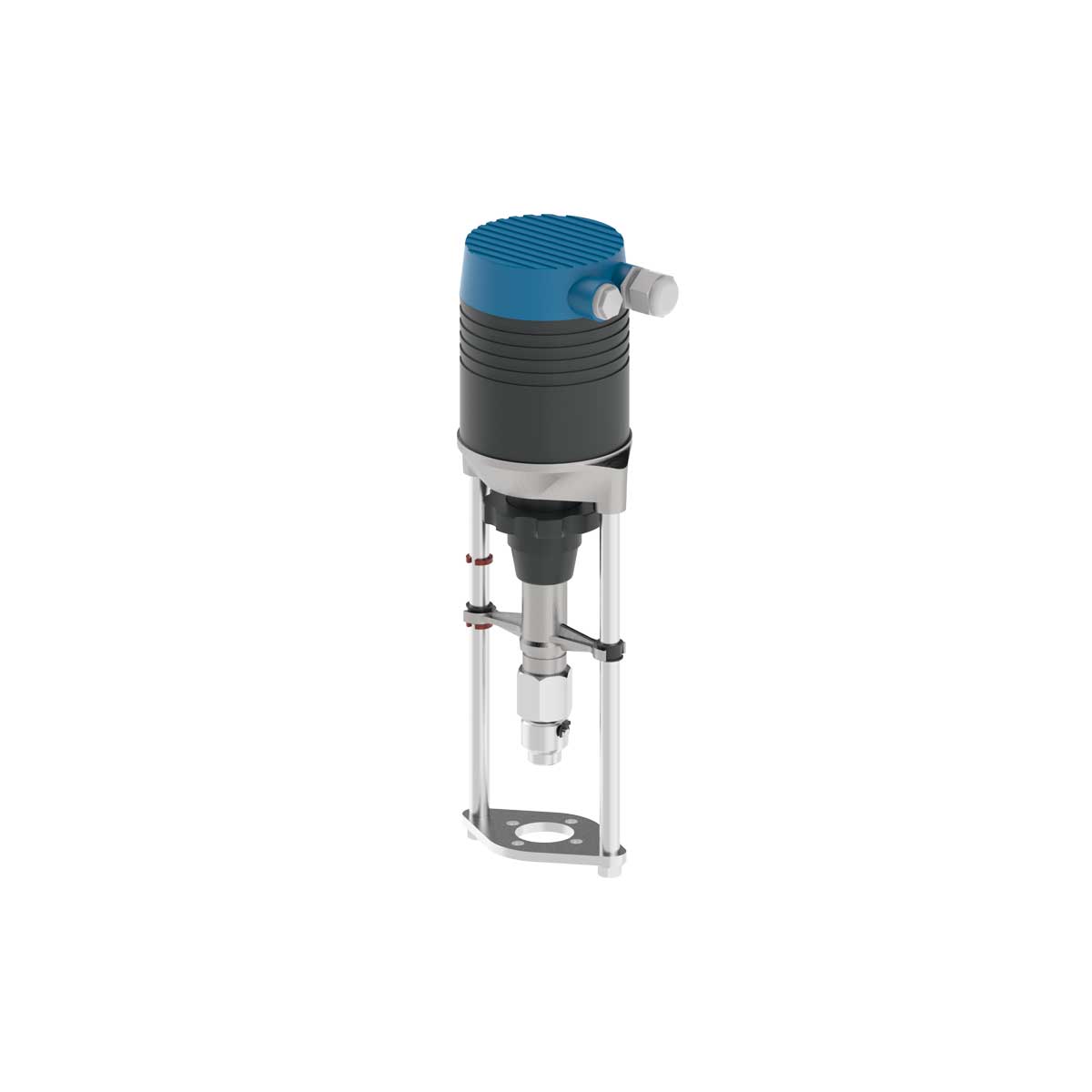

Linear actuator for control valves

Product features

UV: AC 24 Volt or AC 230 Volt, 50/60Hz
Y: 3-point (4-wire), 0 – 10 Vdc or 4 – 20 mA
Force: 2200 N
Running time: 3 s/mm
Stroke max.: 30 mm
Automatic self-calibration
Overload protected
With manual override
IP54

Types

Type Uv Y Max. stroke [mm] Power [VA]
220U23.30 AC 230 V 3-point / 0 – 10 Vdc 30 12
220i23.30 AC 230 V 3-point / 4 – 20 mA 30 12
220U43.30 AC 24 V 1) 3-point / 0 – 10 Vdc 30 6
220i43.30 AC 24 V 1) 3-point / 4 – 20 mA 30 6



1)The DC 24 V version is available only on request and requires an additional accessory

Downloads

TypeDocumentFile typeSize
CatalogCatalog 2026View

Compatible products

RH2D

0,63 - 40 m³/h
0 - 150 °C

RH3D

0,63 - 40 m³/h
0 - 150 °C

RH2F

31,5 - 500 m³/h
0 - 150 °C

RH3F

31,5 - 500 m³/h
0 - 150 °C
