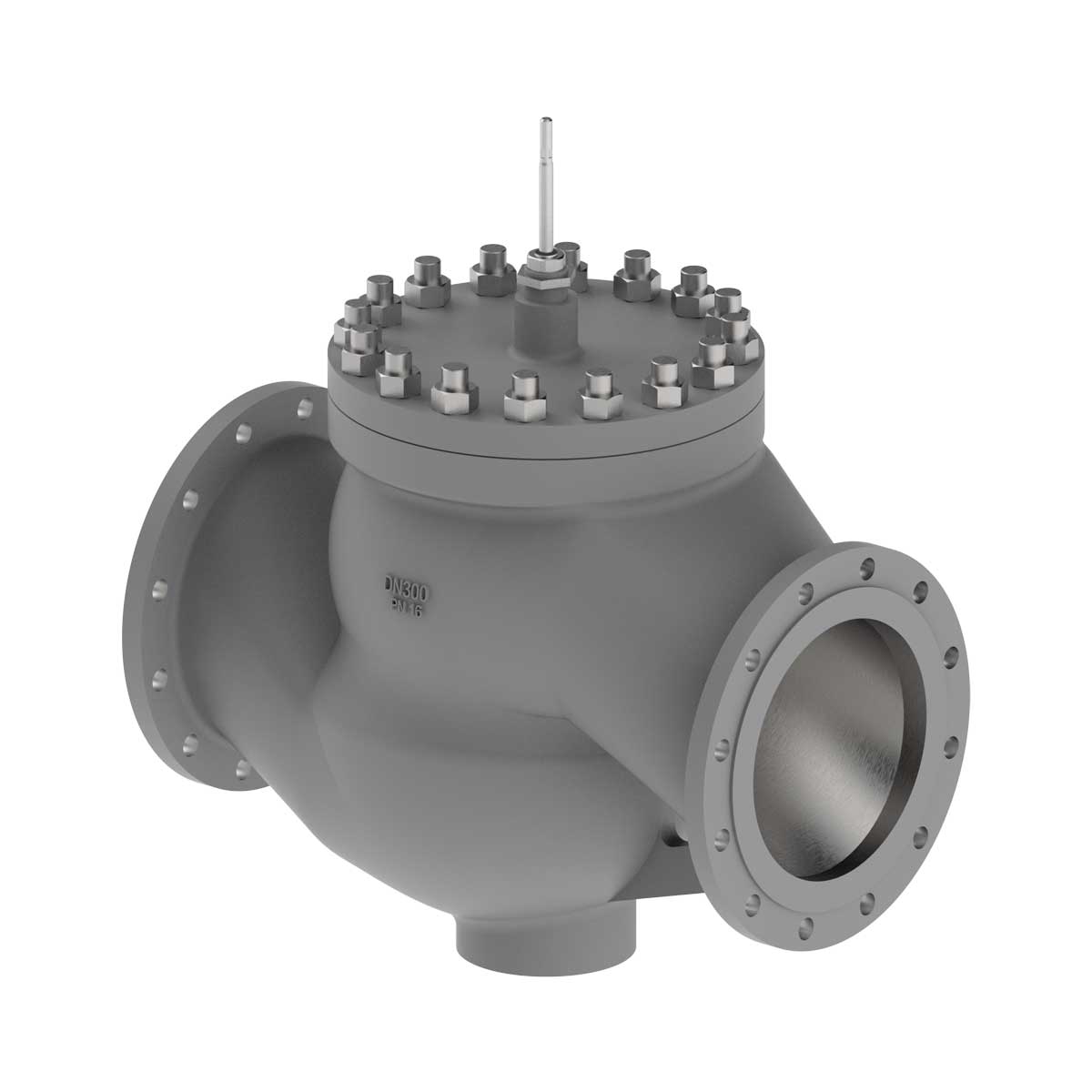

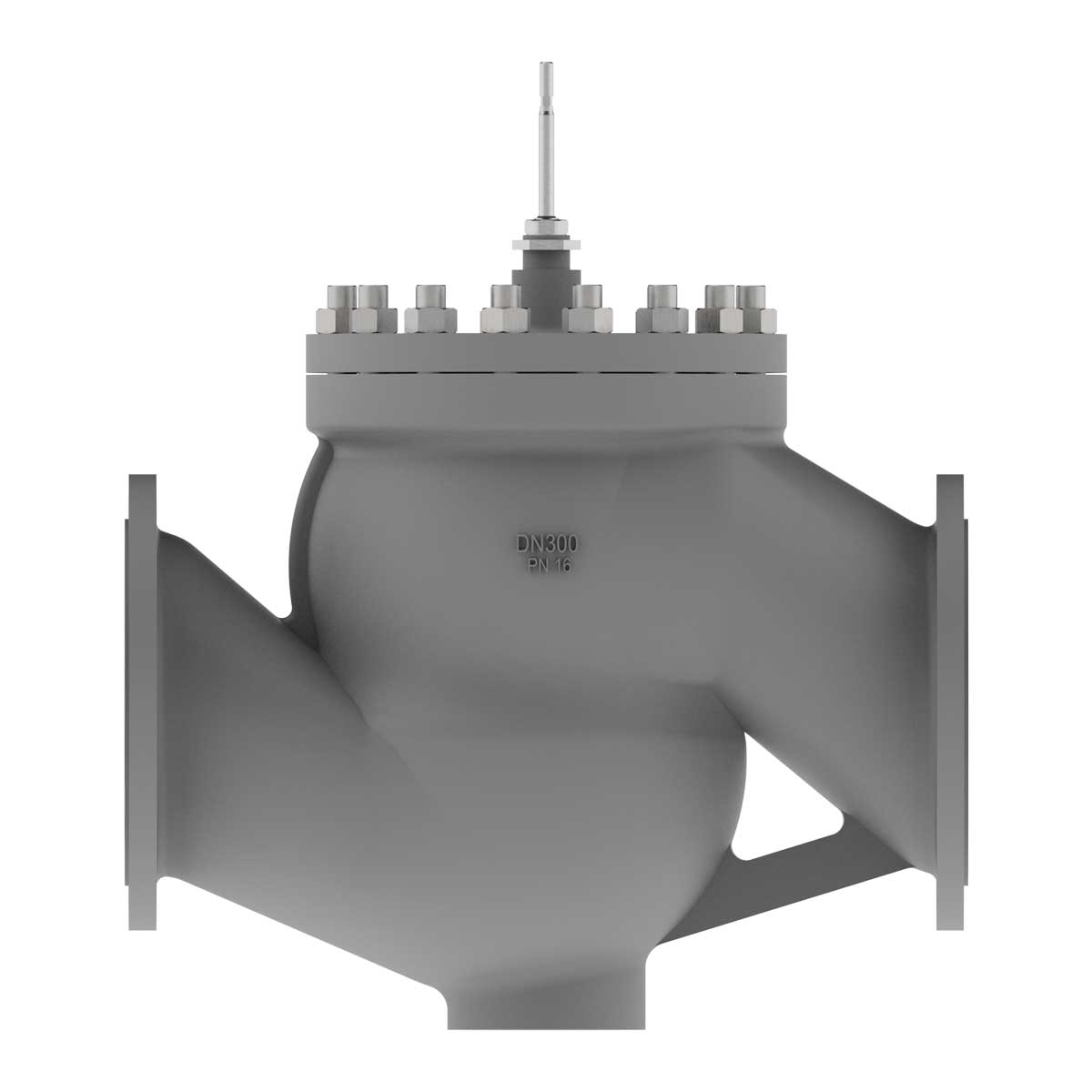

RE2F

2-port control valves PN16

Product features

DN125 – DN300
Kvs: 315 – 1600 m³/h
Medium: water 0 – 180 °C 1)
A > AB: equal percentage
Cast iron GG-25 (EN-JL1040)
Flanged connection EN1092-2 type 21
Valve leakage ≤0,01% Kvs (EN1349, IV L1)

Types

Type DN 2) [mm] Kvs [m³/h] Max. stroke [mm]

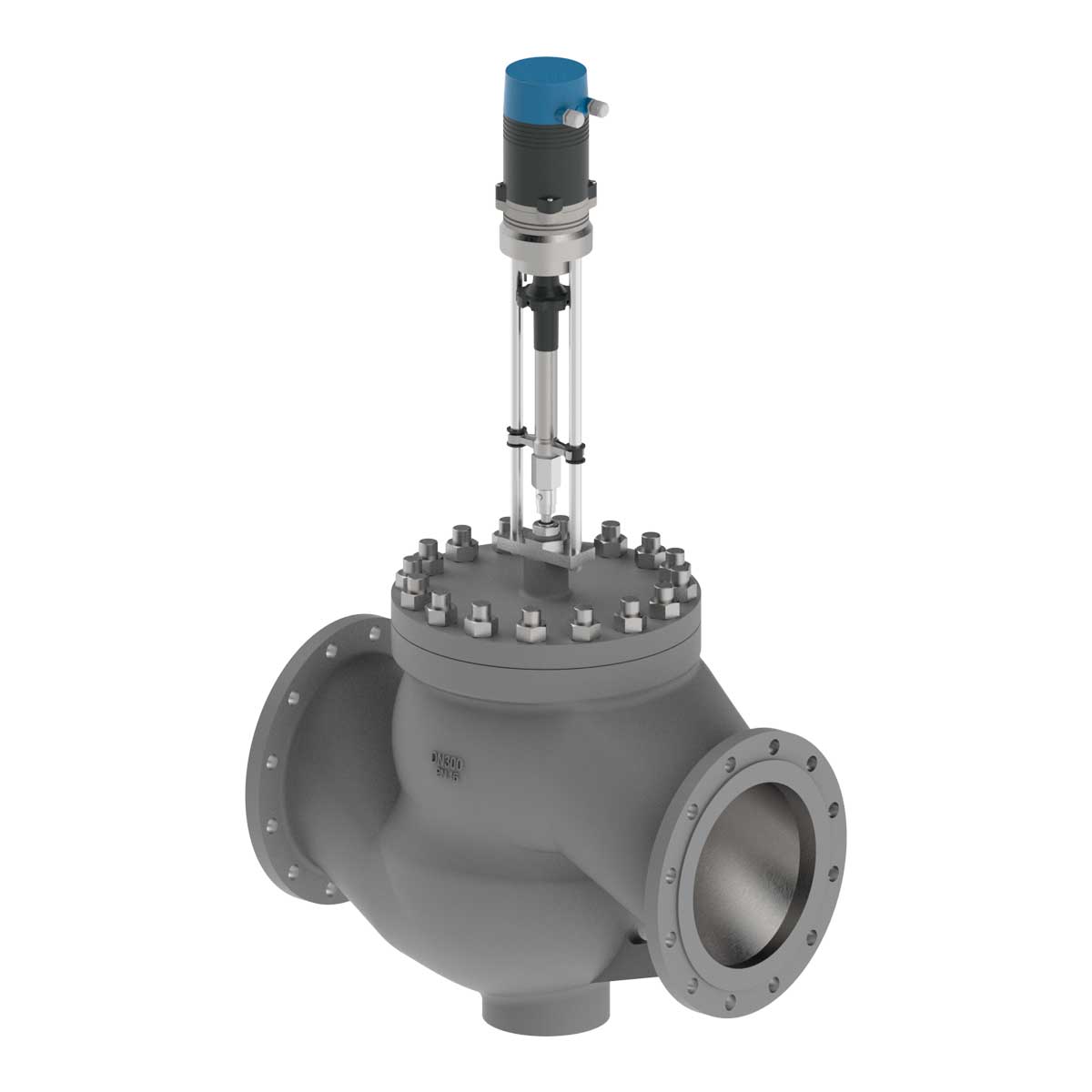

RE2F200A 200 630 60
RE2F200B 200 500 60
RE2F200C 200 400 60
RE2F200D 200 315 60
RE2F250AA 250 1000 80
RE2F250A 250 800 80
RE2F250B 250 630 80
RE2F250C 250 500 80
RE2F300AA 300 1600 90
RE2F300A 300 1250 80
RE2F300B 300 1000 80
RE2F300C 300 800 80
RE2F300D 300 630 80



1)With stem heater for medium temperatures down to -10 °C
2)Also available DN125 and DN150 (on request)

Downloads

TypeDocumentFile typeSize
DatasheetRE2F - 2-weg regelafsluiters PN16 - NLPDF1,021.4 KBView
DatasheetRE2F - Vannes de régulation à 2 voies PN16 - FRPDF991.5 KBView
CatalogCatalog 2026View

Compatible products

1003_

10 kN
50 mm, 60 mm, 80 mm

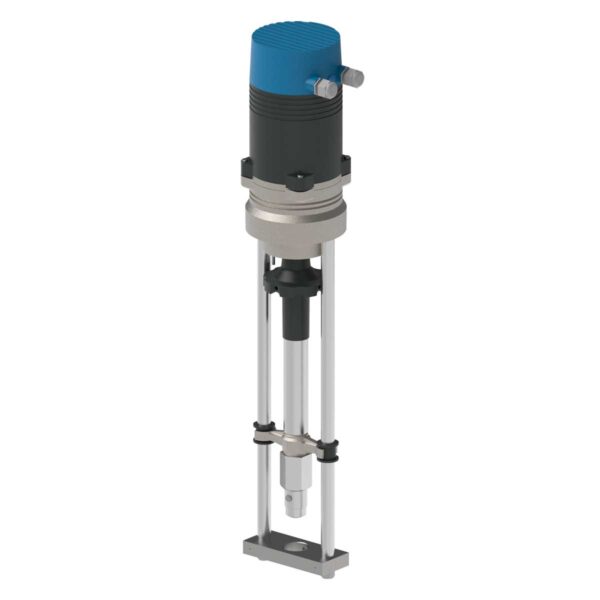

1503_

15 kN
60 mm, 80 mm

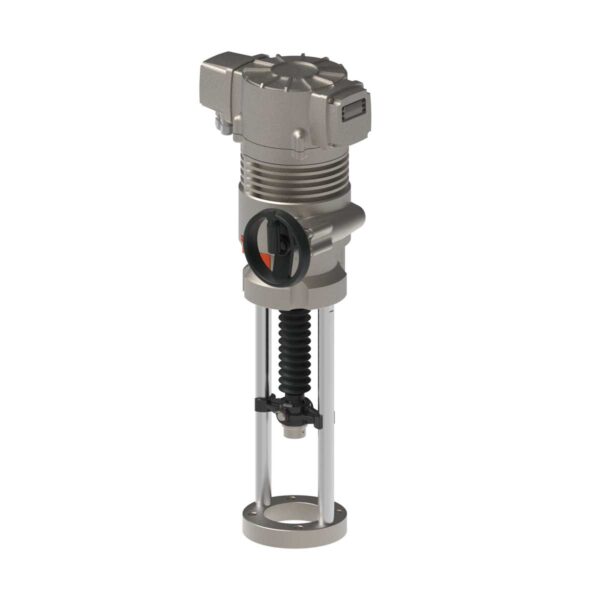

2503_

25 kN
100 mm
