2503_

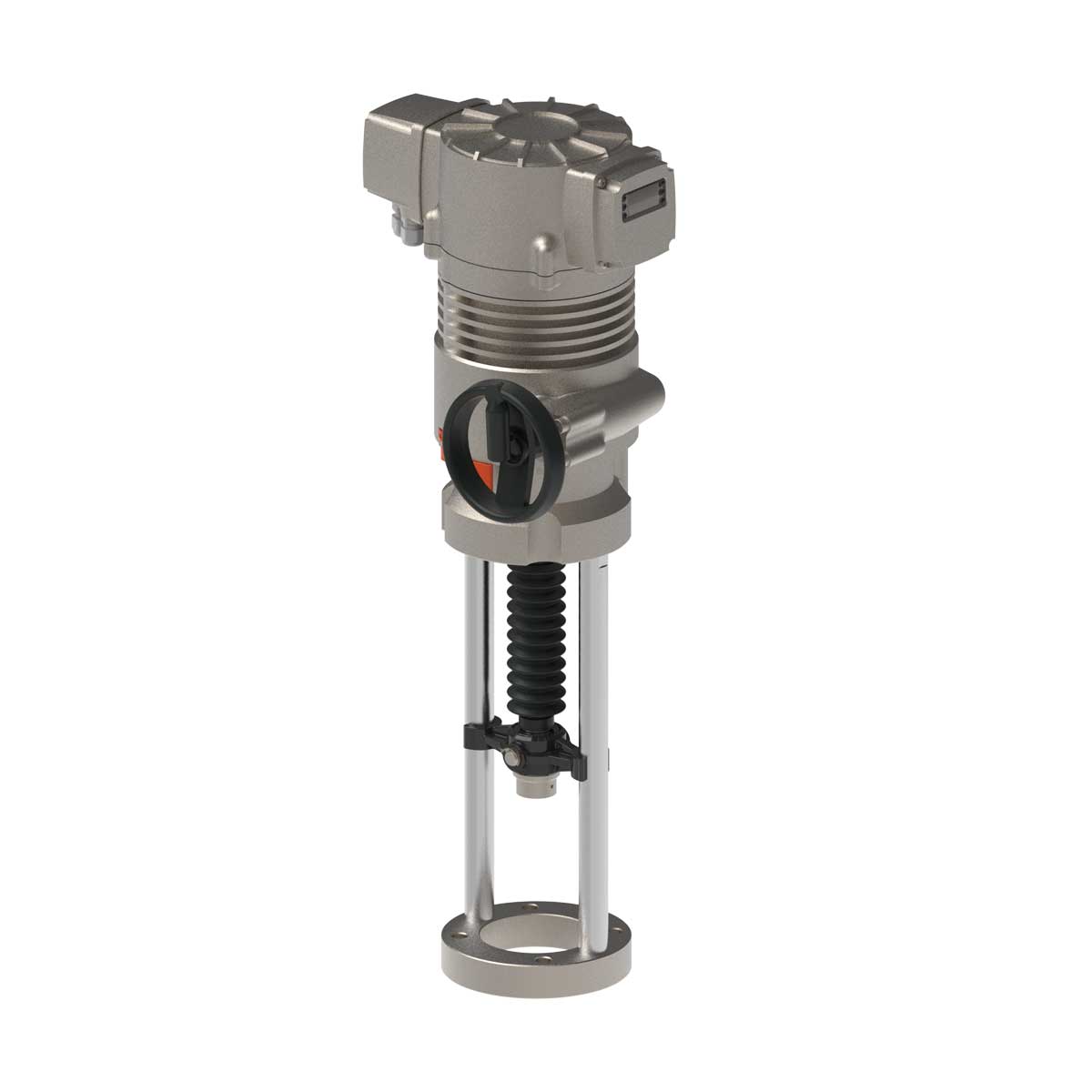

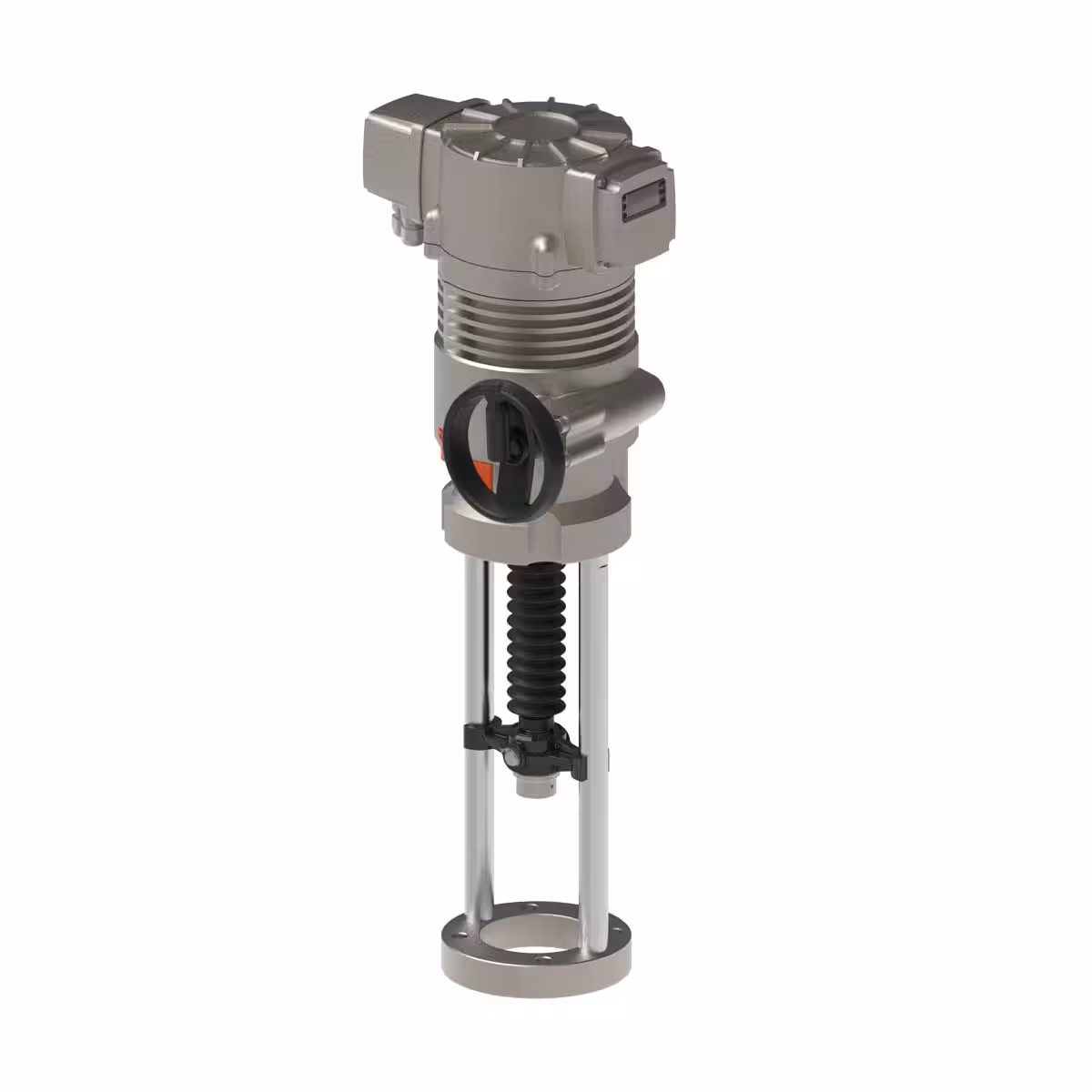

Universal actuator for industrial applications

Product features

UV: AC 230 Volt, 50/60Hz
Y: 3-point (4-wire) or 0 – 10 Vdc
Force: 25 kN
Running time: 0,5 s/mm
Stroke max.: 100 mm
Automatic self-calibration
Overload protected
With manual override
IP65

Types

Type Uv Control signal Max. stroke [mm] Power [VA]
2503U20 AC 230 V 3-point / 0 – 10 Vdc 100 250

Downloads

TypeDocumentFile typeSize
CatalogCatalog 2026View

Compatible products

RE2F

315 - 1600 m³/h
0 - 180 °C

RE3F

315 - 1600 m³/h
0 - 180 °C

CX2F

0,16 - 400 m³/h
-10 - 180 °C

CX3F

2,5 - 400 m³/h
-10 - 180 °C

CE2F

0,16 - 1600 m³/h
-10 - 180 °C

CE3F

2,5 - 1600 m³/h
-10 - 180 °C

Ci2F

2,5 - 1600 m³/h
-30 - 180 °C

Ci3F

2,5 - 1600 m³/h
-30 - 180 °C
