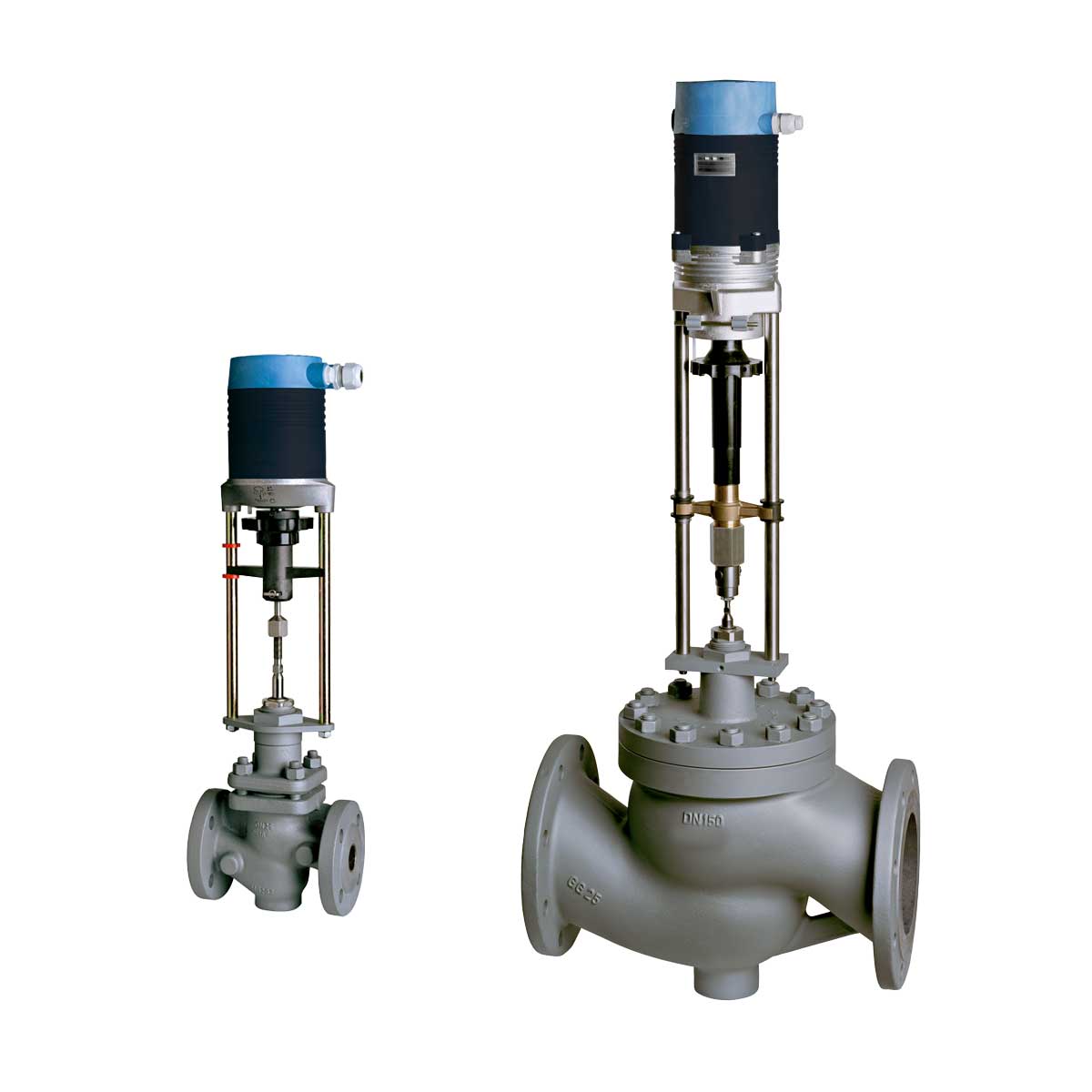

CX2F

2-port control valves PN25

Product features

DN15 – DN150 1)
Kvs: 0,16 – 400 m³/h
Medium: water, condense or steam 0 – 180 °C 2)
Valve body: cast iron GGG-40.3 (EN-JS1024)
A > AB: equal percentage
Valve leakage ≤0,01% Kvs (EN1349, IV L1)
Flanged connection EN1092-2 type 21 3)

Types

Type DN [mm] Kvs [m³/h] PN
CX2F015A 4) 15 4 25
CX2F015B 15 2,5 25
CX2F020A 20 6,3 25
CX2F020B 20 5 25
CX2F020C 20 4 25
CX2F020D 20 2,5 25

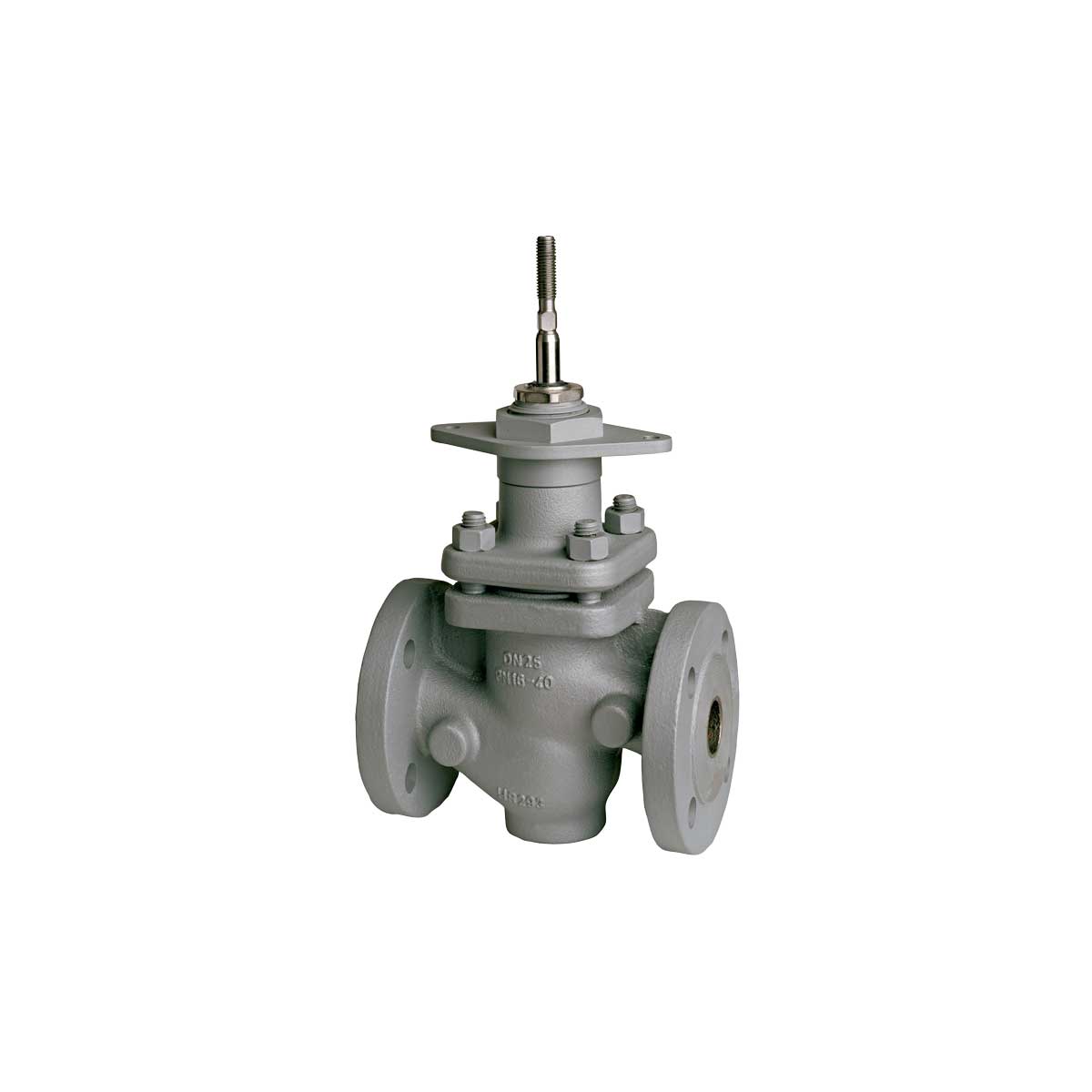

CX2F025A 25 10 25
CX2F025B 25 8 25
CX2F025C 25 6,3 25
CX2F025D 25 5 25
CX2F032A 32 16 25
CX2F032B 32 12,5 25
CX2F032C 32 10 25
CX2F032D 32 8 25
CX2F040A 40 25 25
CX2F040B 40 20 25
CX2F040C 40 16 25
CX2F040D 40 12,5 25
CX2F050A 50 40 25
CX2F050B 50 31,5 25
CX2F050C 50 25 25
CX2F050D 50 20 25

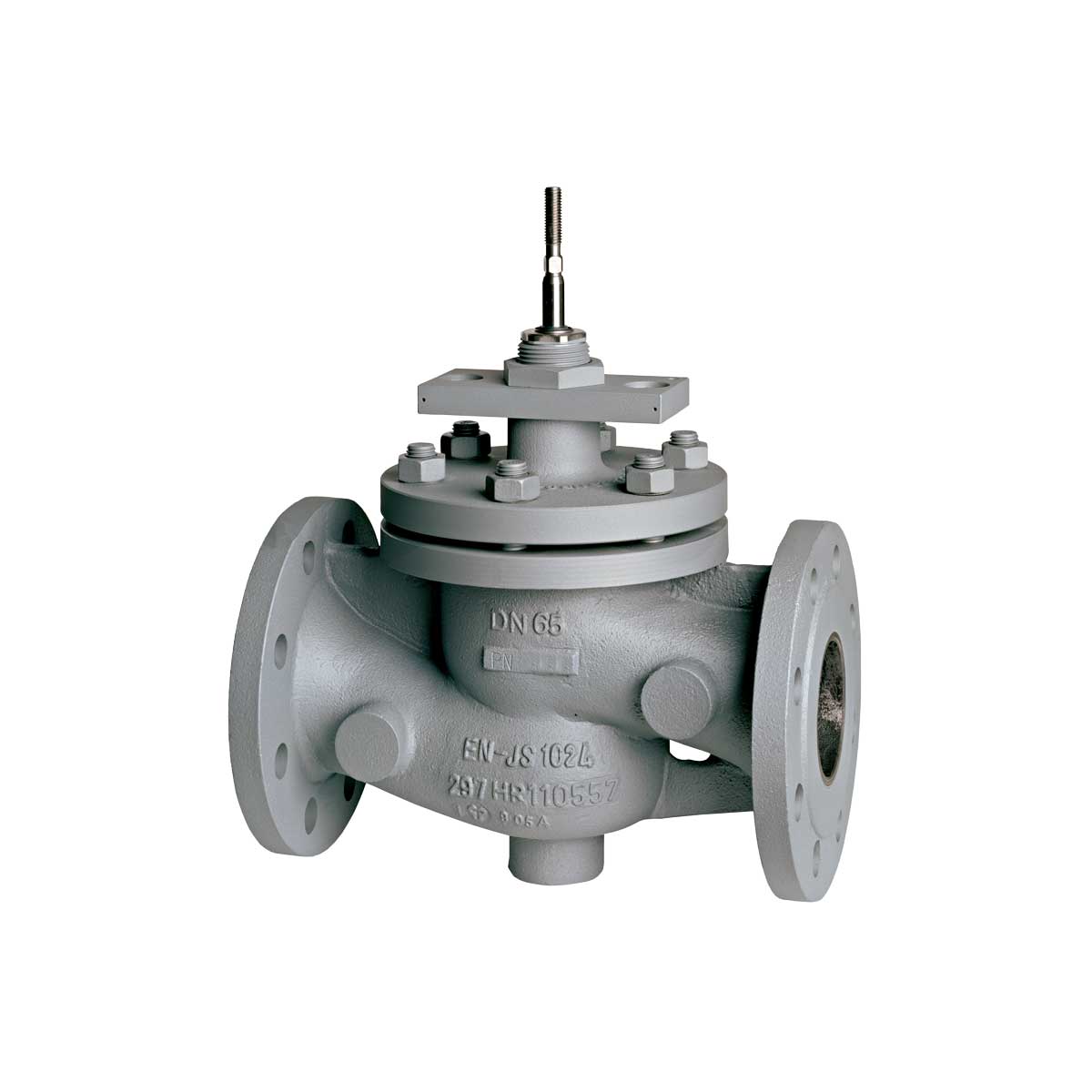

CX2F065A 65 63 25
CX2F065B 65 50 25
CX2F065C 65 40 25
CX2F065D 65 31,5 25
CX2F080A 80 100 25
CX2F080B 80 80 25
CX2F080C 80 63 25
CX2F080D 80 50 25
CX2F100A 100 160 25
CX2F100B 100 125 25
CX2F100C 100 100 25
CX2F100D 100 80 25
CX2F125A 125 250 25
CX2F125B 125 200 25
CX2F125C 125 160 25
CX2F125D 125 125 25

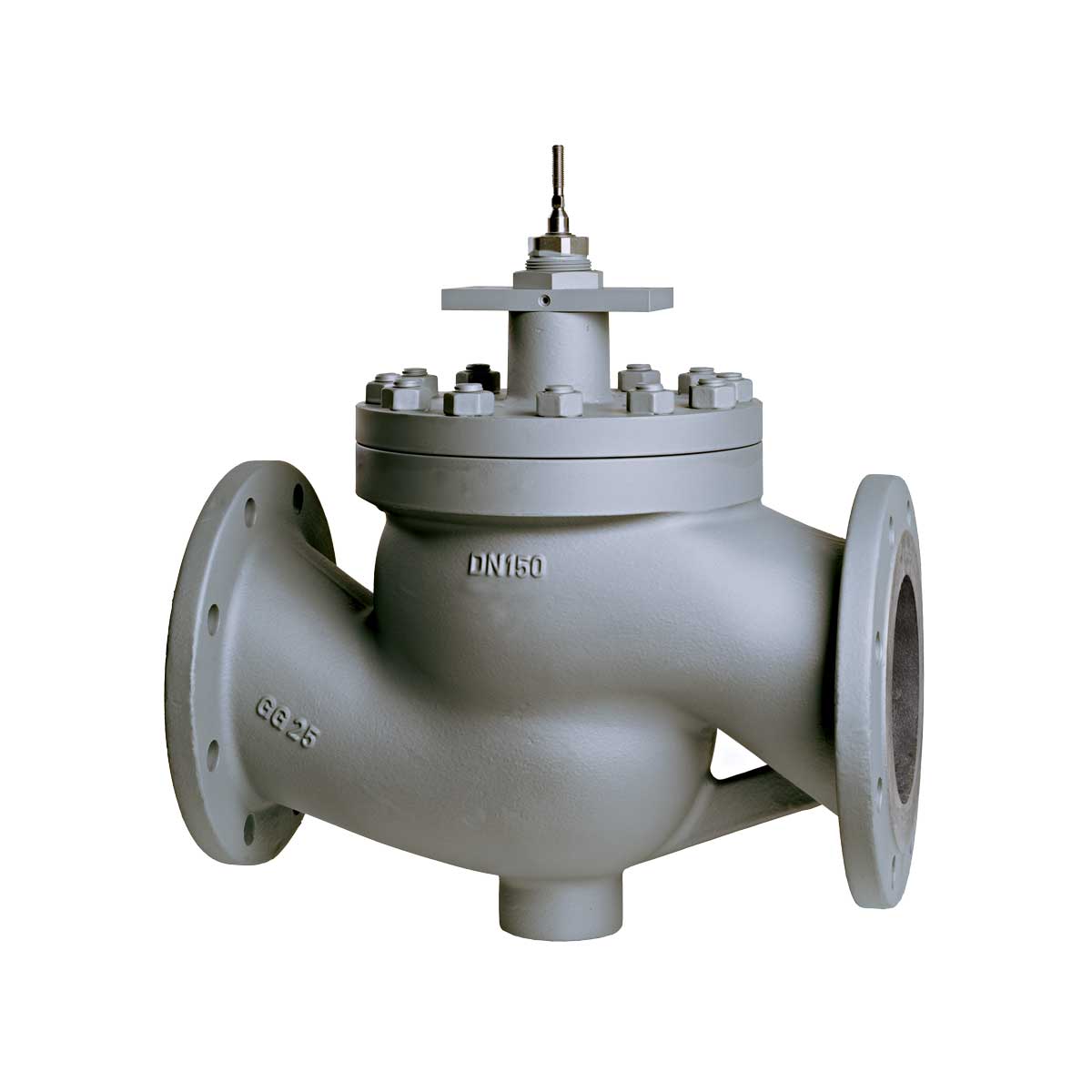

CX2F150A 150 400 25
CX2F150B 150 315 25
CX2F150C 150 250 25
CX2F150D 150 200 25



1)Also available in sizes DN200 and DN250 (PN16)
2)With stem heater for medium temperatures down to -10°C (order separately)
3)Flanged connection according PN25 as a standard: also available with PN16 or PN40 flanges (on request)
4)DN15 also available with Kvs values: 1.6, 1.25, 1.0, 0.63, 0.4, 0.25 or 0.16

Custom specific control valves
The special features of our specific control valves, include valve body material selection based on media type, various flange connection types, optimized flow capacities for different sizes, adapted seals, special temperature range, etc.
