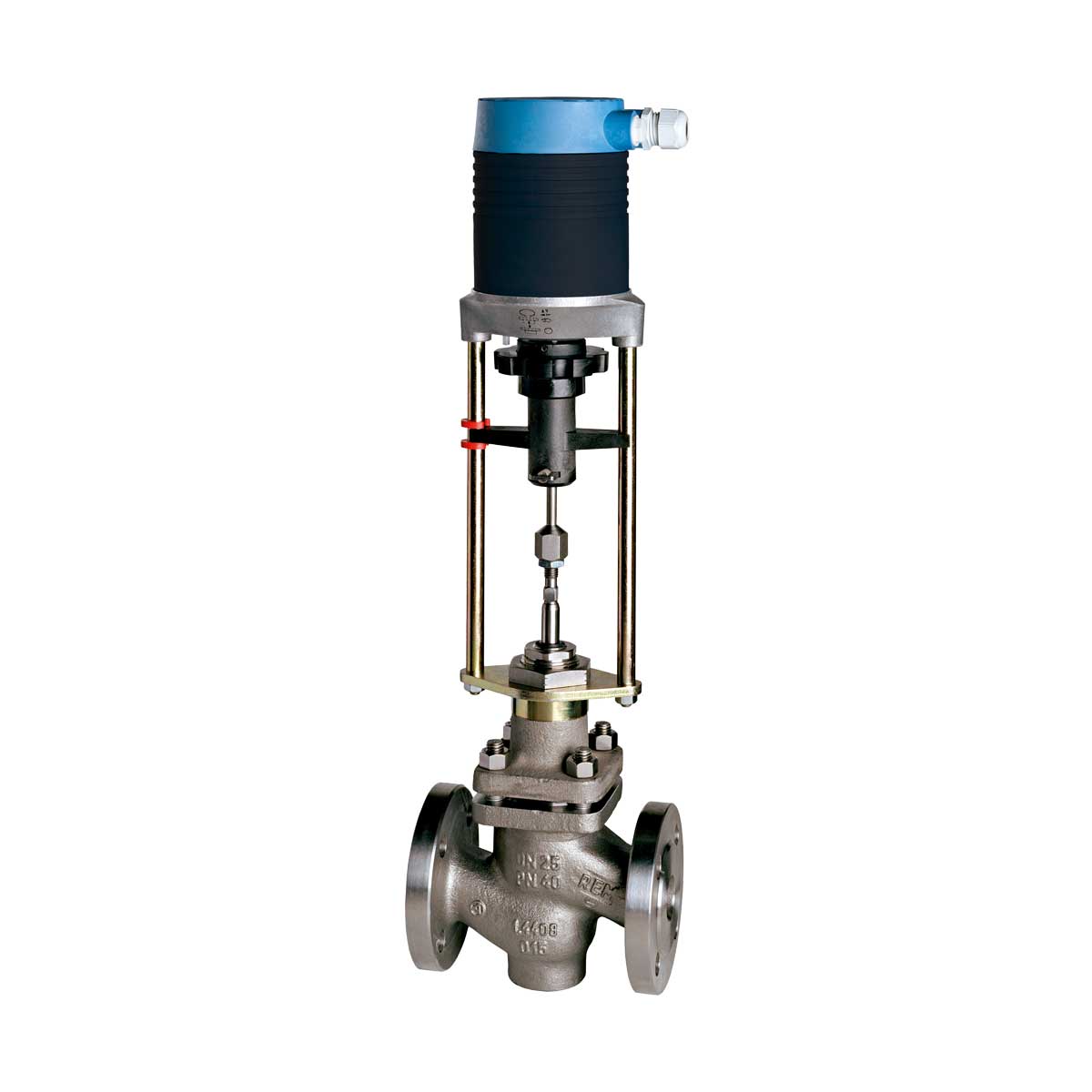

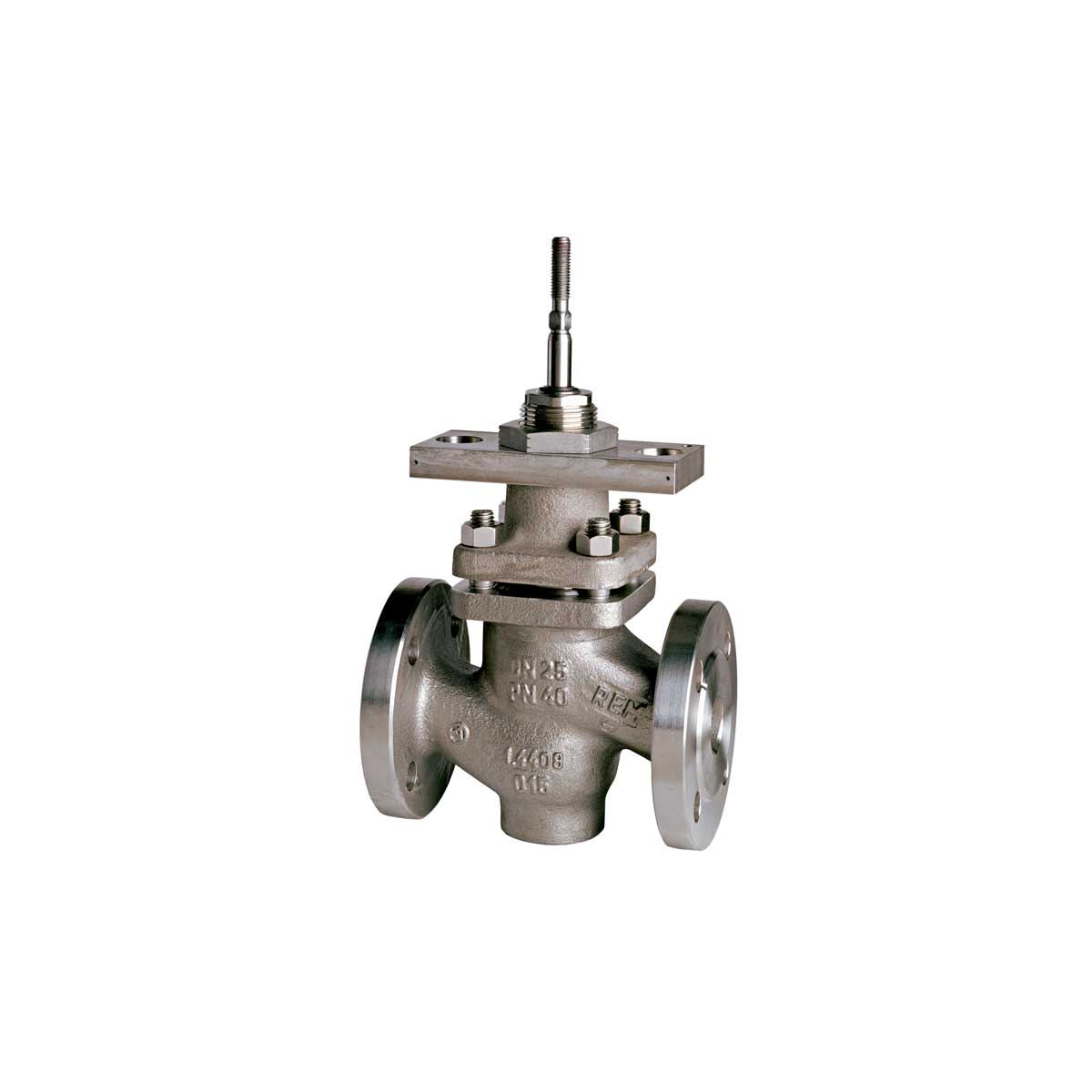

Ci2F

2-port control valves PN40

Product features

DN15 – DN300
Kvs: 2,5 – 1600 m³/h
Medium: water, condense or steam -30 – 180 °C 1)
Valve body: stainless steel 1.4408
A > AB: equal percentage 2)
Valve leakage ≤0,01% Kvs (EN1349, IV L1)
Flanged connection EN1092-2 type 21 3)

Types

Type DN [mm] Kvs [m³/h] PN
Ci2F200A 200 630 PN40
Ci2F200B 200 500 PN40
Ci2F200C 200 400 PN40
Ci2F200D 200 315 PN40
Ci2F250AA 250 1000 PN40
Ci2F250A 250 800 PN40
Ci2F250B 250 630 PN40
Ci2F250C 250 500 PN40
Ci2F300AA 300 1600 PN40
Ci2F300A 300 1250 PN40
Ci2F300B 300 1000 PN40
Ci2F300C 300 800 PN40
Ci2F300D 300 630 PN40



1)With stem heater for medium temperatures down to -10°C (order separately)
2)Control valve also available with linear control characteristic: information on request
3)Flanged connection according PN40 as a standard: also available with PN16 or PN25 flanges (on request)

The references listed above are only a selection of the versions available. The Ci2F_ control valves are available in DN15 to DN300. Please contact us so that we can work out a suitable solution based on your specifications.

Custom specific control valves
The special features of our specific control valves, include valve body material selection based on media type, various flange connection types, optimized flow capacities for different sizes, adapted seals, special temperature range, etc.

Downloads

Compatible products

CX2F

0,16 - 400 m³/h
-10 - 180 °C

CE2F

0,16 - 1600 m³/h
-10 - 180 °C

CX3F

2,5 - 400 m³/h
-10 - 180 °C

CE3F

2,5 - 1600 m³/h
-10 - 180 °C

Ci3F

2,5 - 1600 m³/h
-30 - 180 °C
