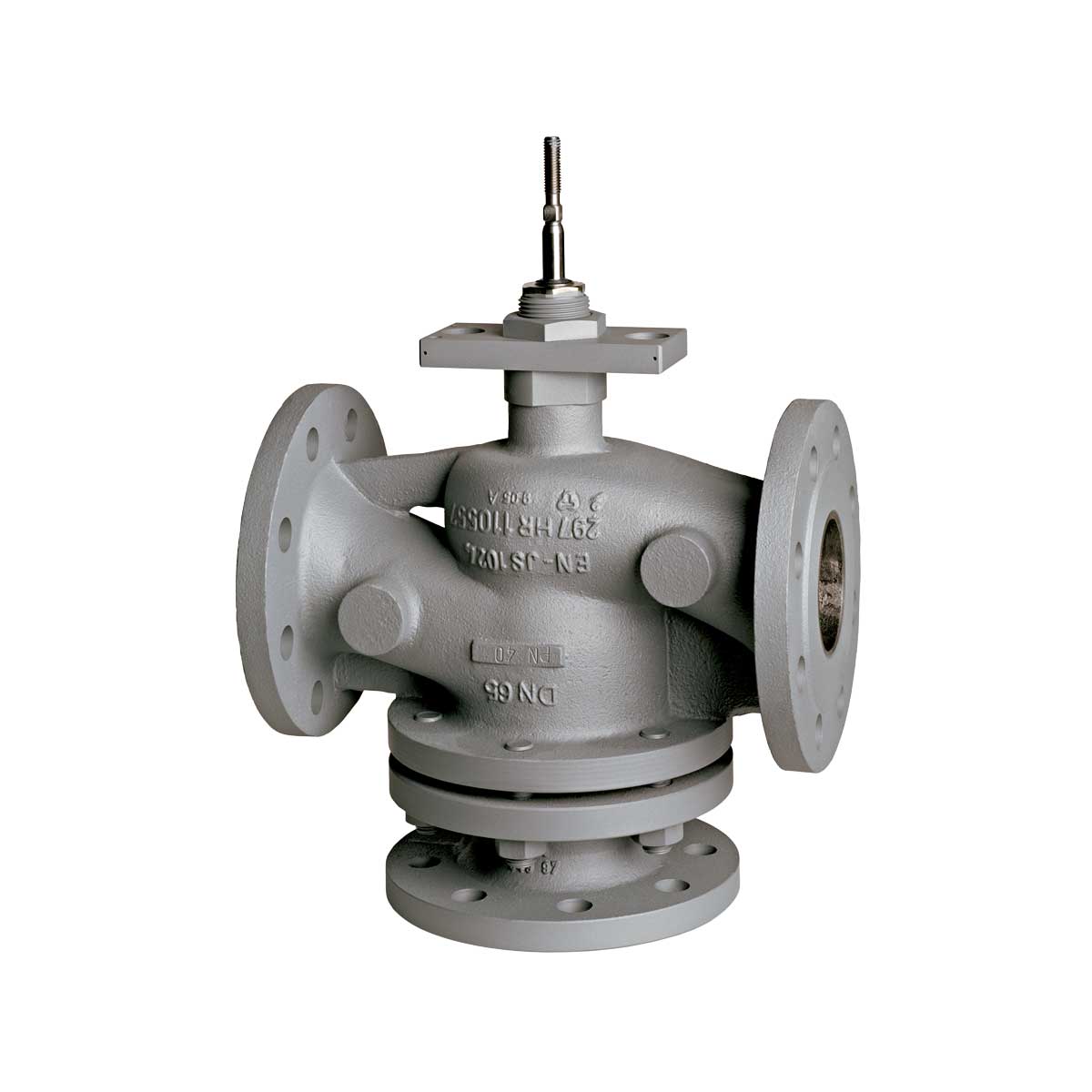

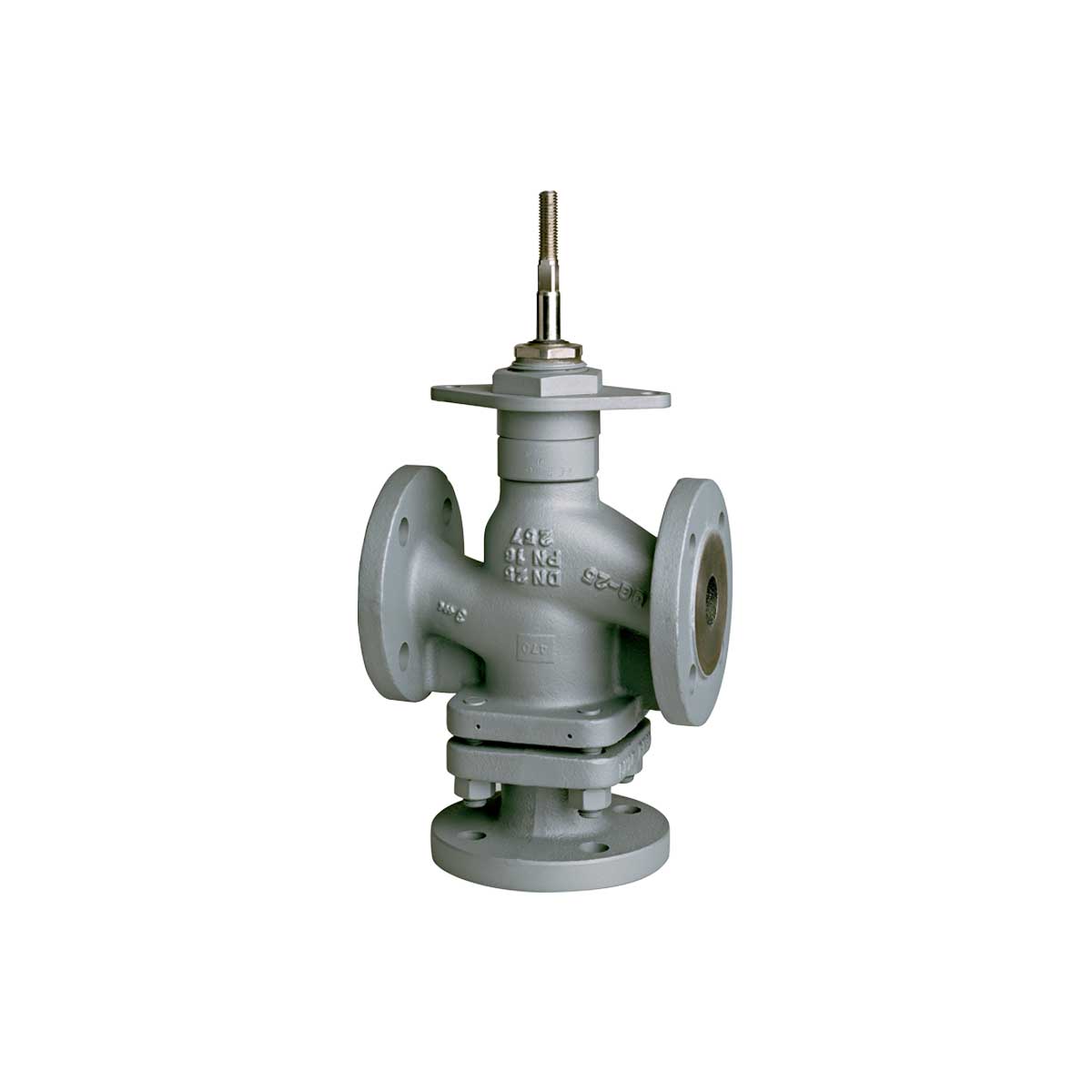

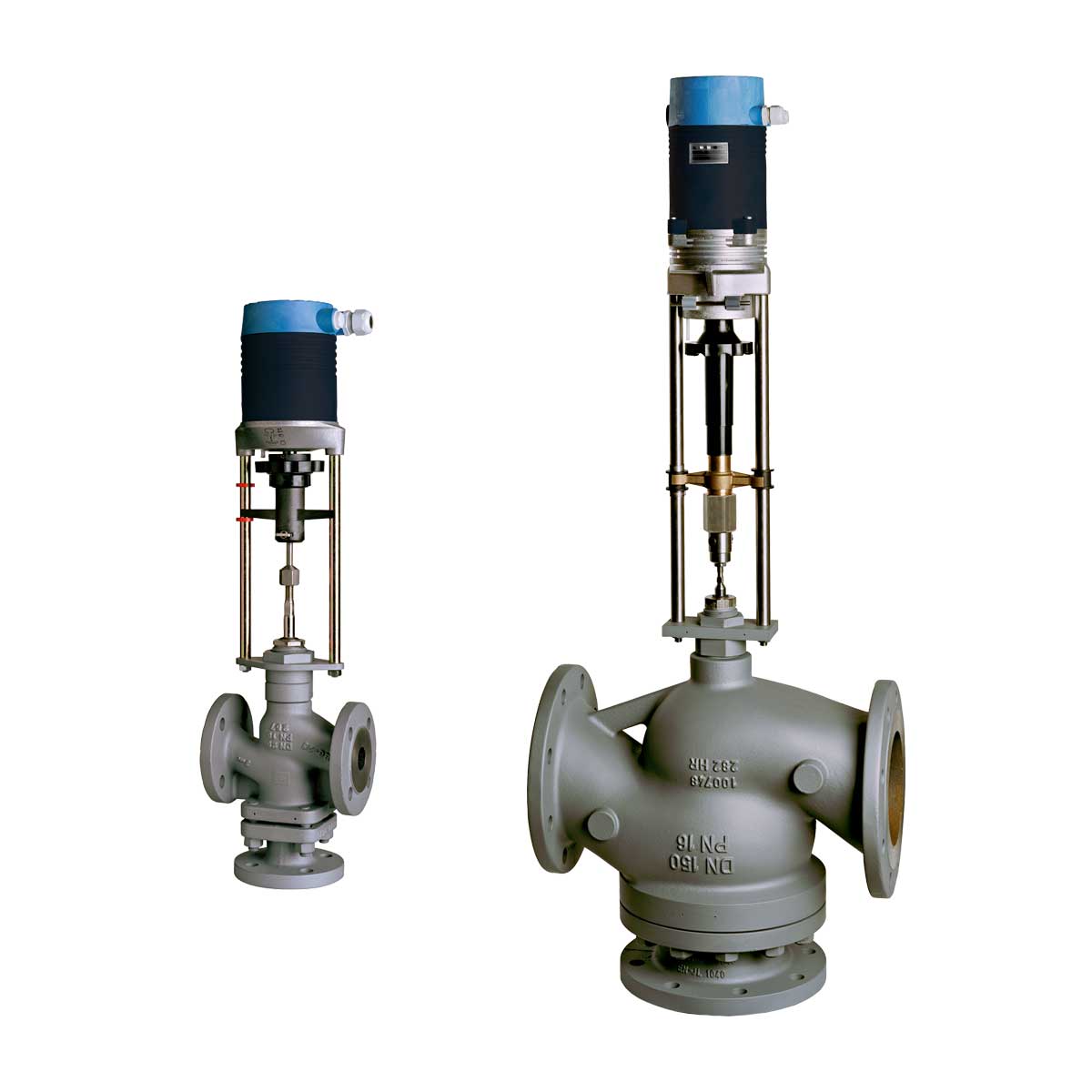

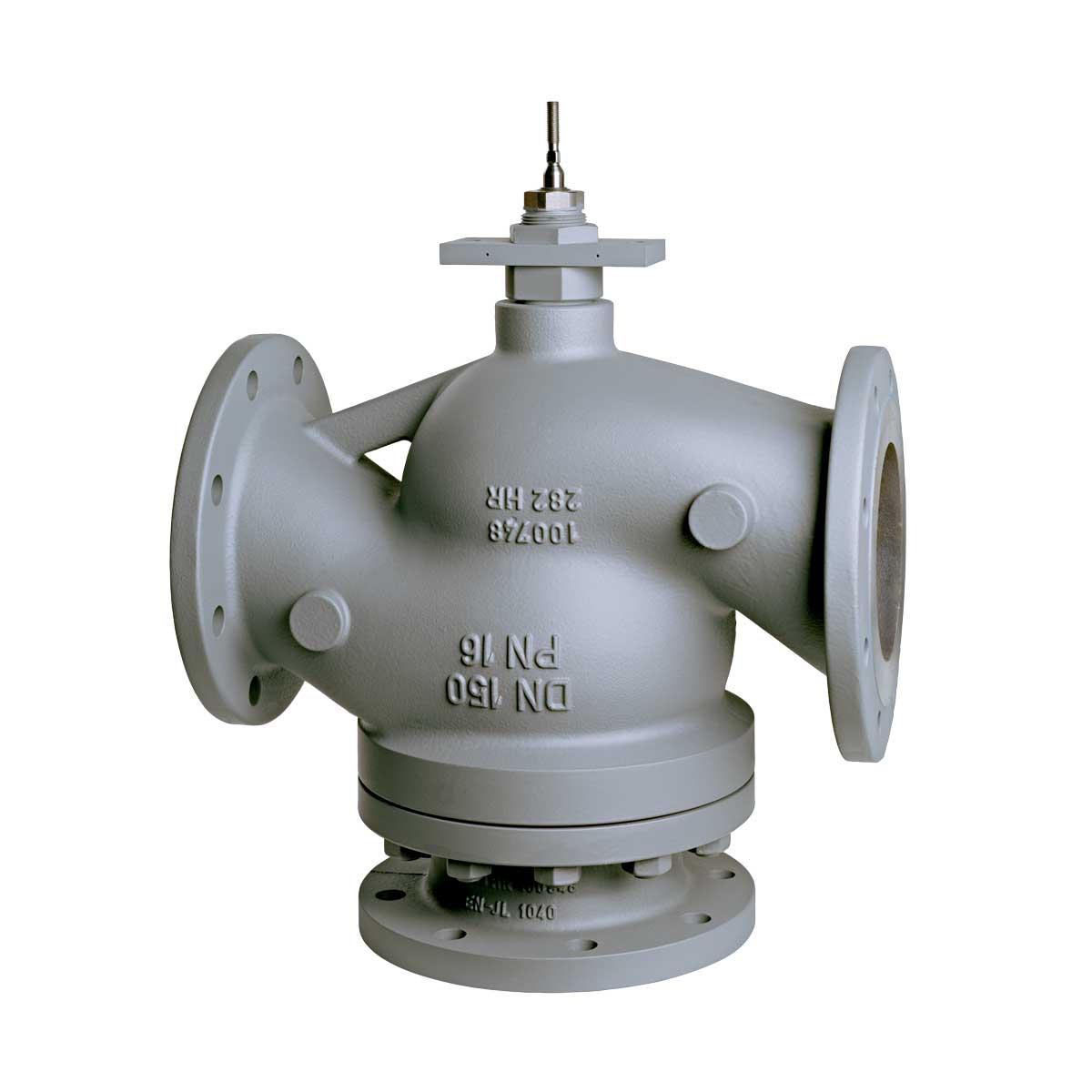

CX3F

3-port control valves PN25

Product features

DN15 – DN150 1)
Kvs: 2,5 – 400 m³/h
Medium: water, condense or steam 0 – 180 °C 2)
Valve body: cast iron GGG-40.3 (EN-JS1024)
A > AB: equal percentage
Valve leakage ≤0,01% Kvs (EN1349, IV L1)
Flanged connection EN1092-2 type 21 3)

Types

Type DN [mm] Kvs [m³/h] PN
CX3F015A 15 4 PN25
CX3F015B 15 2,5 PN25
CX3F020A 20 6,3 PN25
CX3F020B 20 5 PN25
CX3F020C 20 4 PN25
CX3F020D 20 2,5 PN25
CX3F025A 25 10 PN25
CX3F025B 25 8 PN25
CX3F025C 25 6,3 PN25
CX3F025D 25 5 PN25
CX3F032A 32 16 PN25
CX3F032B 32 12,5 PN25
CX3F032C 32 10 PN25
CX3F032D 32 8 PN25
CX3F040A 40 25 PN25
CX3F040B 40 20 PN25
CX3F040C 40 16 PN25
CX3F040D 40 12,5 PN25
CX3F050A 50 40 PN25
CX3F050B 50 31,5 PN25
CX3F050C 50 25 PN25
CX3F050D 50 20 PN25
CX3F065A 65 63 PN25
CX3F065B 65 50 PN25
CX3F065C 65 40 PN25
CX3F065D 65 31,5 PN25
CX3F080A 80 100 PN25
CX3F080B 80 80 PN25
CX3F080C 80 63 PN25
CX3F080D 80 50 PN25
CX3F100A 100 160 PN25
CX3F100B 100 125 PN25
CX3F100C 100 100 PN25
CX3F100D 100 80 PN25
CX3F125A 125 250 PN25
CX3F125B 125 200 PN25
CX3F125C 125 160 PN25
CX3F125D 125 125 PN25
CX3F150A 150 400 PN25
CX3F150B 150 315 PN25
CX3F150C 150 250 PN25
CX3F150D 150 200 PN25



1)Also available in sizes DN200 and DN250 (PN16)
2)With stem heater for medium temperatures down to -10°C (order separately)
3)Flanged connection according PN25 as a standard: also available with PN16 or PN40 flanges (on request)

Custom specific control valves
The special features of our specific control valves, include valve body material selection based on media type, various flange connection types, optimized flow capacities for different sizes, adapted seals, special temperature range, etc.
