CE3F

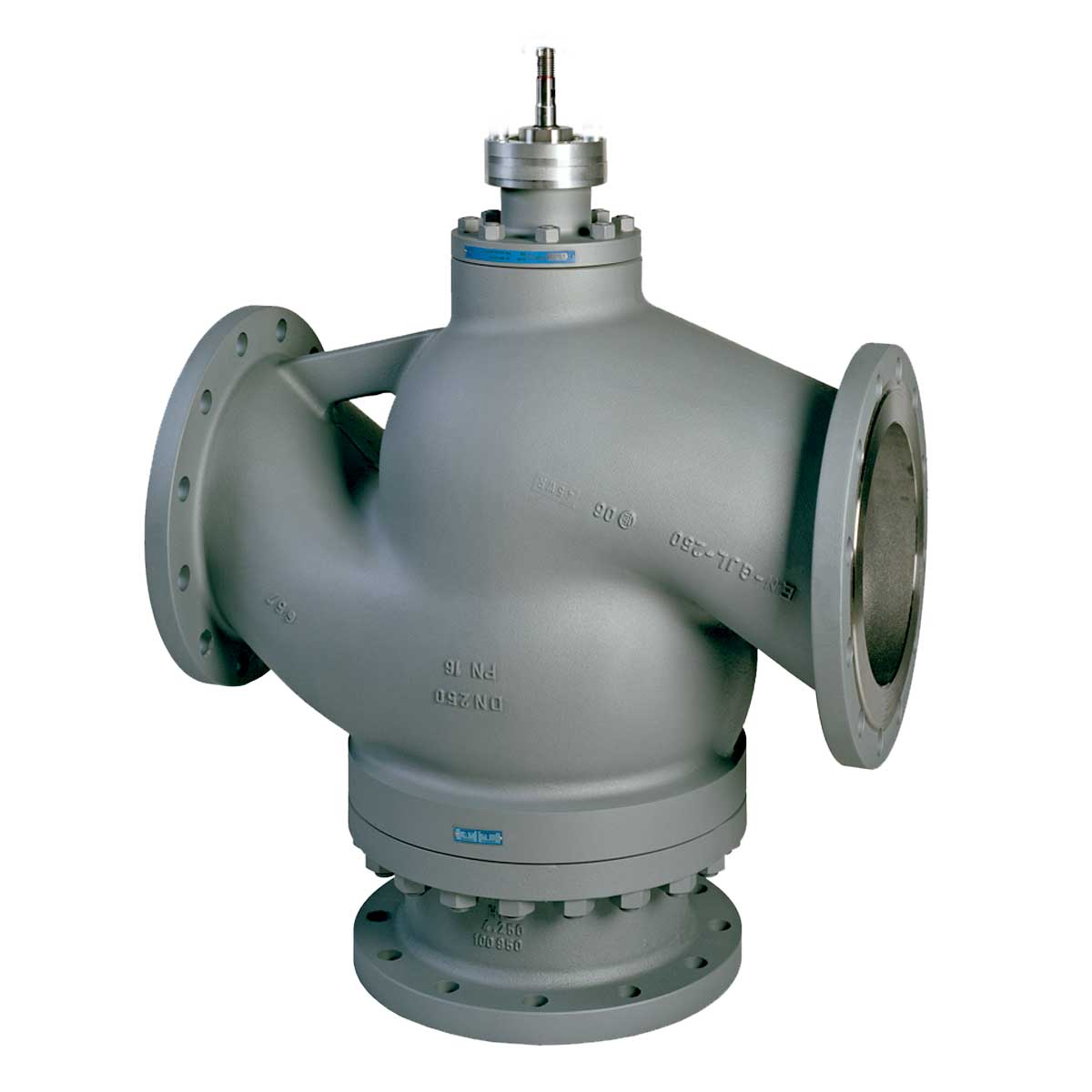

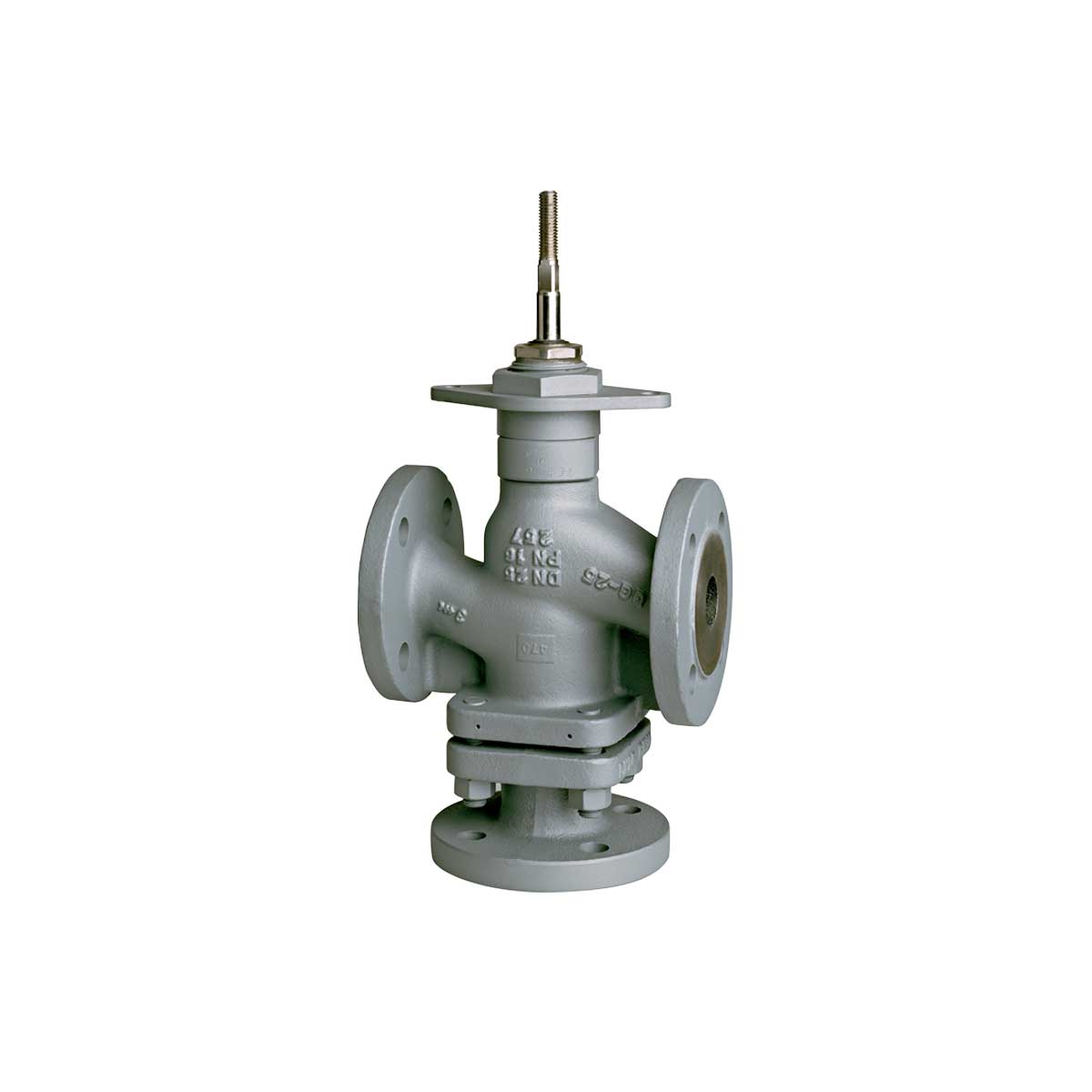

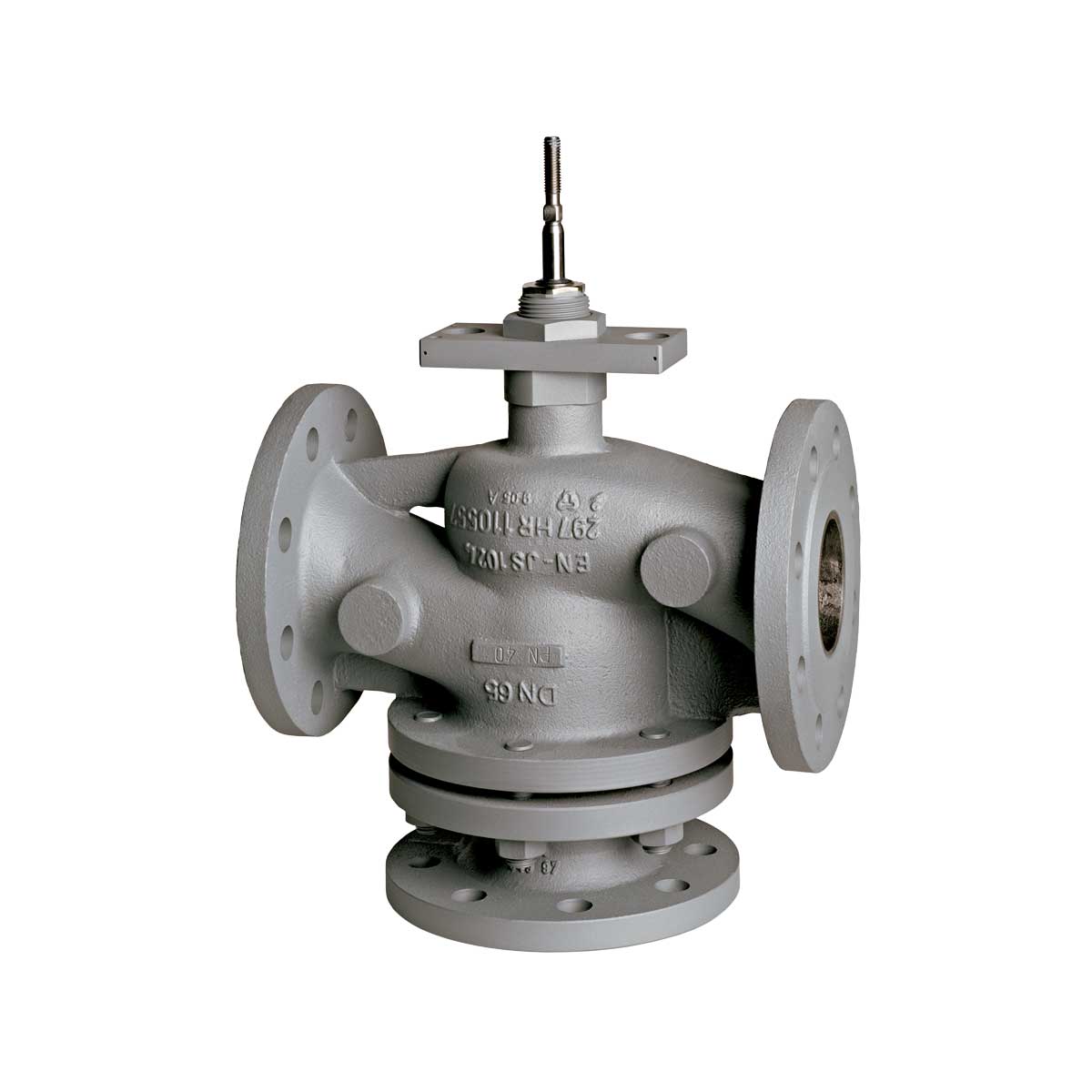

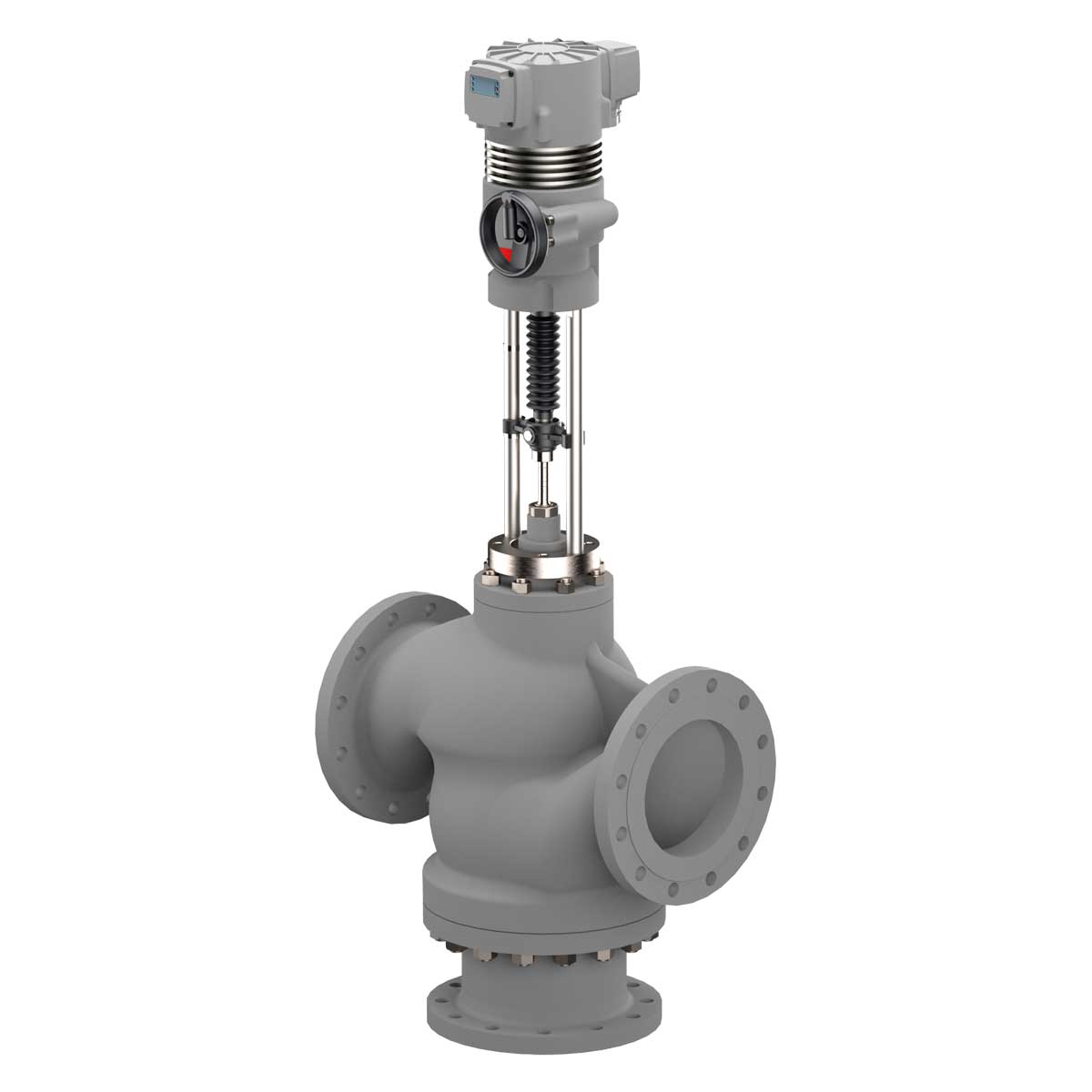

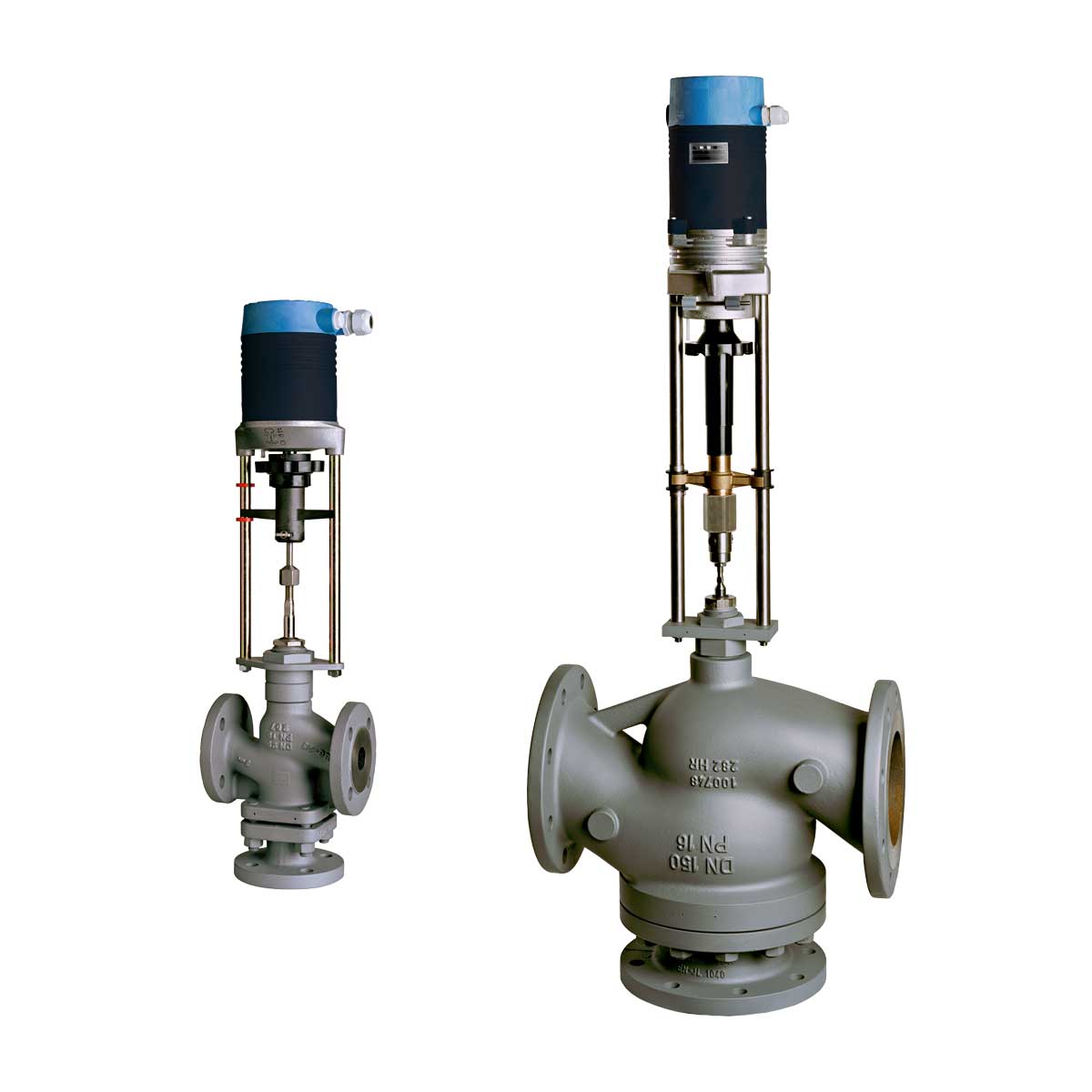

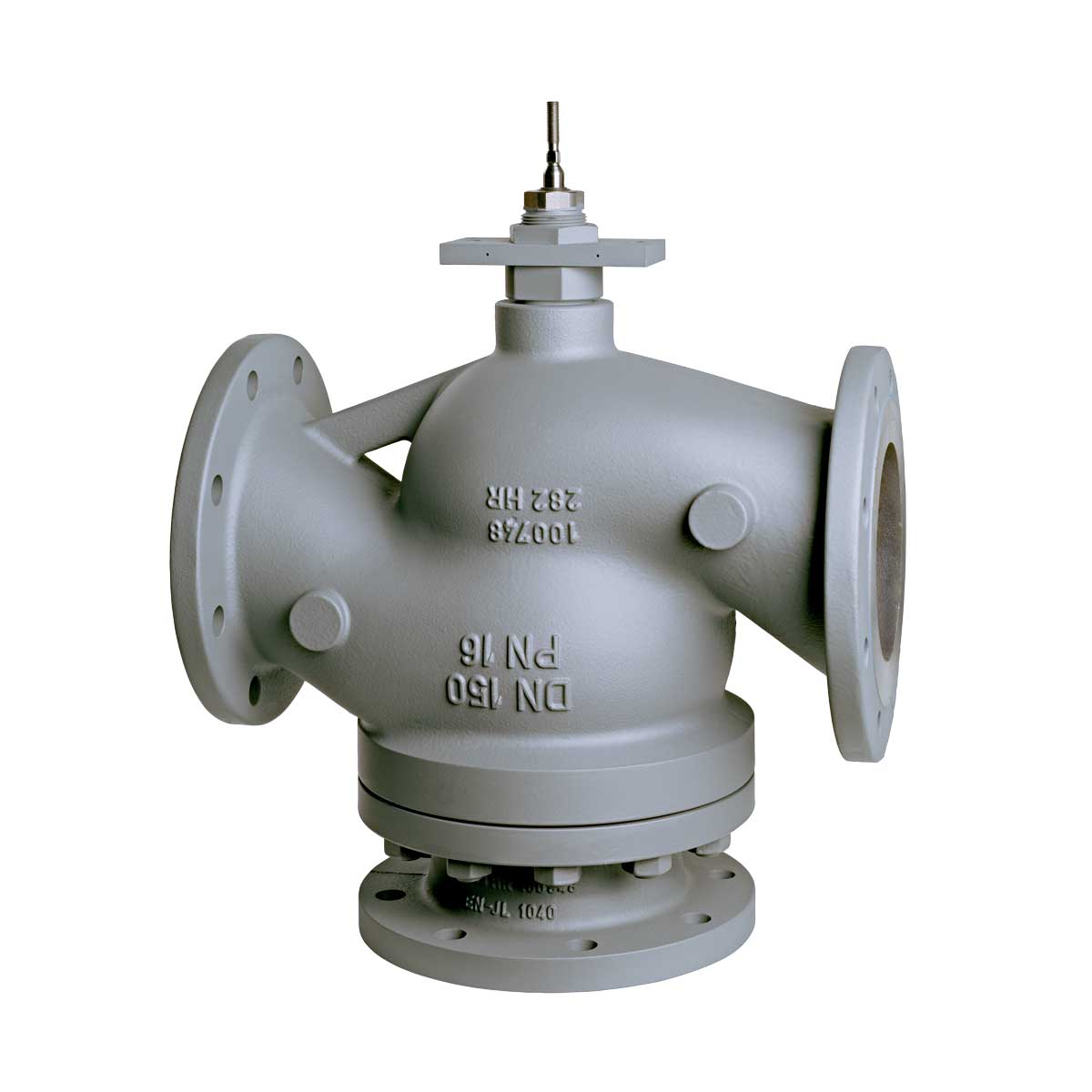

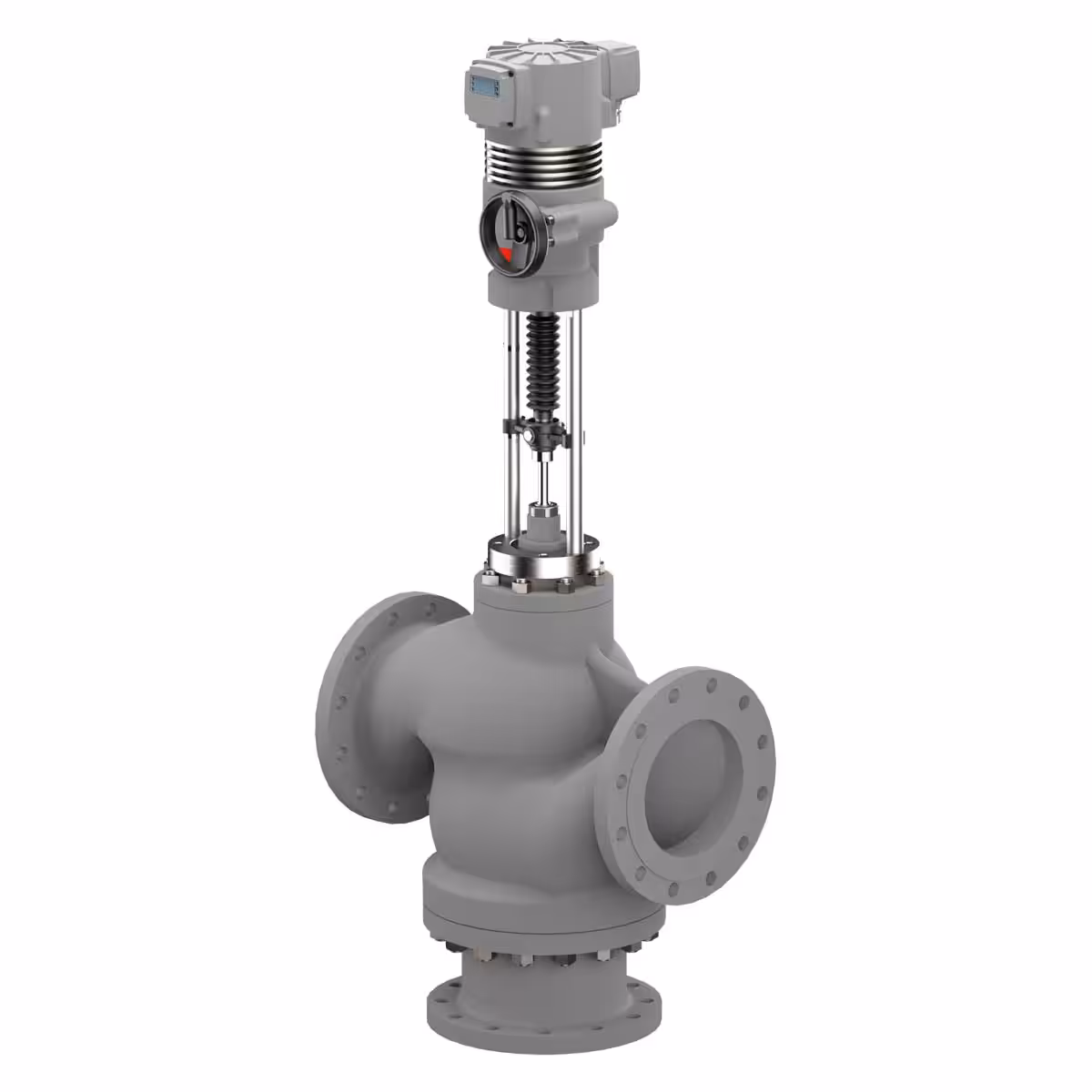

3-port control valves PN40

Product features

DN15 – DN300
Kvs: 2,5 – 1600 m³/h
Medium: water, condense or steam 0 – 180 °C 1)
Valve body: cast steel GS-C25N (1.0619+N)
A > AB: equal percentage
Valve leakage ≤0,01% Kvs (EN1349, IV L1)
Flanged connection EN1092-2 type 21 2)

Types

Type DN [mm] Kvs [m³/h] PN
CE3F015A 15 4 PN40
CE3F015B 15 2,5 PN40
CE3F020A 20 6,3 PN40
CE3F020B 20 5 PN40
CE3F020C 20 4 PN40
CE3F020D 20 2,5 PN40
CE3F025A 25 10 PN40
CE3F025B 25 8 PN40
CE3F025C 25 6,3 PN40
CE3F025D 25 5 PN40
CE3F032A 32 16 PN40
CE3F032B 32 12,5 PN40
CE3F032C 32 10 PN40
CE3F032D 32 8 PN40
CE3F040A 40 25 PN40
CE3F040B 40 20 PN40
CE3F040C 40 16 PN40
CE3F040D 40 12,5 PN40
CE3F050A 50 40 PN40
CE3F050B 50 31,5 PN40
CE3F050C 50 25 PN40
CE3F050D 50 20 PN40
CE3F065A 65 63 PN40
CE3F065B 65 50 PN40
CE3F065C 65 40 PN40
CE3F065D 65 31,5 PN40
CE3F080A 80 100 PN40
CE3F080B 80 80 PN40
CE3F080C 80 63 PN40
CE3F080D 80 50 PN40
CE3F100A 100 160 PN40
CE3F100B 100 125 PN40
CE3F100C 100 100 PN40
CE3F100D 100 80 PN40
CE3F125A 125 250 PN40
CE3F125B 125 200 PN40
CE3F125C 125 160 PN40
CE3F125D 125 125 PN40
CE3F150A 150 400 PN40
CE3F150B 150 315 PN40
CE3F150C 150 250 PN40
CE3F150D 150 200 PN40
CE3F200A 200 630 PN40
CE3F200B 200 500 PN40
CE3F200C 200 400 PN40
CE3F200D 200 315 PN40
CE3F250AA 250 1000 PN40
CE3F250A 250 800 PN40
CE3F250B 250 630 PN40
CE3F250C 250 500 PN40
CE3F300AA 300 1600 PN40
CE3F300A 300 1250 PN40
CE3F300B 300 1000 PN40
CE3F300C 300 800 PN40
CE3F300D 300 630 PN40



1)With stem heater for medium temperatures down to -10°C (order separately)
2)Flanged connection according PN40 as a standard: also available with PN25 or PN40 flanges (on request)

Custom specific control valves
The special features of our specific control valves, include valve body material selection based on media type, various flange connection types, optimized flow capacities for different sizes, adapted seals, special temperature range, etc.
