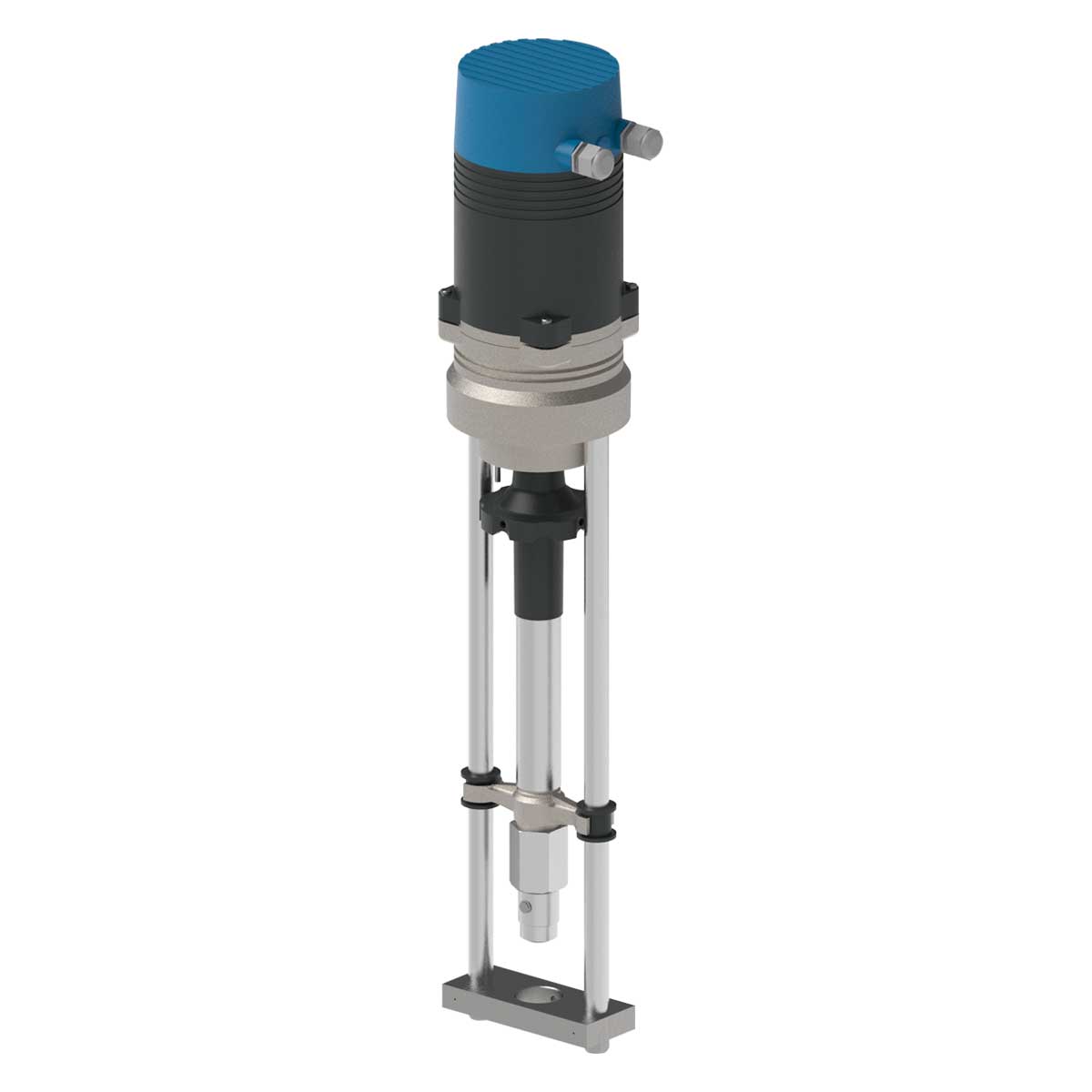

Linear actuator for control valves

Product features

UV: AC 24 Volt or AC 230 Volt, 50/60Hz
Y: 3-point (4-wire), 0 – 10 Vdc or 4 – 20 mA
Force: 15 kN
Running time: 2 s/mm
Stroke max.: 60 or 80 mm
Automatic self-calibration
Overload protected
With manual override
IP54

Types

Type Uv Y Max. stroke [mm] Power [VA]
1503U22.60 AC 230 V 3-point / 0 – 10 Vdc 60 63
1503U22.80 AC 230 V 3-point / 0 – 10 Vdc 80 63
1503i22.60 AC 230 V 3-point / 4 – 20 mA 60 63
1503i22.80 AC 230 V 3-point / 4 – 20 mA 80 63
1503U42.60 AC 24 V 3-point / 0 – 10 Vdc 60 50
1503U42.80 AC 24 V 3-point / 0 – 10 Vdc 80 50
1503i42.60 AC 24 V 3-point / 4 – 20 mA 60 50
1503i42.80 AC 24 V 3-point / 4 – 20 mA 80 50

Compatible products

RE2F

315 - 1600 m³/h
0 - 180 °C

RE3F

315 - 1600 m³/h
0 - 180 °C

CX2F

0,16 - 400 m³/h
-10 - 180 °C

CX3F

2,5 - 400 m³/h
-10 - 180 °C

CE2F

0,16 - 1600 m³/h
-10 - 180 °C

CE3F

2,5 - 1600 m³/h
-10 - 180 °C

Ci2F

2,5 - 1600 m³/h
-30 - 180 °C

Ci3F

2,5 - 1600 m³/h
-30 - 180 °C
