DXMB4_C

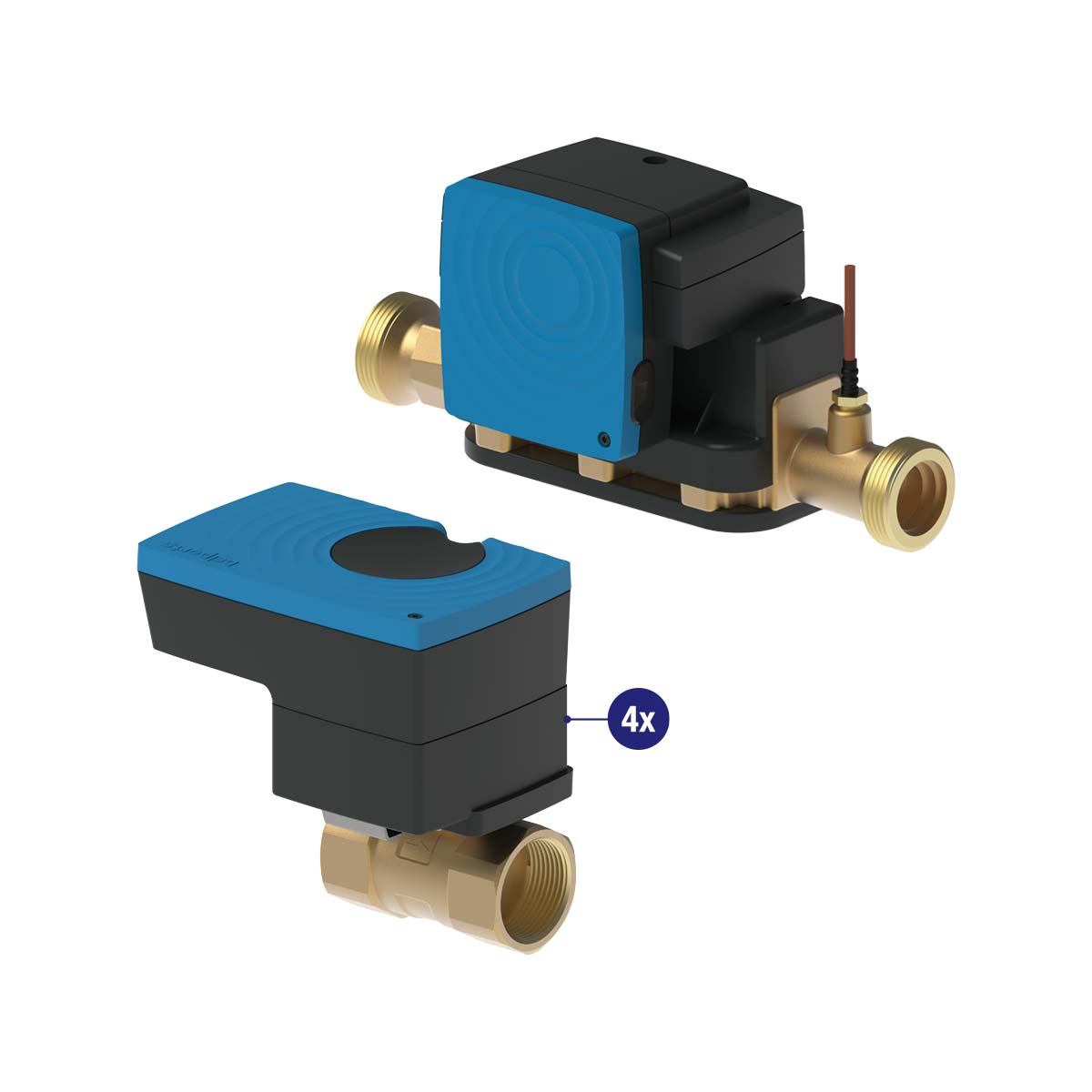

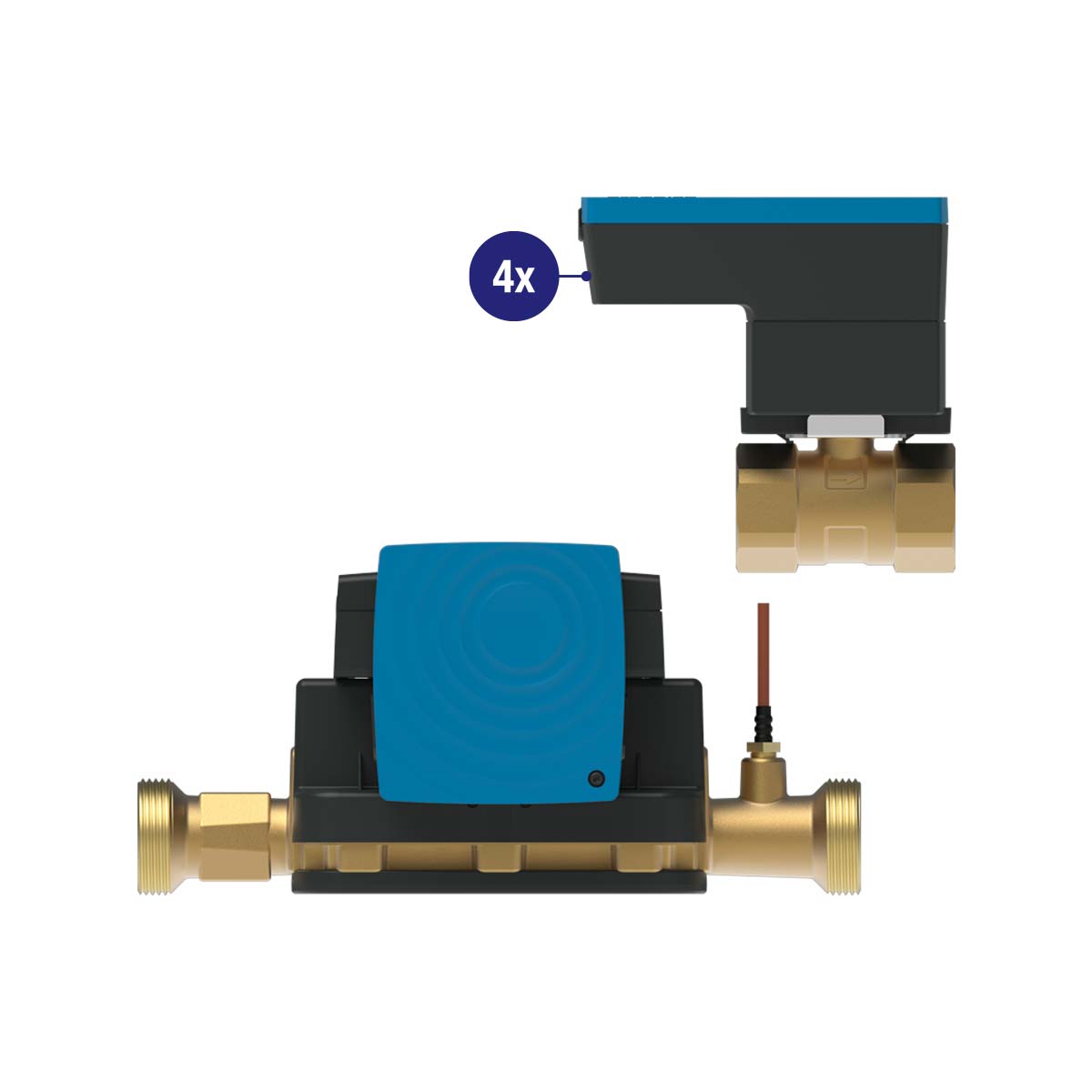

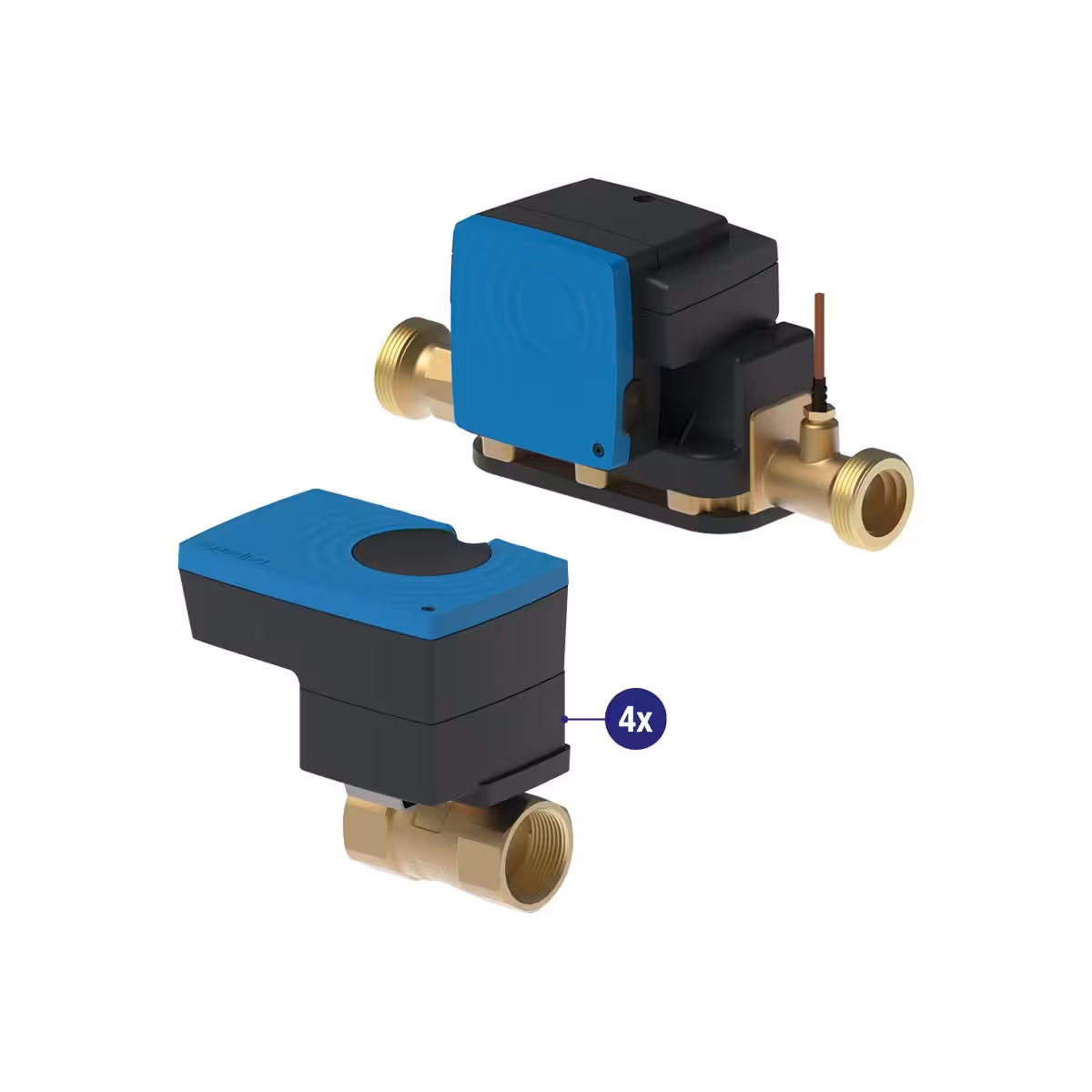

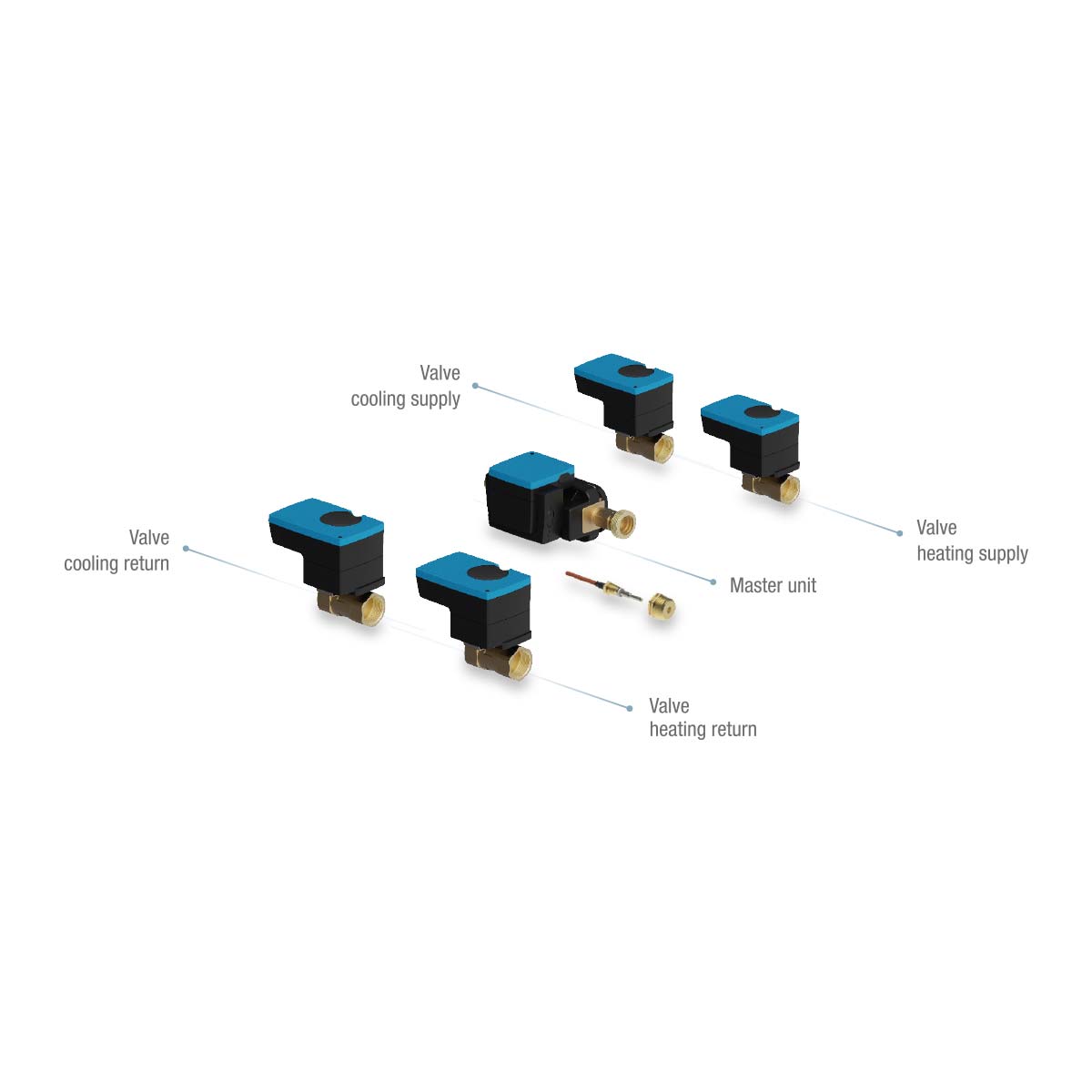

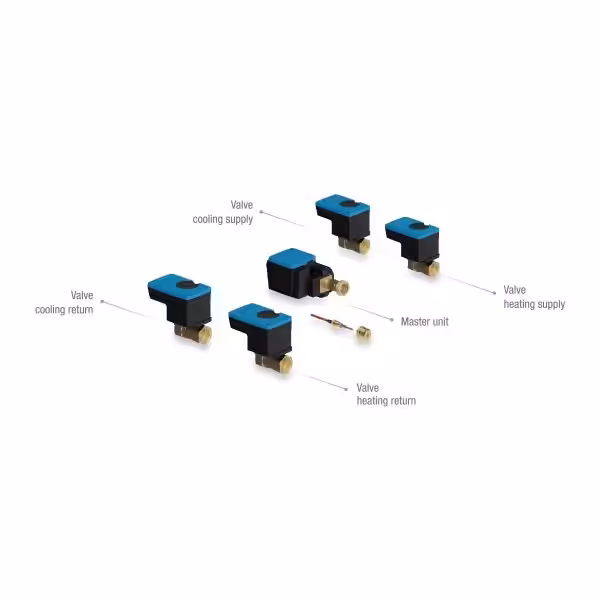

4 x 2-port flow control valves changeover

Product features

DN15 – DN50
UV: AC/DC 24 Volt
Y1: 0 – 10 Vdc
Flow range: 0 – 20.000 l/h
MODBUS RTU, BACnet MSTP (RS485) and Bluetooth®

Types

MP MultiProtocol: MODBUS RTU, BACnet MS/TP and Bluetooth®
Type Design flow at Δp [l/h]
Series Version 5 kPa 10 kPa 20 kPa
DXMB4P015C .111621 15 537 759 1.073
DXMB4P020C .111621 20 939 1.328 1.878
DXMB4P025C .111621 25 1.409 1.992 2.817
DXMB4P032C .111621 32 2.057 2.909 4.114
DXMB4P040C .111621 40 3.354 4.743 6.708
DXMB4P050C .111621 50 4.472 6.325 8.944

DXMB4_C features

  • Flow
  • Water temperature ΔT
  • Flow
  • Position
  • dxLink21™ app via Bluetooth®
  • MODBUS RTU and BACnet MSTP
  • Analog input
  • Analog output

Specifications

Product type
dynamx™ Quattro flow control valve

Number of ports
Four 2-port control valves for 4-pipe changeover

DN sizes
DN15 – DN50

Connection
ISO228-1 flat coupling and ISO7/1 threaded valve connections

Flow range
0 – 20.000 l/h

Medium
Water without glycol, according to VDI 2035

Medium temperature
2 – 100 °C

Nominal pressure
PN16

Hydraulic function
Pressure-independent heating and cooling changeover with automatic dynamic balancing

Flow measurement
Ultrasonic TTM, without moving parts, compliant with MID requirements

Supply voltage
AC/DC 24 Volt

Control and feedback signals
Split-range 0 – 10 Vdc control input and 0 – 10 Vdc flow feedback

Communication
MODBUS RTU and BACnet MS/TP via RS485

Commissioning
Bluetooth® with the dxLink21™ app

Additional functions
Separate heating and cooling setpoints, ΔT measurement and energy metering
