2-port and 3-port flow control valves

Product features

DN65 – DN150
UV: AC/DC 24 Volt
Y1: 0 – 10 Vdc
Flow range: 0 – 272.000 l/h
MODBUS RTU, BACnet MSTP (RS485) and Bluetooth®

Types

MP MultiProtocol: MODBUS RTU, BACnet MS/TP and Bluetooth®
2-port type Design flow at Δp [m³/h]
Series Version 5 kPa 10 kPa 20 kPa
DXUB2F065C .111621 65 10 15 21
DXUB2F080C .111621 80 15 22 31
DXUB2F100C .111621 100 25 36 51
DXUB2F150C .111621 150 60 86 121
3-port type Design flow at Δp [m³/h]
Series Version 5 kPa 10 kPa 20 kPa
DXUB3F065C .111621 65 10 15 21
DXUB3F080C .111621 80 15 22 31
DXUB3F100C .111621 100 25 36 51
DXUB3F150C .111621 150 60 86 121

DXUB_C features

  • Flow
  • Water temperature ΔT
  • Flow
  • Position
  • Water temperature ΔT
  • dxLink21™ app via Bluetooth®
  • MODBUS RTU and BACnet MSTP
  • Analog input
  • Analog output

Specifications

Product type

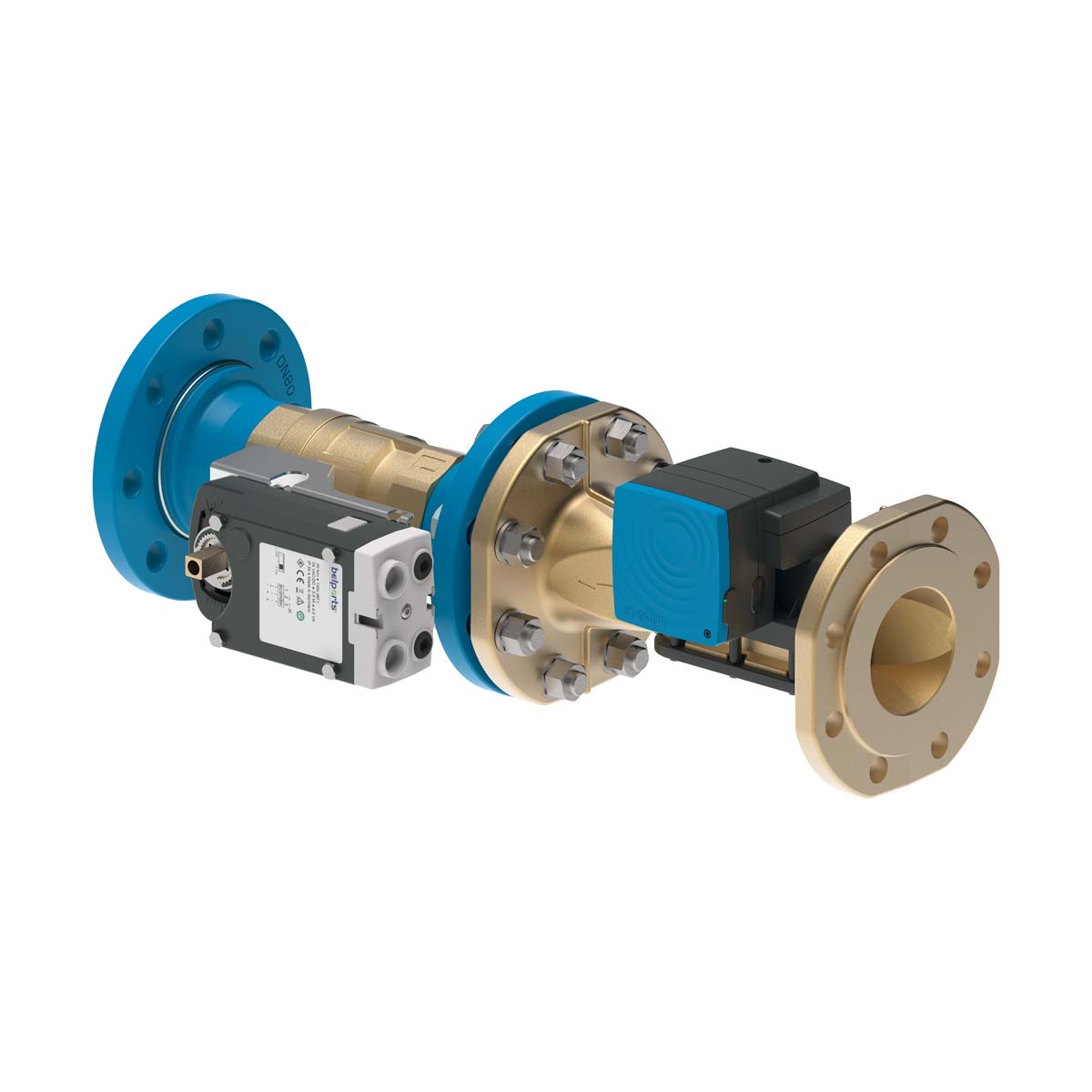

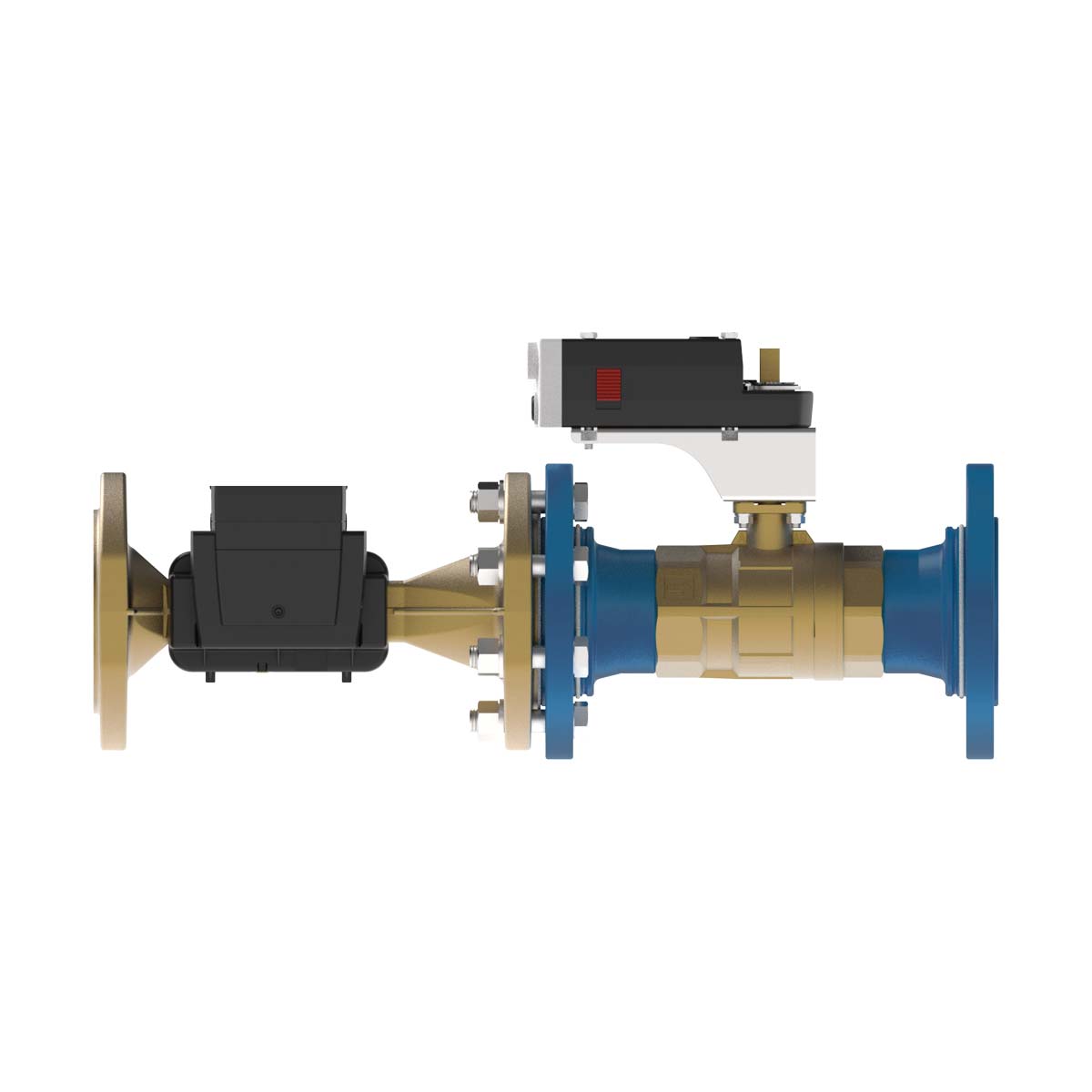

dynamx™ MID ball flow control valve

Number of ports
2-port or 3-port

DN sizes
DN65 – DN150

Connection
PN16 flanges according to EN1092-2 Type 21

Flow range
0 – 272.000 l/h

Medium
Water without glycol, according to VDI 2035

Medium temperature
2 – 100 °C

Nominal pressure
PN16

Hydraulic function
Electronic pressure-independent ball valve with automatic dynamic balancing

Flow measurement
MID ultrasonic TTM, without moving parts

Supply voltage
AC/DC 24 Volt

Control and feedback signals
0 – 10 Vdc control input and 0 – 10 Vdc flow feedback

Communication
MODBUS RTU and BACnet MS/TP via RS485

Commissioning
Bluetooth® with the dxLink21™ app

Additional functions
Integrated ΔT and energy measurement

Downloads

Document language
English (11)

Related products

DXC2_B

2-port

DXC2_B

DN20
0 - 2.400 l/h
DXMB_B

2-port, 3-port

DXMB_B

DN20
0 - 2.900 l/h
DXMB_C

2-port, 3-port

DXMB_C

DN15 - DN50
0 - 20.000 l/h
DXN6_B

6-port, Changeover

DXN6_B

DN15, DN25
0 - 2.500 l/h
DXMB4_C

Changeover

DXMB4_C

DN15 - DN50
0 - 20.000 l/h
DXU_C

2-port, 3-port

DXU_C

DN50 - DN150
0 - 254.000 l/h

App

dxLink21, the app that simplifies your work

Manage, commission and monitor dynamx™ flow control valves directly from your smartphone or tablet. dxLink21 gives you quick access to key valve functions, helping you save time during installation, commissioning and maintenance.

Questions or request a quote for DXUB_C?

Our experts can help you with technical questions, product selection and provide a quotation for your project.

How to read the product code

Series code

DXUB2F065C
DXUBdxUltima for primary control
22-port control valve
33-port control valve
FFlanged connection PN16 EN1092
065DN65 (example)
CStandard flow control

Version code

111621
1AC/DC 24 Volt
1Standard version
1Integrated Bluetooth® communication
6MODBUS RTU and BACnet MSTP (adjustable)
2With integrated ΔT measurement (Tₐₘ₁ + Tₐₘ₂)
11 m PVC cable, 7 × 0.5 mm²
