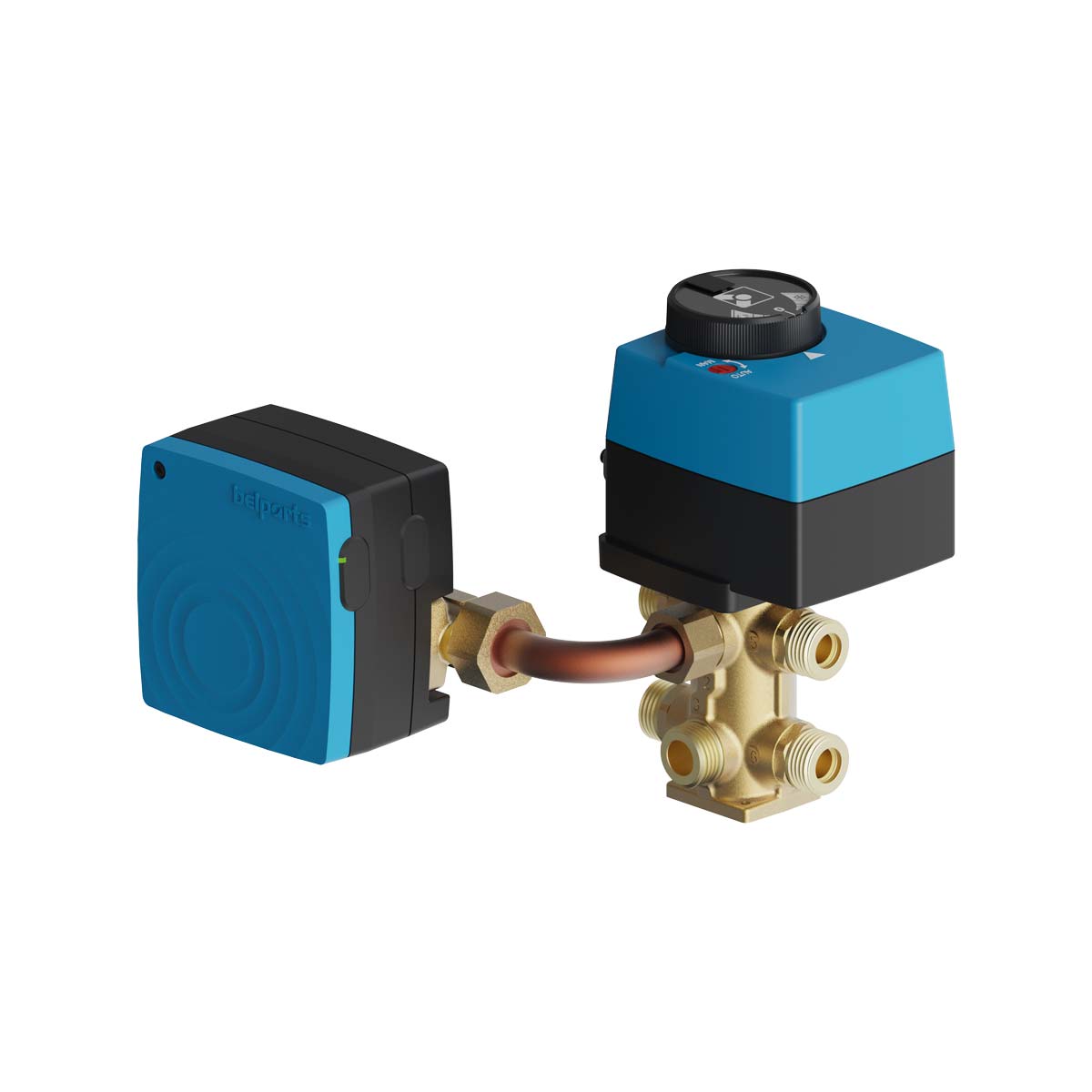

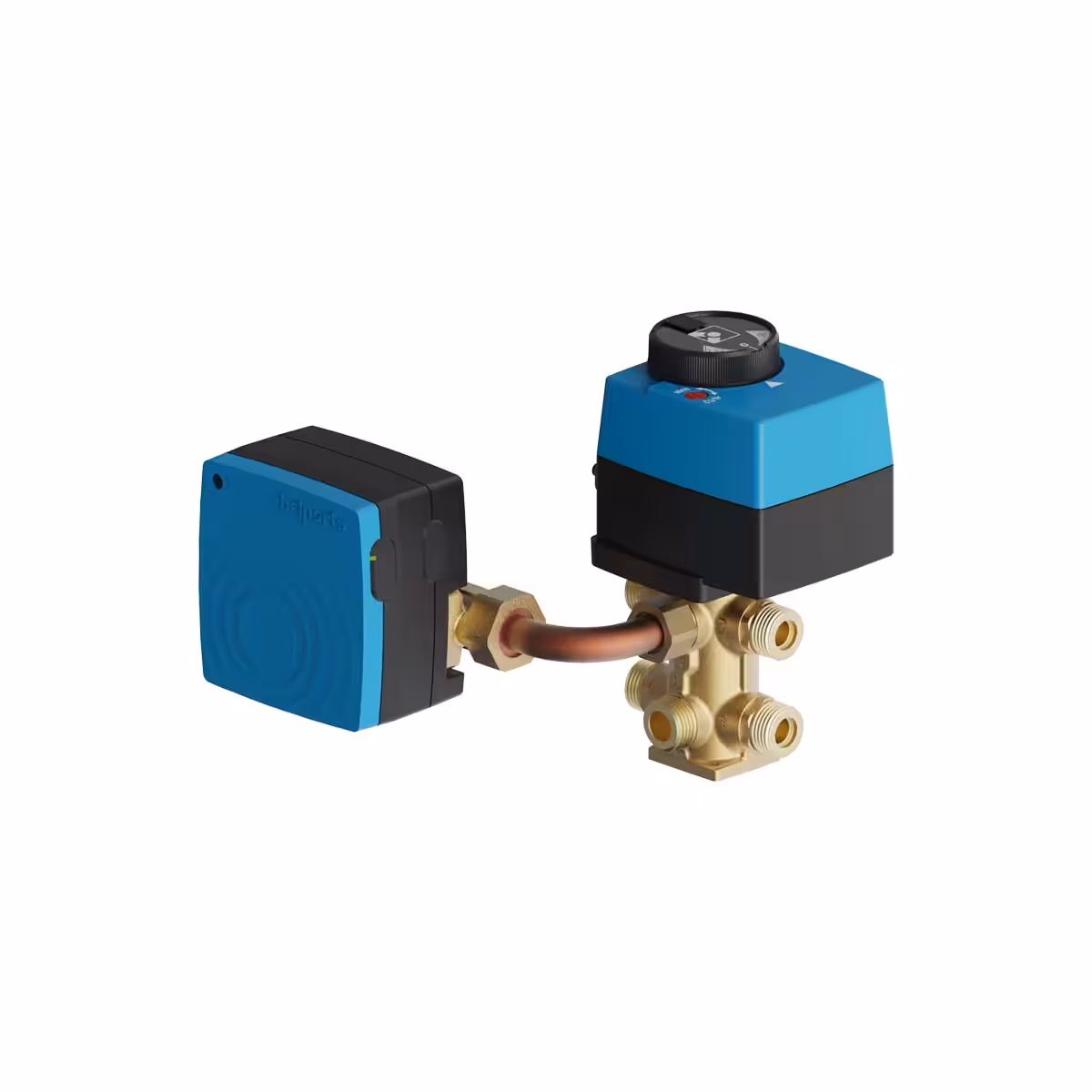

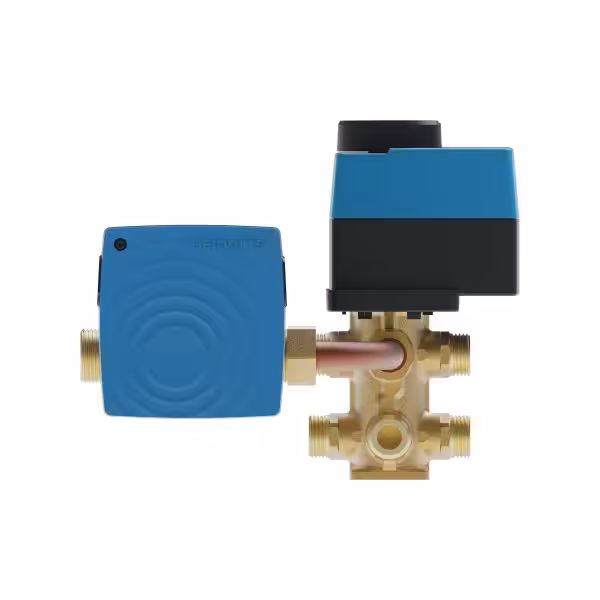

DXN6_B

6-port flow control valves changeover

Product features

DN15 and DN25
Uv: AC/DC 24 Volt (DC 24 Volt on request)
Y1: 0 – 10 Vdc
Flow range: 0 – 2.500 l/h
MODBUS RTU and BACnet MSTP (RS485)

Types

MP MultiProtocol: MODBUS RTU, BACnet MS/TP and Bluetooth®
Type DN Design flow at Δp [l/h]
Series Version G 5 kPa 10 kPa 20 kPa
DXN6C15B .121601 ½” 310 440 625
DXN6C15B .121621 ½” 310 440 625
DXN6C15B00 .121601 ½” 310 440 625
DXN6P25B .121601 1″ 555 790 1.115
DXN6P25B .121621 1″ 555 790 1.115
DXN6P25B00 .121601 1″ 555 790 1.115
Bluetooth® Mesh communication
Type DN Design flow at Δp [l/h]
Series Version G 5 kPa 10 kPa 20 kPa
DXN6C15B00 .122621 ½” 310 440 625
DXN6P25B00 .122621 1″ 555 790 1.115

DXN6_B features

  • Flow
  • Water temperature ΔT
  • Room temperature
  • Flow
  • Room temperature
  • dxLink21™ app via Bluetooth®
  • Wireless Mesh Networking
  • MODBUS RTU and BACnet MSTP
  • Analog input
  • Analog output
  • Digital input

Specifications

Product type
dynamx™ 6-port flow control valve (e-PICV)

Number of ports
6-port

DN sizes
DN15 (G½”) and DN25 (G1″)

Connection
ISO228/1 flat couplings; G½ or G1 depending on size

Flow range
0 – 2.500 l/h

Medium
Water without glycol, according to VDI 2035

Medium temperature
5 – 90 °C

Nominal pressure
PN16

Hydraulic function
Pressure-independent heating and cooling changeover with separate flow settings (e-PICV)

Flow measurement
Ultrasonic TTM, without moving parts

Supply voltage
AC 24 Volt (DC 24 Volt on request)

Control and feedback signals
Split-range 0 – 10 Vdc control input and 0 – 10 Vdc flow feedback

Communication
MODBUS RTU and BACnet MS/TP via RS485

Commissioning
Bluetooth® with the dxLink21™ app

Additional functions
Separate maximum flow settings for heating and cooling; optional ΔT measurement or Integrated Room Control (IRC)

Downloads

Document language
English (12)

Related products

DXC2_B

2-port

DXC2_B

DN20
0 - 2.400 l/h
DXMB_B

2-port, 3-port

DXMB_B

DN20
0 - 2.900 l/h
DXMB_C

2-port, 3-port

DXMB_C

DN15 - DN50
0 - 20.000 l/h
DXMB4_C

Changeover

DXMB4_C

DN15 - DN50
0 - 20.000 l/h
DXUB_C

2-port, 3-port

DXUB_C

DN65 - DN150
0 - 272.000 l/h
DXU_C

2-port, 3-port

DXU_C

DN50 - DN150
0 - 254.000 l/h

App

dxLink21, the app that simplifies your work

Manage, commission and monitor dynamx™ flow control valves directly from your smartphone or tablet. dxLink21 gives you quick access to key valve functions, helping you save time during installation, commissioning and maintenance.

Questions or request a quote for DXN6_B?

Our experts can help you with technical questions, product selection and provide a quotation for your project.

How to read the product code

Series code

DXN6C15B
DXNdxOne for change-over control
66-port control valve
CH15: 40 mm (compact version)
PH25: 60 mm
15DN15, G½″
25DN25, G1″
BChange-over flow control
B00With integrated room control (IRC)

Version code

121601
1AC/DC 24 Volt (DC 24 Volt on request)
2Standard version (90°)
1Integrated Bluetooth® communication
2Wireless Mesh Networking
6MODBUS RTU and BACnet MSTP (adjustable)
0Without integrated ΔT measurement
2With integrated ΔT measurement (Tₐₘ₁ + Tₐₘ₂)
11 m PVC cable, 7 × 0.5 mm²
