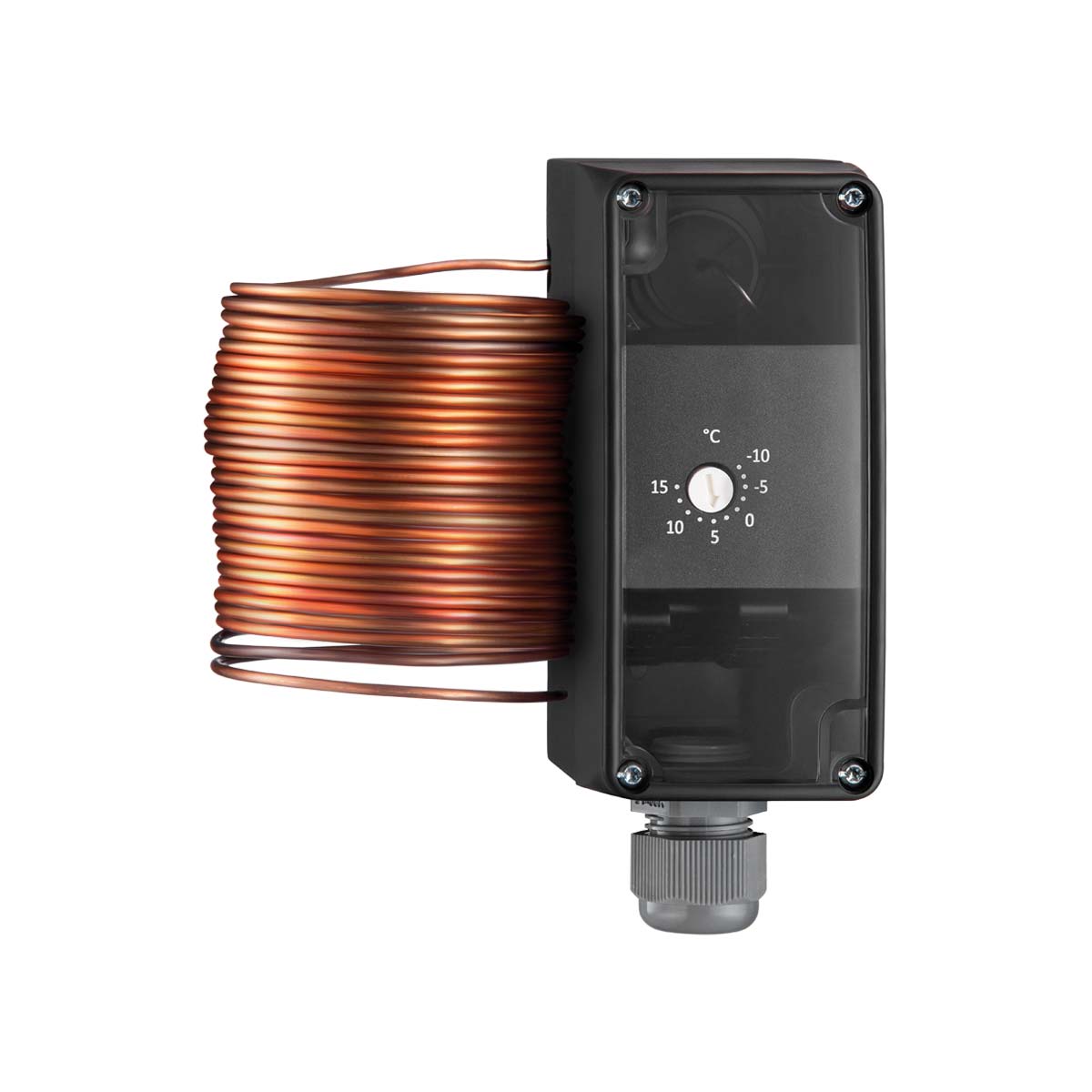

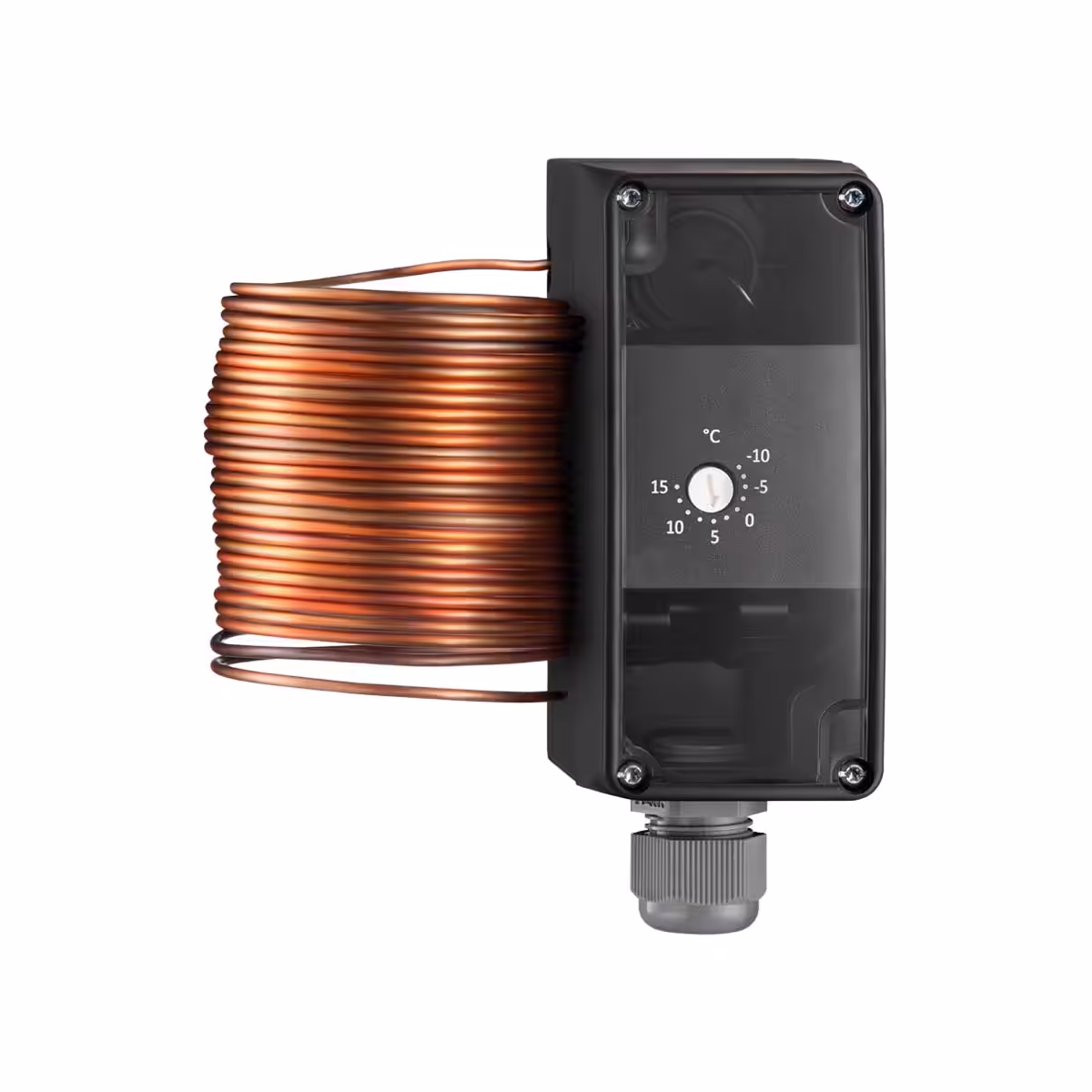

DT.FP

Single-stage frost protection thermostats

Product features

Capillary thermostat
With 1 potential free contact
Switching capacity: 16 (2,5) A @ 230 VAC +10% (NC contact)
TÜV tested (DIN EN 14597)
Switching differential: +3K (STB) or 1,5K (STW)
Range: -10 – 15°C
IP40 1)

Types

Type Capillary [m] Hysteresis [K] Version Set point Reset
DT.FP.203.100 3 +3 STB Internal External
DT.FP.203.200 6 +3 STB Internal External
DT.FP.203.300 12 +3 STB Internal External
DT.FP.204.100 3 1,5 STW Internal –
DT.FP.204.200 6 1,5 STW Internal –
DT.FP.204.300 12 1,5 STW Internal –



STB = safety temperature limiter
STW = safety temperature monitor

1) IP65 available on request
