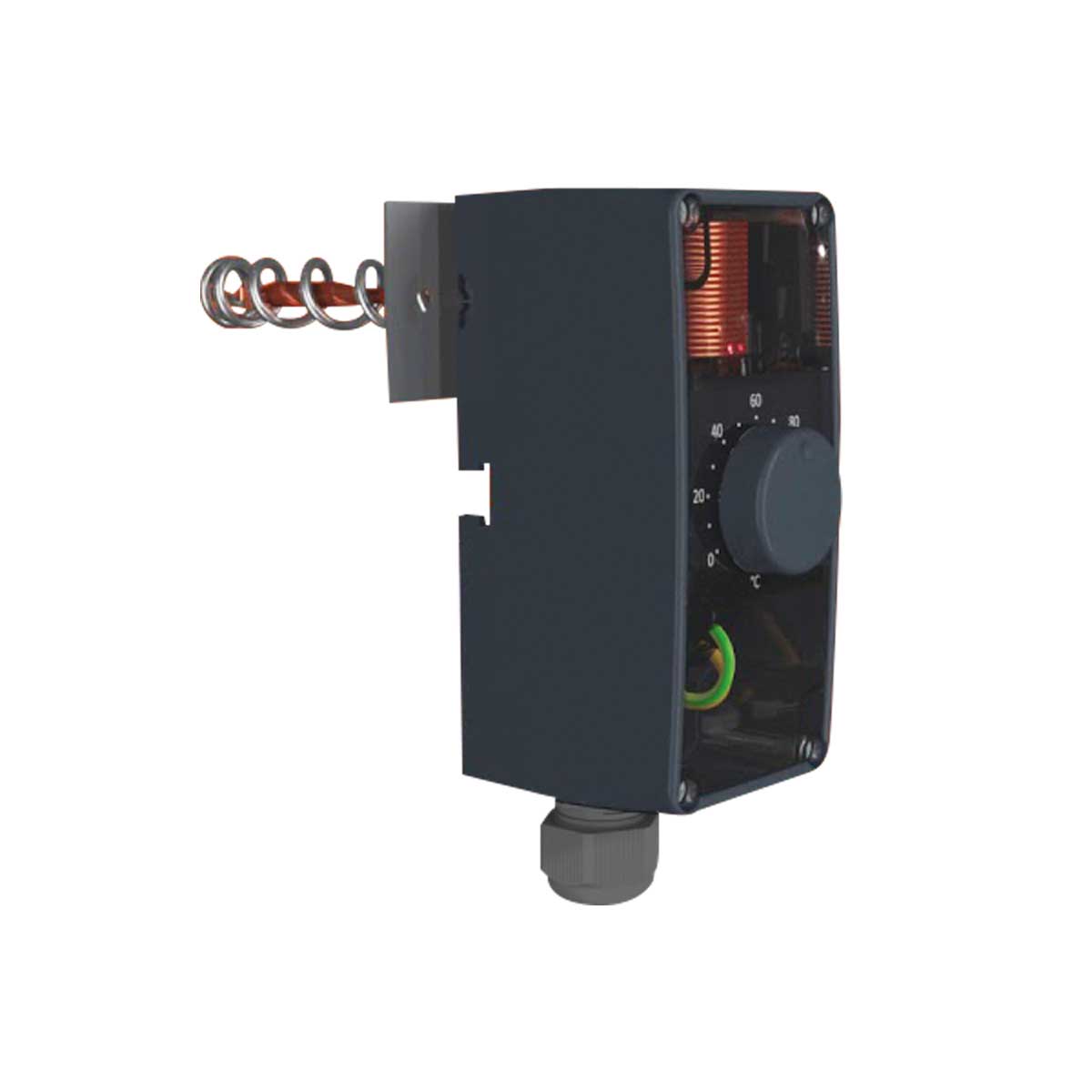

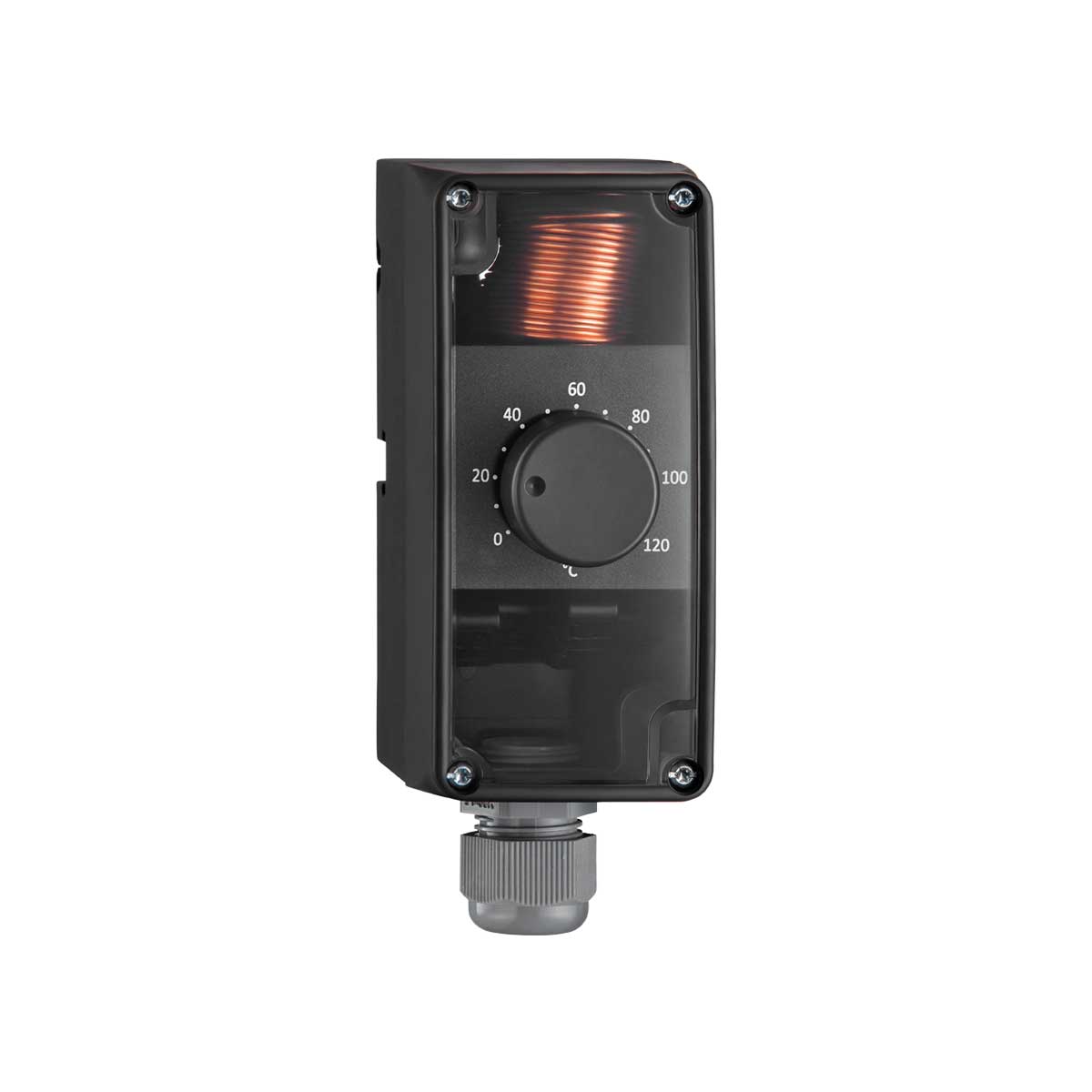

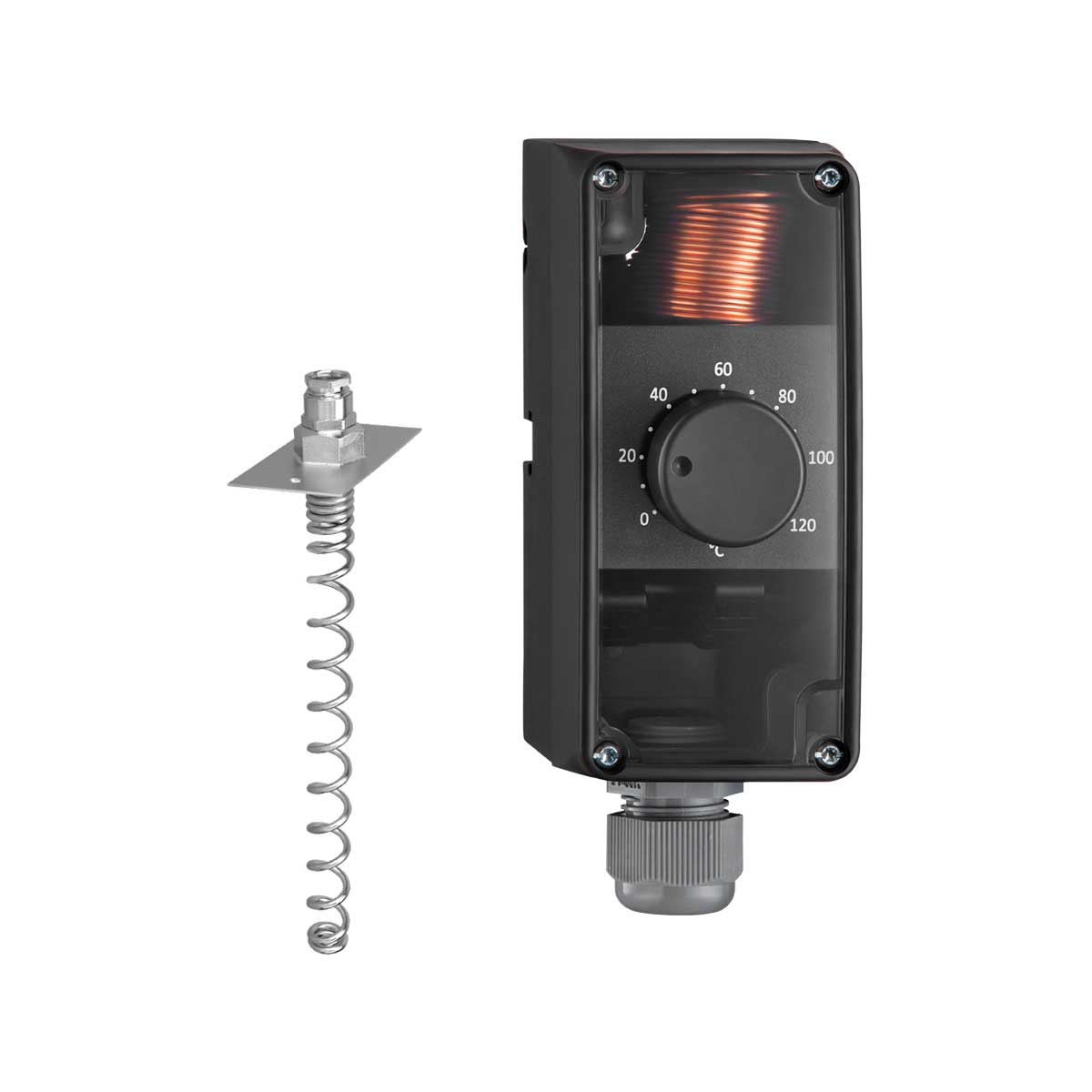

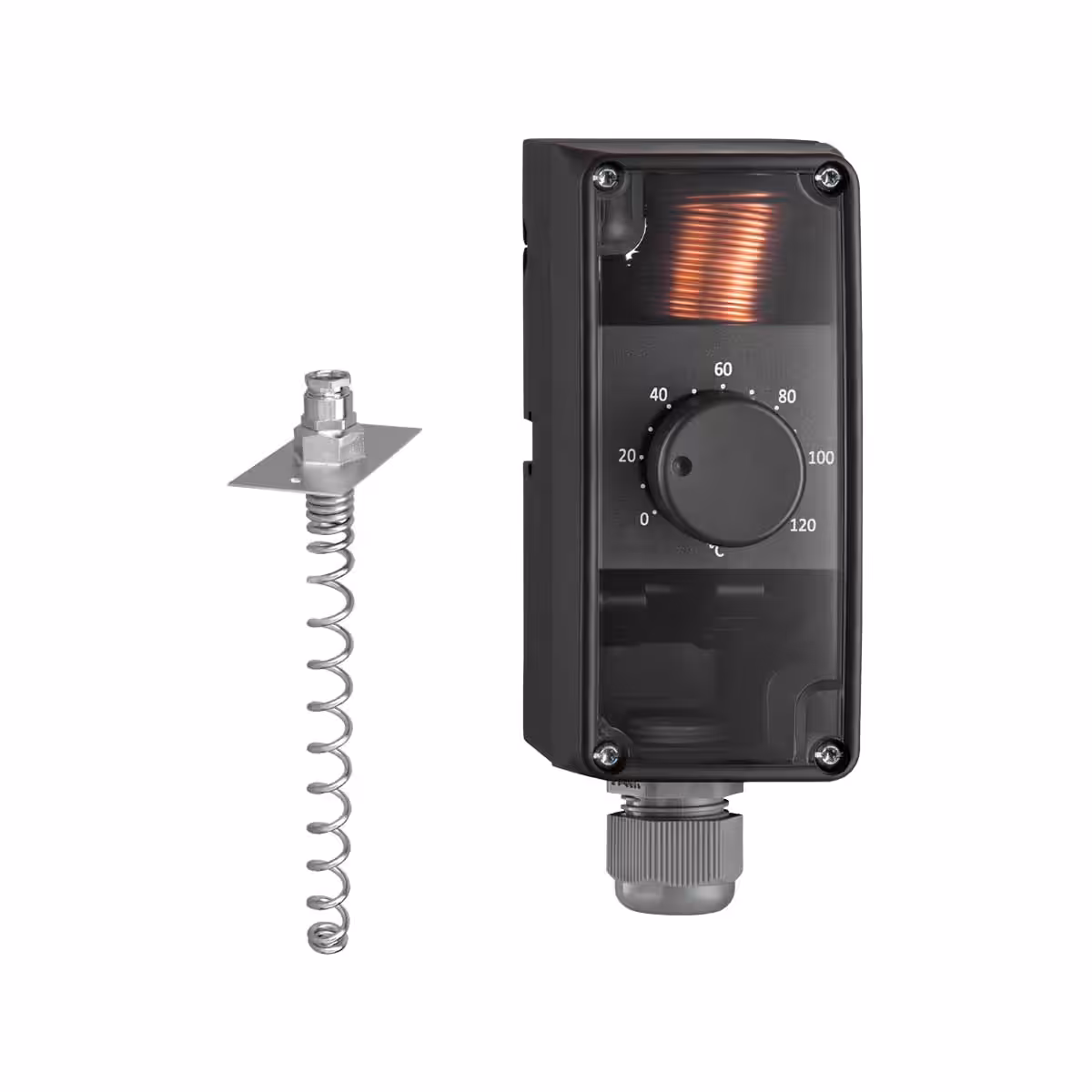

DT.G

Duct thermostats

Product features

Capillary thermostat
With 1 potential free contact
Switching capacity: 15(8)A, AC 24-250 Volt
IP43 (optional: IP54)
TÜV tested (DIN EN 14597)
Sensor Ø 6 mm
With protective spiral and flange plate, nickel-plated steel

Types

Type Version Set point Reset Range [°C] Differential [K] Sensor L [mm]
DT.G-000.100C TR External – 0 – 50 1,3 175
DT.G-000.200A TR External – 0 – 120 3 87
DT.G-000.200C TR External – 0 – 121 3 87
DT.G-000.200D TR External – 0 – 122 3 87
DT.G-001.100C TW Internal – 0 – 50 1,3 175
DT.G-001.200A TW Internal – 0 – 120 3 87
DT.G-001.200C TW Internal – 0 – 120 3 87
DT.G-001.301C TW Internal – 20 – 150 3,3 82
DT.G-002.310C TB Internal External 20 – 150 -10 – -15 1) 55
DT.G-002.410A TB Internal External 30 – 110 -10 – -15 1) 72
DT.G-003.310A STB Internal External 20 – 150 -10 – -15 1) 55
DT.G-003.310C STB Internal External 20 – 150 -10 – -15 1) 55



TR = temperature controller
TW = temperature surveillance
TB = temperature limiter
STB = safety temperature limiter

1) Manual reset after cooling of 10..15K (depending on the configured setpoint)
