DT.T

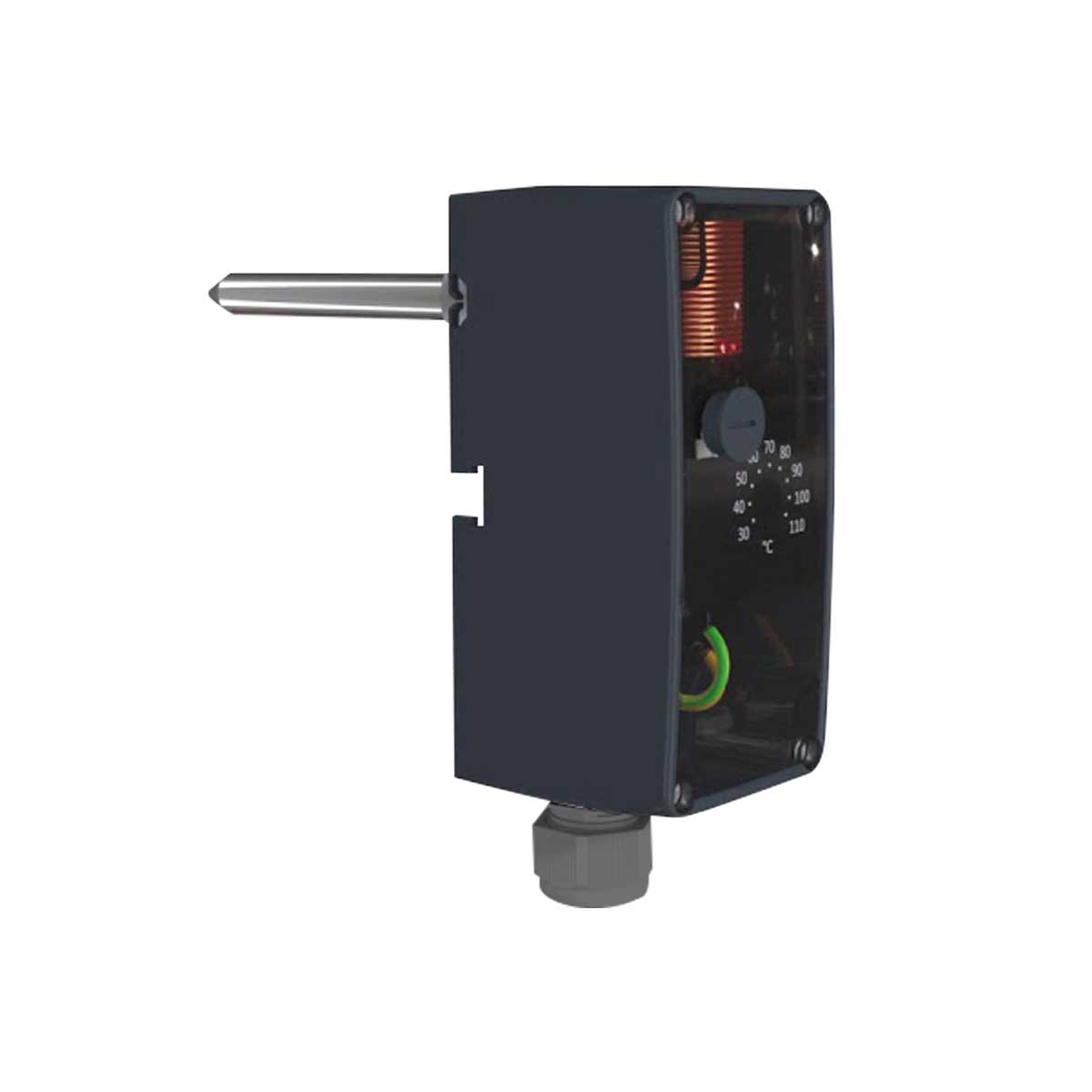

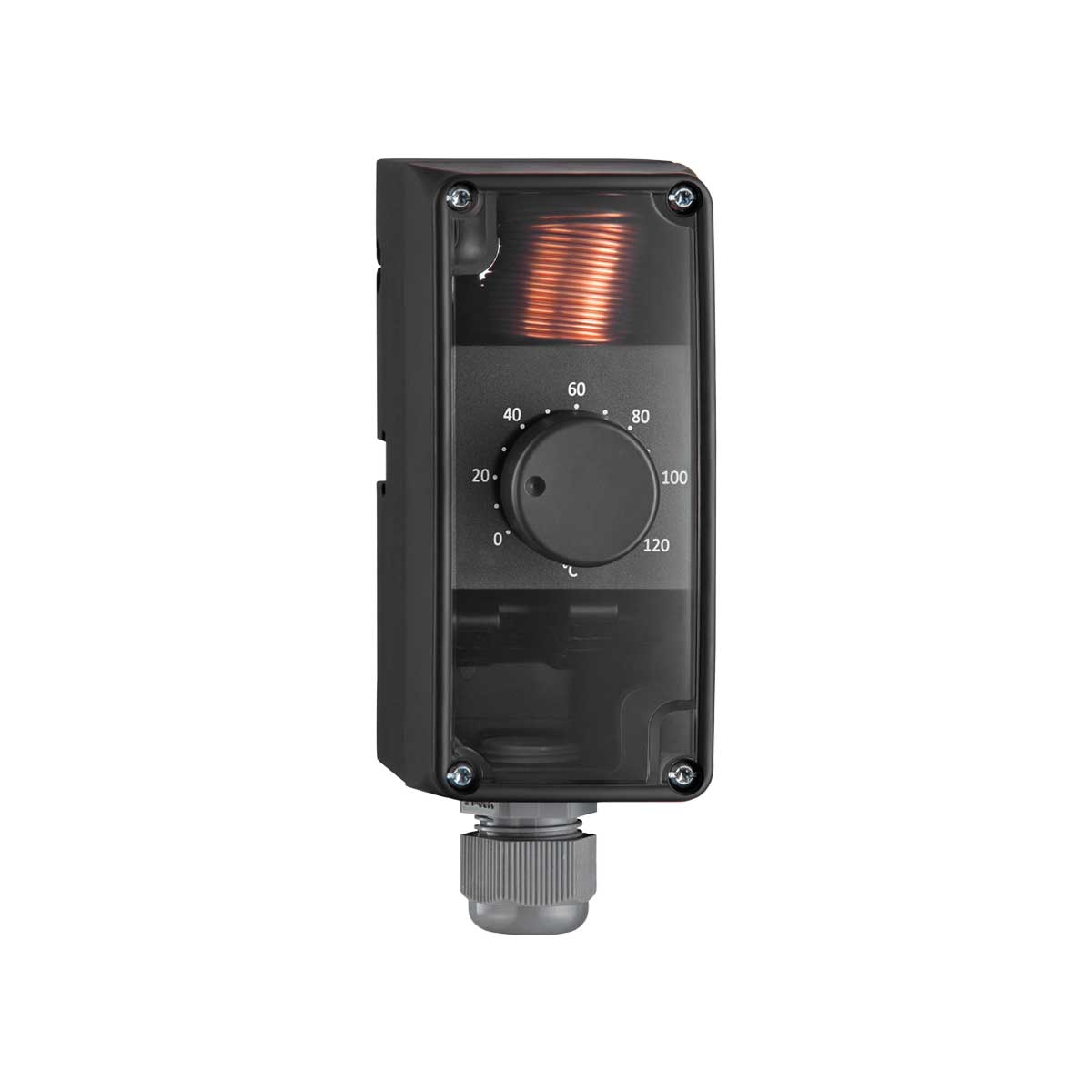

Immersion thermostats

Product features

Capillary thermostat
With 1 potential free contact
Switching capacity: 15(8)A, AC 24-250 Volt
IP43 (optioneel: IP54)
TÜV tested (DIN EN 14597)
Sensor Ø 6 mm

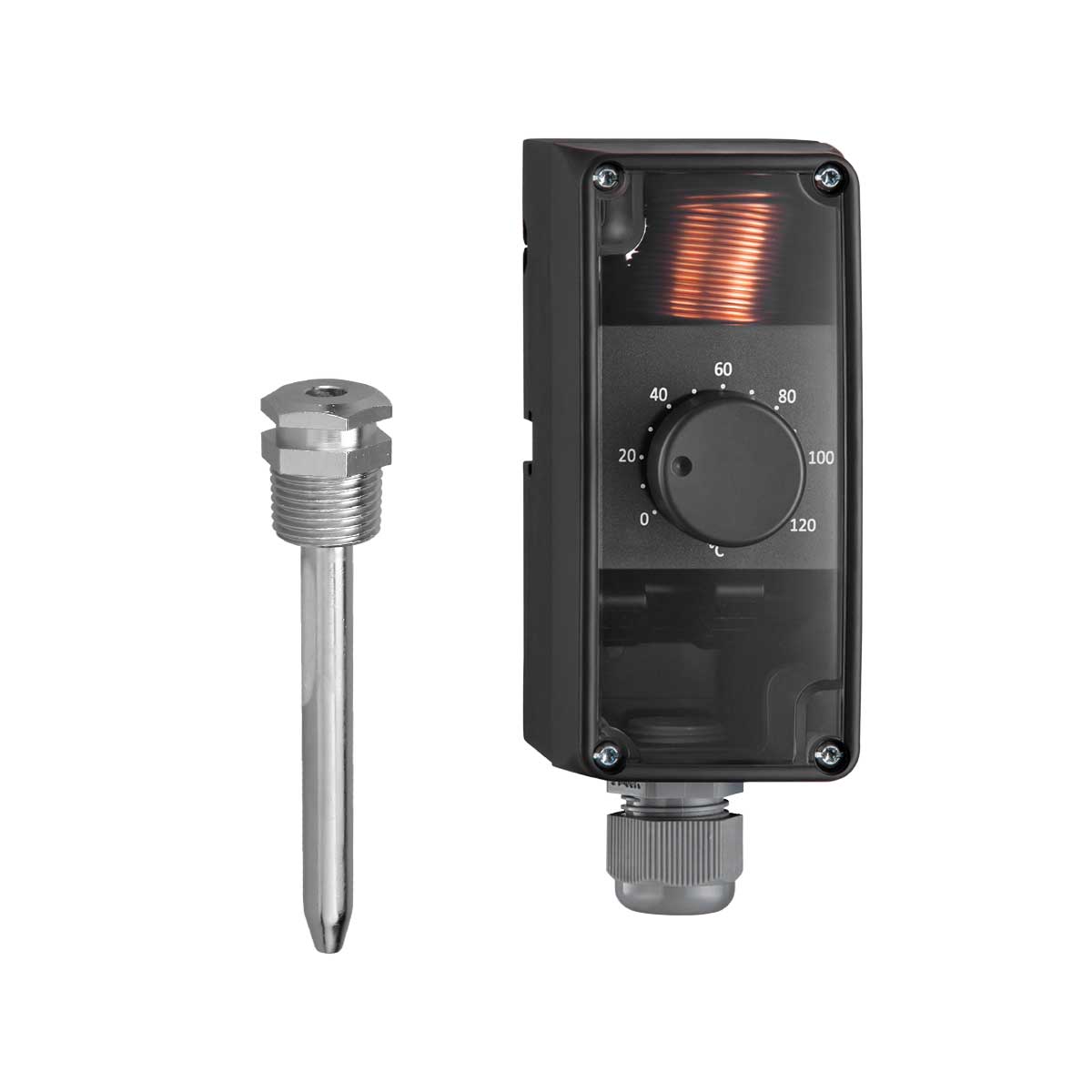

With immersion sleeve in nickel-plated brass or stainless steel

Types

Type Version Set point Reset Range [°C] Differential [K] Sensor L [mm]
DT.T.M-000.100C TR External – 0 – 50 1,3 175
DT.T.M-000.200A TR External – 0 – 120 3 87
DT.T.M-000.200C TR External – 0 – 121 3 87
DT.T.M-000.200D TR External – 0 – 122 3 87
DT.T.S-000.200D 2) TR External – 0 – 123 3 87
DT.T.M-000.300A TR External – 20 – 150 9,1 56
DT.T.M-001.100C TW Internal – 0 – 50 1,3 175
DT.T.M-001.200A TW Internal – 0 – 120 3 87
DT.T.M-001.200C TW Internal – 0 – 120 3 87
DT.T.M-001.300A TW Internal – 20 – 150 9,1 56
DT.T.M-001.300C TW Internal – 20 – 150 9,1 56
DT.T.M-001.300E TW Internal – 20 – 150 9,1 56
DT.T.M-001.301A TW Internal – 20 – 150 3,3 82
DT.T.M-001.301C TW Internal – 20 – 150 3,3 82
DT.T.M-001.301D TW Internal – 20 – 150 3,3 82
DT.T.M-002.310A TB Internal External 20 – 150 -10 – -15 1) 55
DT.T.M-002.310C TB Internal External 20 – 150 -10 – -15 1) 55
DT.T.M-002.410A TB Internal External 30 – 110 -10 – -15 1) 72
DT.T.M-003.310A STB Internal External 20 – 150 -10 – -15 1) 55
DT.T.M-003.310C STB Internal External 20 – 150 -10 – -15 1) 55



1) Manual reset after cooling of 10..15K (depending on the configured setpoint)
2) Immersion sleeve stainless steel (V4A 1.4571)
