JET

1-stage thermostats

Product features

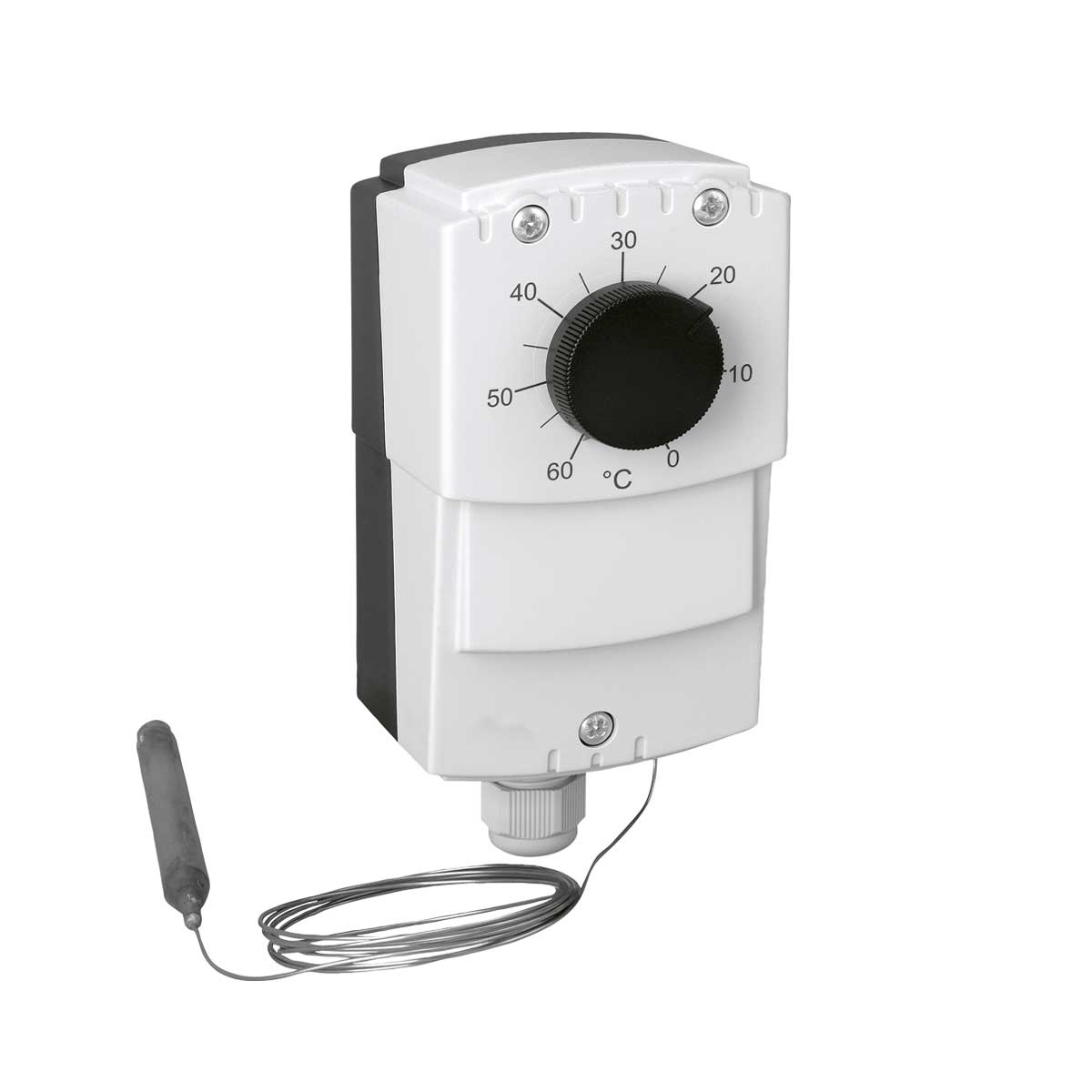

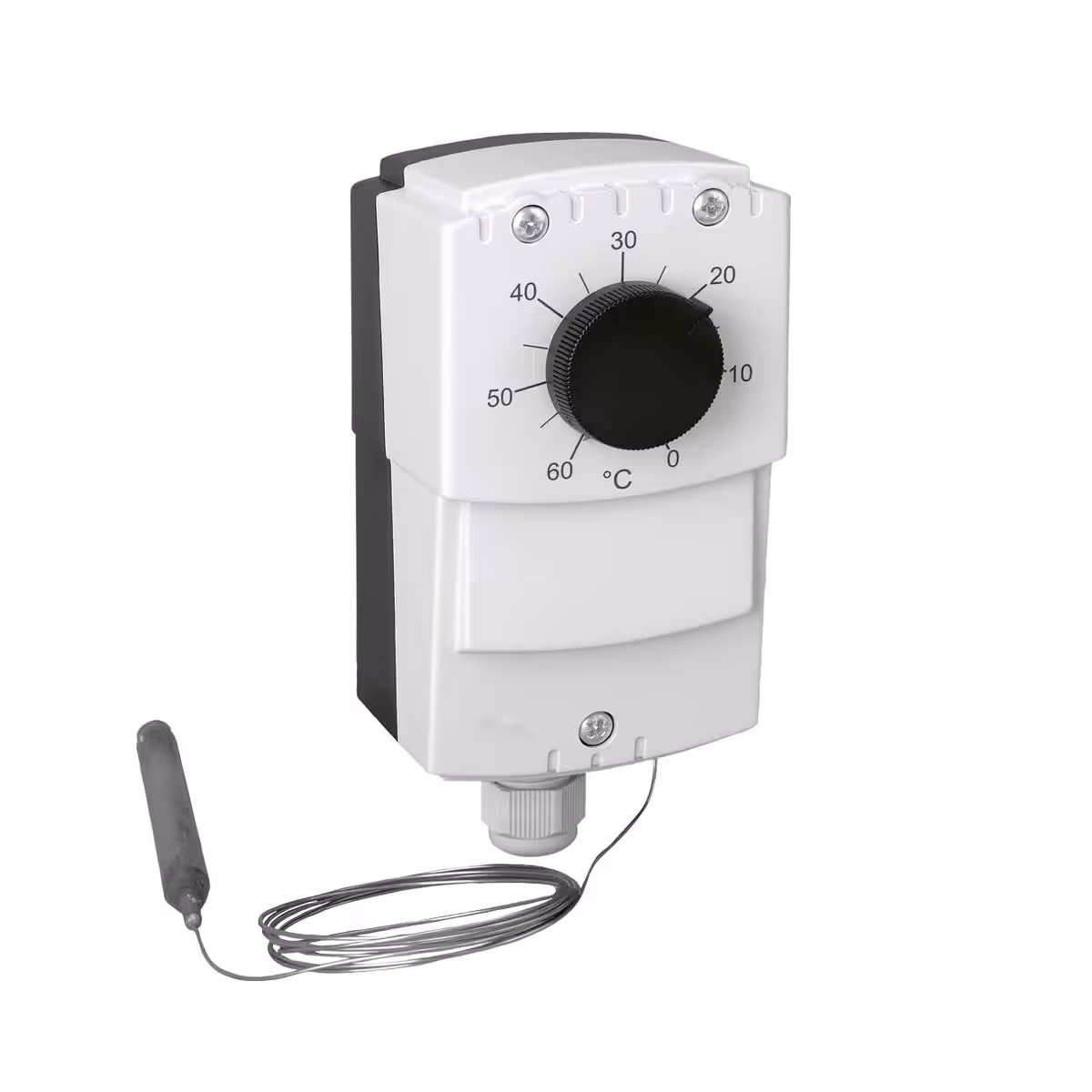

Capillary thermostat wall-mounted
Extern capillary 1,8m
With 1 potential free contact
Max. switching current: 15 (8) A 1)
Max. switching voltage: AC 230 Volt, 50Hz
Min. switching voltage: AC 4 Volt, 50Hz
Switching differential 2..20K (adjustable)
IP65

Types

Type Version Bulb [mm] Control range [°C] Differential [K]
JET.110X TR 9,6 x 122 -35 – 30 2 – 20
JET.110XF TW 9,6 x 122 -35 – 30 2 – 20
JET.120X TR 9,6 x 122 0 – 60 2 – 20
JET.120XF TW 9,6 x 122 0 – 60 2 – 20
JET.130X TR 9,6 x 122 40 – 100 2 – 20
JET.150 TR 6,0 x 80 100 – 280 8 – 50



TR = temperature controller, automatic reset
TW = temperature surveillance, automatic reset

1) At AC 24 Volt: min. 150mA

Downloads

TypeDocumentFile typeSize
DatasheetJET-1 - Thermostats cappilaire - FRPDF83.8 KBView
DatasheetJET-1 - Capillairthermostaten - NLPDF165.8 KBView
CatalogCatalog 2026View
