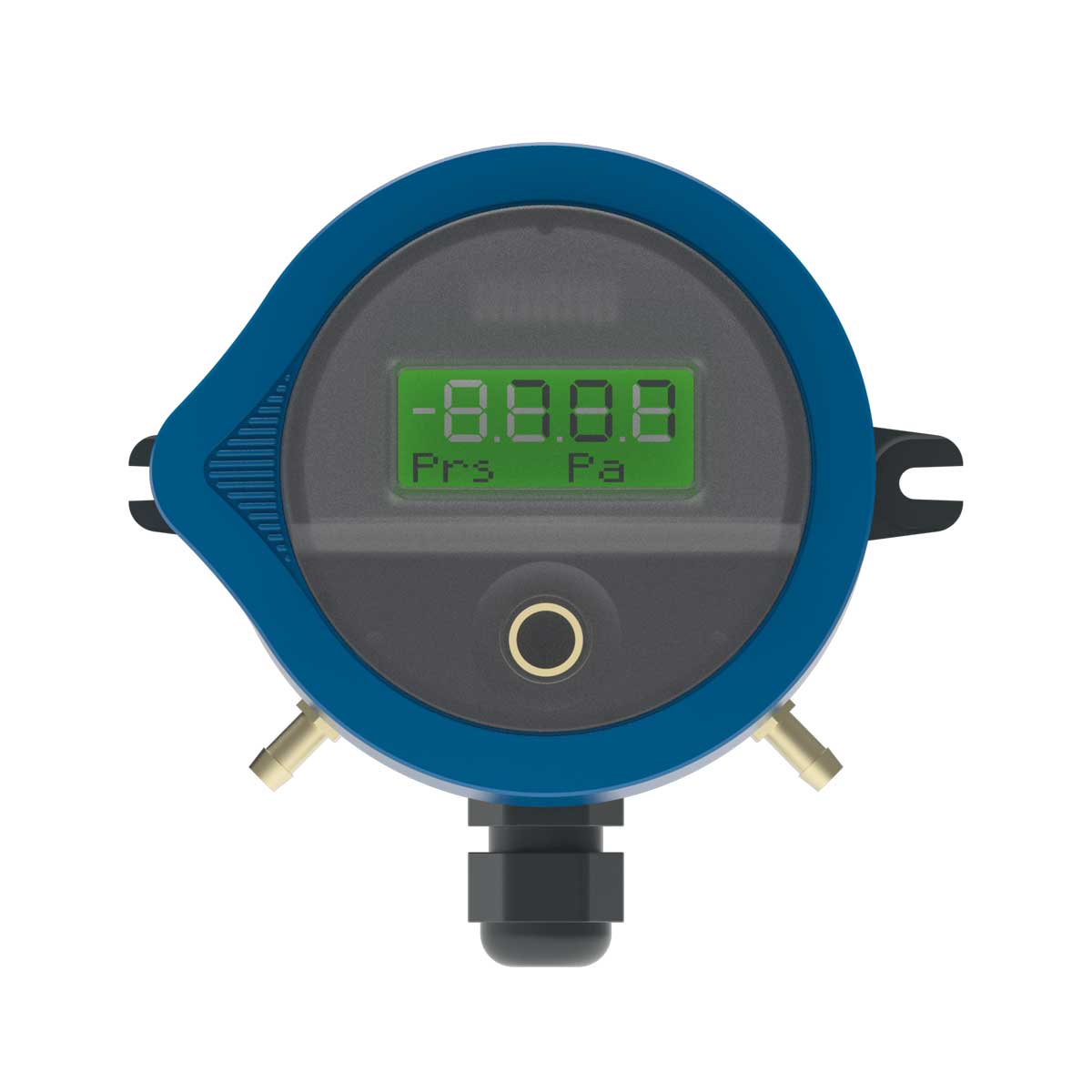

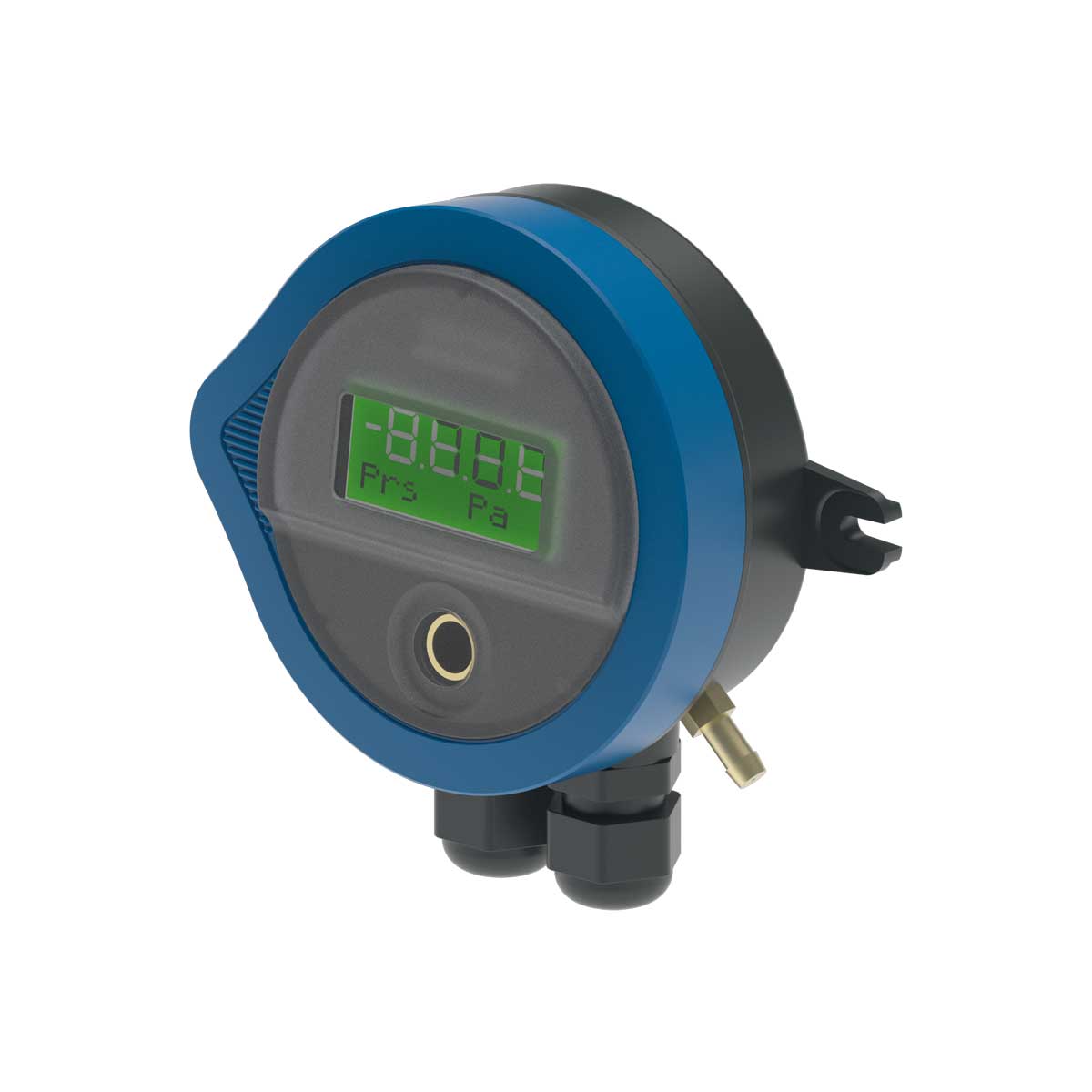

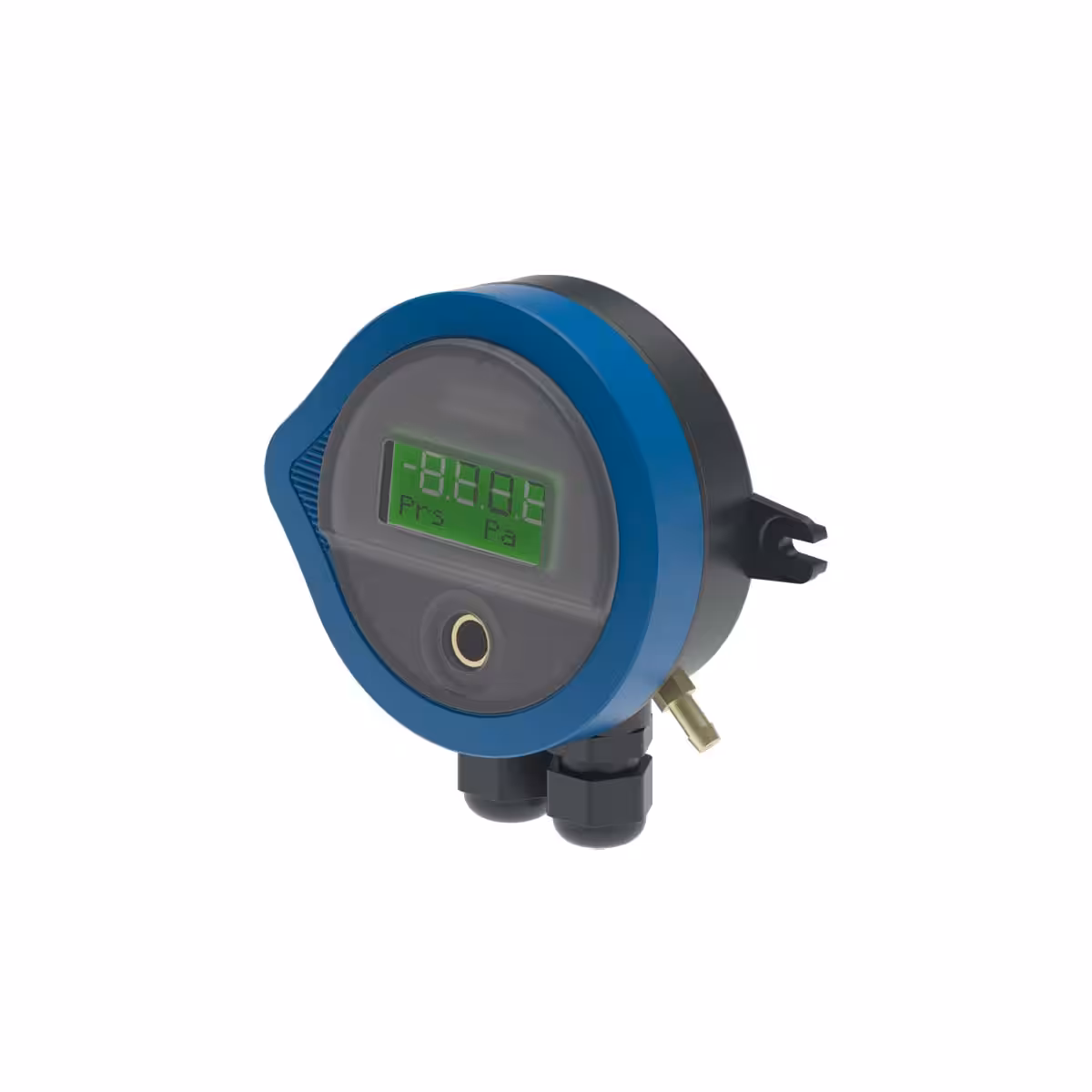

QP.94 / QP.95

Differential pressure sensor air

Product features

Active differential pressure sensors
Analog output: 0 – 10 Vdc or 4 – 20 mA
UV: AC/DC 24 Volt
Measuring range adjustable: 0 – 1000 Pa or 0 – 4000 Pa
Connection kit included in delivery
Optional with LCD display (NFC)

Types

Analogue output
Type Measuring range [Pa] Output signal
QP.94.Ui.4000 0 – 4000 1) 0 – 10 Vdc / 4 – 20 mA
QP.94.Ui.4000.LCD 0 – 4000 1) 0 – 10 Vdc / 4 – 20 mA
QP.95.Ui.1000 0 – 1000 2) 0 – 10 Vdc / 4 – 20 mA
QP.95.Ui.1000.LCD 0 – 1000 2) 0 – 10 Vdc / 4 – 20 mA

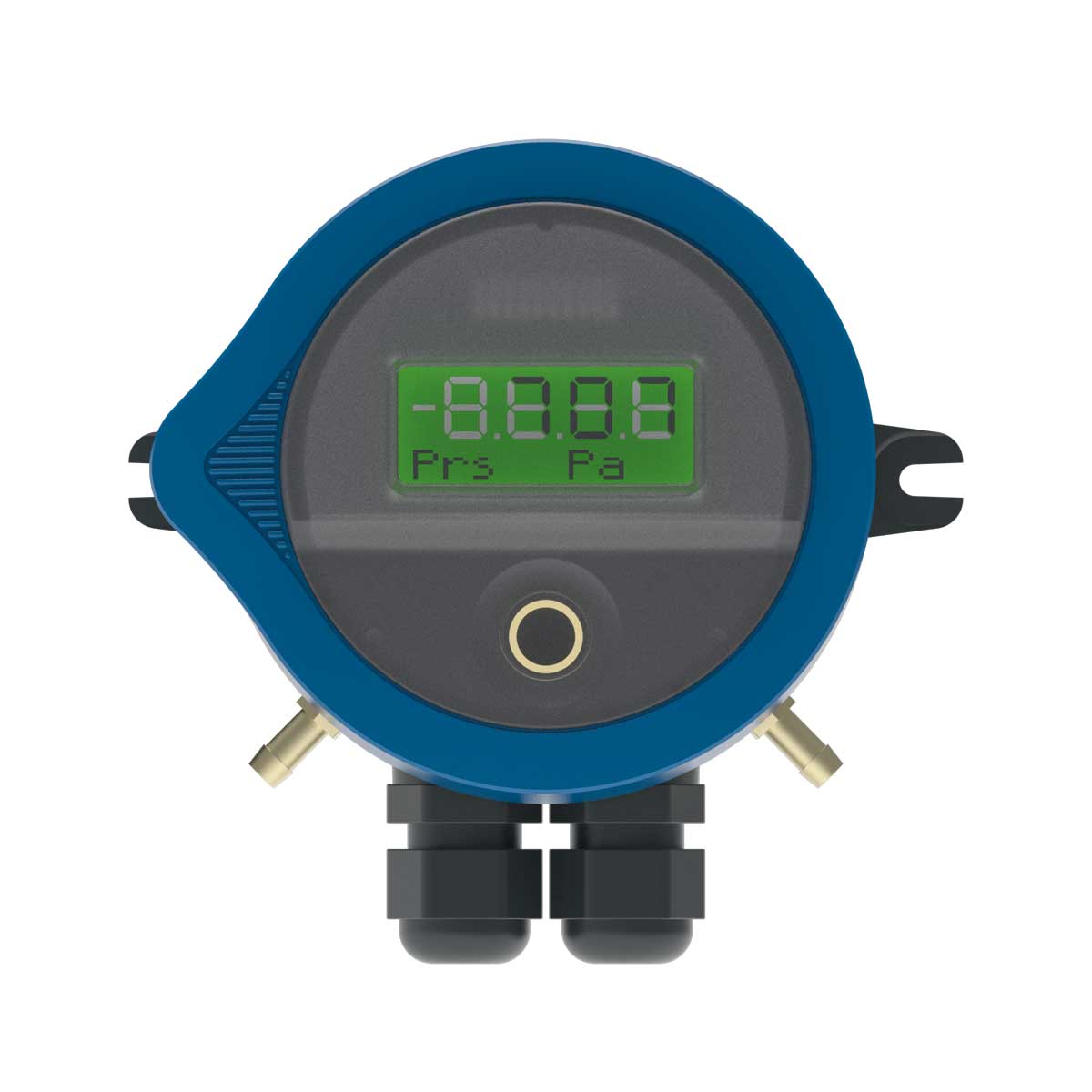

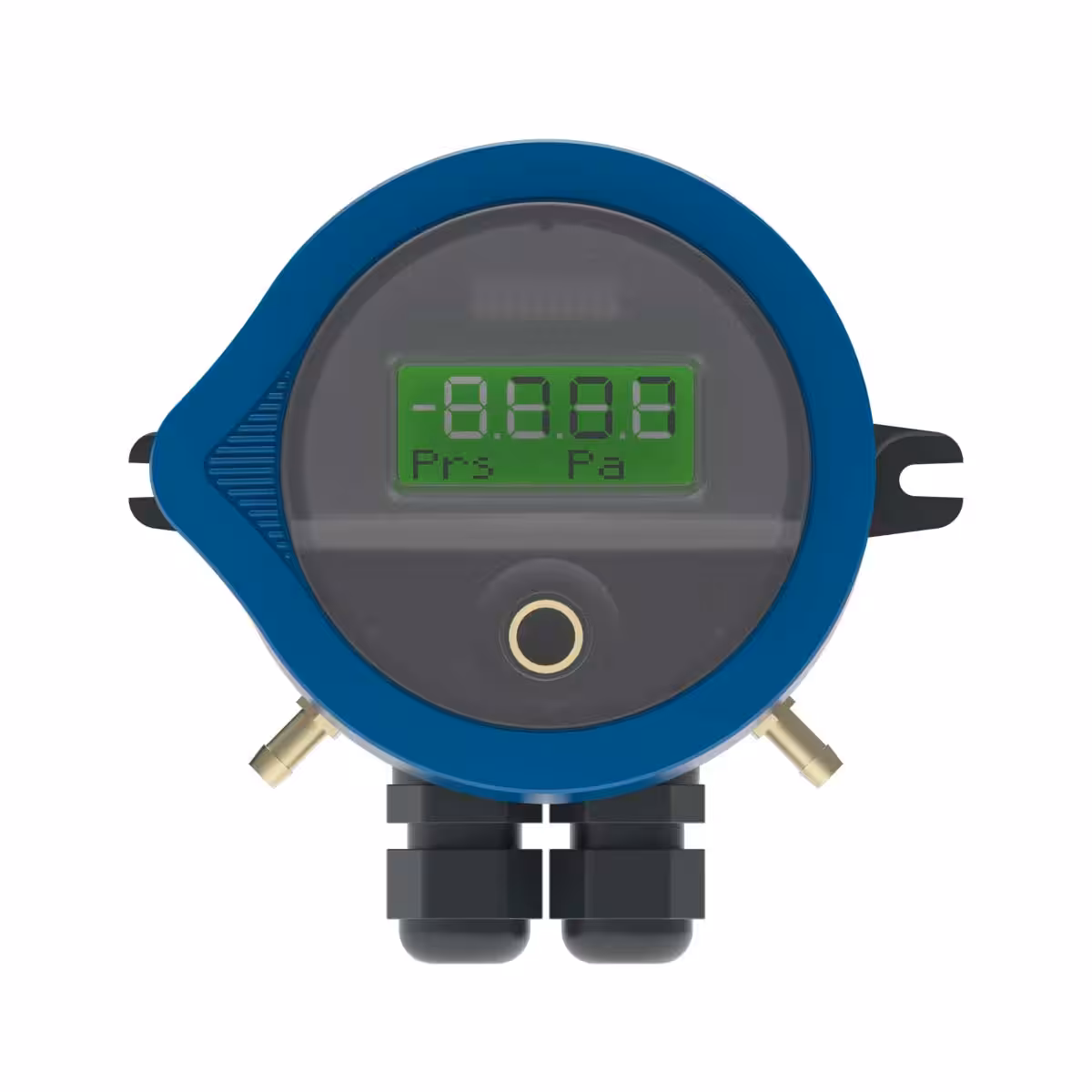

MODBUS
Type Measuring range [Pa]
QP.94.A.4000 0 – 4000 1)
QP.94.A.4000.LCD 0 – 4000 1)
QP.95.A.1000 0 – 1000 2)
QP.95.A.1000.LCD 0 – 1000 2)
BACnet
Type Measuring range [Pa]
QP.94.B.4000 0 – 4000 1)
QP.94.B.4000.LCD 0 – 4000 1)
QP.95.B.1000 0 – 1000 2)
QP.95.B.1000.LCD 0 – 1000 2)



1) QP.94 adjustable measuring ranges: 0 – 400, 0 – 800, 0 – 1200, 0 – 1600, 0 – 2000, 0 – 2400, 0 – 2800, 0 – 3200, 0 – 3600 or 0 – 4000 Pa. Standard setting: 0 – 4000 Pa.
2) QP.95 adjustable measuring ranges: 0 – 100, 0 – 200, 0 – 300, 0 – 400, 0 – 500, 0 – 600, 0 – 700, 0 – 800, 0 – 900 or 0 – 1000 Pa. Standard setting: 0 – 1000 Pa.

Downloads

TypeDocumentFile typeSize
DatasheetQP.94 / QP.95 - Differential pressure sensors air - ENPDF1.5 MBView
DatasheetQP.94 / QP.95 - Drukverschilsensor lucht - NLPDF629.8 KBView
CatalogCatalog 2026View
