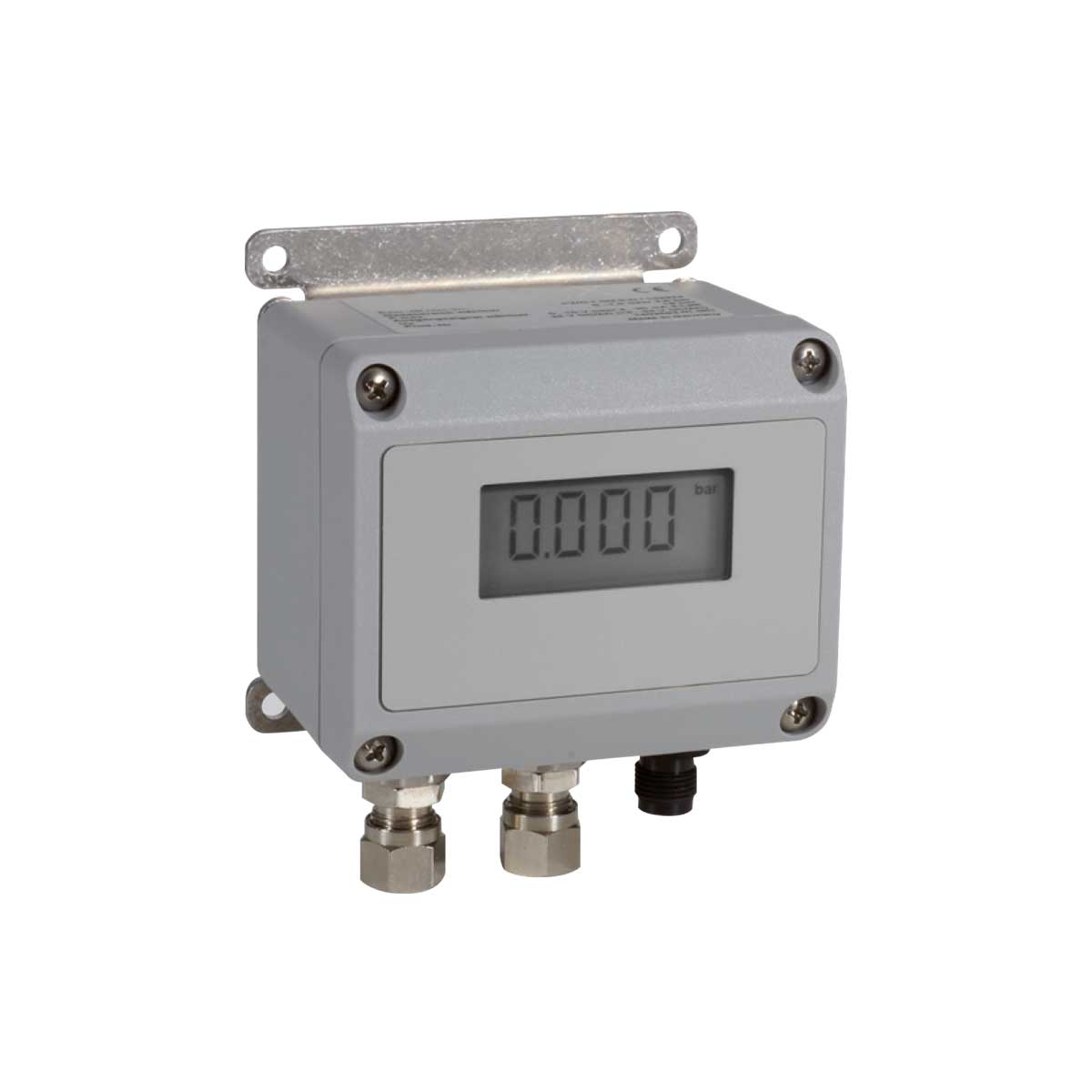

QP.W92

Differential pressure sensor water

Product features

Active differential pressure sensors
Analog output: 0 – 10 Vdc or 4 – 20 mA
UV: AC/DC 24 Volt
Maximum static pressure: 16 bar
Process connection via 8 mm copper pipe 1)
Measuring range adjustable
Optional with LCD display (NFC)

Types

Type Output signal Δp range [bar] 2)
QP.W92.002 0 – 10 Vdc / 4 – 20 mA 0 – 1,0 or 0 – 2,5
QP.W92.002.LCD 0 – 10 Vdc / 4 – 20 mA 0 – 1,0 or 0 – 2,5
QP.W92.006 0 – 10 Vdc / 4 – 20 mA 0 – 4,0 or 0 – 6,0
QP.W92.006.LCD 0 – 10 Vdc / 4 – 20 mA 0 – 4,0 or 0 – 6,0

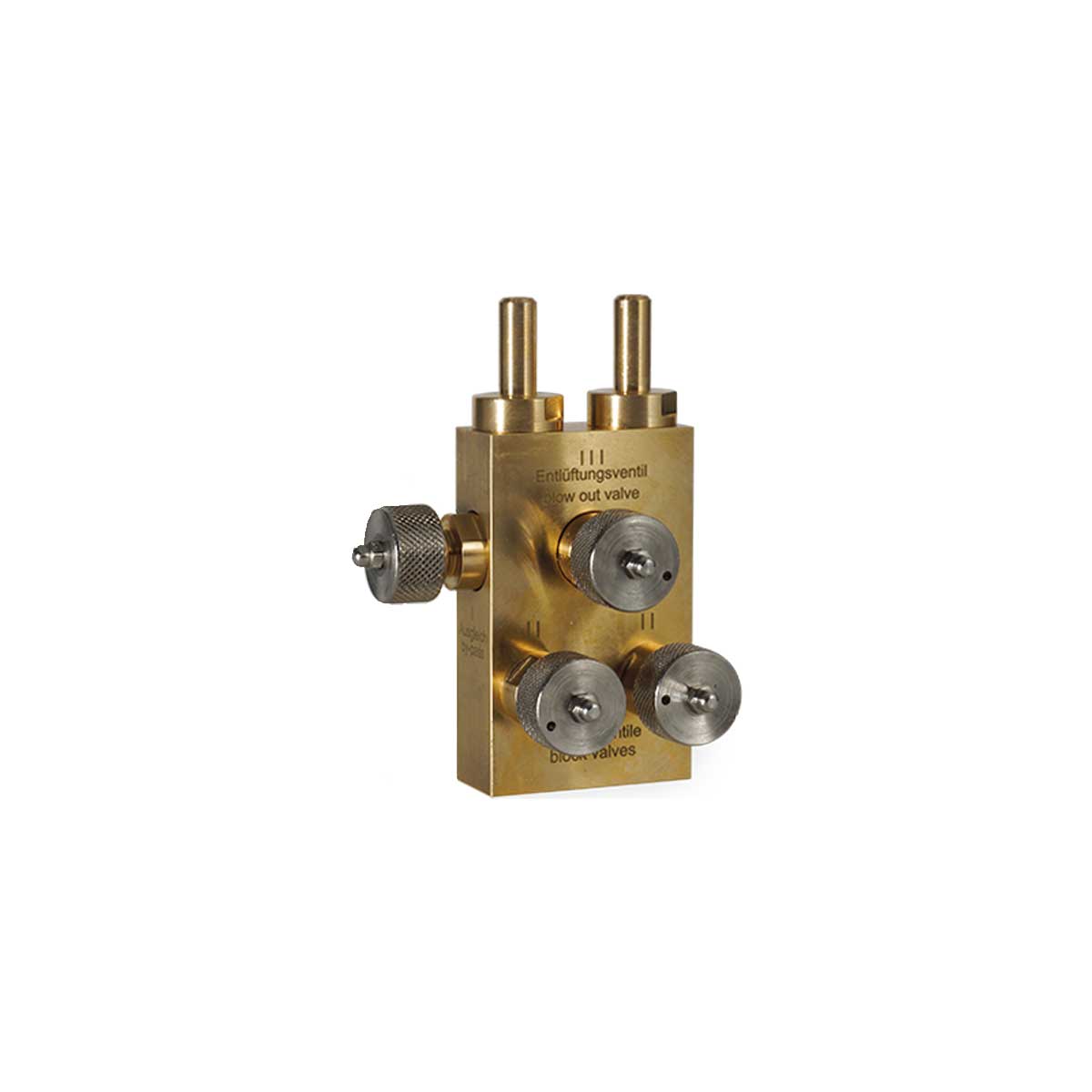

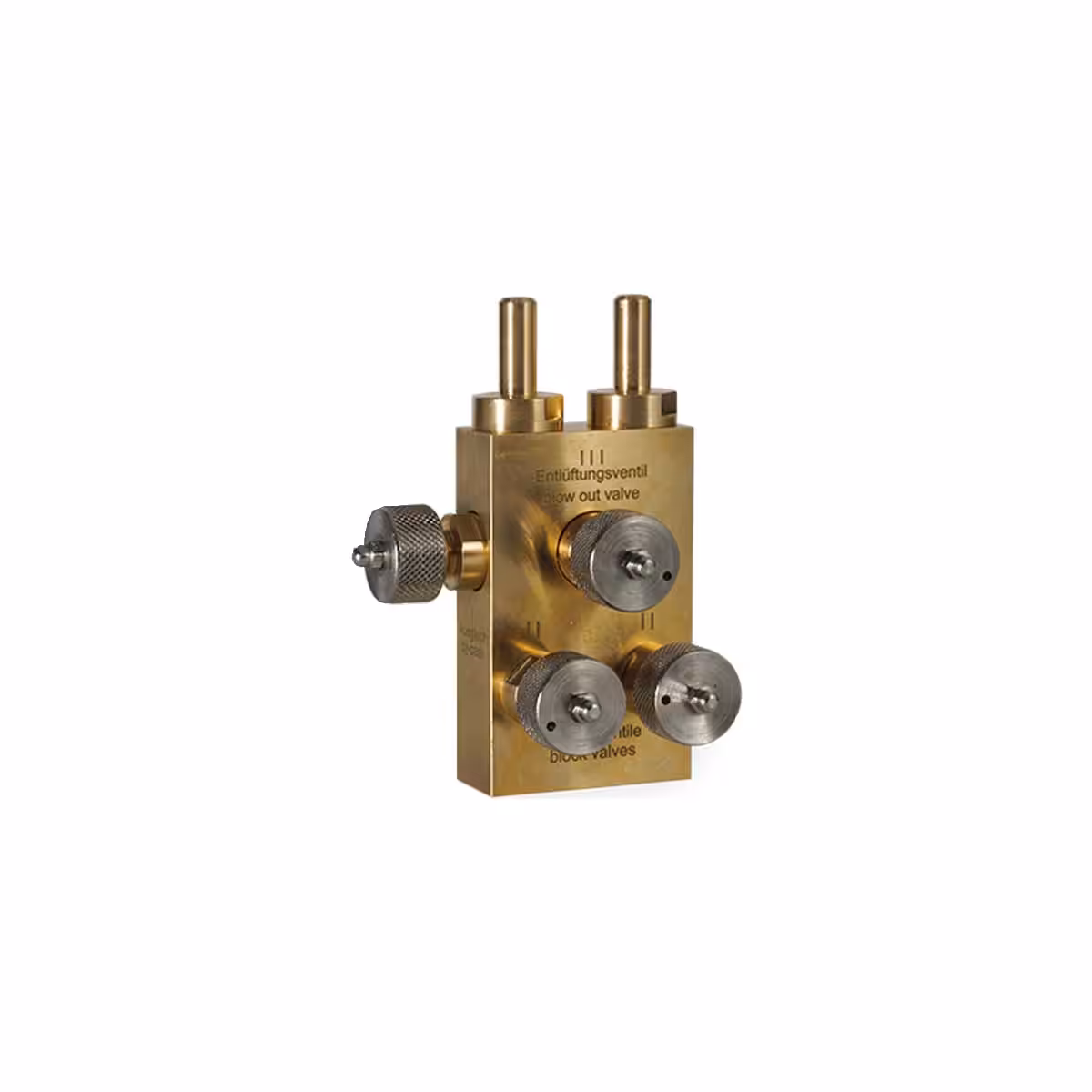

The QP.VB valve block is used to isolate the QP.W92 sensor from the water circuit and to equalize the pressure during calibration.
It is available as a separate accessory and must be ordered separately.

1)Copper pipe not included
2)Adjustable
