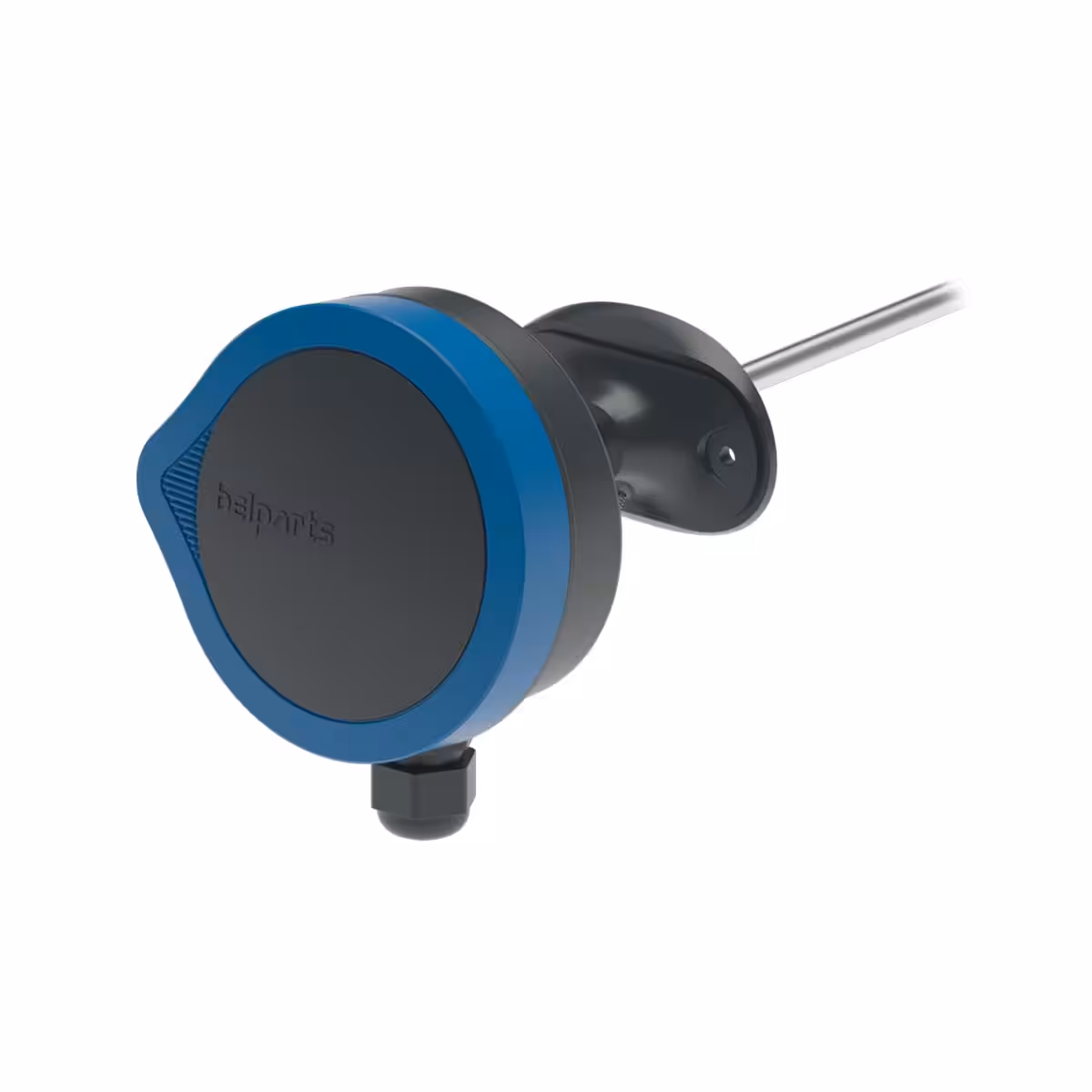

QT.G.GW

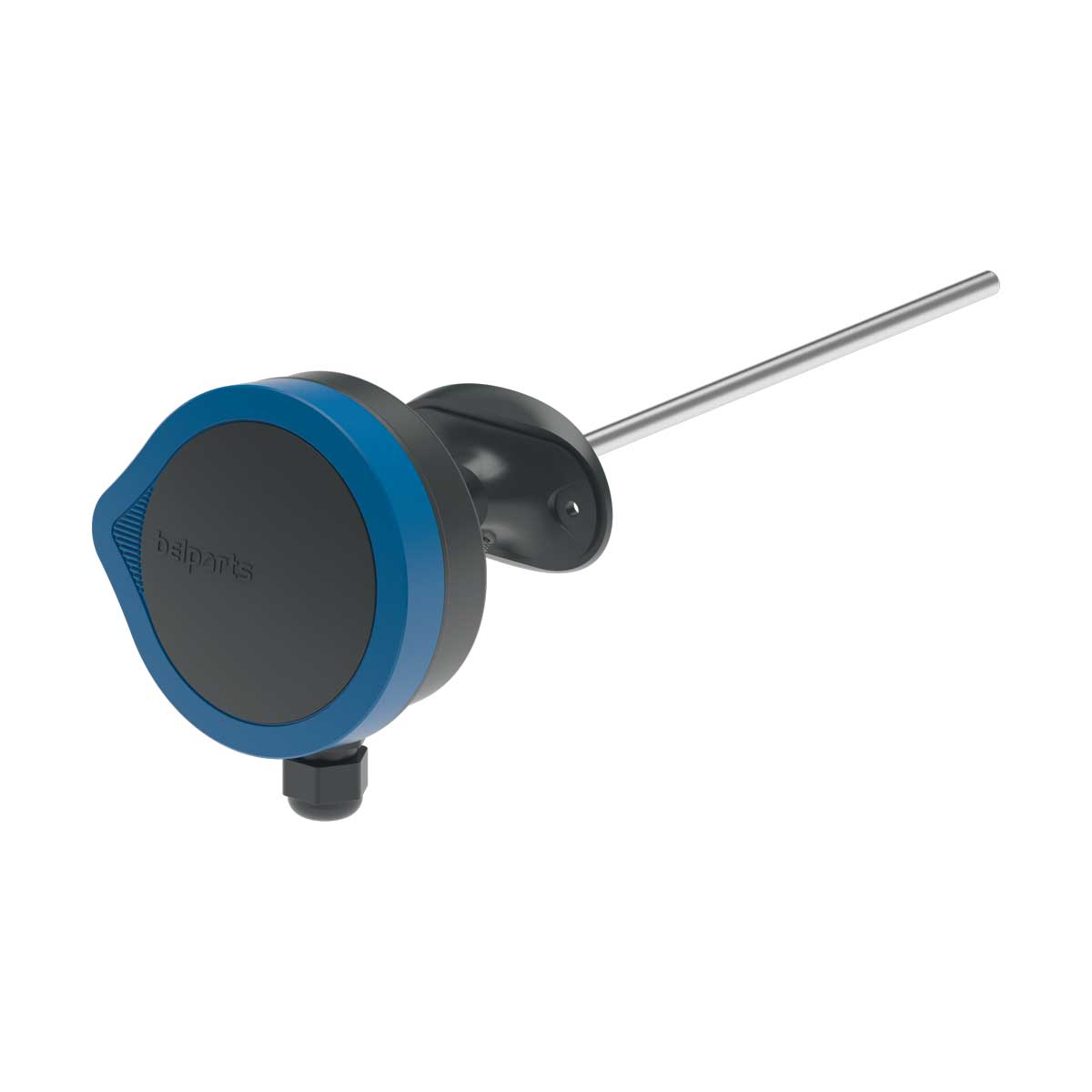

Duct temperature sensor average value

Product features

Average duct temperature measurement
Measuring lead active over the full length
Available as a passive sensor or an active sensor with analogue output
Uv active versions: AC/DC 24 Volt
Active output: 0 – 10 Vdc or 4 – 20 mA
Enclosure protection class: IP65

Types

Passive
Type Measuring element 1) Sensing element length [cm]
QT.G.GW.0400 Pt1000 40
QT.G.GW.3000 Pt1000 300
QT.G.GW.6000 Pt1000 600
QTN.G.GW.0400 Ni1000 / Tk5000 40
QTN.G.GW.3000 Ni1000 / Tk5000 300
QTN.G.GW.6000 Ni1000 / Tk5000 600
Active analogue output
Type Output Measuring range [°C] Sensing element length [cm]
QT.G.GW.0400.U 0 – 10 Vdc 0 – 100 2) 40
QT.G.GW.3000.U 0 – 10 Vdc 0 – 100 2) 300
QT.G.GW.6000.U 0 – 10 Vdc 0 – 100 2) 600
QT.G.GW.0400.i 4 – 20 mA 0 – 100 2) 40
QT.G.GW.3000.i 4 – 20 mA 0 – 100 2) 300
QT.G.GW.6000.i 4 – 20 mA 0 – 100 2) 600



1)Other measuring elements are available on request
2)Adjustable measuring ranges: 0 – 50 / 0 – 100 / -50 – 50 / 0 – 150 °C. Standard setting: 0 – 100 °C

Specifications

Mounting recommendation

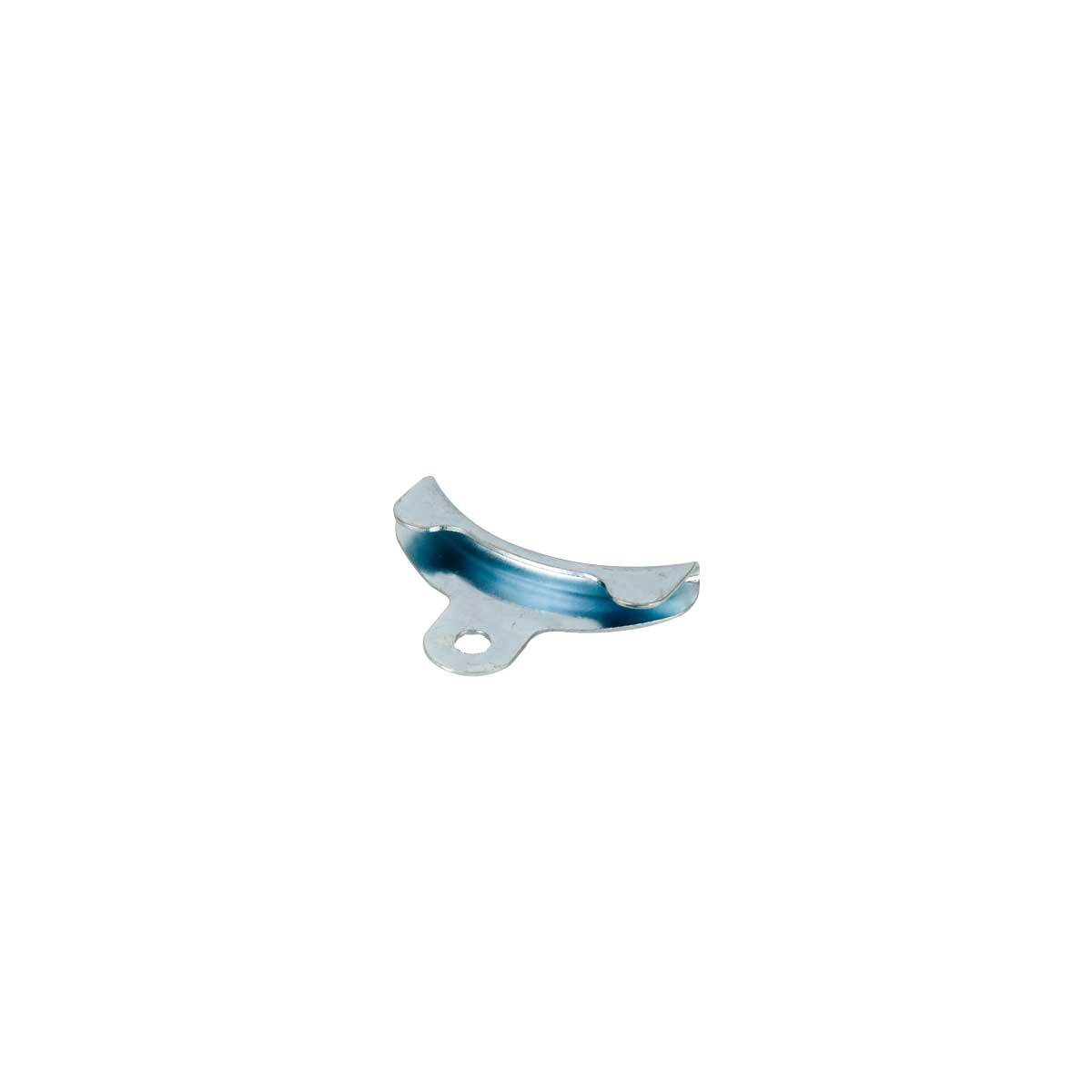

For sensors with a length of 300 cm, we recommend the use of 4 mounting clips.
For sensors with a length of 600 cm, we recommend the use of 6 mounting clips.
The number of mounting clamps required may vary depending on the number of deflections.
The mounting clips must be ordered as separate accessories.
