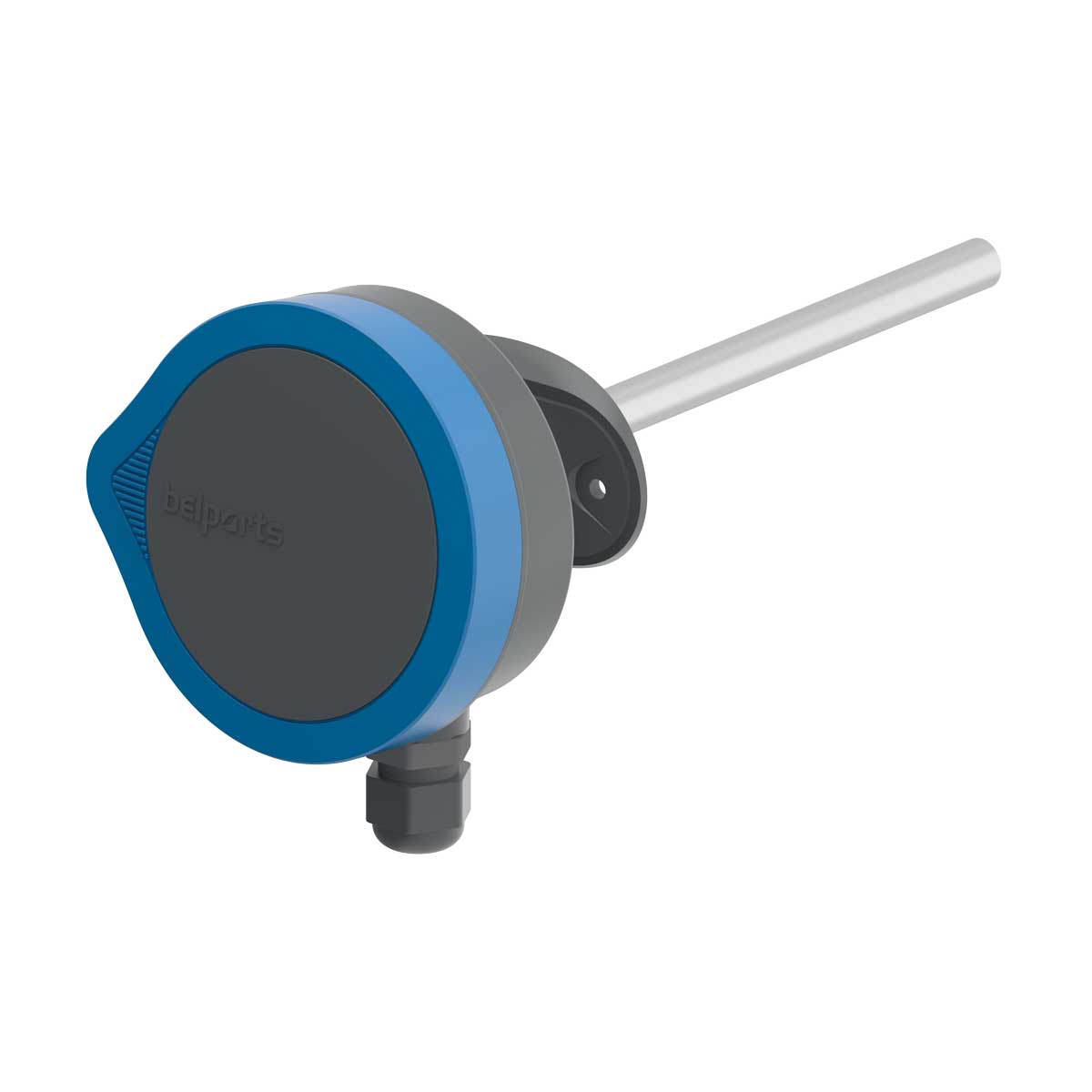

QVT

Air velocity sensor

Product features

Measurement of air velocity and temperature in air ducts
Direct measurement in the airflow
Stainless-steel measuring probe Ø 10 mm
Uv: AC/DC 24 Volt
Analogue outputs: 2x 0 – 10 Vdc or 4 – 20 mA 3)
Available with MODBUS RTU or BACnet MS/TP

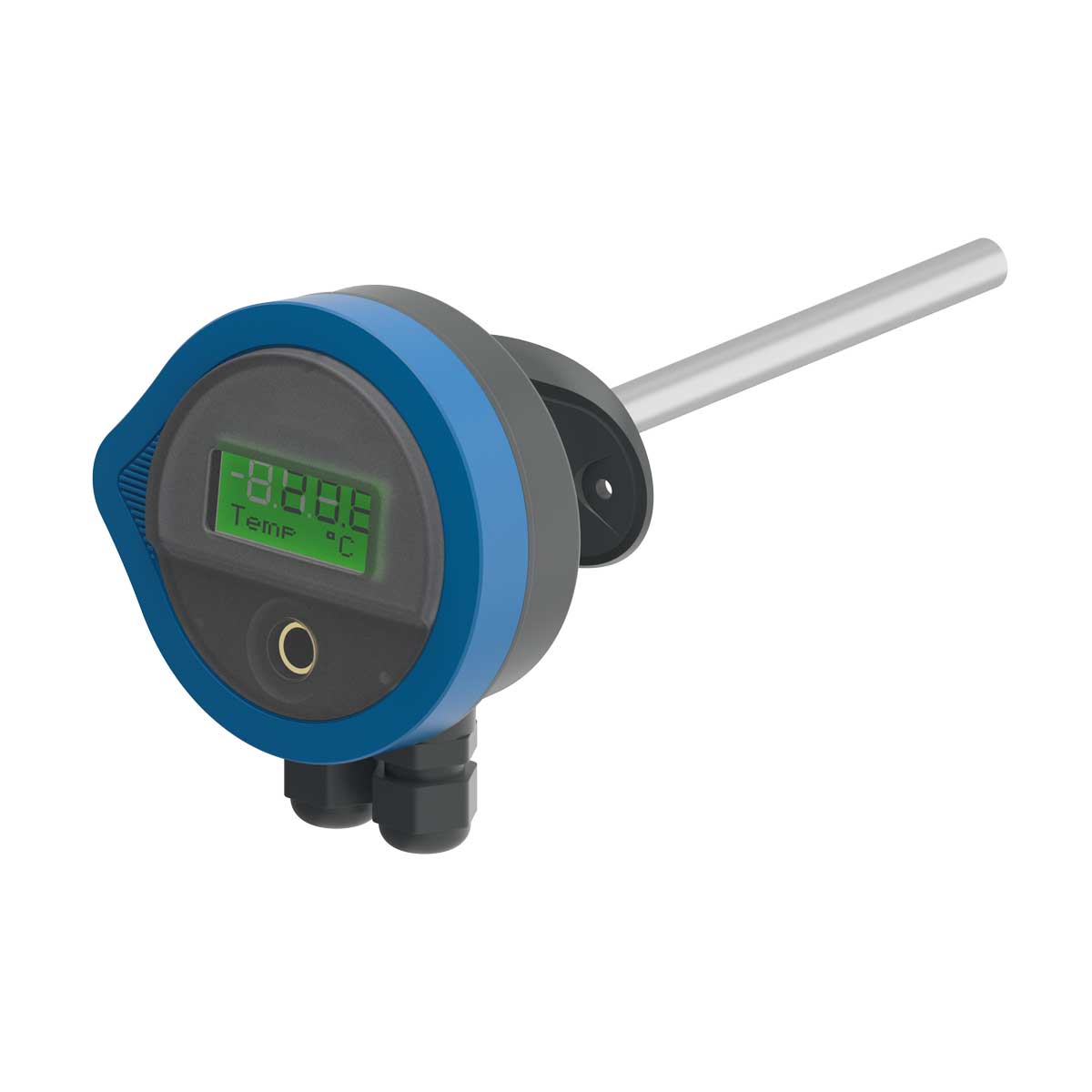

Optional LCD display with NFC

Types

Analogue output
Type T [°C] Air velocity [m/s] Measuring probe length [cm]
QVT.Ui.20 0 – 50 0 – 10 1) 20
QVT.Ui.20.LCD 0 – 50 0 – 10 1) 20
QVT.Ui.40 0 – 50 0 – 10 1) 40
QVT.Ui.40.LCD 0 – 50 0 – 10 1) 40
MODBUS
Type T [°C] Air velocity [m/s] Measuring probe length [cm]
QVT.20.A 0 – 50 0 – 10 1) 20
QVT.20.A.LCD 0 – 50 0 – 10 1) 20
QVT.40.A 0 – 50 0 – 10 1) 40
QVT.40.A.LCD 0 – 50 0 – 10 1) 40
BACnet
Type T [°C] Air velocity [m/s] Measuring probe length [cm]
QVT.20.B 0 – 50 0 – 10 1) 20
QVT.20.B.LCD 0 – 50 0 – 10 1) 20
QVT.40.B 0 – 50 0 – 10 1) 40
QVT.40.B.LCD 0 – 50 0 – 10 1) 40



1)Adjustable air velocity ranges: 0 – 2 / 0 – 2,5 / 0 – 4 / 0 – 5 / 0 – 6 / 0 – 8 / 0 – 10 / 0 – 12 / 0 – 15 / 0 – 20 m/s. Standard setting: 0 – 10 m/s
2)All variants are supplied with one mounting flange QT.MF.10
3)Adjustable through jumpers or via bus
