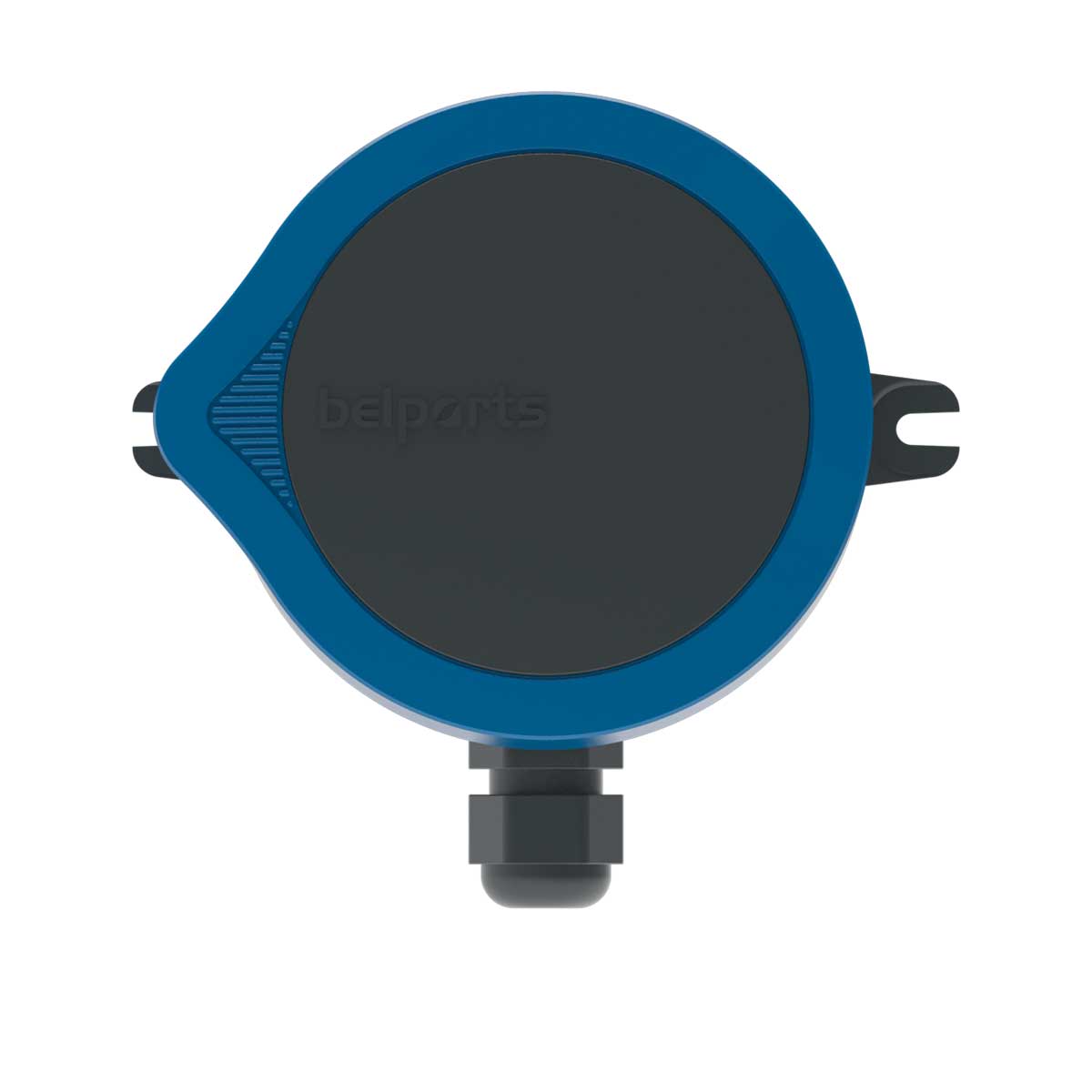

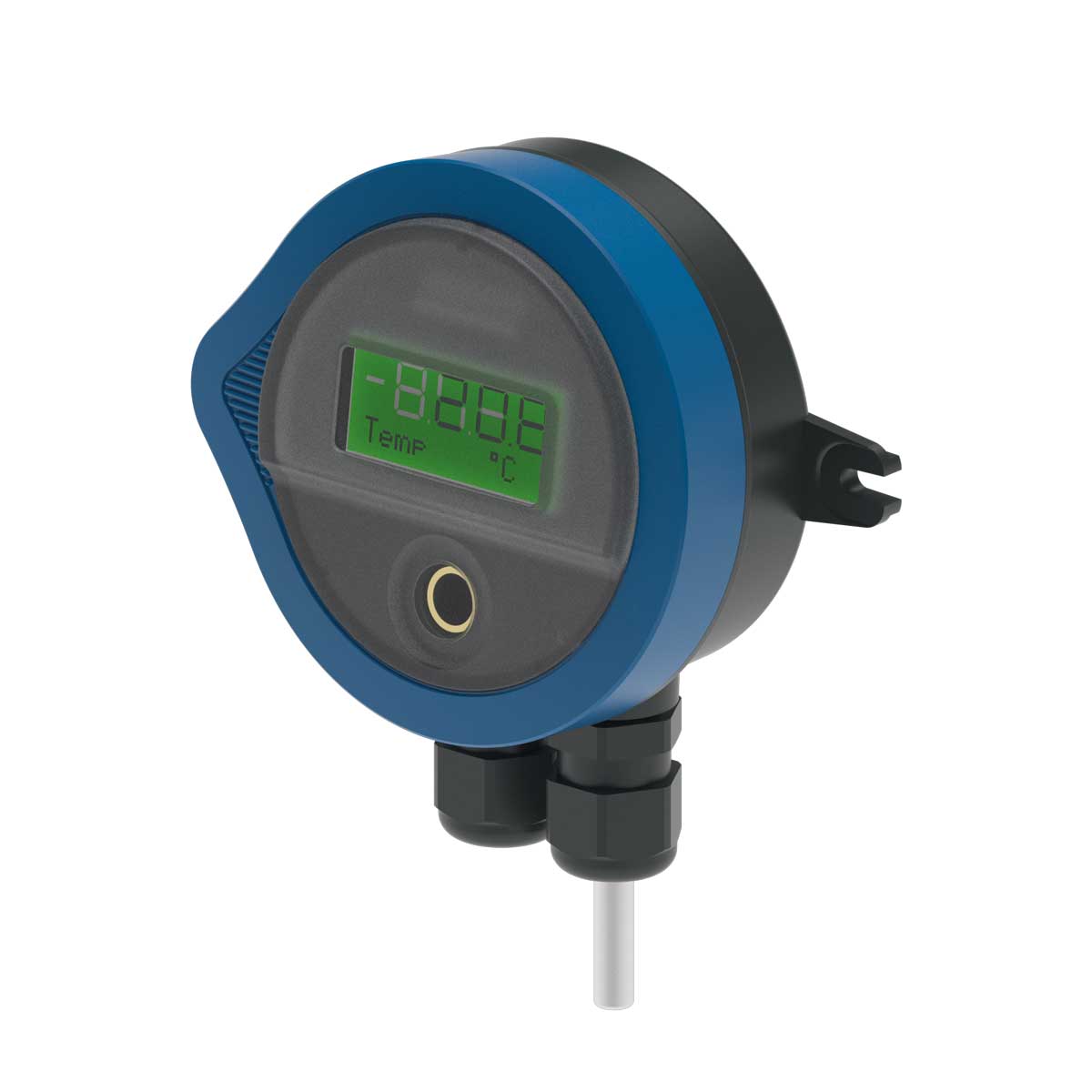

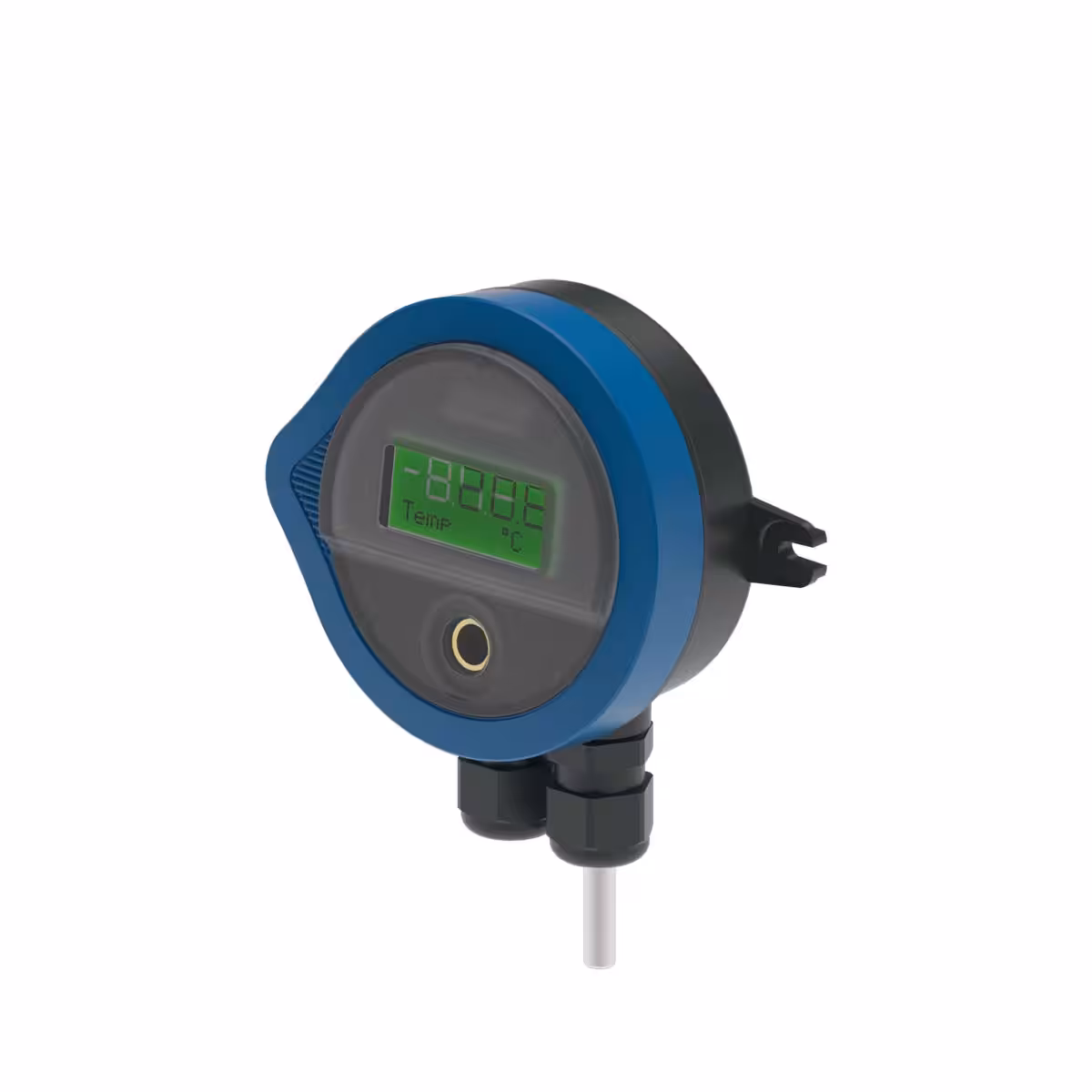

QT.E

Outside sensor

Product features

Outdoor temperature measurement
Available as a passive or active temperature sensor
Uv active versions: AC/DC 24 Volt
Active analogue versions: 0 – 10 Vdc or 4 – 20 mA
Available with MODBUS RTU or BACnet MS/TP
Enclosure protection class: IP65

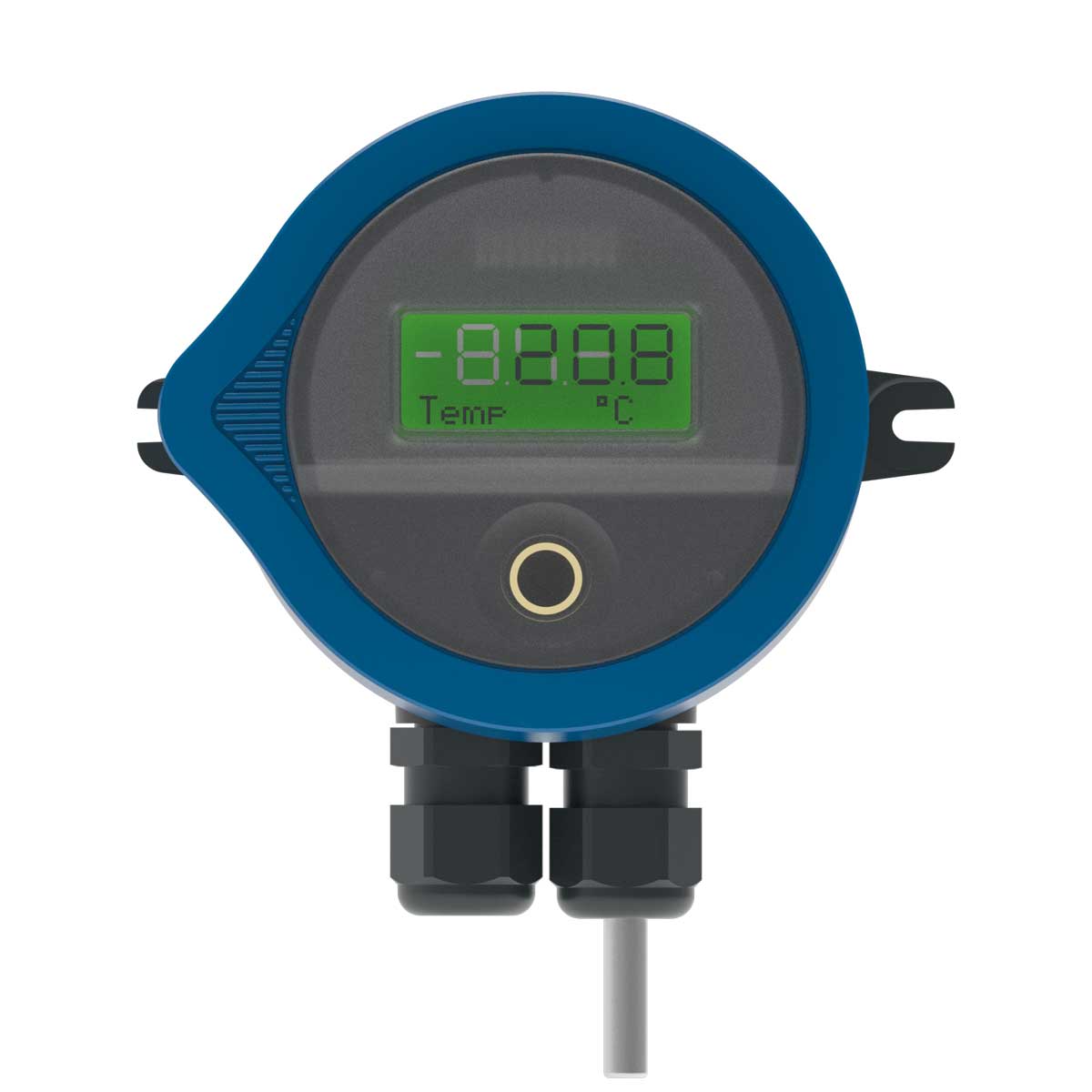

Optional LCD display with NFC

Types

Passive
Type Measuring element 1)
QT.E1 Pt1000
QTN.E1 Ni1000 / Tk5000
QTC10.E1 NTC 10 kΩ
QTC20.E1 NTC 20 kΩ
Analogue output
Type Measuring range [°C]
QT.E1.Ui 0 – 100 2)
QT.E1.Ui.LCD 0 – 100 2)
MODBUS
Type Measuring range [°C]
QT.E1.A 0 – 100 2)
QT.E1.A.LCD 0 – 100 2)
BACnet
Type Measuring range [°C]
QT.E1.B 0 – 100 2)
QT.E1.B.LCD 0 – 100 2)



1)Other measuring elements are available on request
2)Adjustable measuring ranges: 0 – 40 / 0 – 50 / 0 – 100 / 0 – 150 / 0 – 200 / -50 – 200 / -50 – 50 / -30 – 60 / -20 – 150 / -20 – 80 °C. Standard setting: 0 – 100 °C

Downloads

TypeDocumentFile typeSize
DatasheetQT.E - Capteur extérieure - FRPDF771.4 KBView
DatasheetQT.E - Buitenvoeler - NLPDF782.8 KBView
CatalogCatalog 2026View
