NDV2D

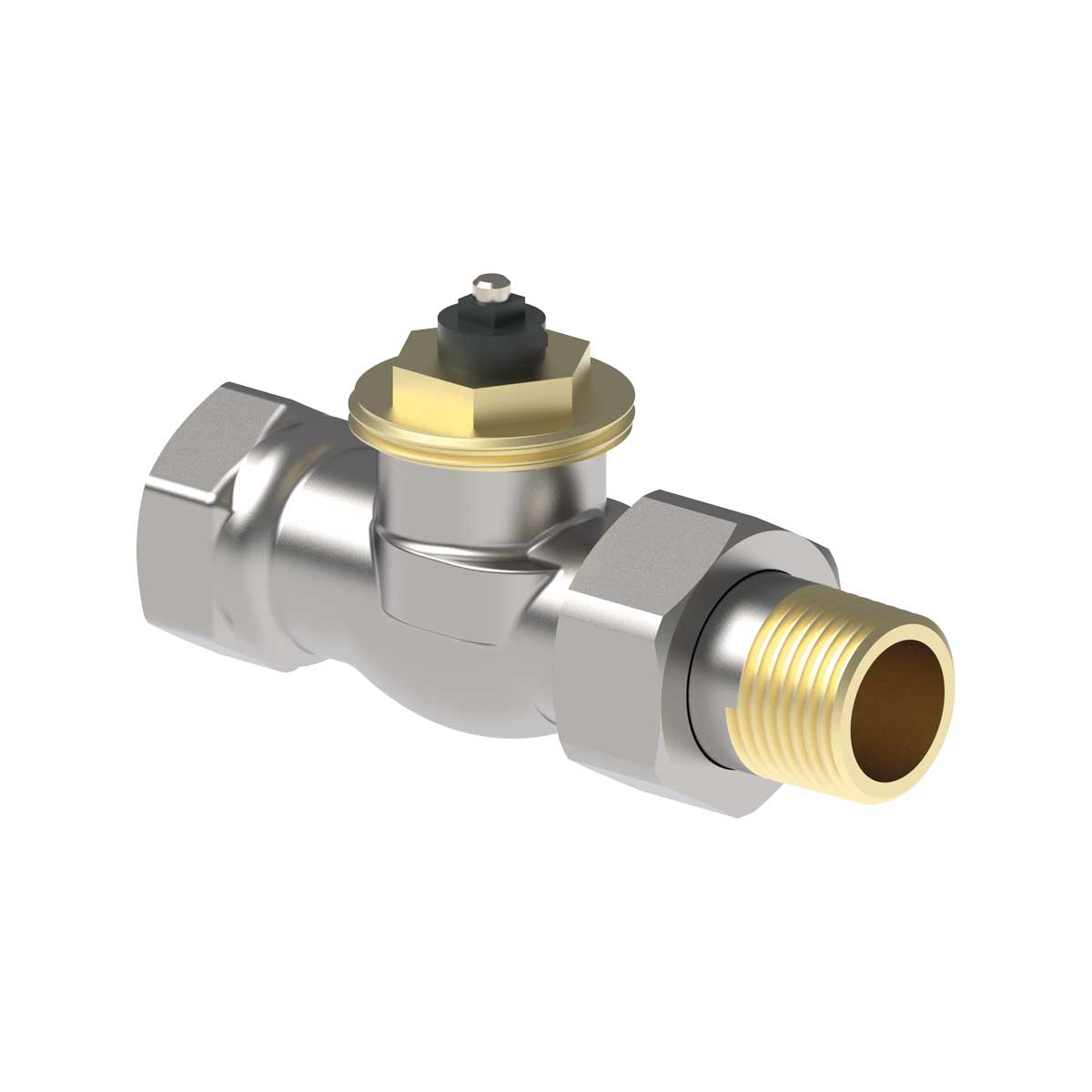

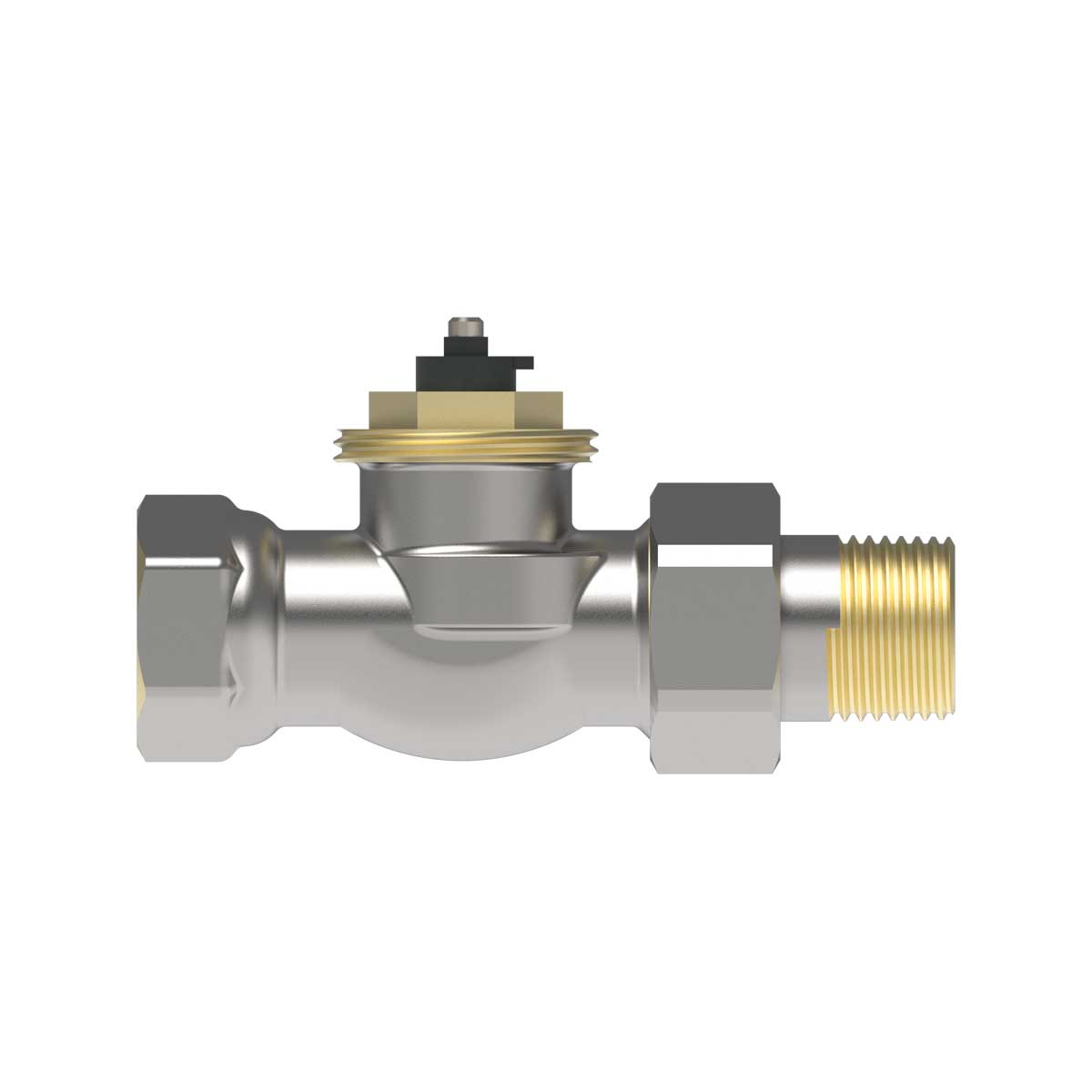

2-port PICV control valves PN16

Product features

DN10, DN15 and DN20 1)
Medium: water 2 – 100 °C (VDI 2035)
Flow range: 15 – 50 kPa (20 – 340 l/h)
Nickel plated bronze Rg-5
Threaded

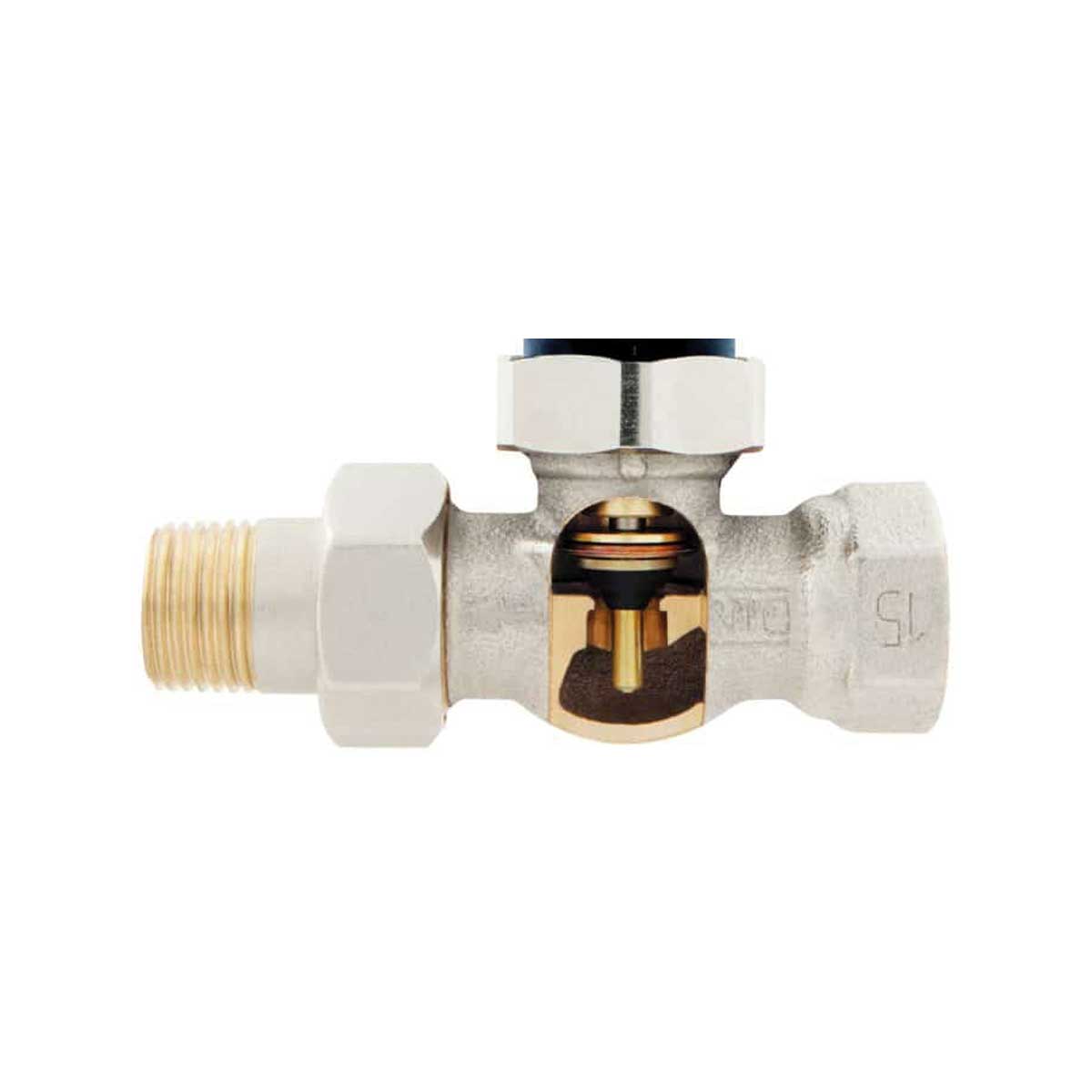

Pressure independent control valve (PICV)

Types

Type DN [inch] Flow [l/h] In Out
NDV2D10A ⅜″ 20 – 340 ISO 7-1 Rp⅜″ ISO 7-1 R⅜″ 2)
NDV2D15A ½″ 20 – 340 ISO 7-1 Rp½″ ISO 7-1 R½″ 2)
NDV2D20A ¾″ 20 – 340 ISO 7-1 Rp¾″ ISO 7-1 R¾″ 2)



1)Also available as angled version, type NDVE2D.., on request
2)Eurocone outlet with ISO 7-1 connection part

Downloads

TypeDocumentFile typeSize
DatasheetNDV2D - Dynamische 2-weg PICV naregelafsluiter PN16 - NLPDF488.5 KBView
DatasheetNDV2D - Vanne de régulation 2 voies PICV PN16 - FRPDF493.8 KBView
CatalogCatalog 2026View

Questions or request a quote for NDV2D?

Our experts can help you with technical questions, product selection and provide a quotation for your project.

How to read the product code

Request a quotation for NDV2D

Tell us about your project so we can prepare an quotation.

Quotation details
Project description

Google reCaptcha: Invalid site key.

dynamx™ patent numbers

European patent:

No. 2307938
No. 3812870
No. 4177697


United States patent:

No. 9823666

Chinese patent:

No. ZL200880130728.9

Registered community design RCD:

No. 001167076-0001
No. 004030633-0001
No. 004030633-0002
