BA6022F

Power supply Uᵥ
AC 24 V ± 20%, 50 to 60 Hz
DC 24 V ± 20%

Power consumption
Rated power: 1.1 W (24 V AC or DC)
Inrush power: 4.8 W (24 V AC or DC)
Inrush current: 200 mA (24 V AC or DC)

Control signal
Control signal: 0 – 10 Vdc
Control range: 2 – 10 Vdc

Position without power
Normally closed (NC)

Actuating force
110 N

Stroke
4.5 mm (4,0 mm at Y: 2 – 10 Vdc)

Valve connection
Union nut M30 x 1.5 (female)

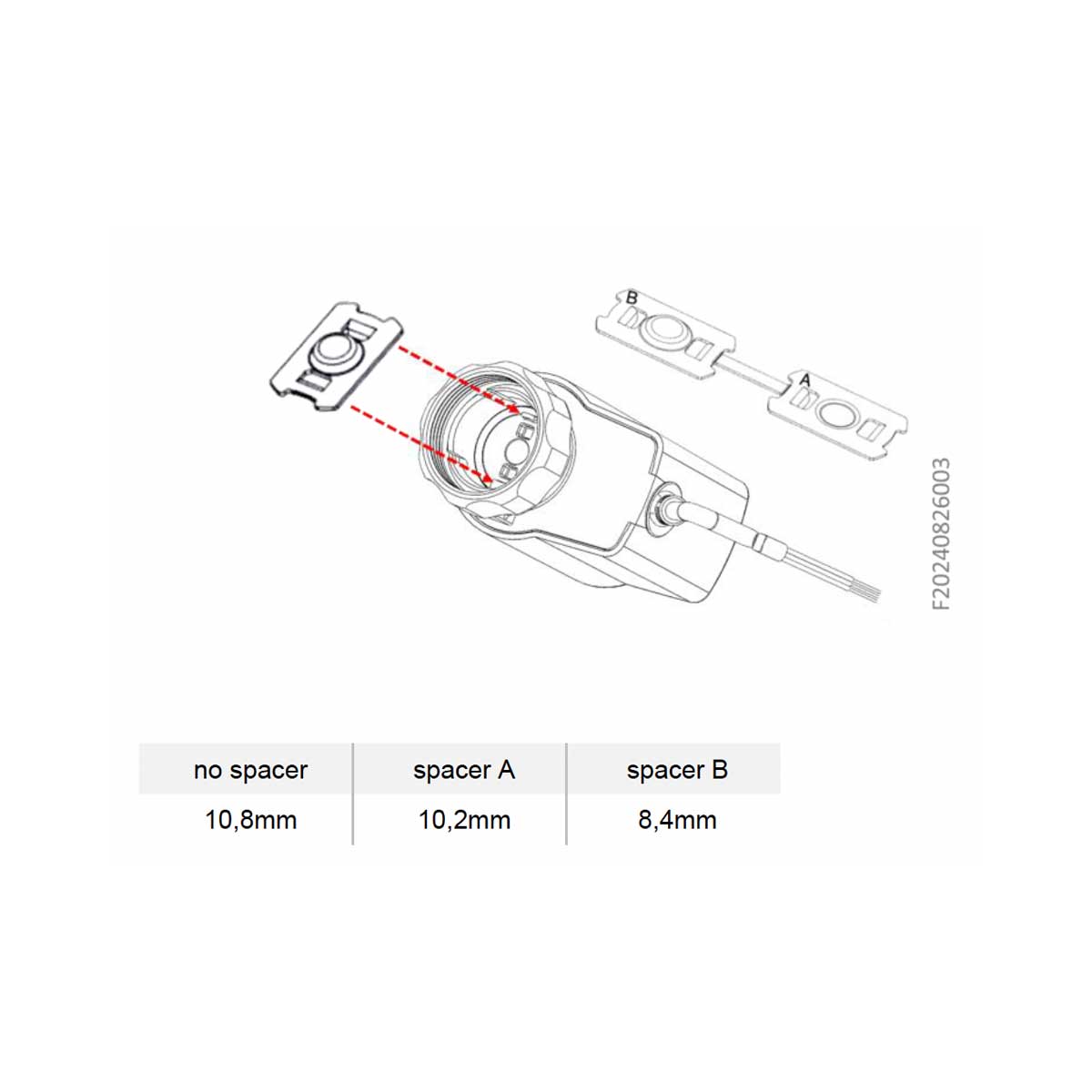

Closing dimension
Without spacer: 10.8 mm
With spacer A: 10.2 mm
With spacer B: 8.4 mm

First-open function
Yes, automatic release after power-on

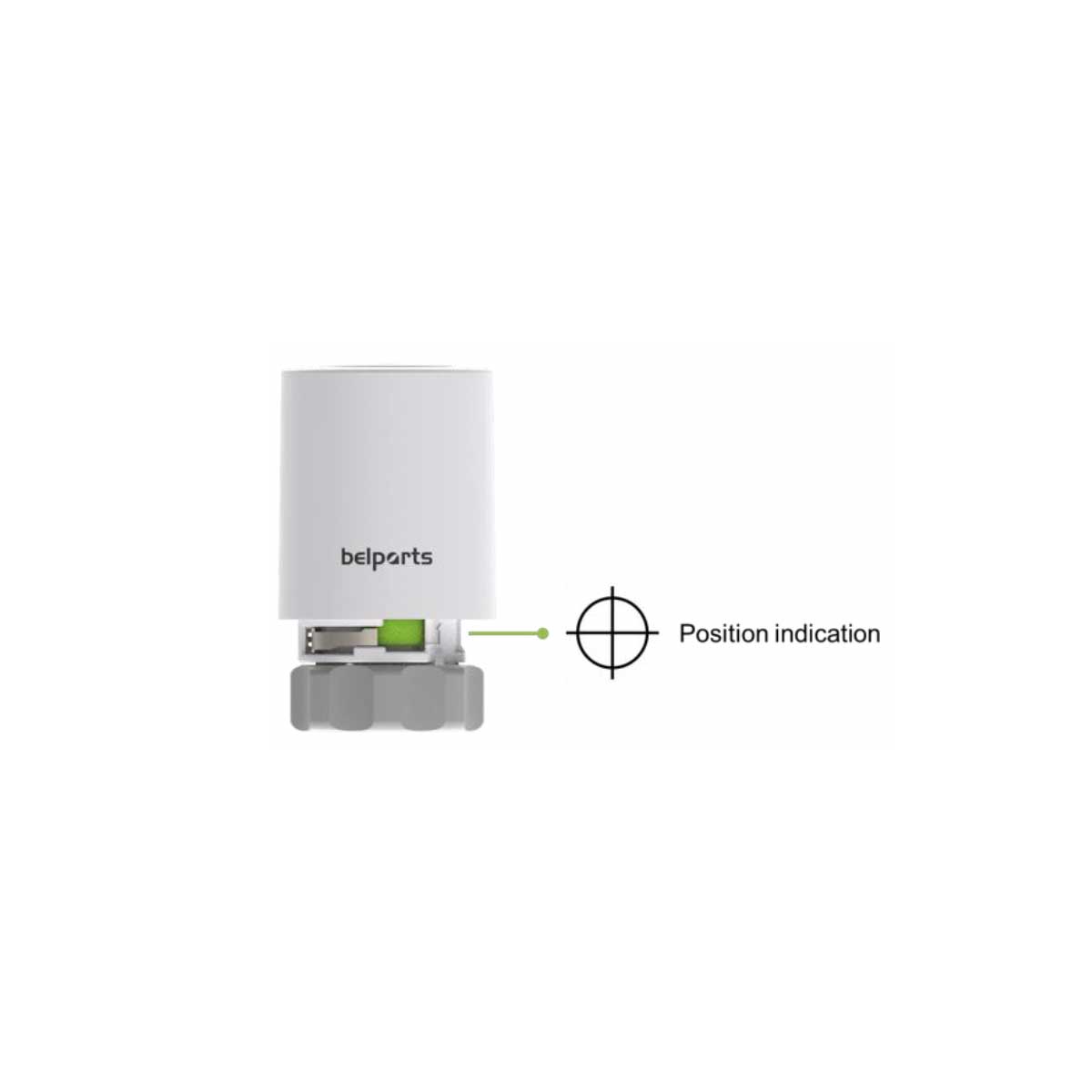

Position on delivery
In first-open position

Re-opening function
Yes, adjustable

Closing point detection
Automatic

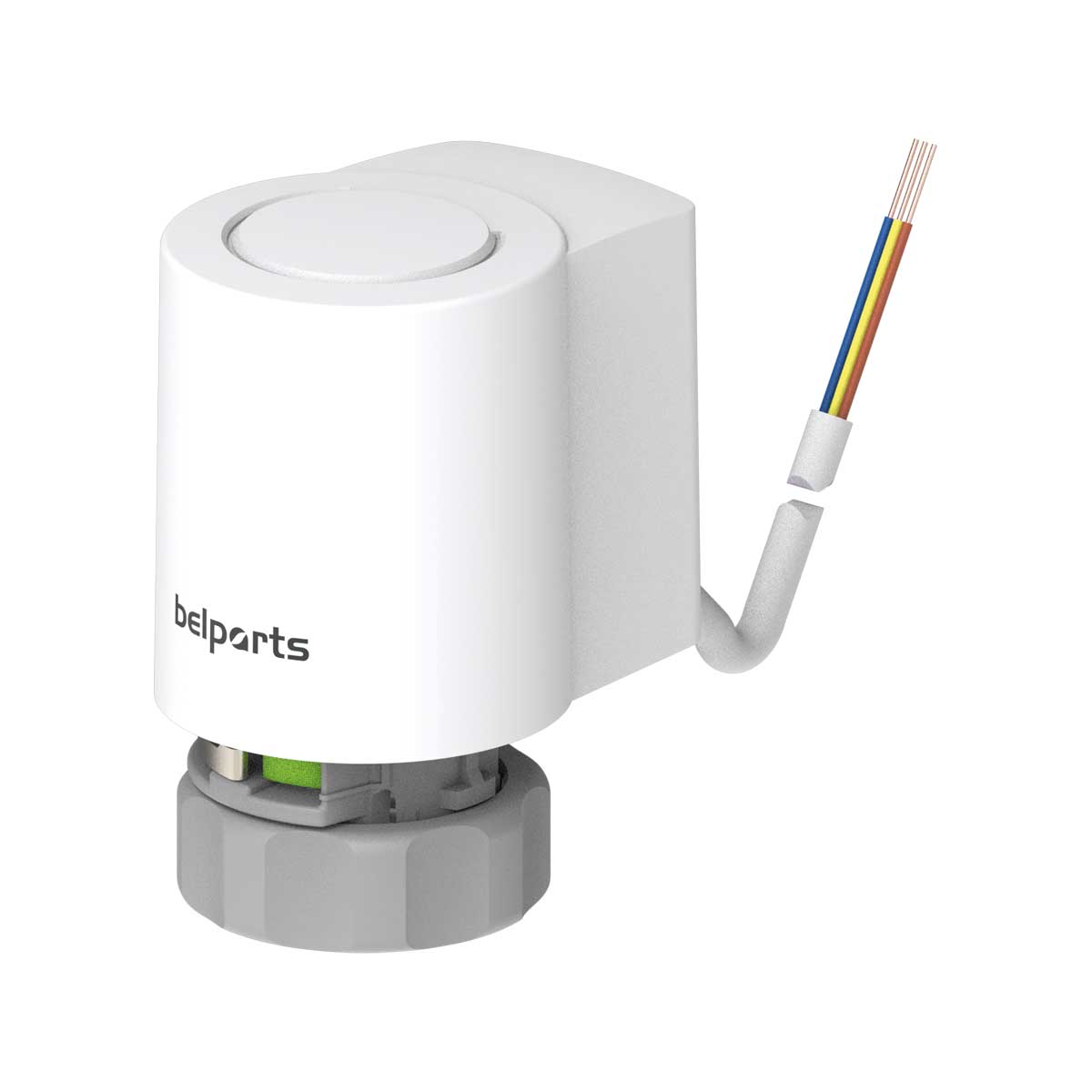

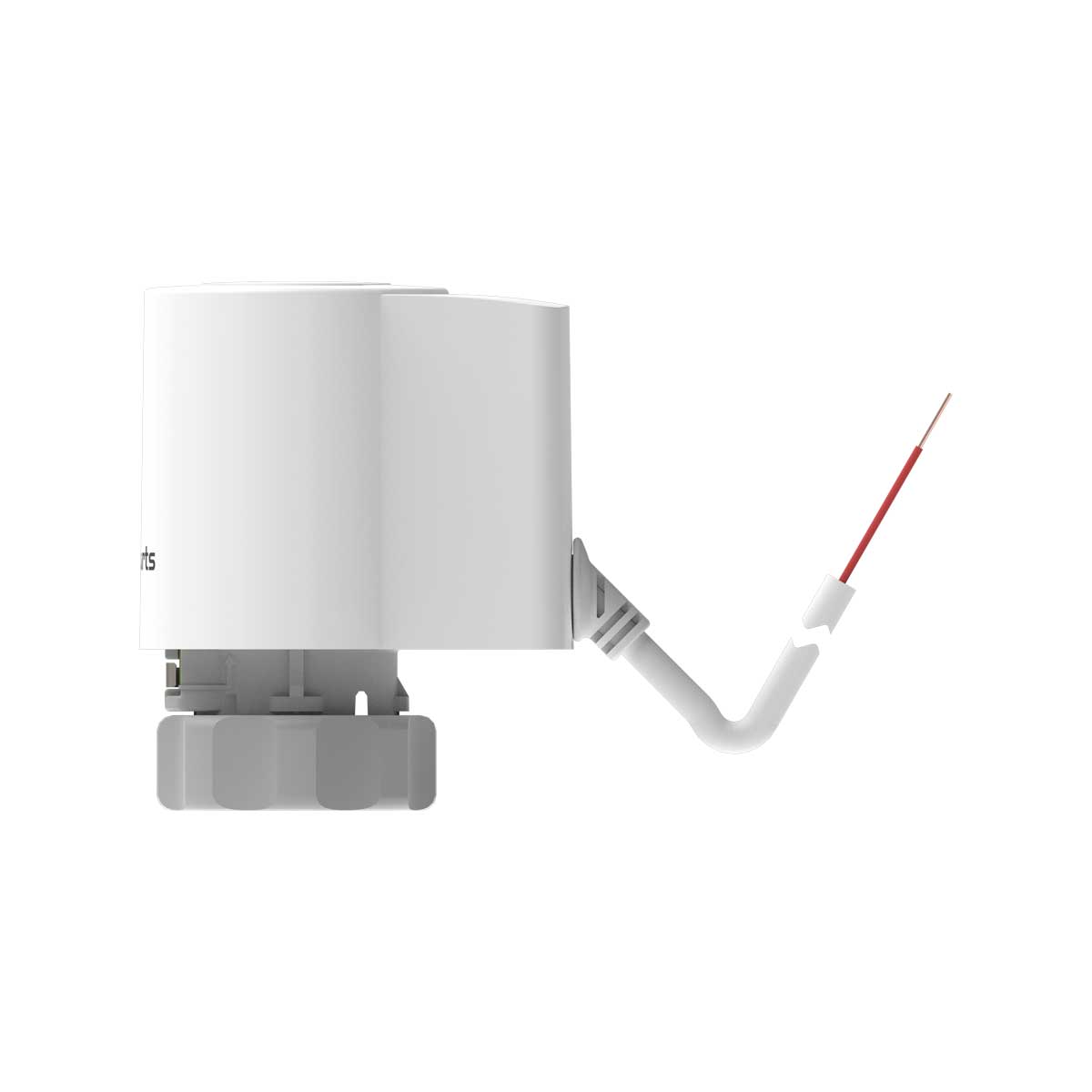

Electrical connection
Cable 3 x 0.25 mm², 1 m, white

Insulation class
Class III (EN 60730-1, at 24 V AC or DC)

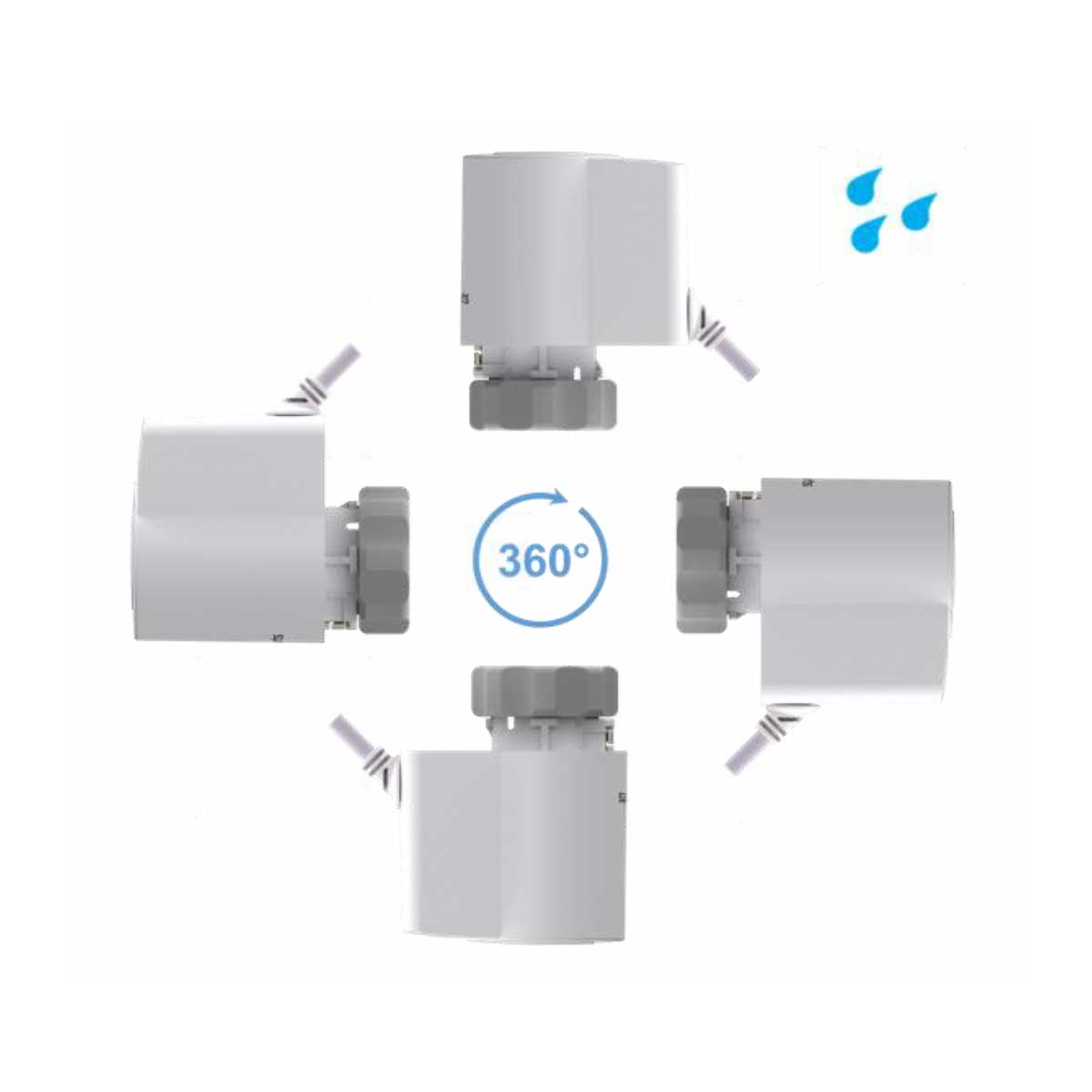

Degree of protection
IP54 (EN 60730-1)

CE conformity
Low Voltage Directive: 2014/35/EU. EN 60730-1, EN 60730-2-14
EMC Directive: 2014/30/EU. EN 60730-1
RoHS Directive: 2011/65/EU. EN IEC 63000

Temperature
Ambient: 0 – 50 °C
Valve: max. 100 °C
Storage: −25 – 70 °C

Humidity
Max. 85% RH, non-condensing

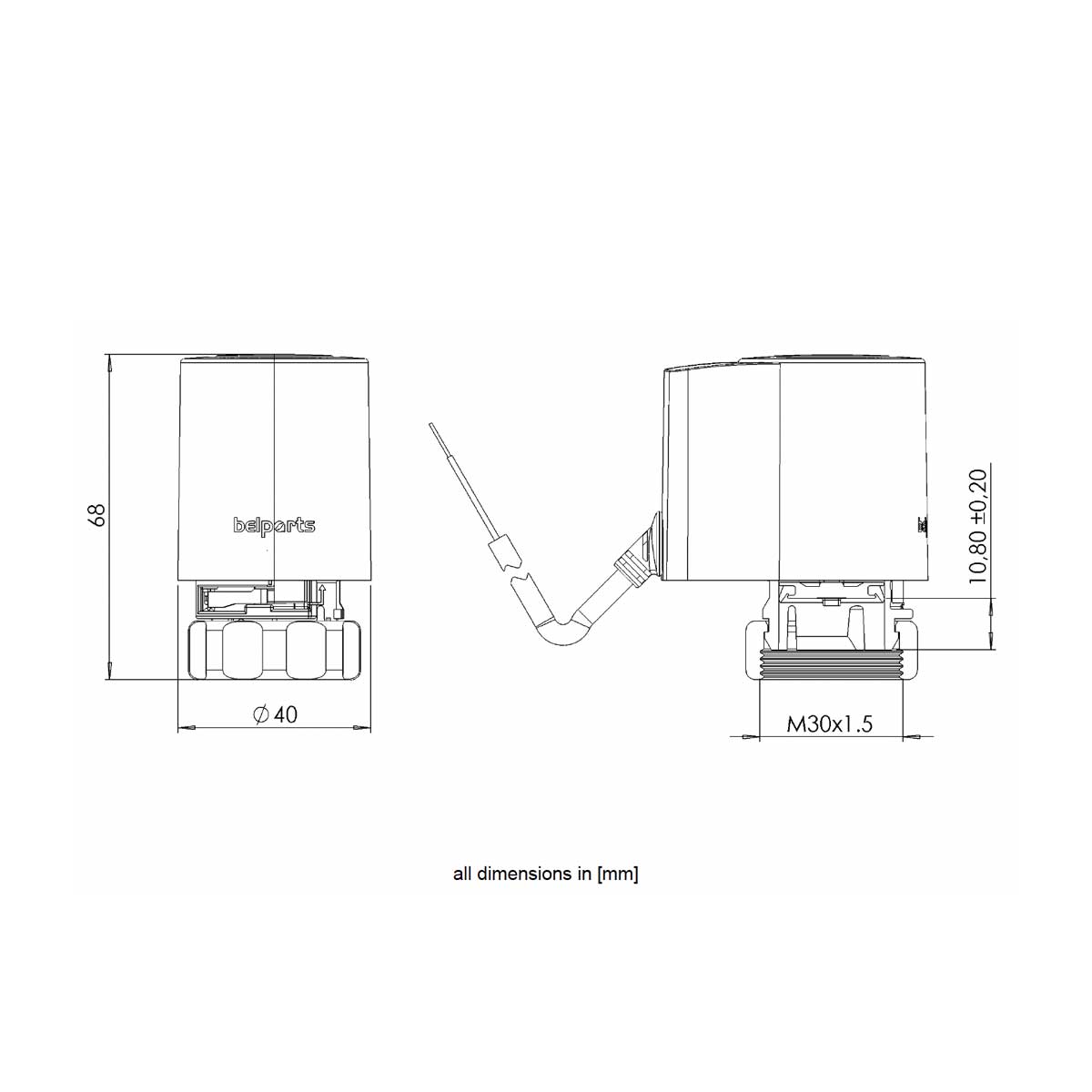

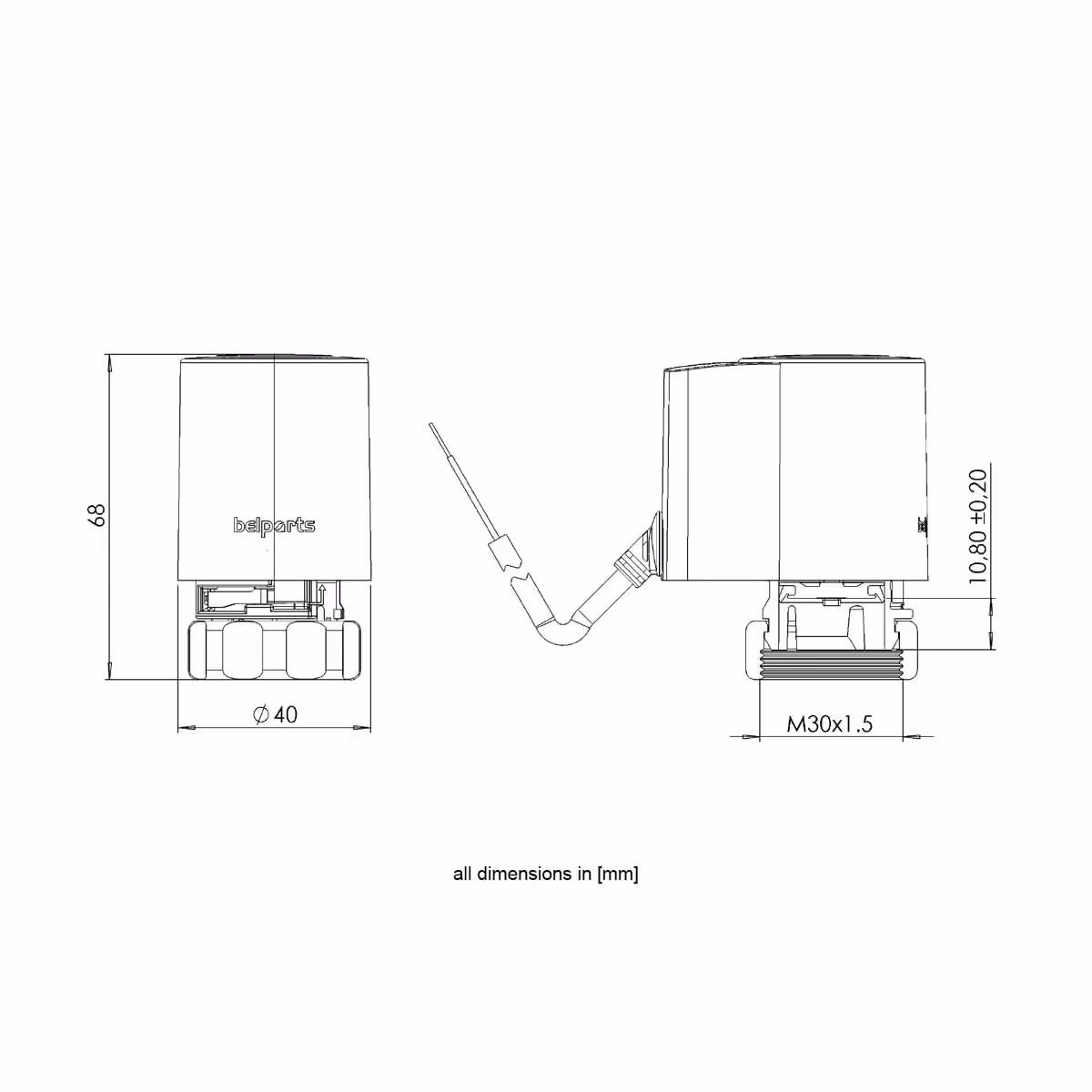

Dimensions (H x W x L)
68 x 40 x 56 mm

Weight
120 g
