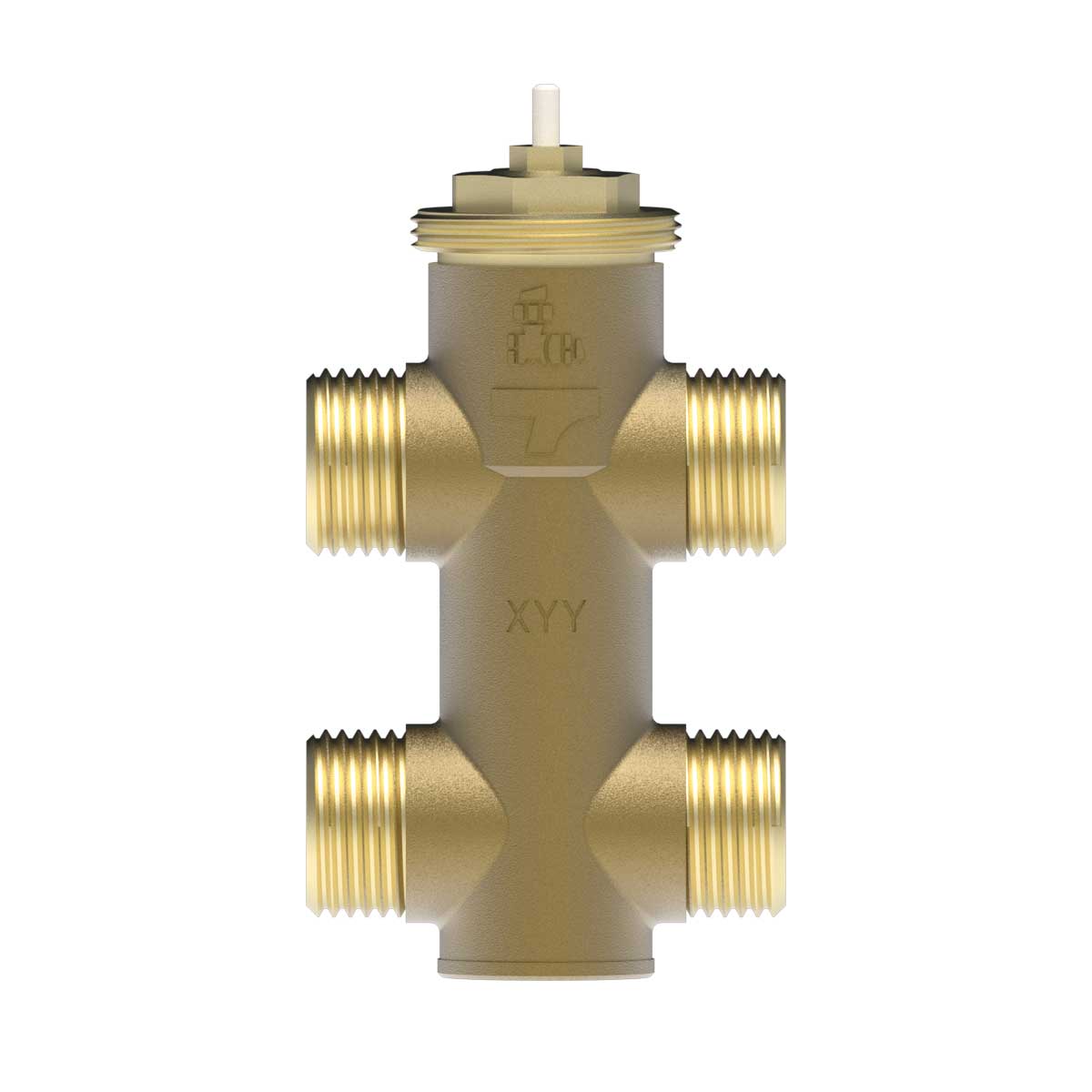

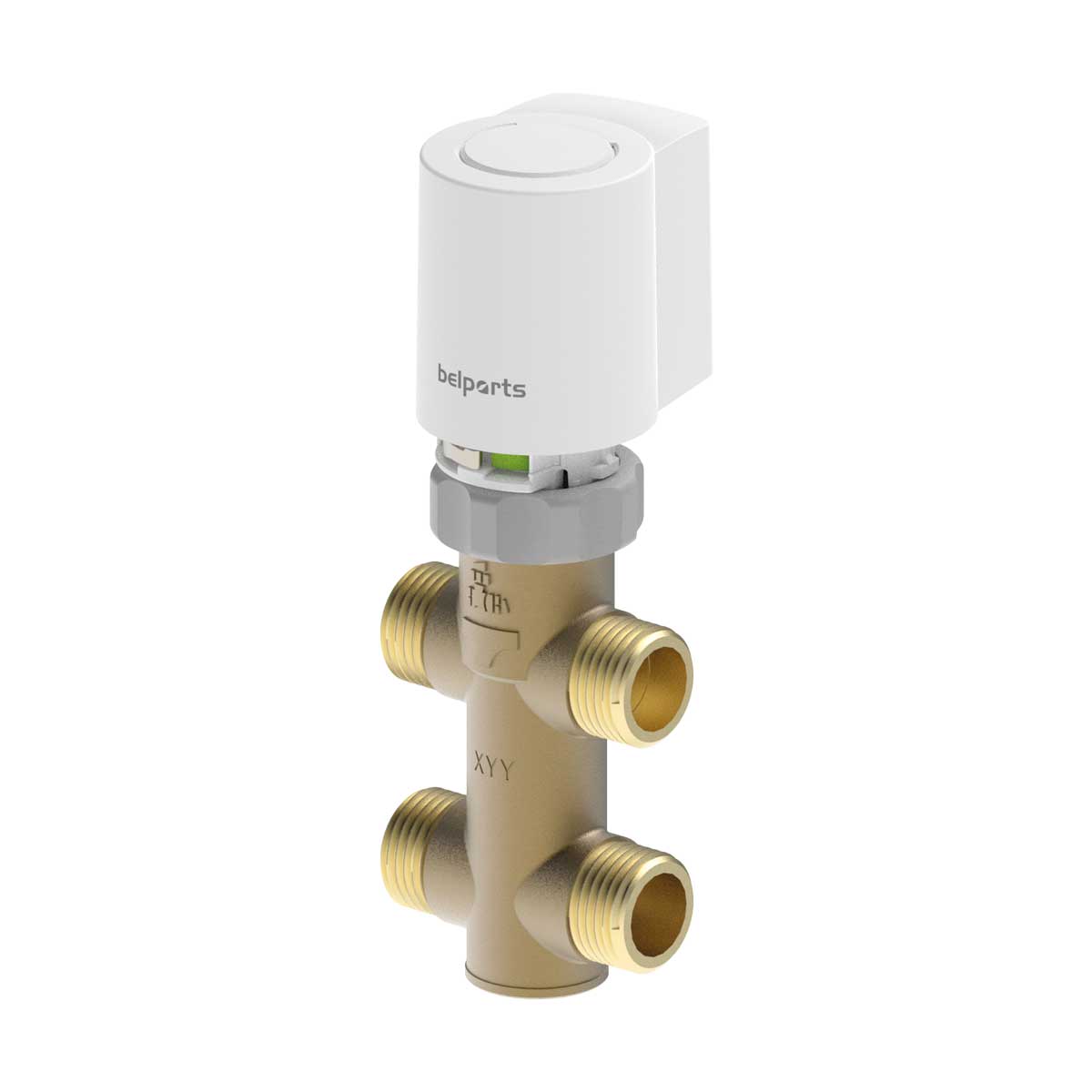

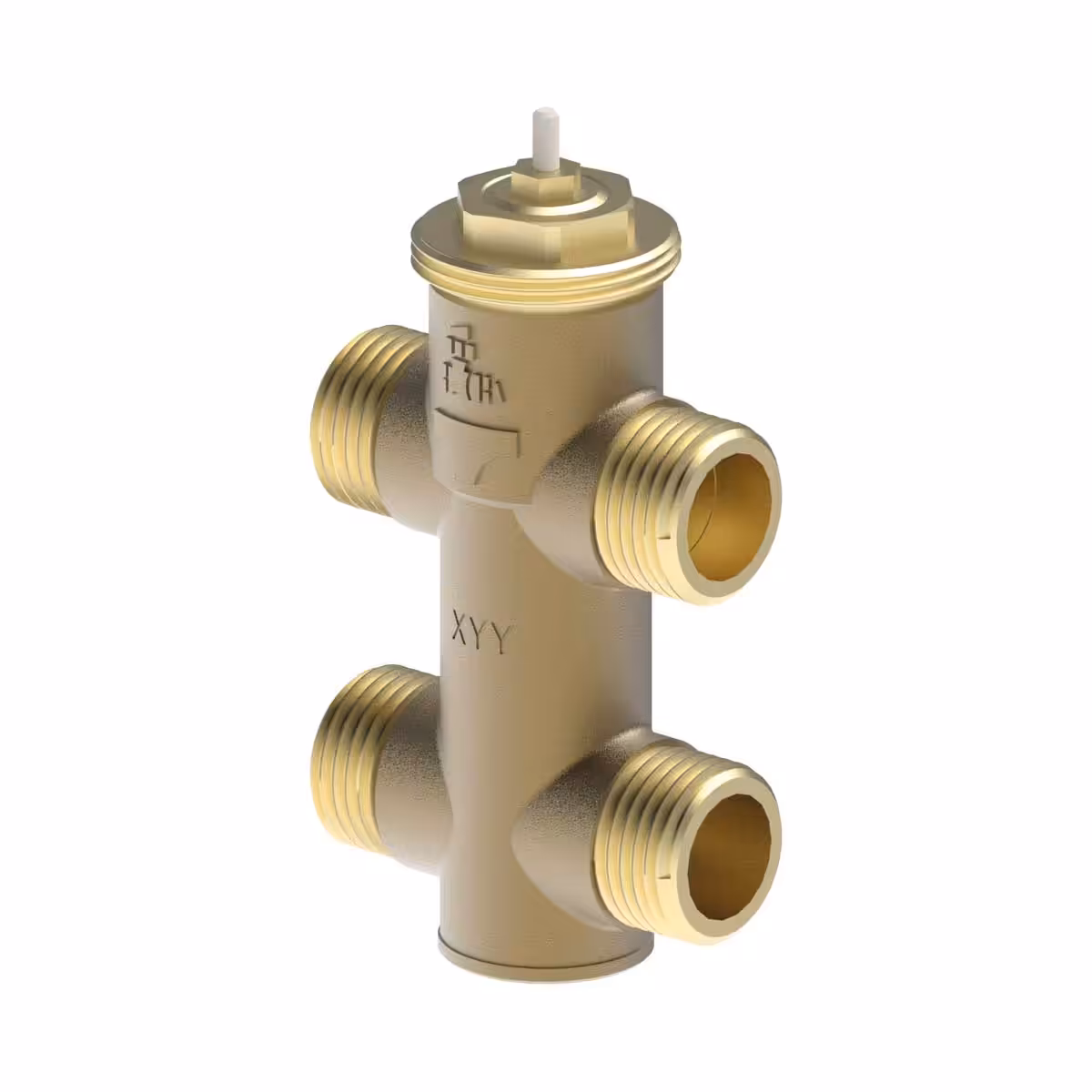

NG4P

4-port terminal control valves PN16

Product features

DN15, DN20 and DN25
Medium: water 2 – 95 °C (VDI 2035)
Kvs: fixed
Brass
Mixing
Flat connections ISO 228-1

Types

Type DN [inch] Kvs [m³/h] H [mm] In Out
NG4P15A ½″ 1,6 36 G½″ G½″
NG4P15B ½″ 1,0 36 G½″ G½″
NG4P15C ½″ 0,63 36 G½″ G½″
NG4P20A ¾″ 3,5 50 G¾″ G¾″
NG4P20B ¾″ 2,5 50 G¾″ G¾″
NG4P25A 1″ 4,5 50 G1″ G1″



H: distance between supply and return connections

Downloads

TypeDocumentFile typeSize
DatasheetNG4P - 4-weg naregelafsluiter PN16 - NLPDF555.3 KBView
DatasheetNG4P - Vanne de régulation terminale 4 voies PN16 - FRPDF566.5 KBView
CatalogCatalog 2026View
