BA4022

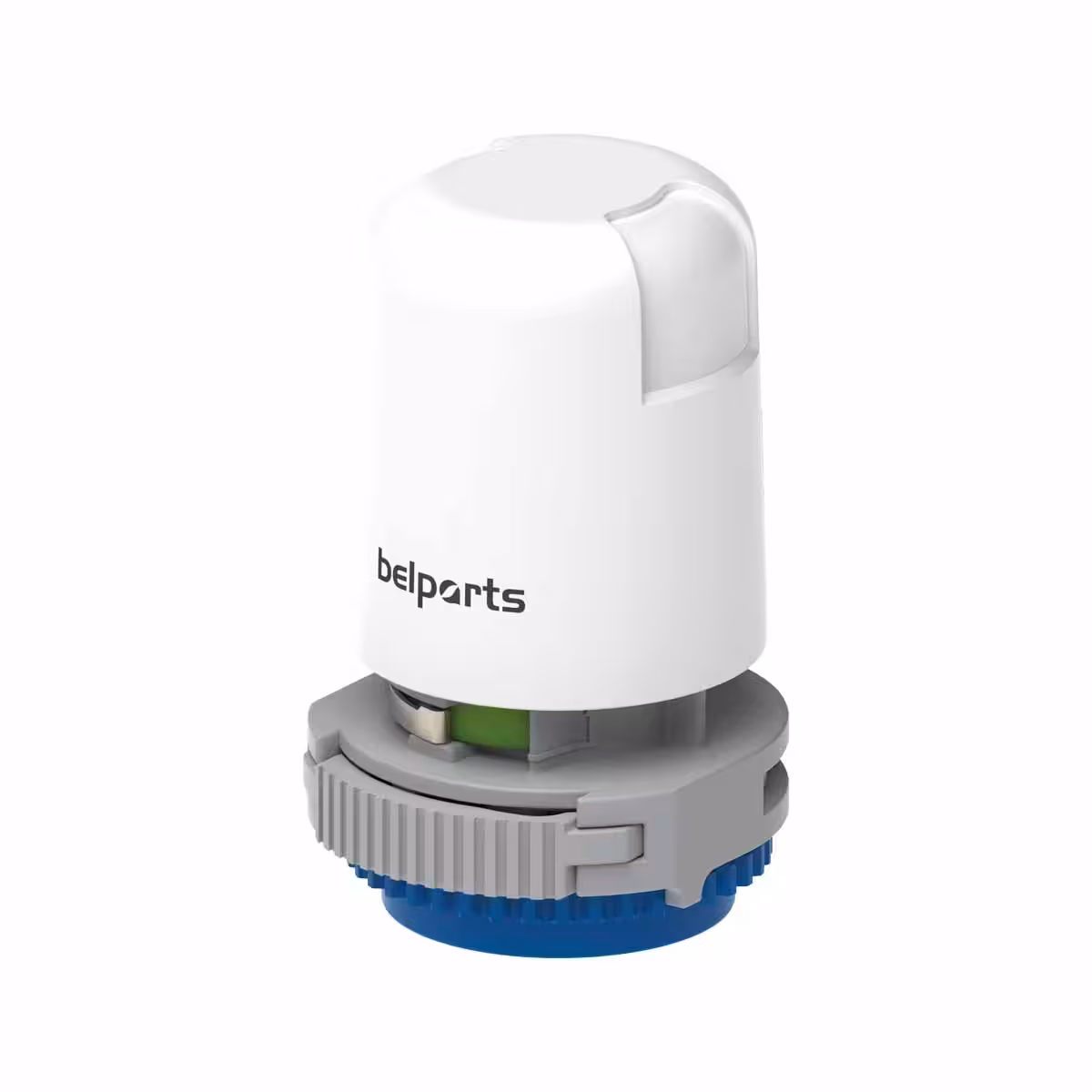

Thermal actuator (NC) for control valves

Product features

Normally closed version (NC)
Force: 110 N
Stroke max.: 4,5 mm
Uv: AC  (DC) 24 Volt, 50/60 Hz
Y: On/Off or PWM
With ‘Auto-fit’ function

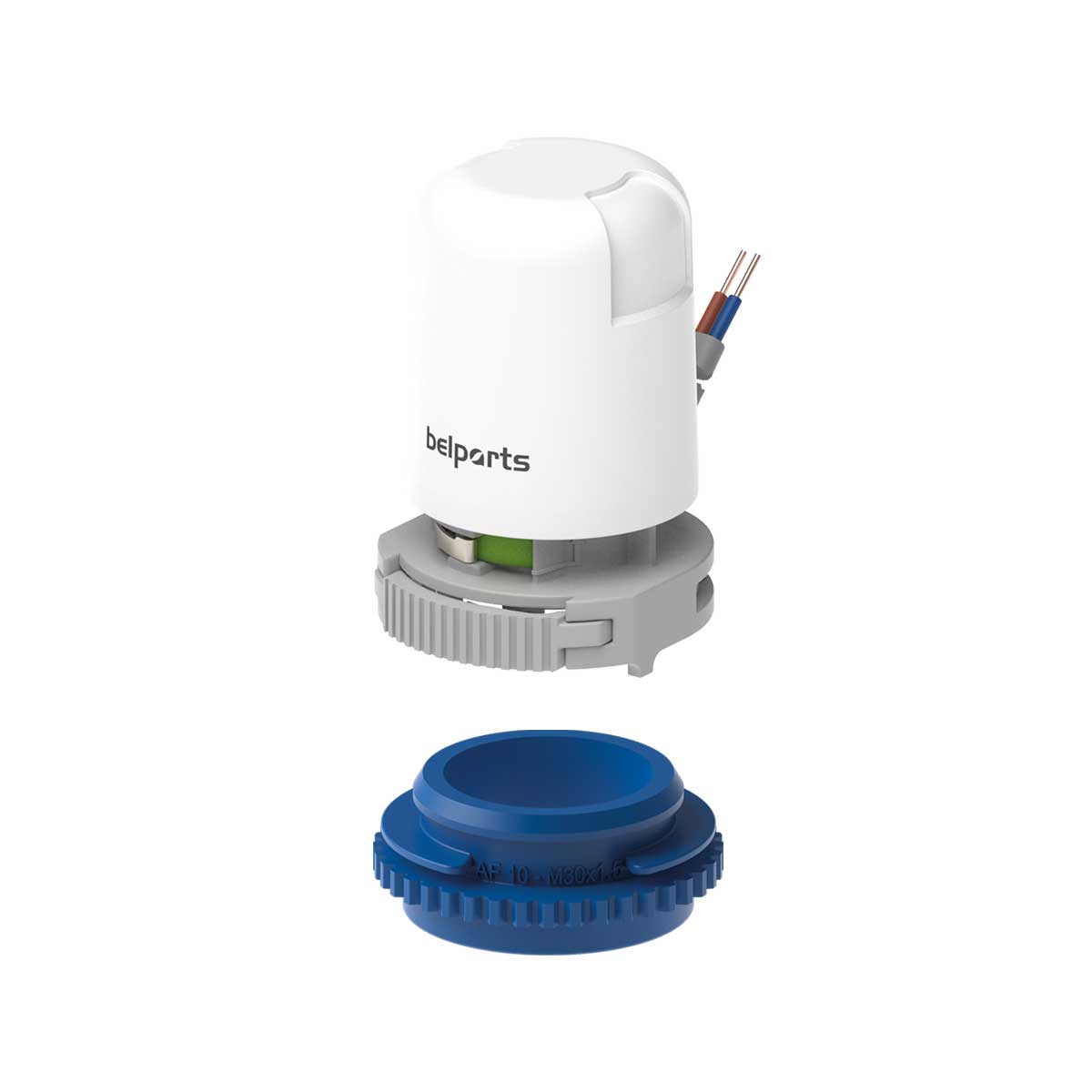

With valve adapter M30 x 1,5 (type AF80)

Types

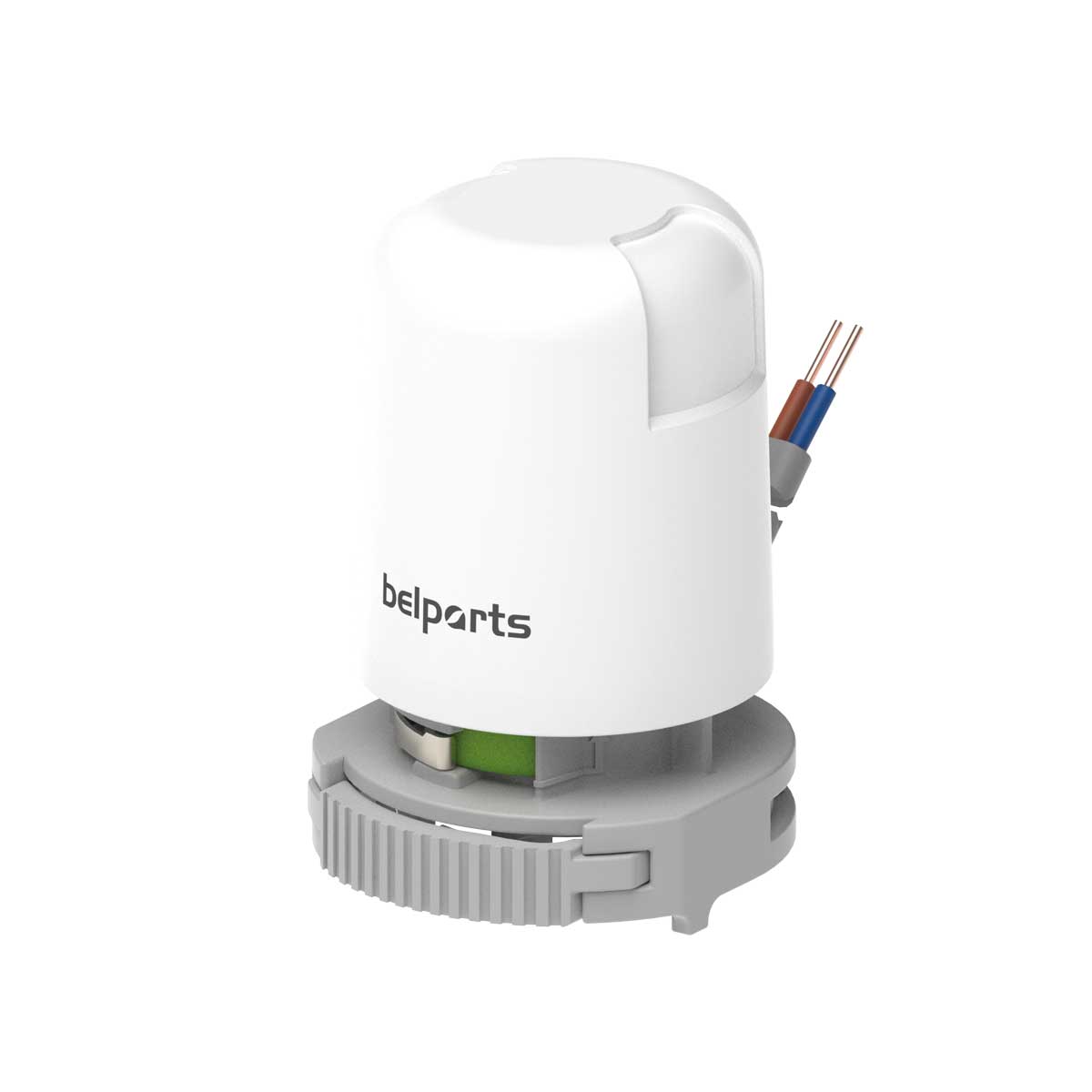

Type Uv Y Closing dimension [mm] Cable length [m]
BA4022.80.01 AC (DC) 24 V On/Off or PWM 10,2 1) 1
BA4022.80.02 AC (DC) 24 V On/Off or PWM 10,2 1) 2
BA4022.80.05 AC (DC) 24 V On/Off or PWM 10,2 1) 5



1)Alternative closing dimensions require the appropriate valve adapter: 8,2 mm with adapter type AF02 and 10,8 mm with adapter type AF10. Valve adapters must be ordered separately.

Downloads

TypeDocumentFile typeSize
DatasheetBA4022 / BA2022 - Thermal actuator - ENPDF1.1 MBView
CatalogCatalog 2026View

Compatible products

NV2D_A

0,23 - 2,95 m³/h
5 - 95 °C
NV2D_AM

NV2D_AM

1,52 m³/h
5 - 95 °C
NG2P

NG2P

0,2 - 4,5 m³/h
2 - 95 °C
NDV2D

NDV2D

- m³/h
2 - 100 °C
NPi2

NPi2

- m³/h
5 - 95 °C
NG3P

NG3P

1,0 - 4,5 m³/h
2 - 95 °C
NM3D

NM3D

2,5 - 6,4 m³/h
2 - 95 °C
NG4P15A

NG4P

0,63 - 4,5 m³/h
2 - 95 °C
