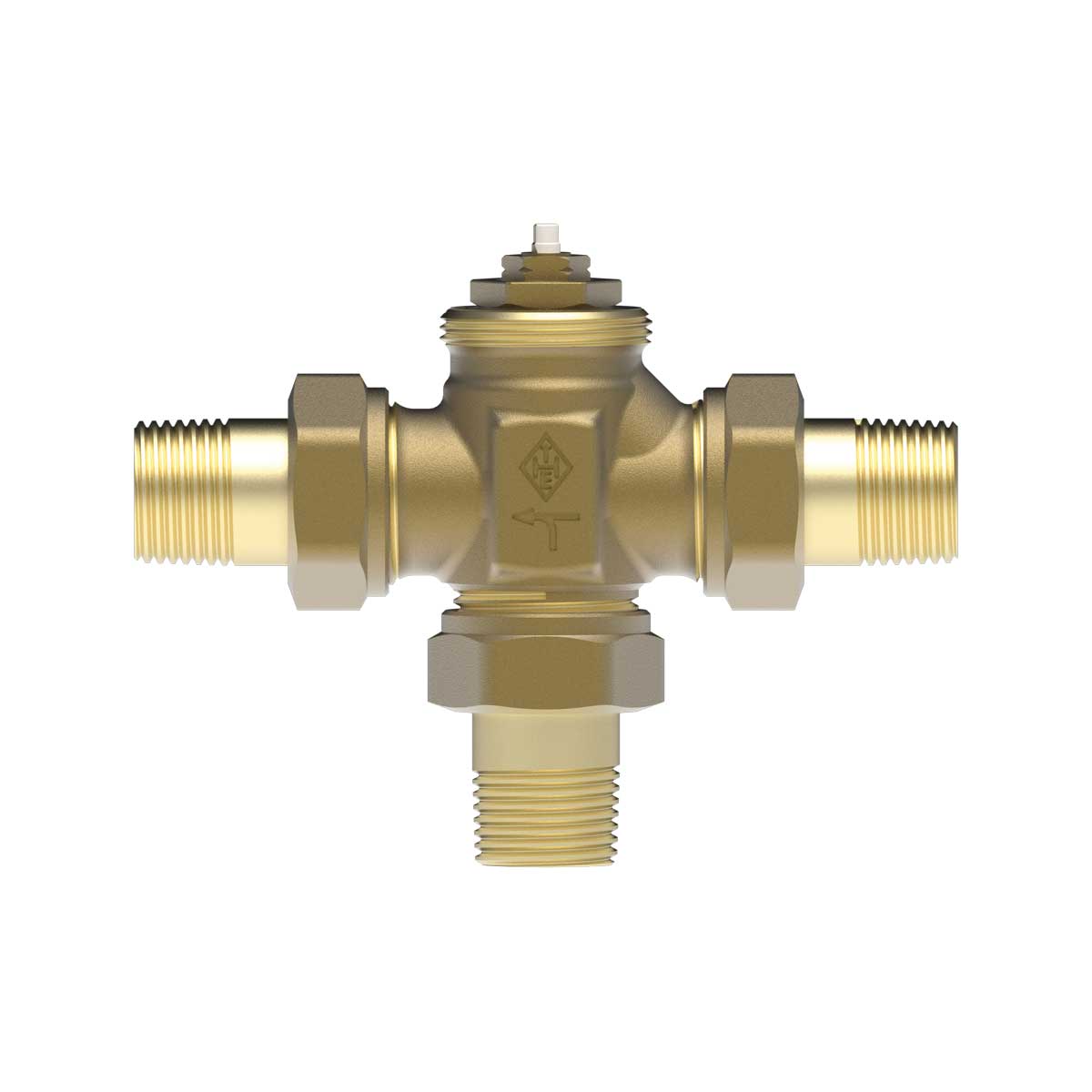

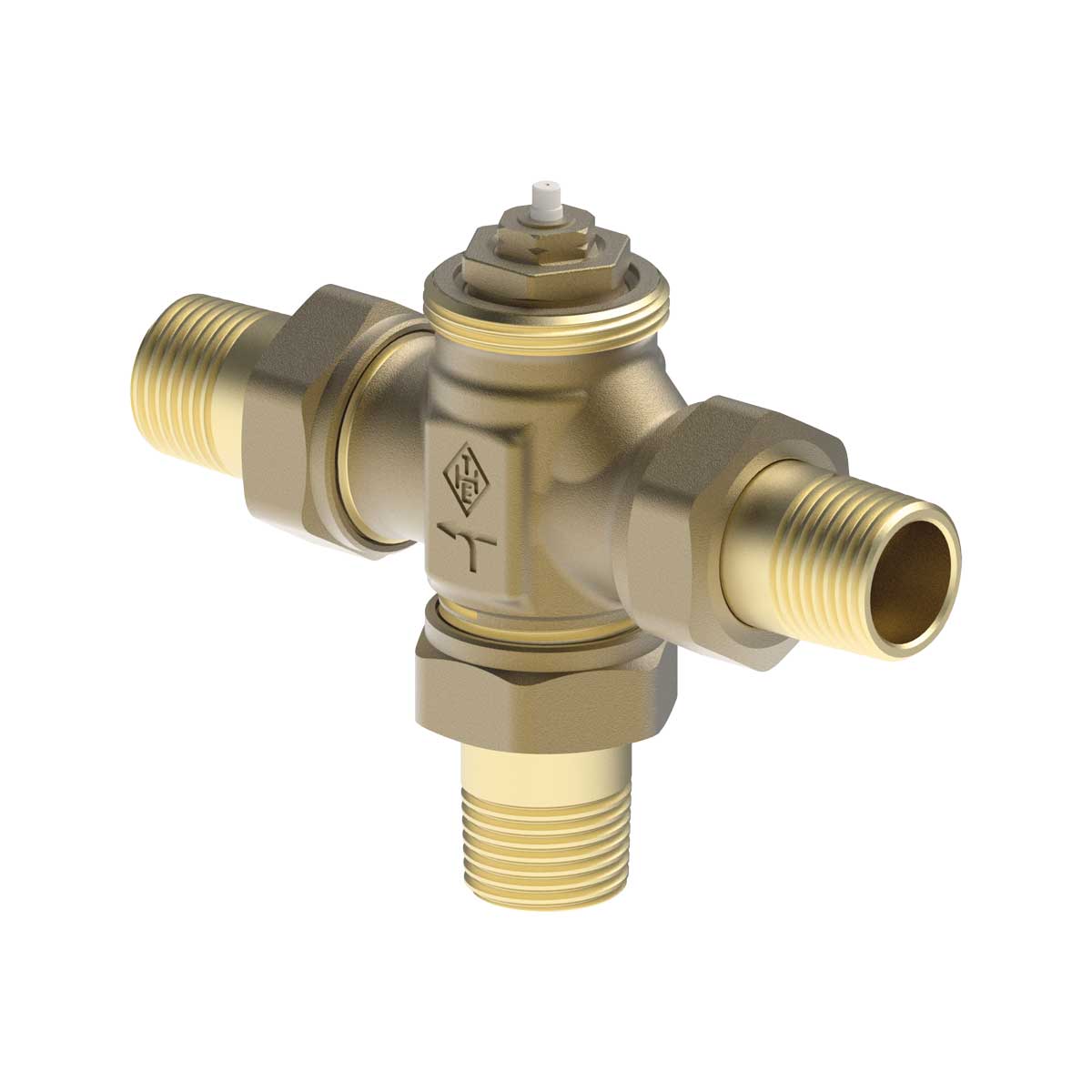

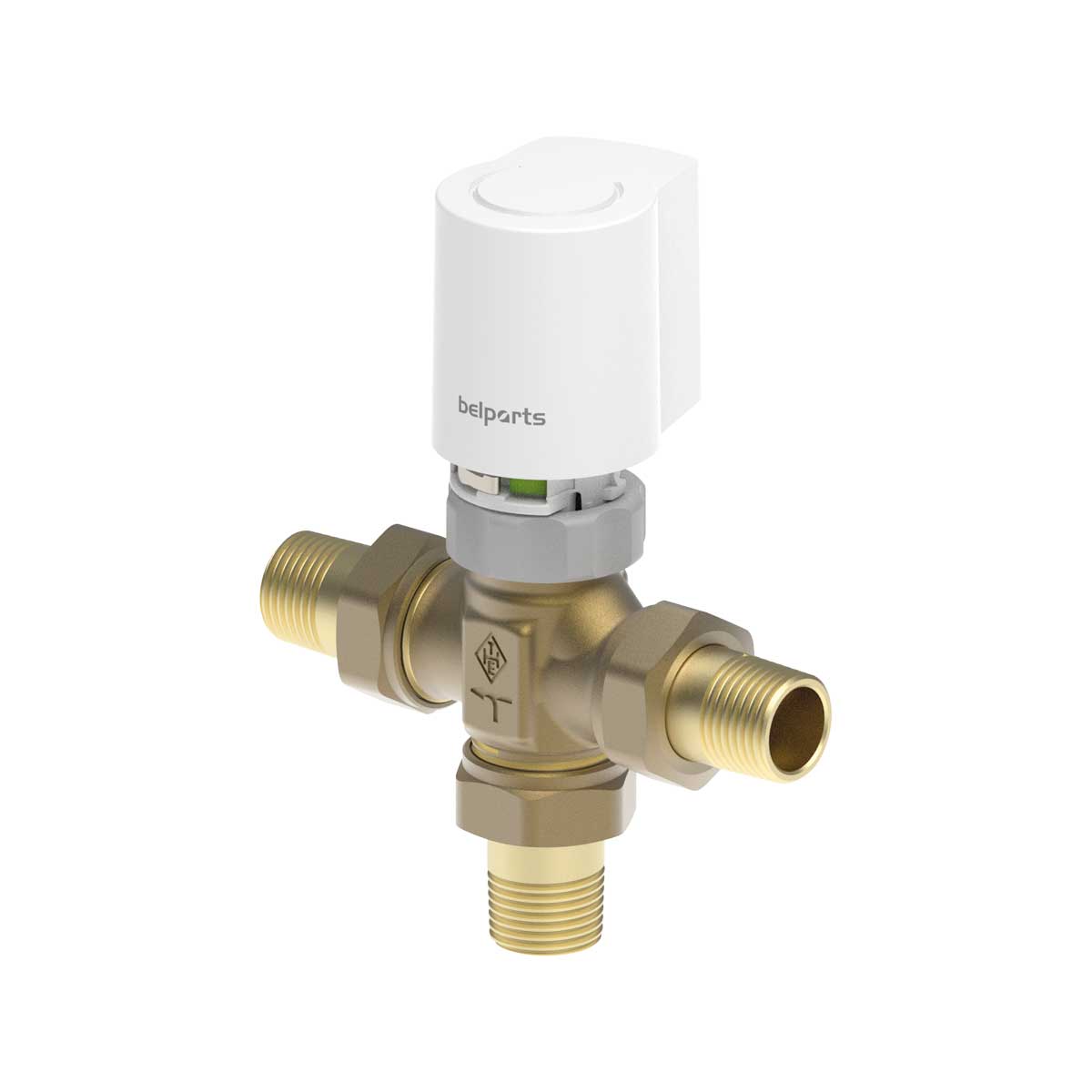

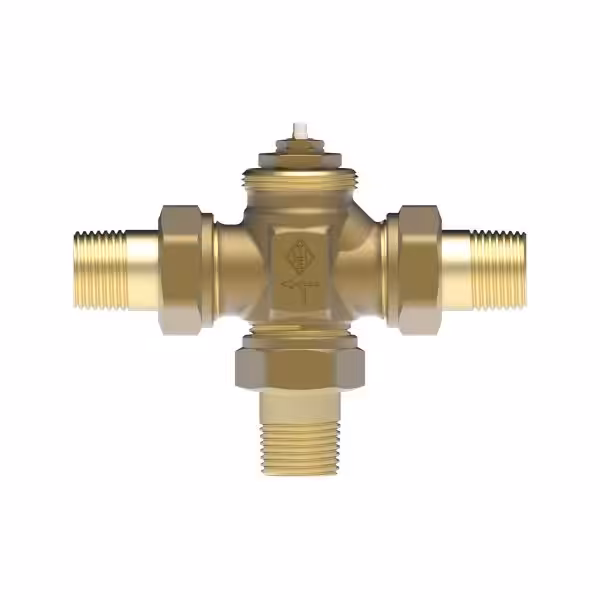

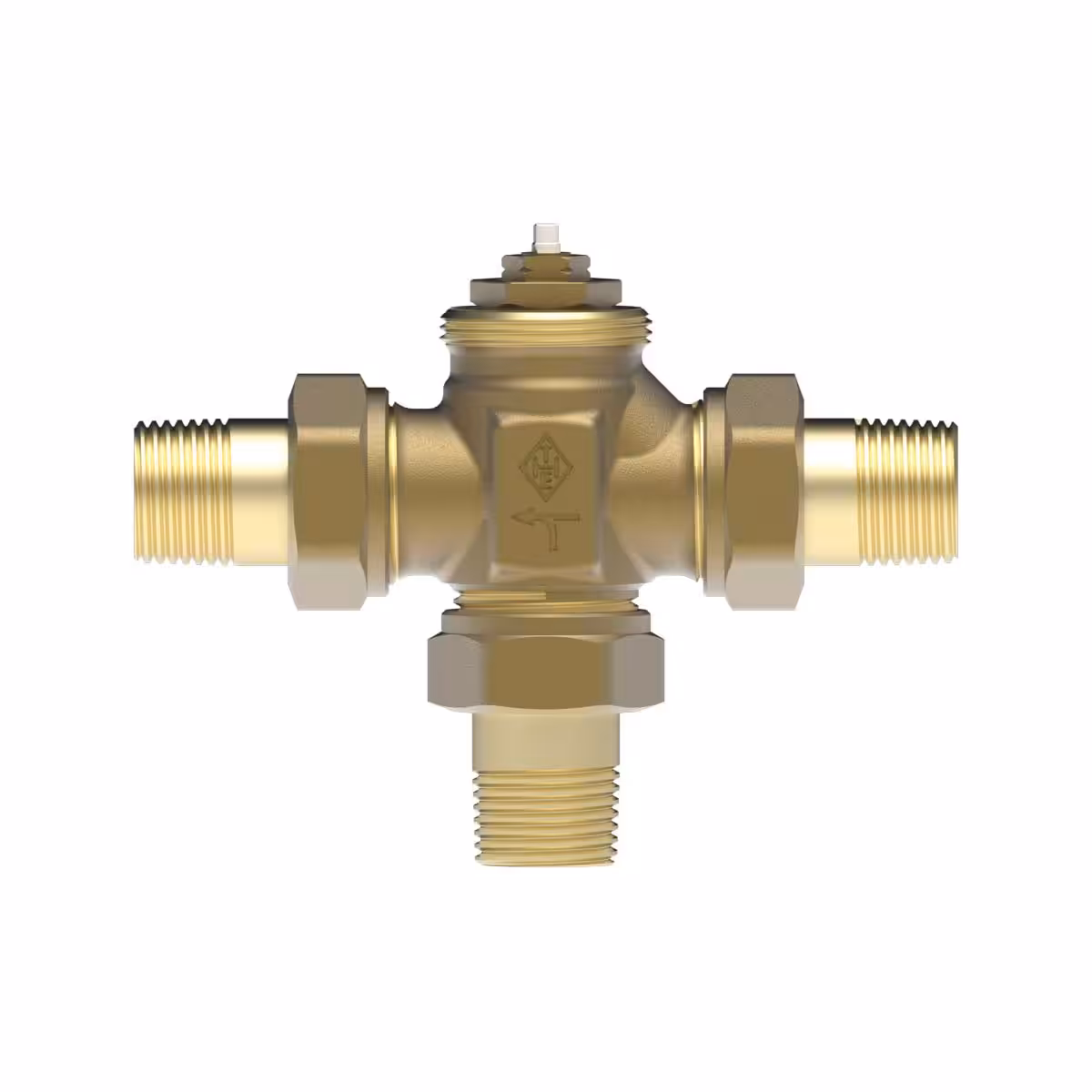

NM3D

3-port terminal control valves PN10

Product features

DN15, DN20, DN25 and DN32
Medium: water 2 – 95 °C (VDI 2035)
Kvs: fixed
Brass
Mixing
Threaded
Flat connections with tailpieces ISO 228-1

Types

Type DN [inch] Kvs [m³/h] In Out
NM3D15 ½″ 2,50 ISO 7-1 R½″ ISO 7-1 R½″
NM3D20 ¾″ 3,50 ISO 7-1 R¾″ ISO 7-1 R¾″
NM3D25 1″ 4,60 ISO 7-1 R1″ ISO 7-1 R1″
NM3D32 1¼″ 6,40 ISO 7-1 R1¼″ ISO 7-1 R1¼″



Delivery includes threaded tailpieces according to ISO 7-1. Soldering or welding connection parts are available on request.

Downloads

TypeDocumentFile typeSize
DatasheetNM3D - 3-weg naregelafsluiters PN10 - NLPDF638.9 KBView
DatasheetNM3D - Vanne de régulation terminale 3 voies PN10 - FRPDF640.8 KBView
CatalogCatalog 2026View
