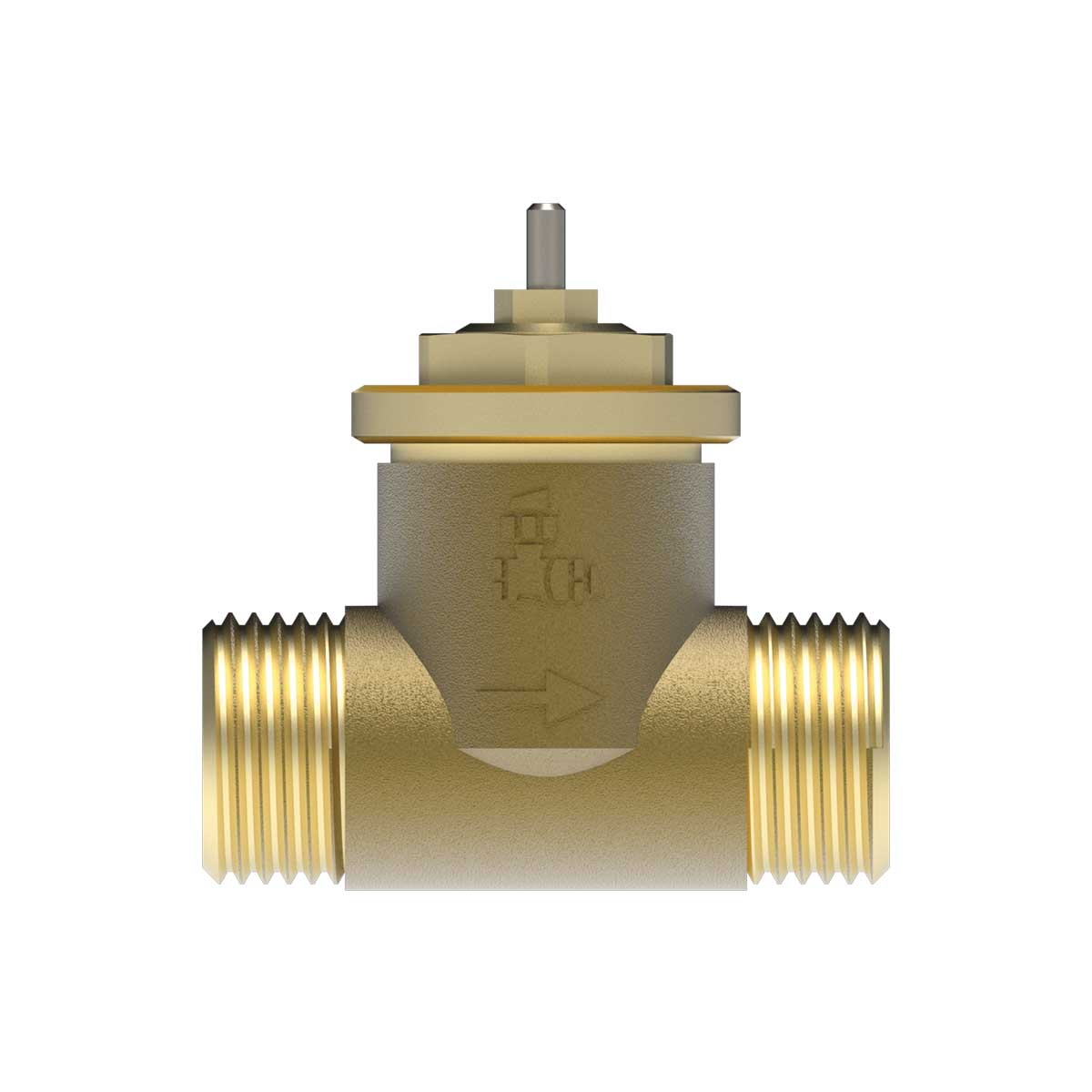

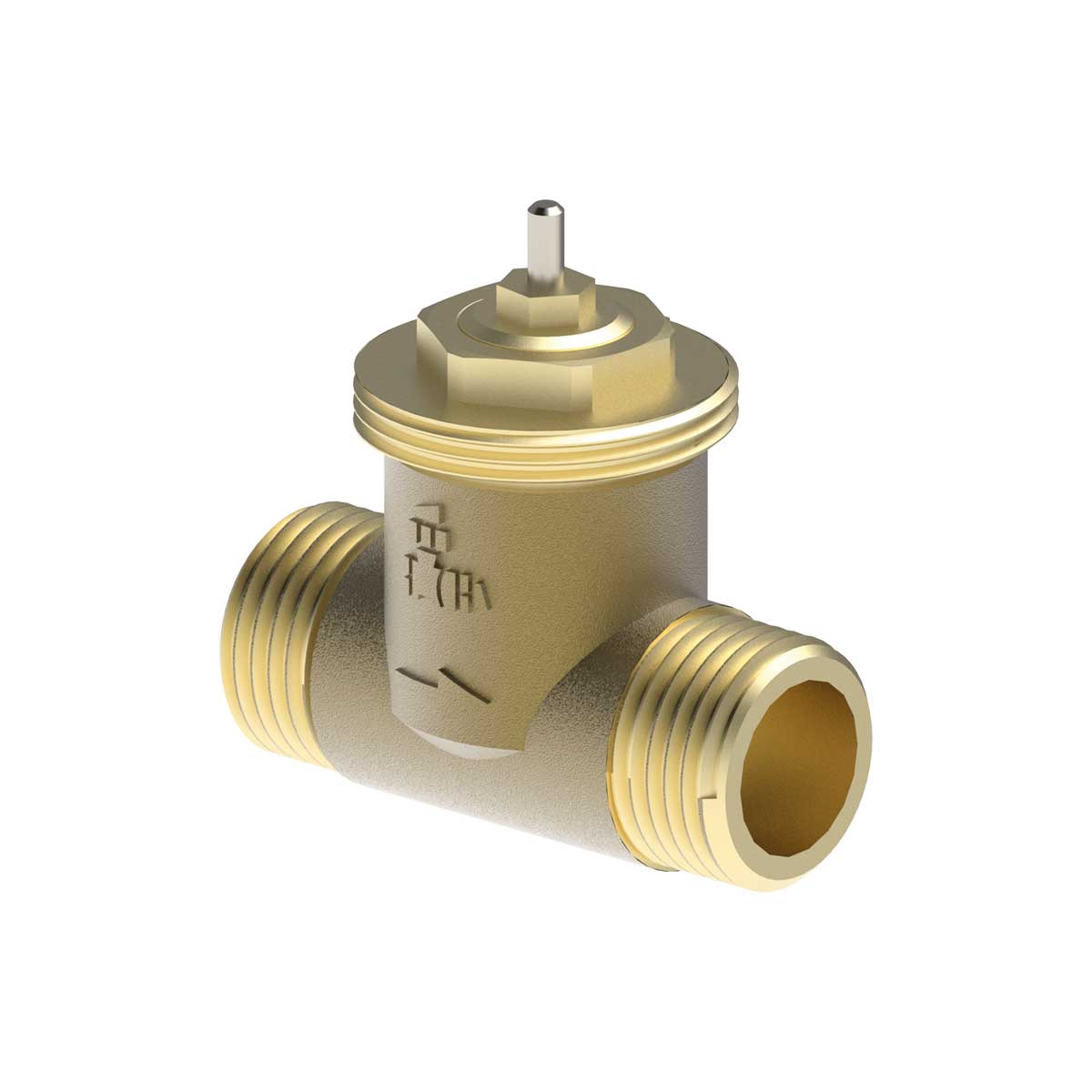

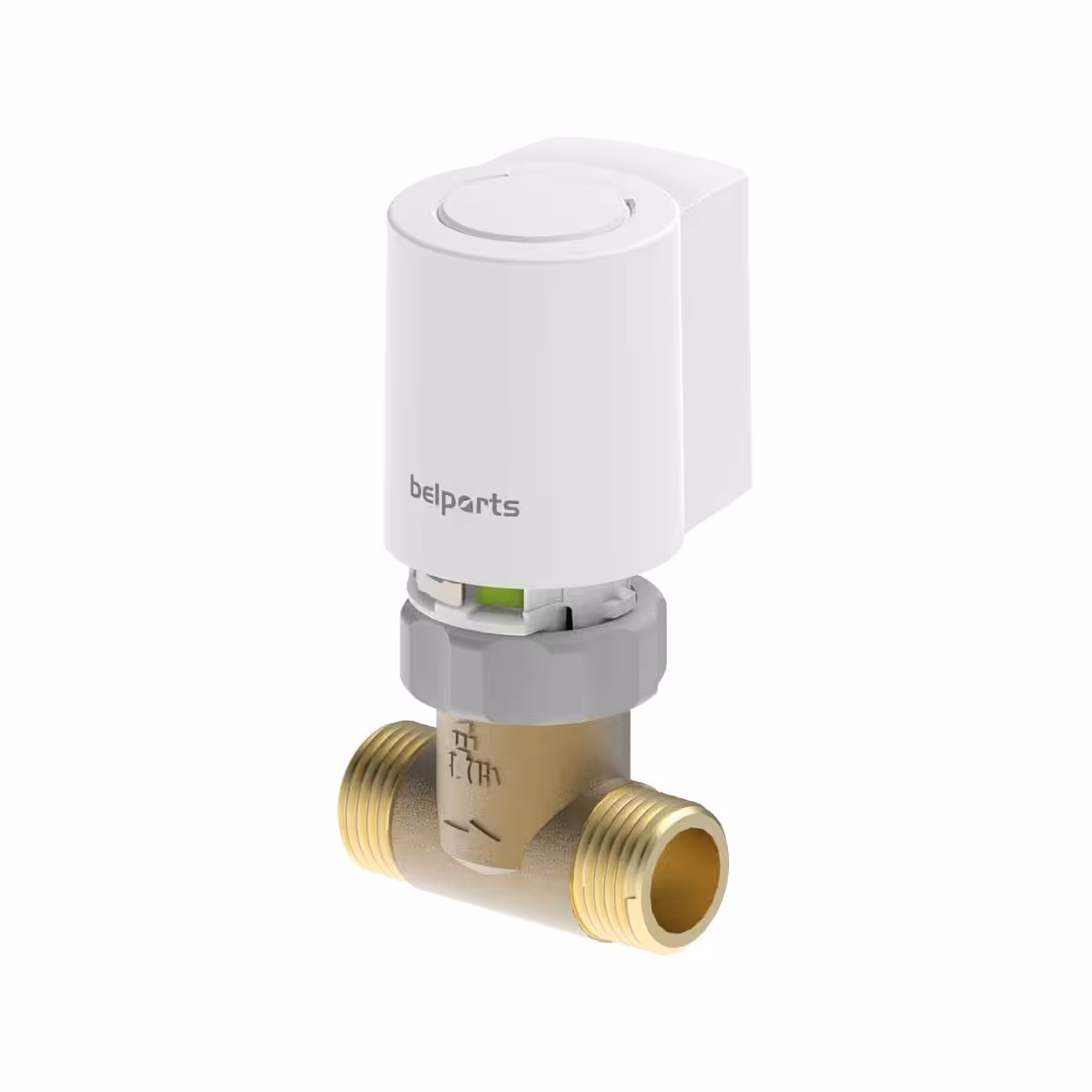

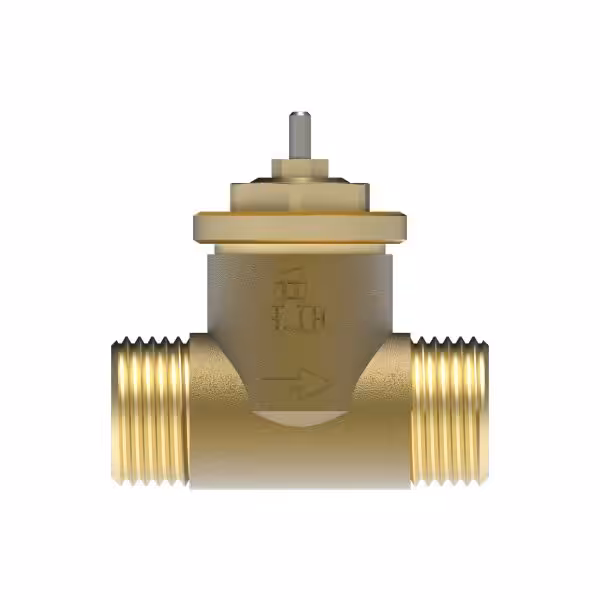

NG2P

2-port terminal control valves PN16

Product features

DN15, DN20 and DN25 (straight)
Medium: water 2 – 95 °C (VDI 2035)
Kvs: adjustable 1)
Brass
Threaded
Flat connections ISO 228-1

Types

Type DN [inch] Kvs [m³/h] In Out
NG2P15A ½″ 1,6 1) G½″ G½″
NG2P15B ½″ 1,0 1) G½″ G½″
NG2P15C ½″ 0,63 1) G½″ G½″
NG2P20A ¾″ 3,5 1) G¾″ G¾″
NG2P20B ¾″ 2,5 1) G¾″ G¾″
NG2P25A 1″ 4,5 1) G1″ G1″



1) Adjustable Kvs; see specifications

Specifications

Adjustable Kvs settings [m³/h]
NG2P15A: 0,2 – 0,63 – 1,0 – 1,3 – 1,5 – 1,6
NG2P15B: 0,2 – 0,3 – 0,4 – 0,63 – 0,85 – 1,0
NG2P15C: 0,2 – 0,4 – 0,5 – 0,55 – 0,6 – 0,63
NG2P20A: 1,0 – 1,9 – 2,5 – 2,9 – 3,1 – 3,5
NG2P20B: 0,3 – 1,1 – 1,9 – 2,2 – 2,4 – 2,5
NG2P25A: 1,0 – 1,9 – 3,0 – 3,9 – 4,2 – 4,5

Downloads

TypeDocumentFile typeSize
DatasheetNG2P - 2-port terminal control valves PN16 - ENPDF758.6 KBView
DatasheetNG2P - 2-weg naregelafsluiter PN16 - NLPDF742.0 KBView
DatasheetNG2P - Vanne de régulation terminale 2 voies PN16 - FRPDF761.4 KBView
CatalogCatalog 2026View
