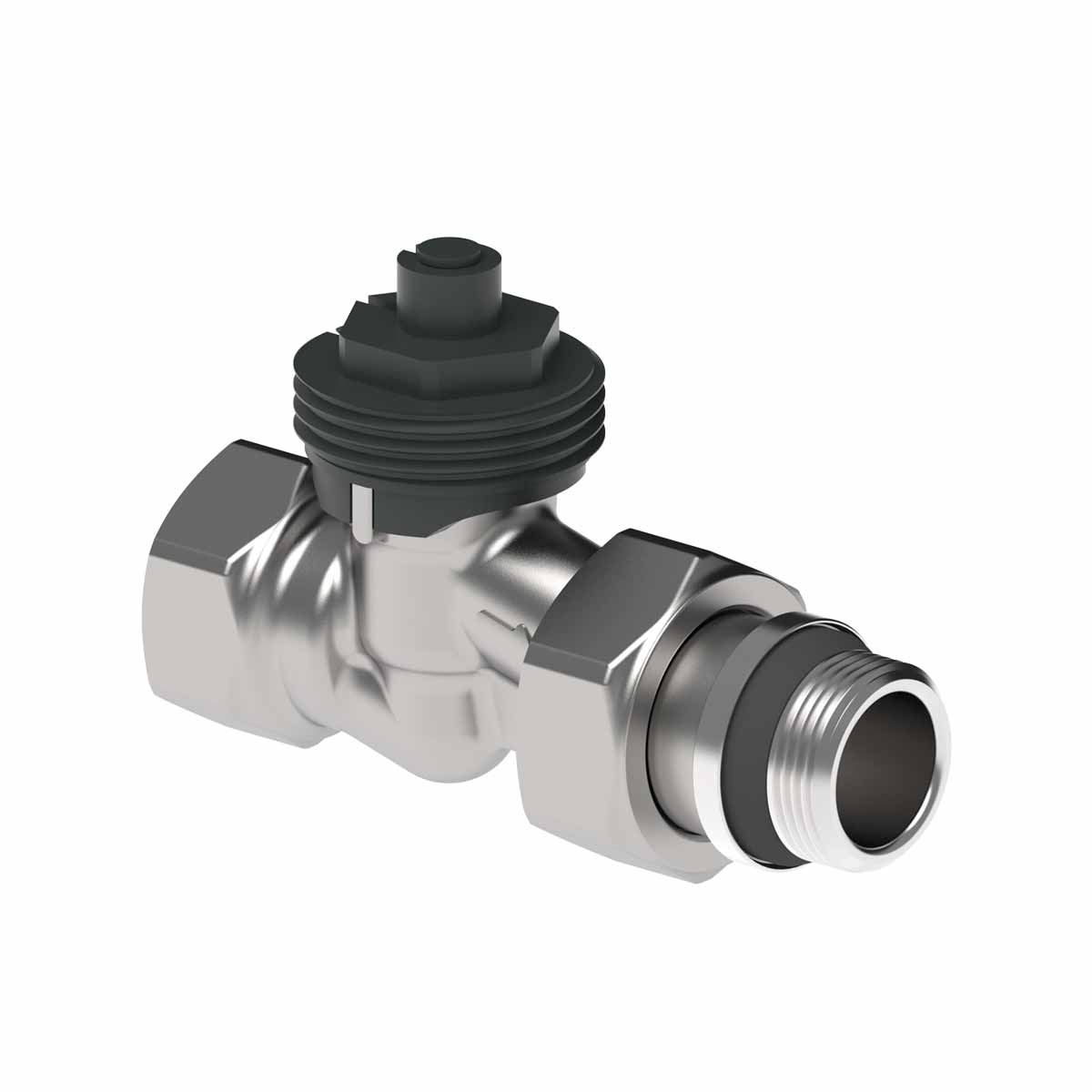

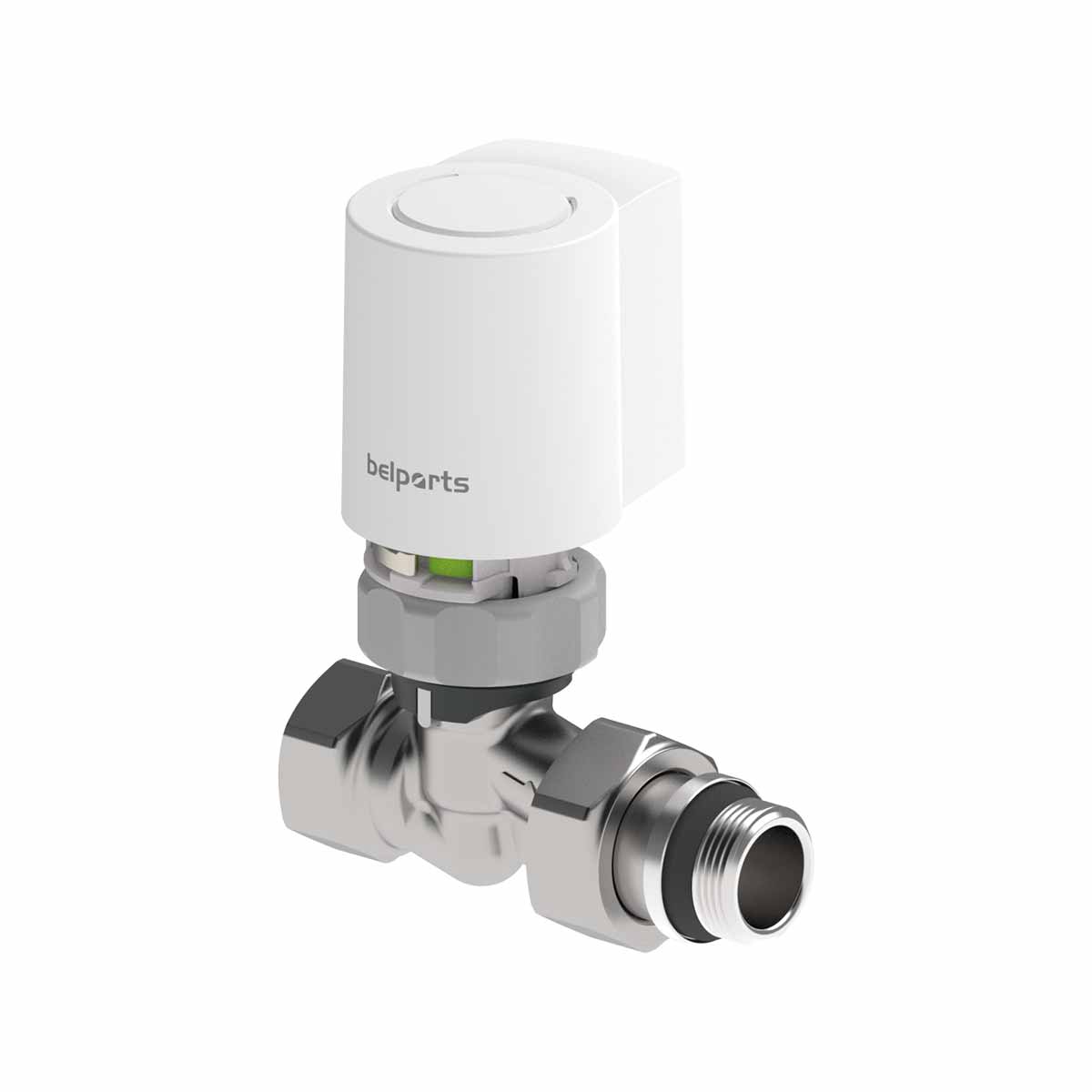

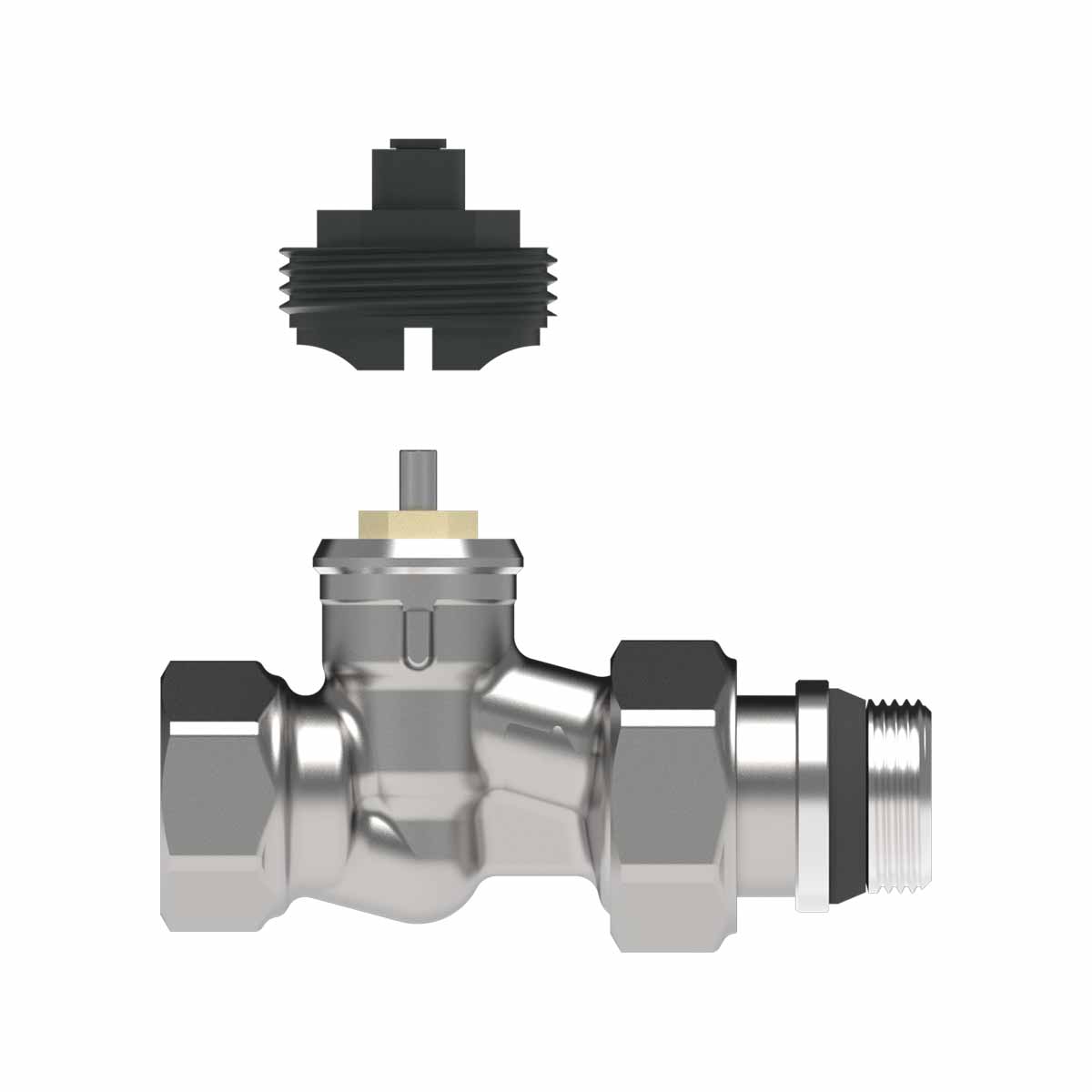

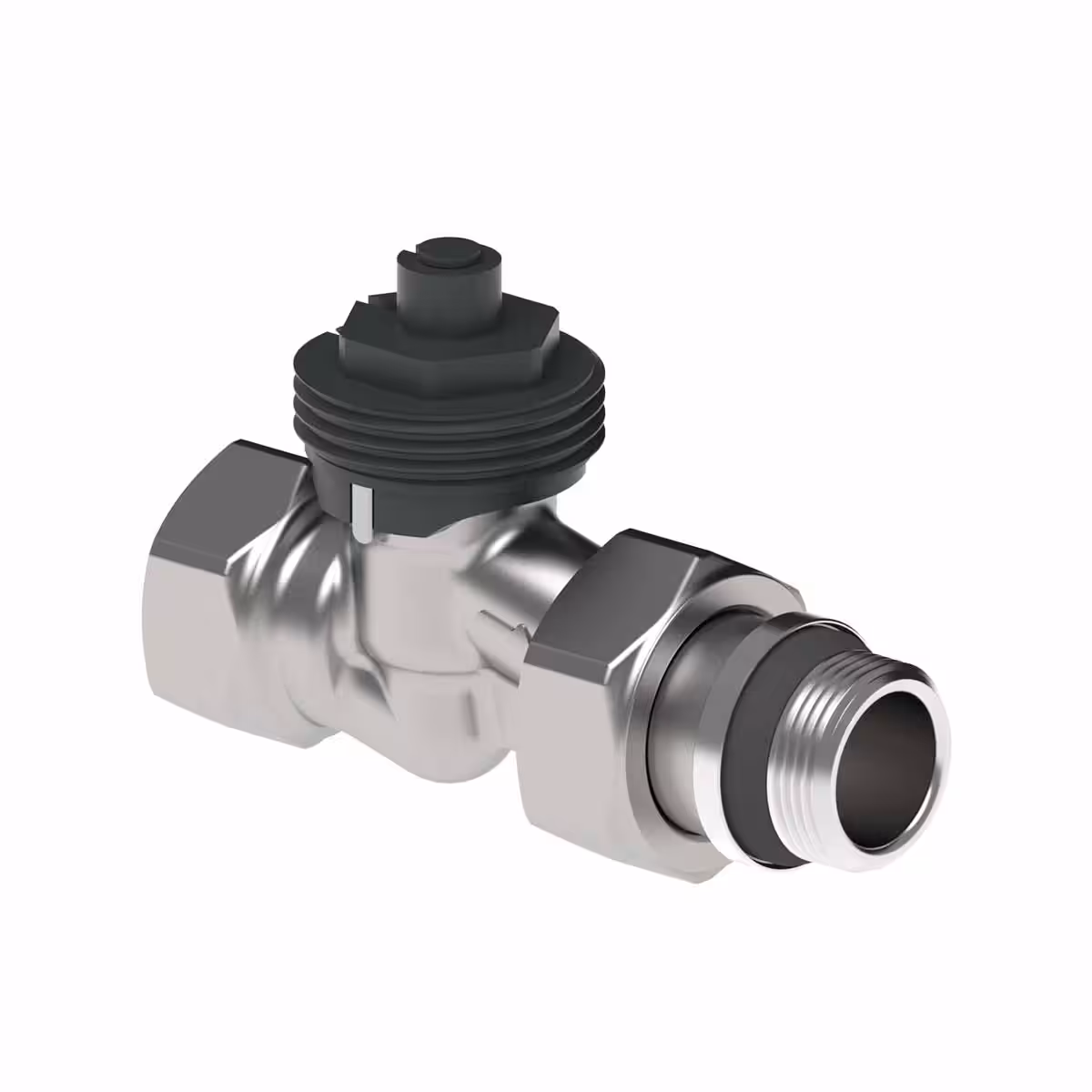

NV2D_A

2-port terminal control valves PN16

Product features

DN10, DN15, DN20, and DN25 (straight) 1)
Medium: water 5 – 95 °C (VDI 2035)
Kvs: fixed (_A, _AA) or adjustable (_AS)
Chrome-plated brass CW617N
Threaded
With self-sealing tailpiece or tailpiece with external thread 2)

Types

Type DN [inch] Kvs [m³/h] In Out
NV2D10A ⅜″ 1,26 ⅜″ F ⅜″ M
NV2D15A ½″ 1,26 ½″ F ½″ M
NV2D20A ¾″ 1,40 ¾″ F ¾″ M
NV2D25A 1″ 2,95 1″ F 1″ M
NV2D10AS ⅜″ 1,20 3) ⅜″ F ⅜″ M
NV2D15AS ½″ 1,20 3) ½″ F ½″ M
NV2D20AS ¾″ 1,20 3) ¾″ F ¾″ M
NV2D15AA ½″ 1,26 ½″ F ½″ M 2)
NV2D20AA ¾″ 1,40 ¾″ F ¾″ M 2)



1)Also available as angled version, type NVE2D.., on request
2)NV2D_A and NV2D_AS: self-sealing tailpiece | NV2D_AA: tailpiece with male thread
3)Adjustable Kvs, see specifications

Specifications

Medium
Water 5 – 95 °C (VDI 2035)

Kvs settings [m³/h]
NV2D_A: fixed
NV2D_AA: fixed
NV2D_AS: adjustable (0,23 – 0,44 – 0,50 – 0,59 – 0,64 – 0,76 – 0,91 – 1,02 – 1,2)

Tailpiece design
NV2D_A and NV2D_AS with self-sealing tailpiece

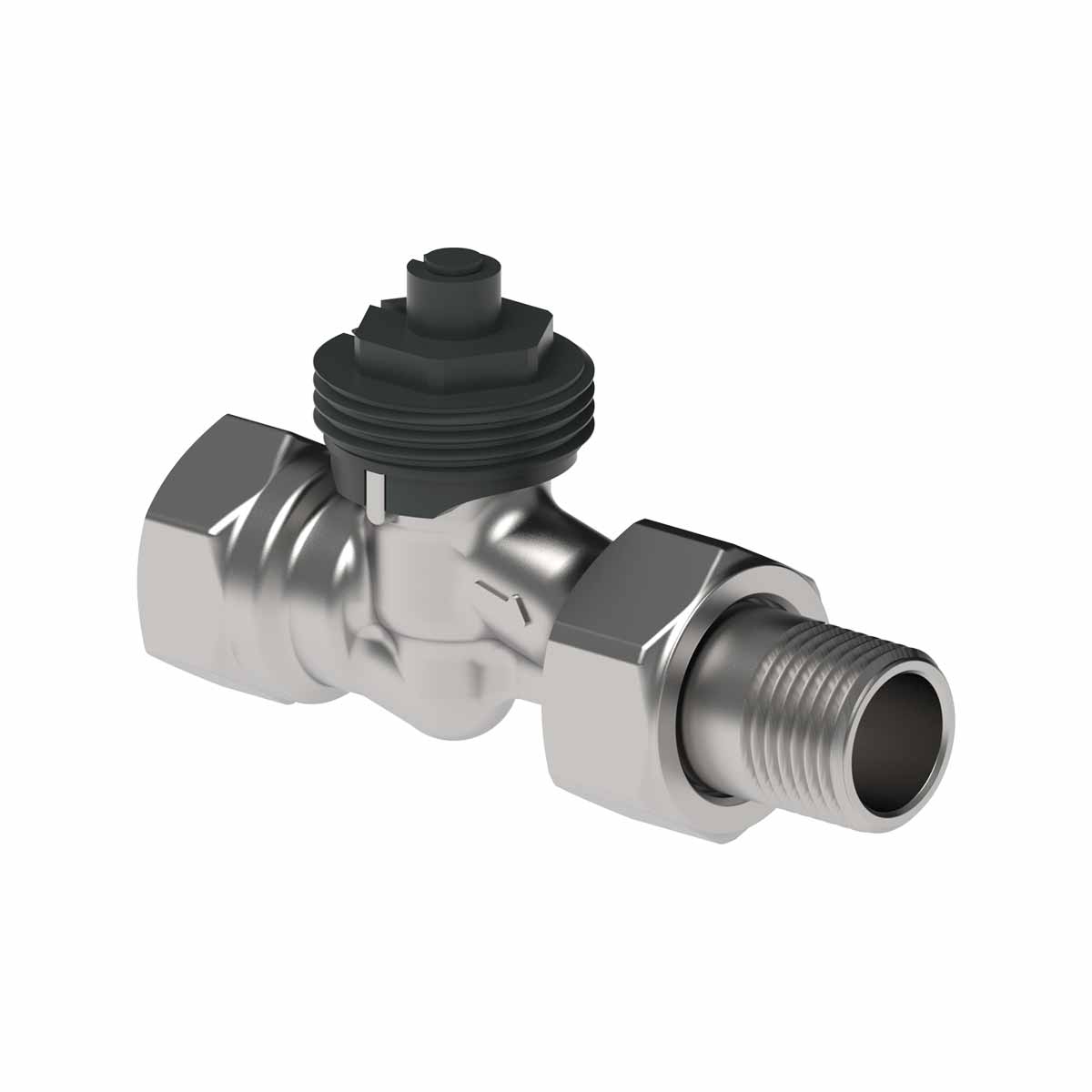

NV2D_AA tailpiece with external thread

Material
Chrome-plated brass CW617N

DN sizes
DN10, DN15, DN20, and DN25 (straight).
Angle model type NVE2D_ available on request

Nominal pressure class
PN16
