JSF

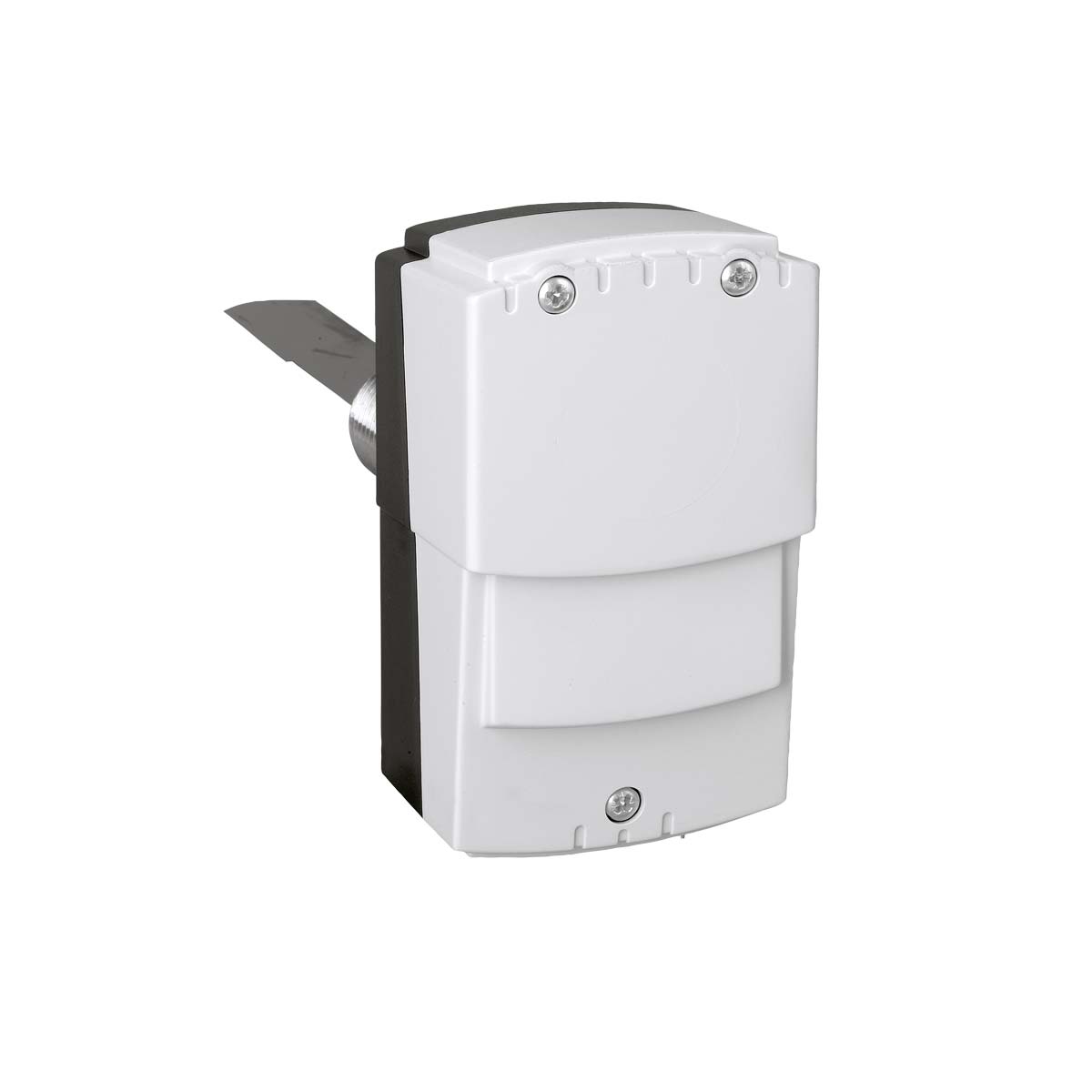

Pipe flow-switch for water

Product features

Pipe flow switch for water
With 1 potential free contact TÜV tested (acc. ‘Flow 100’ up to 6”)
Max. switching current: 15 (8) A 1)
Max. switching voltage: AC 230 Volt, 50Hz
Min. switching voltage: AC 4 Volt, 50Hz
IP65

Types

Type Max. medium T° [°C] Max. operating pressure [bar]
JSF.1E 120 8
JSF.2E 120 13



1) At AC 24 Volt: min. 150mA

Specifications

JSF.1E
Switching capacity: 15(8)A @ 24-250Vac
Precision: ±15% setpoint
Material body: brass
Maximum medium T°: +120°C
Pipe Ø: 1..8”
Max. operating pressure: 8bar

JSF.2E
Switching capacity: 15(8)A @ 24-250Vac
Precision: ±15% setpoint
Material body: V4A (stainless steel)
Maximum medium T°: +120°C
Pipe Ø: 1..8”
Max. operating pressure: 13bar

Downloads

TypeDocumentFile typeSize
DatasheetJS - Flow switch - FRPDF148.1 KBView
DatasheetJS - Flow switch - NLPDF147.0 KBView
CatalogCatalog 2026View

Related products

JSL

Duct flow-switch for air
Medium: Air

DT.G

Duct thermostats
Medium: Air

DT.T

Immersion thermostats
Medium: Water

ATR83

Clamp-on thermostats
Medium: Water

JET_R

1-stage room thermostats
Medium: Air, Water

JET

1-stage thermostats
Medium: Air, Water

DP.02/03/05/10

Pressostats for air
Medium: Air

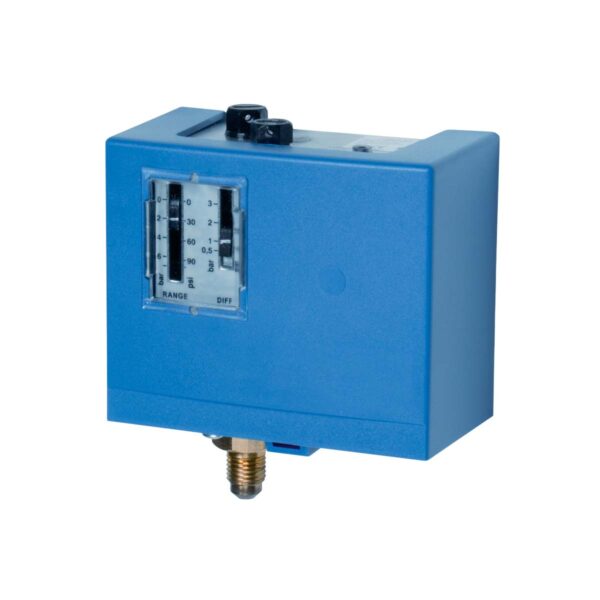

DP735.L
