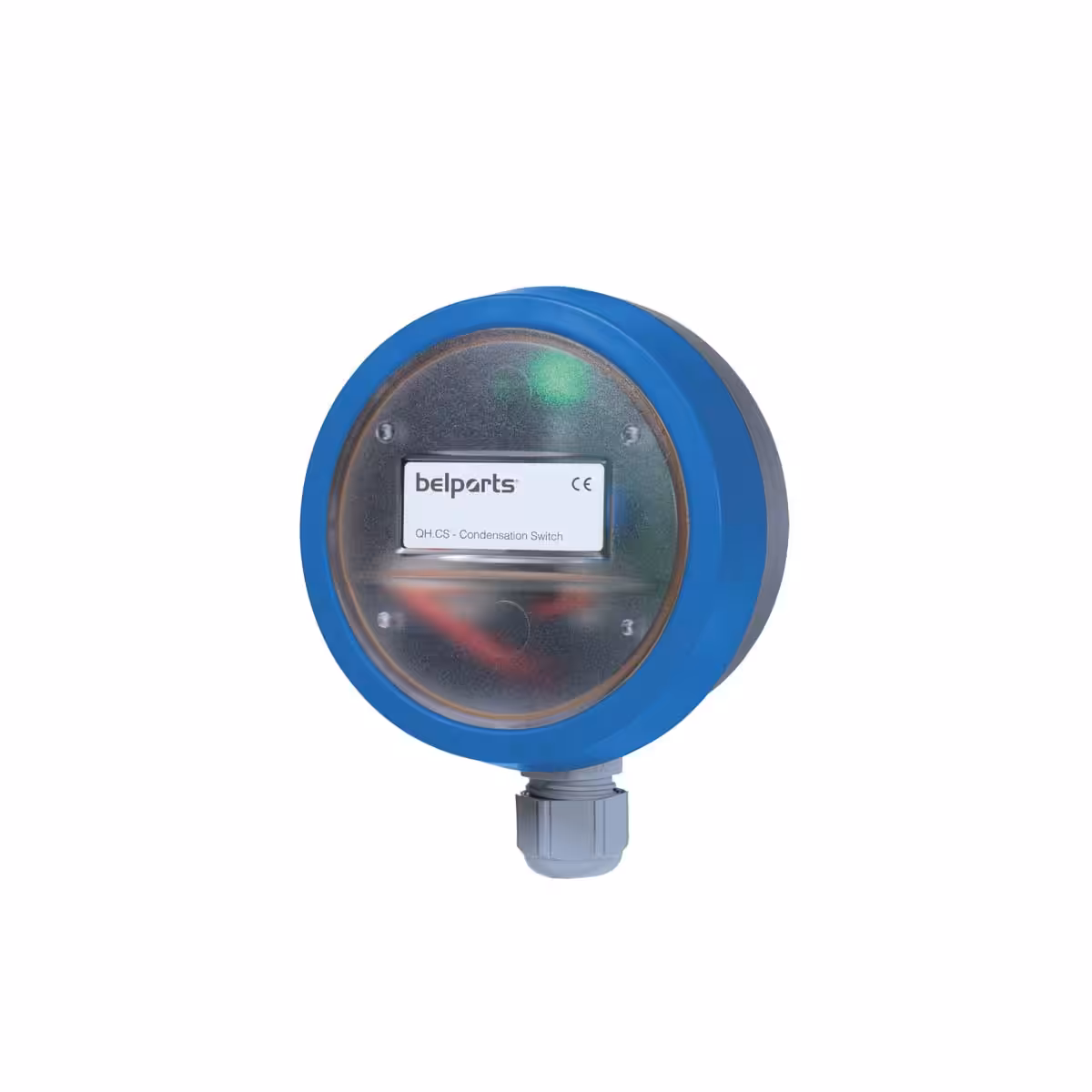

QH.CS

Condensation sensor

Product features

Condensation detection
Sensor strip integrated or external
Enclosure protection class: IP65
UV: AC/DC 18 – 30 Volt
Status indication via LED
Adjustable relay output

Types

Type Sensor Relay output
QH.CS Integrated condensation sensor NO/NC, 1 A at AC/DC 24 V

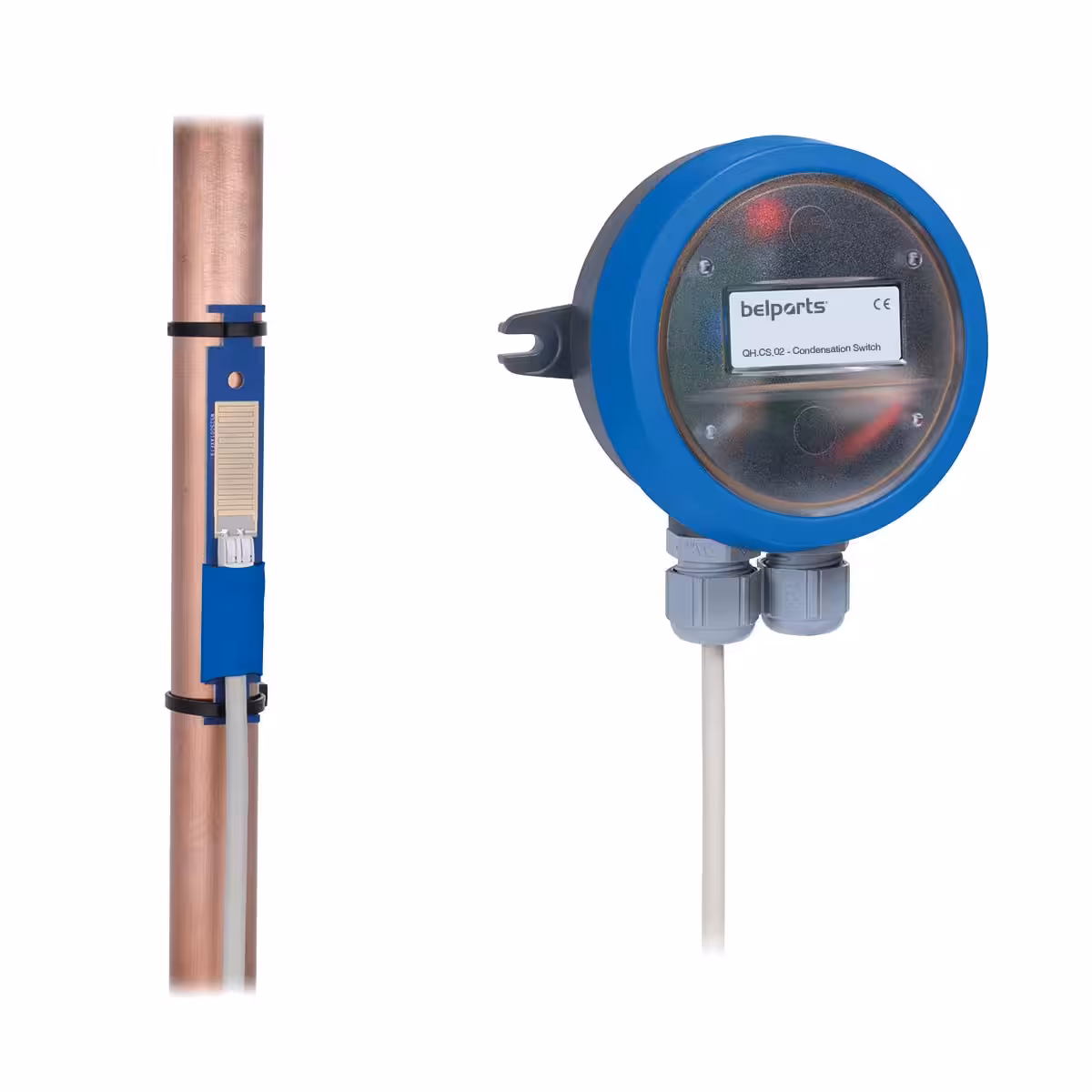

QH.CS.02 External condensation sensor with 2 m sensor cable NO/NC, 1 A at AC/DC 24 V

Specifications

Power supply
18 – 30 V (AC/DC)

Power consumption
42 mA (DC), 100 mA (AC)

Relay output (changeover contact)
1 A, 24 V (AC/DC)

Ambient temperature
0 – 50 ºC

Enclosure protection class
IP65

Weight
approx. 130 g (QH.CS)
approx. 220 g (QH.CS.02)

Sensor cable QH.CS.02
2 x 0,75 mm2, length 2 m

Cable entry
1 x M16 (QH.CS)
2 x M16 (QH.CS.02)

Housing
Housing: PBT, ~ RAL 7016
Cover: PC, transparent
Ring: PBT, ~ RAL 5015

Seal
EPDM

Sensor strip
FR4 with aluminium core

Downloads

TypeDocumentFile typeSize
DatasheetQH.CS(.02) - Condensation sensors - ENPDF1.8 MBView
LeafletQH.CS(.02) - Condensation sensors - ENPDF987.0 KBView
DatasheetQH.CS(.02) - Condensvoelers - NLPDF1.8 MBView
LeafletQH.CS(.02) - Condensvoelers - NLPDF989.5 KBView
DatasheetQH-CS(.02) - Capteurs de condensation - FRPDF1.8 MBView
LeafletQH-CS(.02) - Capteurs de condensation - FRPDF990.3 KBView
CatalogCatalog 2026View
