NC_

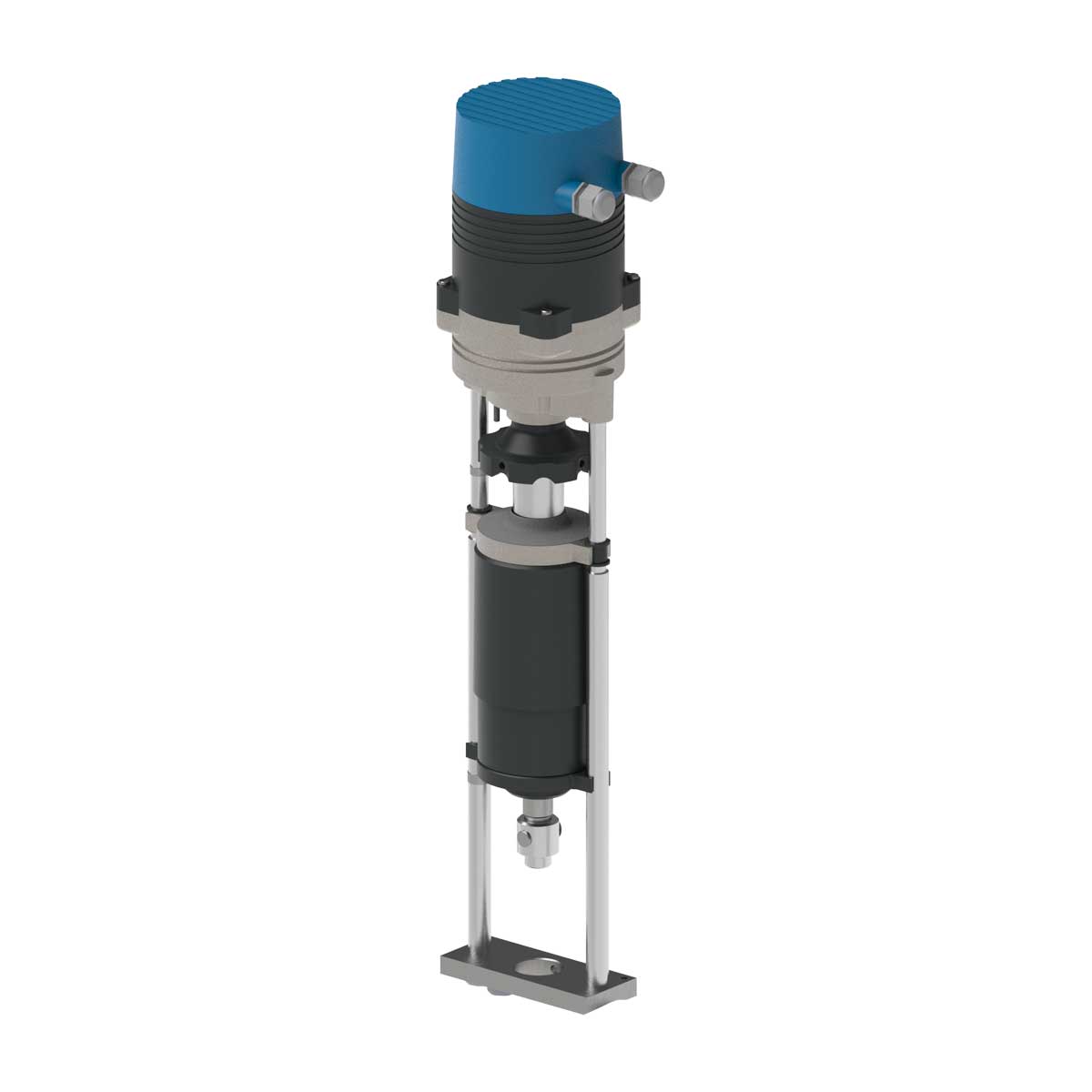

Linear actuator with fail safe function

Product features

UV: AC 24 Volt of AC 230 Volt, 50/60Hz
Y: 3-point (4-wire), 0 – 10 Vdc or 4 – 20 mA
Force: 1000 N or 2500 N
Running time adjustable: 4 or 6 s/mm 1)
Stroke max.: 20 or 40 mm
Automatic self-calibration
Overload protected
With manual override
IP54

Types

NC103_  |  1000 N
Type Uv Y Max. stroke [mm] Power [VA]
NC103U24 AC 230 V 3-point / 0 – 10 Vdc 20 25
NC103i24 AC 230 V 3-point / 4 – 20 mA 20 25
NC103U44 AC 24 V 3-point / 0 – 10 Vdc 20 25
NC103i44 AC 24 V 3-point / 4 – 20 mA 20 25
NC253_  |  2500 N
Type Uv Y Max. stroke [mm] Power [VA]
NC253U22 AC 230 V 3-point / 0 – 10 Vdc 40 50
NC253i22 AC 230 V 3-point / 4 – 20 mA 40 50
NC253U42 AC 24 V 3-point / 0 – 10 Vdc 40 50
NC253i42 AC 24 V 3-point / 4 – 20 mA 40 50



1)Standard factory setting for NC103_: 4 s/mm. Running time for NC253_ is fixed (3,5 s/mm)

Downloads

TypeDocumentFile typeSize
DatasheetNC103_ - Lineaire servomotoren met nulspanningsterugloop - 1000 N - NLPDF135.0 KBView
CatalogCatalog 2026View

Compatible products

CX2F

0,16 - 400 m³/h
-10 - 180 °C

CX3F

2,5 - 400 m³/h
-10 - 180 °C

CE2F

0,16 - 1600 m³/h
-10 - 180 °C

CE3F

2,5 - 1600 m³/h
-10 - 180 °C

Ci2F

2,5 - 1600 m³/h
-30 - 180 °C

Ci3F

2,5 - 1600 m³/h
-30 - 180 °C
